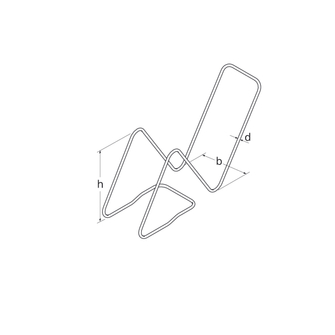

The Delta Anchor was developed to connect the facing and load bearing layers in concrete sandwich elements. As a bearing or retaining anchor, prevents the horizontal shifting of the facing layer with respect to the load-bearing layer. High quality stainless steel is used in its manufacture to meet the high demands of its application. The bearing anchors are generally used in combination with Anchor Pins.
Free advice - for planning and product application
Free dimensioning software
General technical approval (abZ)
Design / Engineering
Possible loads
As a vertical bearing anchor the Delta Anchor is to be arranged in general in pairs in different vertical axes.
Calculation
The admissible design resistance values are affected by numerous factors. These are listed in table form in the download area.
The admissible resistances are dimensioned solely via the dead weight of the facing layer. Loads due to wind pressure, wind suction and temperature are already accounted for in the design resistance.
To make it easier for planners to produce standard-compliant designs, PFEIFER provides the PFEIFER Suite free dimensioning software for engineers and planners to download.
