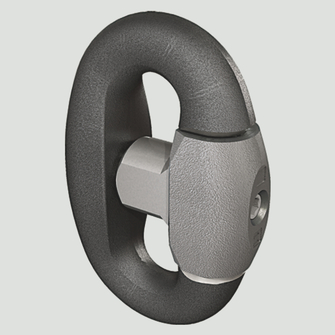

Quick connecting link Nemag 548

Quick connecting link Nemag 548
The quick conneting link 548 enables the quick and secure linkage of different end connections. Hardened surfaces ensure a long service life.
Advantages
  • Flexible – replaceable individual parts
  • Safe – protection against inadvertent opening of the connection
  • Uncomplicated – fast assembly using a wrench
technical infos

Material

  • Cast steel (cold resistant to –20 °C)

Nominal tensile strength

  • ≤ 2160 N/mm²

Application area

  • Round strand ropes

Indication

  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants
WLL WLL [kg]
Nominal size NG
Details
  • 3000
    4
    WLL WLL [kg] 3000
    Nominal size NG 4

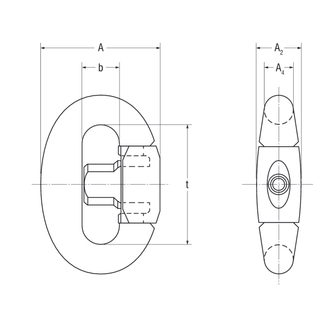

    Width total A [mm] 76
    Clearance b [mm] 24.5
    bracket Width A4 [mm] 19
    Lock Width A2 [mm] 30
    Length t [mm] 76
    Minimum breaking load MBL [kN] 245.17
    Weight m 0.9 [kg]
  • 4500
    5
    WLL WLL [kg] 4500
    Nominal size NG 5
    Width total A [mm] 84
    Clearance b [mm] 27
    bracket Width A4 [mm] 21
    Lock Width A2 [mm] 32.5
    Length t [mm] 84
    Minimum breaking load MBL [kN] 323.62
    Weight m 1.2 [kg]
  • 5000
    6
    WLL WLL [kg] 5000
    Nominal size NG 6
    Width total A [mm] 92
    Clearance b [mm] 29.5
    bracket Width A4 [mm] 23
    Lock Width A2 [mm] 35
    Length t [mm] 92
    Minimum breaking load MBL [kN] 367.75
    Weight m 1.5 [kg]
  • 7000
    7
    WLL WLL [kg] 7000
    Nominal size NG 7
    Width total A [mm] 100
    Clearance b [mm] 32
    bracket Width A4 [mm] 25
    Lock Width A2 [mm] 38
    Length t [mm] 100
    Minimum breaking load MBL [kN] 480.53
    Weight m 2 [kg]
  • 8000
    8
    WLL WLL [kg] 8000
    Nominal size NG 8
    Width total A [mm] 108
    Clearance b [mm] 34.5
    bracket Width A4 [mm] 27
    Lock Width A2 [mm] 40.5
    Length t [mm] 108
    Minimum breaking load MBL [kN] 529.56
    Weight m 2.5 [kg]
  • 9500
    9
    WLL WLL [kg] 9500
    Nominal size NG 9
    Width total A [mm] 116
    Clearance b [mm] 37
    bracket Width A4 [mm] 29
    Lock Width A2 [mm] 43.5
    Length t [mm] 116
    Minimum breaking load MBL [kN] 588.4
    Weight m 3.1 [kg]
  • 12000
    10
    WLL WLL [kg] 12000
    Nominal size NG 10
    Width total A [mm] 128
    Clearance b [mm] 40.5
    bracket Width A4 [mm] 32
    Lock Width A2 [mm] 48
    Length t [mm] 128
    Minimum breaking load MBL [kN] 735.5
    Weight m 4.4 [kg]
  • 15000
    11
    WLL WLL [kg] 15000
    Nominal size NG 11
    Width total A [mm] 140
    Clearance b [mm] 44
    bracket Width A4 [mm] 35
    Lock Width A2 [mm] 53
    Length t [mm] 140
    Minimum breaking load MBL [kN] 931.63
    Weight m 5.7 [kg]
  • 17000
    12
    WLL WLL [kg] 17000
    Nominal size NG 12
    Width total A [mm] 152
    Clearance b [mm] 47.5
    bracket Width A4 [mm] 38
    Lock Width A2 [mm] 57
    Length t [mm] 152
    Minimum breaking load MBL [kN] 1078.73
    Weight m 7.2 [kg]
  • 21000
    13
    WLL WLL [kg] 21000
    Nominal size NG 13
    Width total A [mm] 164
    Clearance b [mm] 51
    bracket Width A4 [mm] 41
    Lock Width A2 [mm] 61.5
    Length t [mm] 164
    Minimum breaking load MBL [kN] 1323.9
    Weight m 8.7 [kg]
  • 26000
    14
    WLL WLL [kg] 26000
    Nominal size NG 14
    Width total A [mm] 176
    Clearance b [mm] 54
    bracket Width A4 [mm] 44
    Lock Width A2 [mm] 66
    Length t [mm] 173
    Minimum breaking load MBL [kN] 1569.06
    Weight m 11 [kg]
  • 30000
    15
    WLL WLL [kg] 30000
    Nominal size NG 15
    Width total A [mm] 188
    Clearance b [mm] 58
    bracket Width A4 [mm] 47
    Lock Width A2 [mm] 70.5
    Length t [mm] 188
    Minimum breaking load MBL [kN] 1667.13
    Weight m 13.5 [kg]
  • 42500
    17
    WLL WLL [kg] 42500
    Nominal size NG 17
    Width total A [mm] 222
    Clearance b [mm] 68
    bracket Width A4 [mm] 56
    Lock Width A2 [mm] 84
    Length t [mm] 222
    Minimum breaking load MBL [kN] 2549.73
    Weight m 23 [kg]
WLL WLL [kg] 3000
Nominal size NG 4
  • Details
    WLL WLL [kg] 3000
    Nominal size NG 4
    Width total A [mm] 76
    Clearance b [mm] 24.5
    bracket Width A4 [mm] 19
    Lock Width A2 [mm] 30
    Length t [mm] 76
    Minimum breaking load MBL [kN] 245.17
    Weight m 0.9 [kg]
WLL WLL [kg] 4500
Nominal size NG 5
  • Details
    WLL WLL [kg] 4500
    Nominal size NG 5
    Width total A [mm] 84
    Clearance b [mm] 27
    bracket Width A4 [mm] 21
    Lock Width A2 [mm] 32.5
    Length t [mm] 84
    Minimum breaking load MBL [kN] 323.62
    Weight m 1.2 [kg]
WLL WLL [kg] 5000
Nominal size NG 6
  • Details
    WLL WLL [kg] 5000
    Nominal size NG 6
    Width total A [mm] 92
    Clearance b [mm] 29.5
    bracket Width A4 [mm] 23
    Lock Width A2 [mm] 35
    Length t [mm] 92
    Minimum breaking load MBL [kN] 367.75
    Weight m 1.5 [kg]
WLL WLL [kg] 7000
Nominal size NG 7
  • Details
    WLL WLL [kg] 7000
    Nominal size NG 7
    Width total A [mm] 100
    Clearance b [mm] 32
    bracket Width A4 [mm] 25
    Lock Width A2 [mm] 38
    Length t [mm] 100
    Minimum breaking load MBL [kN] 480.53
    Weight m 2 [kg]
WLL WLL [kg] 8000
Nominal size NG 8
  • Details
    WLL WLL [kg] 8000
    Nominal size NG 8
    Width total A [mm] 108
    Clearance b [mm] 34.5
    bracket Width A4 [mm] 27
    Lock Width A2 [mm] 40.5
    Length t [mm] 108
    Minimum breaking load MBL [kN] 529.56
    Weight m 2.5 [kg]
WLL WLL [kg] 9500
Nominal size NG 9
  • Details
    WLL WLL [kg] 9500
    Nominal size NG 9
    Width total A [mm] 116
    Clearance b [mm] 37
    bracket Width A4 [mm] 29
    Lock Width A2 [mm] 43.5
    Length t [mm] 116
    Minimum breaking load MBL [kN] 588.4
    Weight m 3.1 [kg]
WLL WLL [kg] 12000
Nominal size NG 10
  • Details
    WLL WLL [kg] 12000
    Nominal size NG 10
    Width total A [mm] 128
    Clearance b [mm] 40.5
    bracket Width A4 [mm] 32
    Lock Width A2 [mm] 48
    Length t [mm] 128
    Minimum breaking load MBL [kN] 735.5
    Weight m 4.4 [kg]
WLL WLL [kg] 15000
Nominal size NG 11
  • Details
    WLL WLL [kg] 15000
    Nominal size NG 11
    Width total A [mm] 140
    Clearance b [mm] 44
    bracket Width A4 [mm] 35
    Lock Width A2 [mm] 53
    Length t [mm] 140
    Minimum breaking load MBL [kN] 931.63
    Weight m 5.7 [kg]
WLL WLL [kg] 17000
Nominal size NG 12
  • Details
    WLL WLL [kg] 17000
    Nominal size NG 12
    Width total A [mm] 152
    Clearance b [mm] 47.5
    bracket Width A4 [mm] 38
    Lock Width A2 [mm] 57
    Length t [mm] 152
    Minimum breaking load MBL [kN] 1078.73
    Weight m 7.2 [kg]
WLL WLL [kg] 21000
Nominal size NG 13
  • Details
    WLL WLL [kg] 21000
    Nominal size NG 13
    Width total A [mm] 164
    Clearance b [mm] 51
    bracket Width A4 [mm] 41
    Lock Width A2 [mm] 61.5
    Length t [mm] 164
    Minimum breaking load MBL [kN] 1323.9
    Weight m 8.7 [kg]
WLL WLL [kg] 26000
Nominal size NG 14
  • Details
    WLL WLL [kg] 26000
    Nominal size NG 14
    Width total A [mm] 176
    Clearance b [mm] 54
    bracket Width A4 [mm] 44
    Lock Width A2 [mm] 66
    Length t [mm] 173
    Minimum breaking load MBL [kN] 1569.06
    Weight m 11 [kg]
WLL WLL [kg] 30000
Nominal size NG 15
  • Details
    WLL WLL [kg] 30000
    Nominal size NG 15
    Width total A [mm] 188
    Clearance b [mm] 58
    bracket Width A4 [mm] 47
    Lock Width A2 [mm] 70.5
    Length t [mm] 188
    Minimum breaking load MBL [kN] 1667.13
    Weight m 13.5 [kg]
WLL WLL [kg] 42500
Nominal size NG 17
  • Details
    WLL WLL [kg] 42500
    Nominal size NG 17
    Width total A [mm] 222
    Clearance b [mm] 68
    bracket Width A4 [mm] 56
    Lock Width A2 [mm] 84
    Length t [mm] 222
    Minimum breaking load MBL [kN] 2549.73
    Weight m 23 [kg]
