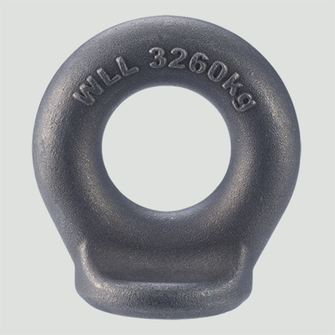

Pad eye PSH 10B

Pad eye PSH 10B
technical infos

Material

  • Cast steel

Surface

  • shot blasted

Application area

  • Round strand ropes
Product variants
WLL WLL [kg]
Length total L [mm]
Nominal size NG
Reference no.

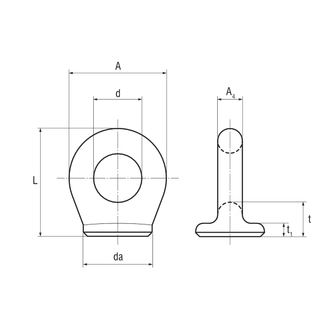

Details
  • 290
    20.5
    0
    326667
    Einziehöse NG0 bk 16,00mm MBL8,8kN WLL290kg
    Reference no. 326667
    WLL WLL [kg] 290
    Length total L [mm] 20.5
    Nominal size NG 0
    Rope diameter range from dmin [mm] 16
    Width total A [mm] 16
    bracket Width A4 [mm] 4.75
    Socket size t1 [mm] 4
    Diameter external da [mm] 16
    Diameter drilled hole d [mm] 6.5
    Length t [mm] 9.25
    Minimum breaking load MBL [kN] 8.8
    Weight approx. [kg] 0.01
  • 540
    31
    1
    326668
    Einziehöse NG1 bk 22,00mm MBL16,7kN WLL540kg
    Reference no. 326668
    WLL WLL [kg] 540
    Length total L [mm] 31
    Nominal size NG 1
    Rope diameter range from dmin [mm] 22
    Width total A [mm] 22.5
    bracket Width A4 [mm] 6.4
    Socket size t1 [mm] 5
    Diameter external da [mm] 22.5
    Diameter drilled hole d [mm] 9.7
    Length t [mm] 14.9
    Minimum breaking load MBL [kN] 16.7
    Weight approx. [kg] 0.03
  • 540
    35.5
    1.5
    326669
    Einziehöse NG1,5 bk 25,00mm MBL16,7kN WLL540kg
    Reference no. 326669
    WLL WLL [kg] 540
    Length total L [mm] 35.5
    Nominal size NG 1.5
    Rope diameter range from dmin [mm] 25
    Width total A [mm] 29
    bracket Width A4 [mm] 6.5
    Socket size t1 [mm] 6
    Diameter external da [mm] 25.5
    Diameter drilled hole d [mm] 16
    Length t [mm] 13
    Minimum breaking load MBL [kN] 16.7
    Weight approx. [kg] 0.04
  • 1180
    43.5
    2
    326670
    Einziehöse NG2 bk 28,00mm MBL36,2kN WLL1180kg
    Reference no. 326670
    WLL WLL [kg] 1180
    Length total L [mm] 43.5
    Nominal size NG 2
    Rope diameter range from dmin [mm] 28
    Width total A [mm] 38
    bracket Width A4 [mm] 9.5
    Socket size t1 [mm] 7
    Diameter external da [mm] 27
    Diameter drilled hole d [mm] 19
    Length t [mm] 15
    Minimum breaking load MBL [kN] 36.2
    Weight approx. [kg] 0.08
  • 2350
    62
    4
    326671
    Einziehöse NG4 bk 36,00mm MBL72,8kN WLL2350kg
    Reference no. 326671
    WLL WLL [kg] 2350
    Length total L [mm] 62
    Nominal size NG 4
    Rope diameter range from dmin [mm] 36
    Width total A [mm] 54
    bracket Width A4 [mm] 14.25
    Socket size t1 [mm] 8
    Diameter external da [mm] 36.5
    Diameter drilled hole d [mm] 25.5
    Length t [mm] 22.25
    Minimum breaking load MBL [kN] 72.8
    Weight approx. [kg] 0.225
  • 3260
    73
    5
    326672
    Einziehöse NG5 bk 46,00mm MBL100,8kN WLL3260kg
    Reference no. 326672
    WLL WLL [kg] 3260
    Length total L [mm] 73
    Nominal size NG 5
    Rope diameter range from dmin [mm] 46
    Width total A [mm] 67
    bracket Width A4 [mm] 17.5
    Socket size t1 [mm] 9.5
    Diameter external da [mm] 44.5
    Diameter drilled hole d [mm] 32
    Length t [mm] 23.5
    Minimum breaking load MBL [kN] 100.8
    Weight approx. [kg] 0.39
WLL WLL [kg] 290
Length total L [mm] 20.5
Nominal size NG 0
Reference no. 326667
  • Details
    Einziehöse NG0 bk 16,00mm MBL8,8kN WLL290kg
    Reference no. 326667
    WLL WLL [kg] 290
    Length total L [mm] 20.5
    Nominal size NG 0
    Rope diameter range from dmin [mm] 16
    Width total A [mm] 16
    bracket Width A4 [mm] 4.75
    Socket size t1 [mm] 4
    Diameter external da [mm] 16
    Diameter drilled hole d [mm] 6.5
    Length t [mm] 9.25
    Minimum breaking load MBL [kN] 8.8
    Weight approx. [kg] 0.01
WLL WLL [kg] 540
Length total L [mm] 31
Nominal size NG 1
Reference no. 326668
  • Details
    Einziehöse NG1 bk 22,00mm MBL16,7kN WLL540kg
    Reference no. 326668
    WLL WLL [kg] 540
    Length total L [mm] 31
    Nominal size NG 1
    Rope diameter range from dmin [mm] 22
    Width total A [mm] 22.5
    bracket Width A4 [mm] 6.4
    Socket size t1 [mm] 5
    Diameter external da [mm] 22.5
    Diameter drilled hole d [mm] 9.7
    Length t [mm] 14.9
    Minimum breaking load MBL [kN] 16.7
    Weight approx. [kg] 0.03
WLL WLL [kg] 540
Length total L [mm] 35.5
Nominal size NG 1.5
Reference no. 326669
  • Details
    Einziehöse NG1,5 bk 25,00mm MBL16,7kN WLL540kg
    Reference no. 326669
    WLL WLL [kg] 540
    Length total L [mm] 35.5
    Nominal size NG 1.5
    Rope diameter range from dmin [mm] 25
    Width total A [mm] 29
    bracket Width A4 [mm] 6.5
    Socket size t1 [mm] 6
    Diameter external da [mm] 25.5
    Diameter drilled hole d [mm] 16
    Length t [mm] 13
    Minimum breaking load MBL [kN] 16.7
    Weight approx. [kg] 0.04
WLL WLL [kg] 1180
Length total L [mm] 43.5
Nominal size NG 2
Reference no. 326670
  • Details
    Einziehöse NG2 bk 28,00mm MBL36,2kN WLL1180kg
    Reference no. 326670
    WLL WLL [kg] 1180
    Length total L [mm] 43.5
    Nominal size NG 2
    Rope diameter range from dmin [mm] 28
    Width total A [mm] 38
    bracket Width A4 [mm] 9.5
    Socket size t1 [mm] 7
    Diameter external da [mm] 27
    Diameter drilled hole d [mm] 19
    Length t [mm] 15
    Minimum breaking load MBL [kN] 36.2
    Weight approx. [kg] 0.08
WLL WLL [kg] 2350
Length total L [mm] 62
Nominal size NG 4
Reference no. 326671
  • Details
    Einziehöse NG4 bk 36,00mm MBL72,8kN WLL2350kg
    Reference no. 326671
    WLL WLL [kg] 2350
    Length total L [mm] 62
    Nominal size NG 4
    Rope diameter range from dmin [mm] 36
    Width total A [mm] 54
    bracket Width A4 [mm] 14.25
    Socket size t1 [mm] 8
    Diameter external da [mm] 36.5
    Diameter drilled hole d [mm] 25.5
    Length t [mm] 22.25
    Minimum breaking load MBL [kN] 72.8
    Weight approx. [kg] 0.225
WLL WLL [kg] 3260
Length total L [mm] 73
Nominal size NG 5
Reference no. 326672
  • Details
    Einziehöse NG5 bk 46,00mm MBL100,8kN WLL3260kg
    Reference no. 326672
    WLL WLL [kg] 3260
    Length total L [mm] 73
    Nominal size NG 5
    Rope diameter range from dmin [mm] 46
    Width total A [mm] 67
    bracket Width A4 [mm] 17.5
    Socket size t1 [mm] 9.5
    Diameter external da [mm] 44.5
    Diameter drilled hole d [mm] 32
    Length t [mm] 23.5
    Minimum breaking load MBL [kN] 100.8
    Weight approx. [kg] 0.39
