Swivels eye-eye

Swivels eye-eye

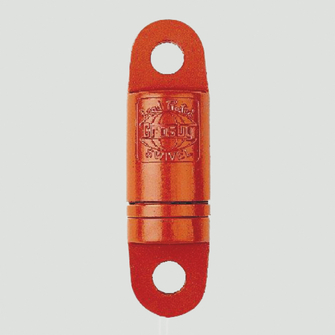

A swivel is used to prevent the torque moment of the rope from being transmitted to the load. The eye-eye swivel incorporates two eyes. Painted finish.
Advantages
  • Economical – reduction of rope damage: rope is less susceptible to basket and corkscrew deformation
  • Safe – no transmission of the rotation of the rope to the load
technical infos

Material housing

  • Cast steel

Surface housing

  • coated

Application area

  • High performance rotation-resistant ropes

Indication

  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants
WLL WLL [kN]
Length total L [mm]
Nominal size NG
Reference no.
Details
  • 30
    239
    3
    110914
    Drallfänger Auge-Auge 3,00t
    Reference no. 110914
    WLL WLL [kN] 30
    Length total L [mm] 239
    Nominal size NG 3

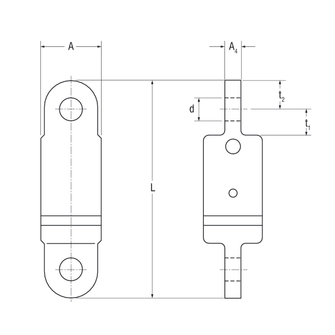

    Width total A [mm] 70
    Eye Width A4 [mm] 19.1
    Diameter drilled hole d [mm] 26.2
    Length center of drill hole to swivel body t1 [mm] 28.4
    Length center of drill hole to top edge of eye t2 [mm] 31.8
    Weight m 3.86 [kg]
  • 50
    249
    5
    -
    WLL WLL [kN] 50
    Length total L [mm] 249
    Nominal size NG 5
    Width total A [mm] 76
    Eye Width A4 [mm] 25.4
    Diameter drilled hole d [mm] 32.5
    Length center of drill hole to swivel body t1 [mm] 31.8
    Length center of drill hole to top edge of eye t2 [mm] 31.8
    Weight m 5.13 [kg]
  • 85
    302
    8
    -
    WLL WLL [kN] 85
    Length total L [mm] 302
    Nominal size NG 8
    Width total A [mm] 102
    Eye Width A4 [mm] 31.8
    Diameter drilled hole d [mm] 35.8
    Length center of drill hole to swivel body t1 [mm] 41.1
    Length center of drill hole to top edge of eye t2 [mm] 38.1
    Weight m 13.3 [kg]
  • 100
    394
    10
    -
    WLL WLL [kN] 100
    Length total L [mm] 394
    Nominal size NG 10
    Width total A [mm] 114
    Eye Width A4 [mm] 42.9
    Diameter drilled hole d [mm] 42.9
    Length center of drill hole to swivel body t1 [mm] 70
    Length center of drill hole to top edge of eye t2 [mm] 47.8
    Weight m 19.1 [kg]
  • 150
    416
    15
    110915
    Drallfänger Auge-Auge 15,00t
    Reference no. 110915
    WLL WLL [kN] 150
    Length total L [mm] 416
    Nominal size NG 15
    Width total A [mm] 127
    Eye Width A4 [mm] 49.3
    Diameter drilled hole d [mm] 51.9
    Length center of drill hole to swivel body t1 [mm] 70
    Length center of drill hole to top edge of eye t2 [mm] 54
    Weight m 22.2 [kg]
  • 250
    565
    25
    -
    WLL WLL [kN] 250
    Length total L [mm] 565
    Nominal size NG 25
    Width total A [mm] 152
    Eye Width A4 [mm] 57
    Diameter drilled hole d [mm] 58.5
    Length center of drill hole to swivel body t1 [mm] 98.5
    Length center of drill hole to top edge of eye t2 [mm] 60.5
    Weight m 59 [kg]
  • 350
    565
    35
    -
    WLL WLL [kN] 350
    Length total L [mm] 565
    Nominal size NG 35
    Width total A [mm] 165
    Eye Width A4 [mm] 57
    Diameter drilled hole d [mm] 58.5
    Length center of drill hole to swivel body t1 [mm] 98.5
    Length center of drill hole to top edge of eye t2 [mm] 60.5
    Weight m 66 [kg]
  • 450
    673
    45
    -
    WLL WLL [kN] 450
    Length total L [mm] 673
    Nominal size NG 45
    Width total A [mm] 178
    Eye Width A4 [mm] 63.5
    Diameter drilled hole d [mm] 64.5
    Length center of drill hole to swivel body t1 [mm] 102
    Length center of drill hole to top edge of eye t2 [mm] 76
    Weight m 98 [kg]
WLL WLL [kN] 30
Length total L [mm] 239
Nominal size NG 3
Reference no. 110914
  • Details
    Drallfänger Auge-Auge 3,00t
    Reference no. 110914
    WLL WLL [kN] 30
    Length total L [mm] 239
    Nominal size NG 3
    Width total A [mm] 70
    Eye Width A4 [mm] 19.1
    Diameter drilled hole d [mm] 26.2
    Length center of drill hole to swivel body t1 [mm] 28.4
    Length center of drill hole to top edge of eye t2 [mm] 31.8
    Weight m 3.86 [kg]
WLL WLL [kN] 50
Length total L [mm] 249
Nominal size NG 5
Reference no. -
  • Details
    WLL WLL [kN] 50
    Length total L [mm] 249
    Nominal size NG 5
    Width total A [mm] 76
    Eye Width A4 [mm] 25.4
    Diameter drilled hole d [mm] 32.5
    Length center of drill hole to swivel body t1 [mm] 31.8
    Length center of drill hole to top edge of eye t2 [mm] 31.8
    Weight m 5.13 [kg]
WLL WLL [kN] 85
Length total L [mm] 302
Nominal size NG 8
Reference no. -
  • Details
    WLL WLL [kN] 85
    Length total L [mm] 302
    Nominal size NG 8
    Width total A [mm] 102
    Eye Width A4 [mm] 31.8
    Diameter drilled hole d [mm] 35.8
    Length center of drill hole to swivel body t1 [mm] 41.1
    Length center of drill hole to top edge of eye t2 [mm] 38.1
    Weight m 13.3 [kg]
WLL WLL [kN] 100
Length total L [mm] 394
Nominal size NG 10
Reference no. -
  • Details
    WLL WLL [kN] 100
    Length total L [mm] 394
    Nominal size NG 10
    Width total A [mm] 114
    Eye Width A4 [mm] 42.9
    Diameter drilled hole d [mm] 42.9
    Length center of drill hole to swivel body t1 [mm] 70
    Length center of drill hole to top edge of eye t2 [mm] 47.8
    Weight m 19.1 [kg]
WLL WLL [kN] 150
Length total L [mm] 416
Nominal size NG 15
Reference no. 110915
  • Details
    Drallfänger Auge-Auge 15,00t
    Reference no. 110915
    WLL WLL [kN] 150
    Length total L [mm] 416
    Nominal size NG 15
    Width total A [mm] 127
    Eye Width A4 [mm] 49.3
    Diameter drilled hole d [mm] 51.9
    Length center of drill hole to swivel body t1 [mm] 70
    Length center of drill hole to top edge of eye t2 [mm] 54
    Weight m 22.2 [kg]
WLL WLL [kN] 250
Length total L [mm] 565
Nominal size NG 25
Reference no. -
  • Details
    WLL WLL [kN] 250
    Length total L [mm] 565
    Nominal size NG 25
    Width total A [mm] 152
    Eye Width A4 [mm] 57
    Diameter drilled hole d [mm] 58.5
    Length center of drill hole to swivel body t1 [mm] 98.5
    Length center of drill hole to top edge of eye t2 [mm] 60.5
    Weight m 59 [kg]
WLL WLL [kN] 350
Length total L [mm] 565
Nominal size NG 35
Reference no. -
  • Details
    WLL WLL [kN] 350
    Length total L [mm] 565
    Nominal size NG 35
    Width total A [mm] 165
    Eye Width A4 [mm] 57
    Diameter drilled hole d [mm] 58.5
    Length center of drill hole to swivel body t1 [mm] 98.5
    Length center of drill hole to top edge of eye t2 [mm] 60.5
    Weight m 66 [kg]
WLL WLL [kN] 450
Length total L [mm] 673
Nominal size NG 45
Reference no. -
  • Details
    WLL WLL [kN] 450
    Length total L [mm] 673
    Nominal size NG 45
    Width total A [mm] 178
    Eye Width A4 [mm] 63.5
    Diameter drilled hole d [mm] 64.5
    Length center of drill hole to swivel body t1 [mm] 102
    Length center of drill hole to top edge of eye t2 [mm] 76
    Weight m 98 [kg]
