Open swaged fitting 17A

Open swaged fitting 17A

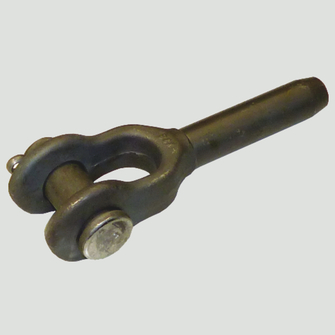

Open swaged fittings 17A are manufactured from forged carbon steel and are swaged onto the end of the rope. They are often used in combination with closed swaged fittings 16A.
Advantages
  • Handy – extra-slim
  • Robust – made of carbon steel
  • Temperature-resistant – cold resistant to –20 °C
technical infos

Material

  • Carbon steel (cold resistant to –20 °C)

Surface

  • bright

Application area

  • Round strand ropes

Indication

  • Pressed diameter on request
  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants
Length total L [mm]
Nominal size NG
Rope diameter range from [mm]
Rope diameter range to [mm]
Reference no.
Details
  • 121
    6
    6
    216002

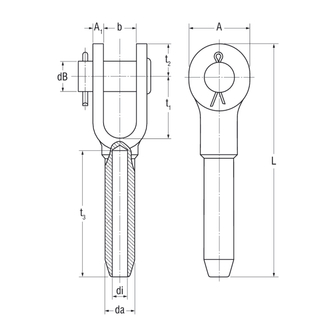

    Gabelfitting SSO 6,00 St bk dB17,5 b17,0
    Reference no. 216002
    Length total L [mm] 121
    Nominal size NG 6
    Width total A [mm] 35
    Fork arms Width A1 [mm] 8
    Fork Clearance b [mm] 17
    Rope diameter range from [mm] 6
    rope insertion depth t3 [mm] 54
    Diameter external da [mm] 12.7
    Diameter internal di [mm] 6.85
    Pin Diameter dB [mm] 17.5
    Length center of bolt to top edge of body t1 [mm] 38
    Length center of bolt to top edge of fitting t2 [mm] 19
    Weight approx. [kg] 0.25
  • 159
    8
    7
    8
    216003
    Gabelfitting SSO 8,00 St bk dB20,6 b21,0
    Reference no. 216003
    Length total L [mm] 159
    Nominal size NG 8
    Width total A [mm] 41
    Fork arms Width A1 [mm] 10
    Fork Clearance b [mm] 21
    Rope diameter range from [mm] 7
    Rope diameter range to [mm] 8
    rope insertion depth t3 [mm] 54
    Diameter external da [mm] 19.6
    Diameter internal di [mm] 8.65
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of body t1 [mm] 44
    Length center of bolt to top edge of fitting t2 [mm] 24
    Weight approx. [kg] 0.5
  • 159
    10
    9
    10
    216004
    Gabelfitting SSO 10,00 St bk dB20,6 b21,0
    Reference no. 216004
    Length total L [mm] 159
    Nominal size NG 10
    Width total A [mm] 41
    Fork arms Width A1 [mm] 10
    Fork Clearance b [mm] 21
    Rope diameter range from [mm] 9
    Rope diameter range to [mm] 10
    rope insertion depth t3 [mm] 81
    Diameter external da [mm] 19.6
    Diameter internal di [mm] 10.4
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of body t1 [mm] 44
    Length center of bolt to top edge of fitting t2 [mm] 24
    Weight approx. [kg] 0.5
  • 198
    11
    11
    216005
    Gabelfitting SSO 11,00 St bk dB25,4 b25,0
    Reference no. 216005
    Length total L [mm] 198
    Nominal size NG 11
    Width total A [mm] 51
    Fork arms Width A1 [mm] 13
    Fork Clearance b [mm] 25
    Rope diameter range from [mm] 11
    rope insertion depth t3 [mm] 108
    Diameter external da [mm] 24.9
    Diameter internal di [mm] 12.2
    Pin Diameter dB [mm] 25.4
    Length center of bolt to top edge of body t1 [mm] 51
    Length center of bolt to top edge of fitting t2 [mm] 29
    Weight approx. [kg] 1.1
  • 198
    13
    12
    13
    216006
    Gabelfitting SSO 13,00 St bk dB25,4 b25,0
    Reference no. 216006
    Length total L [mm] 198
    Nominal size NG 13
    Width total A [mm] 51
    Fork arms Width A1 [mm] 13
    Fork Clearance b [mm] 25
    Rope diameter range from [mm] 12
    Rope diameter range to [mm] 13
    rope insertion depth t3 [mm] 108
    Diameter external da [mm] 24.9
    Diameter internal di [mm] 14
    Pin Diameter dB [mm] 25.4
    Length center of bolt to top edge of body t1 [mm] 51
    Length center of bolt to top edge of fitting t2 [mm] 29
    Weight approx. [kg] 1.1
  • 243
    14
    14
    216007
    Gabelfitting SSO 14,00 St bk dB30,2 b32,0
    Reference no. 216007
    Length total L [mm] 243
    Nominal size NG 14
    Width total A [mm] 63
    Fork arms Width A1 [mm] 16
    Fork Clearance b [mm] 32
    Rope diameter range from [mm] 14
    rope insertion depth t3 [mm] 135
    Diameter external da [mm] 31.8
    Diameter internal di [mm] 15.5
    Pin Diameter dB [mm] 30.2
    Length center of bolt to top edge of body t1 [mm] 57
    Length center of bolt to top edge of fitting t2 [mm] 37
    Weight approx. [kg] 2.1
  • 243
    16
    15
    16
    216008
    Gabelfitting SSO 16,00 St bk dB30,2 b32,0
    Reference no. 216008
    Length total L [mm] 243
    Nominal size NG 16
    Width total A [mm] 63
    Fork arms Width A1 [mm] 16
    Fork Clearance b [mm] 32
    Rope diameter range from [mm] 15
    Rope diameter range to [mm] 16
    rope insertion depth t3 [mm] 135
    Diameter external da [mm] 31.8
    Diameter internal di [mm] 17
    Pin Diameter dB [mm] 30.2
    Length center of bolt to top edge of body t1 [mm] 57
    Length center of bolt to top edge of fitting t2 [mm] 37
    Weight approx. [kg] 2.1
  • 297
    19
    17
    19
    216009
    Gabelfitting SSO 19,00 St bk dB35,1 b38,0
    Reference no. 216009
    Length total L [mm] 297
    Nominal size NG 19
    Width total A [mm] 76
    Fork arms Width A1 [mm] 19
    Fork Clearance b [mm] 38
    Rope diameter range from [mm] 17
    Rope diameter range to [mm] 19
    rope insertion depth t3 [mm] 162
    Diameter external da [mm] 39.4
    Diameter internal di [mm] 20.3
    Pin Diameter dB [mm] 35.1
    Length center of bolt to top edge of body t1 [mm] 70
    Length center of bolt to top edge of fitting t2 [mm] 43
    Weight approx. [kg] 3.6
  • 346
    22
    20
    22
    216010
    Gabelfitting SSO 22,00 St bk dB41,1 b44,0
    Reference no. 216010
    Length total L [mm] 346
    Nominal size NG 22
    Width total A [mm] 86
    Fork arms Width A1 [mm] 23
    Fork Clearance b [mm] 44
    Rope diameter range from [mm] 20
    Rope diameter range to [mm] 22
    rope insertion depth t3 [mm] 189
    Diameter external da [mm] 43.2
    Diameter internal di [mm] 23.9
    Pin Diameter dB [mm] 41.1
    Length center of bolt to top edge of body t1 [mm] 83
    Length center of bolt to top edge of fitting t2 [mm] 51
    Weight approx. [kg] 5.3
  • 397
    25
    23
    25
    216011
    Gabelfitting SSO 25,00 St bk dB51,0 b51,0
    Reference no. 216011
    Length total L [mm] 397
    Nominal size NG 25
    Width total A [mm] 102
    Fork arms Width A1 [mm] 26
    Fork Clearance b [mm] 51
    Rope diameter range from [mm] 23
    Rope diameter range to [mm] 25
    rope insertion depth t3 [mm] 216
    Diameter external da [mm] 50.5
    Diameter internal di [mm] 26.9
    Pin Diameter dB [mm] 51
    Length center of bolt to top edge of body t1 [mm] 95
    Length center of bolt to top edge of fitting t2 [mm] 57
    Weight approx. [kg] 8.1
  • 444
    29
    26
    29
    216012
    Gabelfitting SSO 29,00 St bk dB57,0 b57,0
    Reference no. 216012
    Length total L [mm] 444
    Nominal size NG 29
    Width total A [mm] 114
    Fork arms Width A1 [mm] 30
    Fork Clearance b [mm] 57
    Rope diameter range from [mm] 26
    Rope diameter range to [mm] 29
    rope insertion depth t3 [mm] 243
    Diameter external da [mm] 57
    Diameter internal di [mm] 30.2
    Pin Diameter dB [mm] 57
    Length center of bolt to top edge of body t1 [mm] 108
    Length center of bolt to top edge of fitting t2 [mm] 63
    Weight approx. [kg] 13.5
  • 494
    32
    30
    32
    216013
    Gabelfitting SSO 32,00 St bk dB63,5 b63,0
    Reference no. 216013
    Length total L [mm] 494
    Nominal size NG 32
    Width total A [mm] 127
    Fork arms Width A1 [mm] 30
    Fork Clearance b [mm] 63
    Rope diameter range from [mm] 30
    Rope diameter range to [mm] 32
    rope insertion depth t3 [mm] 270
    Diameter external da [mm] 64.5
    Diameter internal di [mm] 33.8
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of body t1 [mm] 121
    Length center of bolt to top edge of fitting t2 [mm] 75
    Weight approx. [kg] 16.4
  • 540
    35
    33
    35
    216014
    Gabelfitting SSO 35,00 St bk dB63,5 b63,0
    Reference no. 216014
    Length total L [mm] 540
    Nominal size NG 35
    Width total A [mm] 133
    Fork arms Width A1 [mm] 33
    Fork Clearance b [mm] 63
    Rope diameter range from [mm] 33
    Rope diameter range to [mm] 35
    rope insertion depth t3 [mm] 297
    Diameter external da [mm] 71
    Diameter internal di [mm] 36.8
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of body t1 [mm] 133
    Length center of bolt to top edge of fitting t2 [mm] 80
    Weight approx. [kg] 21.4
  • 591
    38
    36
    38
    216015
    Gabelfitting SSO 38,00 St bk dB70,0 b76,0
    Reference no. 216015
    Length total L [mm] 591
    Nominal size NG 38
    Width total A [mm] 146
    Fork arms Width A1 [mm] 37
    Fork Clearance b [mm] 76
    Rope diameter range from [mm] 36
    Rope diameter range to [mm] 38
    rope insertion depth t3 [mm] 324
    Diameter external da [mm] 78
    Diameter internal di [mm] 40.1
    Pin Diameter dB [mm] 70
    Length center of bolt to top edge of body t1 [mm] 146
    Length center of bolt to top edge of fitting t2 [mm] 89
    Weight approx. [kg] 29.5
  • 689
    44
    42
    44
    216016
    Gabelfitting SSO 44,00 St bk dB89,0 b89,0
    Reference no. 216016
    Length total L [mm] 689
    Nominal size NG 44
    Width total A [mm] 178
    Fork arms Width A1 [mm] 43
    Fork Clearance b [mm] 89
    Rope diameter range from [mm] 42
    Rope diameter range to [mm] 44
    rope insertion depth t3 [mm] 378
    Diameter external da [mm] 86
    Diameter internal di [mm] 47.2
    Pin Diameter dB [mm] 89
    Length center of bolt to top edge of body t1 [mm] 171
    Length center of bolt to top edge of fitting t2 [mm] 105
    Weight approx. [kg] 42.2
  • 798
    51
    49
    51
    216017
    Gabelfitting SSO 51,00 St bk dB95,5 b102,0
    Reference no. 216017
    Length total L [mm] 798
    Nominal size NG 51
    Width total A [mm] 203
    Fork arms Width A1 [mm] 46
    Fork Clearance b [mm] 102
    Rope diameter range from [mm] 49
    Rope diameter range to [mm] 51
    rope insertion depth t3 [mm] 432
    Diameter external da [mm] 100
    Diameter internal di [mm] 53.5
    Pin Diameter dB [mm] 95.5
    Length center of bolt to top edge of body t1 [mm] 203
    Length center of bolt to top edge of fitting t2 [mm] 119
    Weight approx. [kg] 65.8
  • 835
    57
    55
    57
    216018
    Gabelfitting SSO 57,00 St bk dB108,0 b114,0
    Reference no. 216018
    Length total L [mm] 835
    Nominal size NG 57
    Width total A [mm] 222
    Fork arms Width A1 [mm] 65
    Fork Clearance b [mm] 114
    Rope diameter range from [mm] 55
    Rope diameter range to [mm] 57
    rope insertion depth t3 [mm] 486
    Diameter external da [mm] 113
    Diameter internal di [mm] 59.9
    Pin Diameter dB [mm] 108
    Length center of bolt to top edge of body t1 [mm] 171
    Length center of bolt to top edge of fitting t2 [mm] 130
    Weight approx. [kg] 93.5
  • 879
    63
    61
    63
    216019
    Gabelfitting SSO 63,00 St bk dB108,0 b114,0
    Reference no. 216019
    Length total L [mm] 879
    Nominal size NG 63
    Width total A [mm] 222
    Fork arms Width A1 [mm] 65
    Fork Clearance b [mm] 114
    Rope diameter range from [mm] 61
    Rope diameter range to [mm] 63
    rope insertion depth t3 [mm] 498
    Diameter external da [mm] 125.2
    Diameter internal di [mm] 67.5
    Pin Diameter dB [mm] 108
    Length center of bolt to top edge of body t1 [mm] 171
    Length center of bolt to top edge of fitting t2 [mm] 130
    Weight approx. [kg] 103
  • 1045
    76
    74
    76
    216020
    Gabelfitting SSO 76,00 St bk dB133,4 b146,0
    Reference no. 216020
    Length total L [mm] 1045
    Nominal size NG 76
    Width total A [mm] 241
    Fork arms Width A1 [mm] 76
    Fork Clearance b [mm] 146
    Rope diameter range from [mm] 74
    Rope diameter range to [mm] 76
    rope insertion depth t3 [mm] 603
    Diameter external da [mm] 150.6
    Diameter internal di [mm] 80.4
    Pin Diameter dB [mm] 133.4
    Length center of bolt to top edge of body t1 [mm] 219
    Length center of bolt to top edge of fitting t2 [mm] 140
    Weight approx. [kg] 181.5
Length total L [mm] 121
Nominal size NG 6
Rope diameter range from [mm] 6
Reference no. 216002
  • Details
    Gabelfitting SSO 6,00 St bk dB17,5 b17,0
    Reference no. 216002
    Length total L [mm] 121
    Nominal size NG 6
    Width total A [mm] 35
    Fork arms Width A1 [mm] 8
    Fork Clearance b [mm] 17
    Rope diameter range from [mm] 6
    rope insertion depth t3 [mm] 54
    Diameter external da [mm] 12.7
    Diameter internal di [mm] 6.85
    Pin Diameter dB [mm] 17.5
    Length center of bolt to top edge of body t1 [mm] 38
    Length center of bolt to top edge of fitting t2 [mm] 19
    Weight approx. [kg] 0.25
Length total L [mm] 159
Nominal size NG 8
Rope diameter range from [mm] 7
Rope diameter range to [mm] 8
Reference no. 216003
  • Details
    Gabelfitting SSO 8,00 St bk dB20,6 b21,0
    Reference no. 216003
    Length total L [mm] 159
    Nominal size NG 8
    Width total A [mm] 41
    Fork arms Width A1 [mm] 10
    Fork Clearance b [mm] 21
    Rope diameter range from [mm] 7
    Rope diameter range to [mm] 8
    rope insertion depth t3 [mm] 54
    Diameter external da [mm] 19.6
    Diameter internal di [mm] 8.65
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of body t1 [mm] 44
    Length center of bolt to top edge of fitting t2 [mm] 24
    Weight approx. [kg] 0.5
Length total L [mm] 159
Nominal size NG 10
Rope diameter range from [mm] 9
Rope diameter range to [mm] 10
Reference no. 216004
  • Details
    Gabelfitting SSO 10,00 St bk dB20,6 b21,0
    Reference no. 216004
    Length total L [mm] 159
    Nominal size NG 10
    Width total A [mm] 41
    Fork arms Width A1 [mm] 10
    Fork Clearance b [mm] 21
    Rope diameter range from [mm] 9
    Rope diameter range to [mm] 10
    rope insertion depth t3 [mm] 81
    Diameter external da [mm] 19.6
    Diameter internal di [mm] 10.4
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of body t1 [mm] 44
    Length center of bolt to top edge of fitting t2 [mm] 24
    Weight approx. [kg] 0.5
Length total L [mm] 198
Nominal size NG 11
Rope diameter range from [mm] 11
Reference no. 216005
  • Details
    Gabelfitting SSO 11,00 St bk dB25,4 b25,0
    Reference no. 216005
    Length total L [mm] 198
    Nominal size NG 11
    Width total A [mm] 51
    Fork arms Width A1 [mm] 13
    Fork Clearance b [mm] 25
    Rope diameter range from [mm] 11
    rope insertion depth t3 [mm] 108
    Diameter external da [mm] 24.9
    Diameter internal di [mm] 12.2
    Pin Diameter dB [mm] 25.4
    Length center of bolt to top edge of body t1 [mm] 51
    Length center of bolt to top edge of fitting t2 [mm] 29
    Weight approx. [kg] 1.1
Length total L [mm] 198
Nominal size NG 13
Rope diameter range from [mm] 12
Rope diameter range to [mm] 13
Reference no. 216006
  • Details
    Gabelfitting SSO 13,00 St bk dB25,4 b25,0
    Reference no. 216006
    Length total L [mm] 198
    Nominal size NG 13
    Width total A [mm] 51
    Fork arms Width A1 [mm] 13
    Fork Clearance b [mm] 25
    Rope diameter range from [mm] 12
    Rope diameter range to [mm] 13
    rope insertion depth t3 [mm] 108
    Diameter external da [mm] 24.9
    Diameter internal di [mm] 14
    Pin Diameter dB [mm] 25.4
    Length center of bolt to top edge of body t1 [mm] 51
    Length center of bolt to top edge of fitting t2 [mm] 29
    Weight approx. [kg] 1.1
Length total L [mm] 243
Nominal size NG 14
Rope diameter range from [mm] 14
Reference no. 216007
  • Details
    Gabelfitting SSO 14,00 St bk dB30,2 b32,0
    Reference no. 216007
    Length total L [mm] 243
    Nominal size NG 14
    Width total A [mm] 63
    Fork arms Width A1 [mm] 16
    Fork Clearance b [mm] 32
    Rope diameter range from [mm] 14
    rope insertion depth t3 [mm] 135
    Diameter external da [mm] 31.8
    Diameter internal di [mm] 15.5
    Pin Diameter dB [mm] 30.2
    Length center of bolt to top edge of body t1 [mm] 57
    Length center of bolt to top edge of fitting t2 [mm] 37
    Weight approx. [kg] 2.1
Length total L [mm] 243
Nominal size NG 16
Rope diameter range from [mm] 15
Rope diameter range to [mm] 16
Reference no. 216008
  • Details
    Gabelfitting SSO 16,00 St bk dB30,2 b32,0
    Reference no. 216008
    Length total L [mm] 243
    Nominal size NG 16
    Width total A [mm] 63
    Fork arms Width A1 [mm] 16
    Fork Clearance b [mm] 32
    Rope diameter range from [mm] 15
    Rope diameter range to [mm] 16
    rope insertion depth t3 [mm] 135
    Diameter external da [mm] 31.8
    Diameter internal di [mm] 17
    Pin Diameter dB [mm] 30.2
    Length center of bolt to top edge of body t1 [mm] 57
    Length center of bolt to top edge of fitting t2 [mm] 37
    Weight approx. [kg] 2.1
Length total L [mm] 297
Nominal size NG 19
Rope diameter range from [mm] 17
Rope diameter range to [mm] 19
Reference no. 216009
  • Details
    Gabelfitting SSO 19,00 St bk dB35,1 b38,0
    Reference no. 216009
    Length total L [mm] 297
    Nominal size NG 19
    Width total A [mm] 76
    Fork arms Width A1 [mm] 19
    Fork Clearance b [mm] 38
    Rope diameter range from [mm] 17
    Rope diameter range to [mm] 19
    rope insertion depth t3 [mm] 162
    Diameter external da [mm] 39.4
    Diameter internal di [mm] 20.3
    Pin Diameter dB [mm] 35.1
    Length center of bolt to top edge of body t1 [mm] 70
    Length center of bolt to top edge of fitting t2 [mm] 43
    Weight approx. [kg] 3.6
Length total L [mm] 346
Nominal size NG 22
Rope diameter range from [mm] 20
Rope diameter range to [mm] 22
Reference no. 216010
  • Details
    Gabelfitting SSO 22,00 St bk dB41,1 b44,0
    Reference no. 216010
    Length total L [mm] 346
    Nominal size NG 22
    Width total A [mm] 86
    Fork arms Width A1 [mm] 23
    Fork Clearance b [mm] 44
    Rope diameter range from [mm] 20
    Rope diameter range to [mm] 22
    rope insertion depth t3 [mm] 189
    Diameter external da [mm] 43.2
    Diameter internal di [mm] 23.9
    Pin Diameter dB [mm] 41.1
    Length center of bolt to top edge of body t1 [mm] 83
    Length center of bolt to top edge of fitting t2 [mm] 51
    Weight approx. [kg] 5.3
Length total L [mm] 397
Nominal size NG 25
Rope diameter range from [mm] 23
Rope diameter range to [mm] 25
Reference no. 216011
  • Details
    Gabelfitting SSO 25,00 St bk dB51,0 b51,0
    Reference no. 216011
    Length total L [mm] 397
    Nominal size NG 25
    Width total A [mm] 102
    Fork arms Width A1 [mm] 26
    Fork Clearance b [mm] 51
    Rope diameter range from [mm] 23
    Rope diameter range to [mm] 25
    rope insertion depth t3 [mm] 216
    Diameter external da [mm] 50.5
    Diameter internal di [mm] 26.9
    Pin Diameter dB [mm] 51
    Length center of bolt to top edge of body t1 [mm] 95
    Length center of bolt to top edge of fitting t2 [mm] 57
    Weight approx. [kg] 8.1
Length total L [mm] 444
Nominal size NG 29
Rope diameter range from [mm] 26
Rope diameter range to [mm] 29
Reference no. 216012
  • Details
    Gabelfitting SSO 29,00 St bk dB57,0 b57,0
    Reference no. 216012
    Length total L [mm] 444
    Nominal size NG 29
    Width total A [mm] 114
    Fork arms Width A1 [mm] 30
    Fork Clearance b [mm] 57
    Rope diameter range from [mm] 26
    Rope diameter range to [mm] 29
    rope insertion depth t3 [mm] 243
    Diameter external da [mm] 57
    Diameter internal di [mm] 30.2
    Pin Diameter dB [mm] 57
    Length center of bolt to top edge of body t1 [mm] 108
    Length center of bolt to top edge of fitting t2 [mm] 63
    Weight approx. [kg] 13.5
Length total L [mm] 494
Nominal size NG 32
Rope diameter range from [mm] 30
Rope diameter range to [mm] 32
Reference no. 216013
  • Details
    Gabelfitting SSO 32,00 St bk dB63,5 b63,0
    Reference no. 216013
    Length total L [mm] 494
    Nominal size NG 32
    Width total A [mm] 127
    Fork arms Width A1 [mm] 30
    Fork Clearance b [mm] 63
    Rope diameter range from [mm] 30
    Rope diameter range to [mm] 32
    rope insertion depth t3 [mm] 270
    Diameter external da [mm] 64.5
    Diameter internal di [mm] 33.8
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of body t1 [mm] 121
    Length center of bolt to top edge of fitting t2 [mm] 75
    Weight approx. [kg] 16.4
Length total L [mm] 540
Nominal size NG 35
Rope diameter range from [mm] 33
Rope diameter range to [mm] 35
Reference no. 216014
  • Details
    Gabelfitting SSO 35,00 St bk dB63,5 b63,0
    Reference no. 216014
    Length total L [mm] 540
    Nominal size NG 35
    Width total A [mm] 133
    Fork arms Width A1 [mm] 33
    Fork Clearance b [mm] 63
    Rope diameter range from [mm] 33
    Rope diameter range to [mm] 35
    rope insertion depth t3 [mm] 297
    Diameter external da [mm] 71
    Diameter internal di [mm] 36.8
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of body t1 [mm] 133
    Length center of bolt to top edge of fitting t2 [mm] 80
    Weight approx. [kg] 21.4
Length total L [mm] 591
Nominal size NG 38
Rope diameter range from [mm] 36
Rope diameter range to [mm] 38
Reference no. 216015
  • Details
    Gabelfitting SSO 38,00 St bk dB70,0 b76,0
    Reference no. 216015
    Length total L [mm] 591
    Nominal size NG 38
    Width total A [mm] 146
    Fork arms Width A1 [mm] 37
    Fork Clearance b [mm] 76
    Rope diameter range from [mm] 36
    Rope diameter range to [mm] 38
    rope insertion depth t3 [mm] 324
    Diameter external da [mm] 78
    Diameter internal di [mm] 40.1
    Pin Diameter dB [mm] 70
    Length center of bolt to top edge of body t1 [mm] 146
    Length center of bolt to top edge of fitting t2 [mm] 89
    Weight approx. [kg] 29.5
Length total L [mm] 689
Nominal size NG 44
Rope diameter range from [mm] 42
Rope diameter range to [mm] 44
Reference no. 216016
  • Details
    Gabelfitting SSO 44,00 St bk dB89,0 b89,0
    Reference no. 216016
    Length total L [mm] 689
    Nominal size NG 44
    Width total A [mm] 178
    Fork arms Width A1 [mm] 43
    Fork Clearance b [mm] 89
    Rope diameter range from [mm] 42
    Rope diameter range to [mm] 44
    rope insertion depth t3 [mm] 378
    Diameter external da [mm] 86
    Diameter internal di [mm] 47.2
    Pin Diameter dB [mm] 89
    Length center of bolt to top edge of body t1 [mm] 171
    Length center of bolt to top edge of fitting t2 [mm] 105
    Weight approx. [kg] 42.2
Length total L [mm] 798
Nominal size NG 51
Rope diameter range from [mm] 49
Rope diameter range to [mm] 51
Reference no. 216017
  • Details
    Gabelfitting SSO 51,00 St bk dB95,5 b102,0
    Reference no. 216017
    Length total L [mm] 798
    Nominal size NG 51
    Width total A [mm] 203
    Fork arms Width A1 [mm] 46
    Fork Clearance b [mm] 102
    Rope diameter range from [mm] 49
    Rope diameter range to [mm] 51
    rope insertion depth t3 [mm] 432
    Diameter external da [mm] 100
    Diameter internal di [mm] 53.5
    Pin Diameter dB [mm] 95.5
    Length center of bolt to top edge of body t1 [mm] 203
    Length center of bolt to top edge of fitting t2 [mm] 119
    Weight approx. [kg] 65.8
Length total L [mm] 835
Nominal size NG 57
Rope diameter range from [mm] 55
Rope diameter range to [mm] 57
Reference no. 216018
  • Details
    Gabelfitting SSO 57,00 St bk dB108,0 b114,0
    Reference no. 216018
    Length total L [mm] 835
    Nominal size NG 57
    Width total A [mm] 222
    Fork arms Width A1 [mm] 65
    Fork Clearance b [mm] 114
    Rope diameter range from [mm] 55
    Rope diameter range to [mm] 57
    rope insertion depth t3 [mm] 486
    Diameter external da [mm] 113
    Diameter internal di [mm] 59.9
    Pin Diameter dB [mm] 108
    Length center of bolt to top edge of body t1 [mm] 171
    Length center of bolt to top edge of fitting t2 [mm] 130
    Weight approx. [kg] 93.5
Length total L [mm] 879
Nominal size NG 63
Rope diameter range from [mm] 61
Rope diameter range to [mm] 63
Reference no. 216019
  • Details
    Gabelfitting SSO 63,00 St bk dB108,0 b114,0
    Reference no. 216019
    Length total L [mm] 879
    Nominal size NG 63
    Width total A [mm] 222
    Fork arms Width A1 [mm] 65
    Fork Clearance b [mm] 114
    Rope diameter range from [mm] 61
    Rope diameter range to [mm] 63
    rope insertion depth t3 [mm] 498
    Diameter external da [mm] 125.2
    Diameter internal di [mm] 67.5
    Pin Diameter dB [mm] 108
    Length center of bolt to top edge of body t1 [mm] 171
    Length center of bolt to top edge of fitting t2 [mm] 130
    Weight approx. [kg] 103
Length total L [mm] 1045
Nominal size NG 76
Rope diameter range from [mm] 74
Rope diameter range to [mm] 76
Reference no. 216020
  • Details
    Gabelfitting SSO 76,00 St bk dB133,4 b146,0
    Reference no. 216020
    Length total L [mm] 1045
    Nominal size NG 76
    Width total A [mm] 241
    Fork arms Width A1 [mm] 76
    Fork Clearance b [mm] 146
    Rope diameter range from [mm] 74
    Rope diameter range to [mm] 76
    rope insertion depth t3 [mm] 603
    Diameter external da [mm] 150.6
    Diameter internal di [mm] 80.4
    Pin Diameter dB [mm] 133.4
    Length center of bolt to top edge of body t1 [mm] 219
    Length center of bolt to top edge of fitting t2 [mm] 140
    Weight approx. [kg] 181.5
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-301
Fax +49 8331 937-123
E-Mail wireropes@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-181
Fax +49 8331 937-123
E-Mail seile@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Oktjaborskaja Nabereschnaja, No. 104, Korpus 23
RU-193079 St. Petersburg
Tel. +7 812 740 12-24
Fax +7 812 493 48-21
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Service centre
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
2023 Humble Westfield
US-Houston, TX 77037
Tel. +1 832 827 2923
Fax +1 281 784 2903
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
China
 PFEIFER Steel Wire Rope (Shanghai) Co., Ltd.
9th Floor, No. 2555 Jiayinyuan Road, Nanxiang Town, Jiading District
CN-Shanghai
Industrieseile/Industry ropes
Tel. +86 21 56 77 80 06
Fax +86 21 56 77 92 29
E-Mail info@pfeifer.com.cn
Web www.pfeifer.com.cn
 Sales subsidiary
Great Britain
 PFEIFER DRAKO Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail southampton@pfeifer.uk
Web www.pfeifer.co.uk
 Sales subsidiary
Hungary
 PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Pyzhevskiy pereulok, h. 5, bld.1, office 108
RU-119017 Moskau
Tel. +7 495 363 01-27
Fax +7 495 363 01-28
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Sales subsidiary
Spain
 PFEIFER Cables y Equipos de Elevación S.L.
Avda. de los Pirineos, 25 – Nave 20, San Sebastián de los Reyes
ES-28703 Madrid
Tel. +34 91 659-3185
Fax +34 91 659-3139
E-Mail p-es@pfeifer.es
Web www.pfeifer.es
 Sales subsidiary
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
600 Industry Drive
US-Hampton, VA 23661
Tel. +1 757 825 2544
Fax +1 757 825 2546
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Sales subsidiary
United Arab Emirates
 PFEIFER Middle East Wire Rope & Lifting Technology FZE
Jebel Ali Free Zone 1, RA08UA07, PO Box 263081
AE-Dubai
Tel. +971 4 883-8445
Fax +971 4 883-8446
E-Mail sales@pfeifer.ae
Web rope-lifting-ae.pfeifer.info
 Sales subsidiary
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Krönenbarg 92b
DE-21077 Hamburg
Tel. +49 40 78 04 63-0
Fax +49 40 78 70 13
E-Mail psh-hamburg@pfeifer.de
Web www.pfeifer.info
 Office
Switzerland
 pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
 Agency

Feel free to contact us

Tel.

+49 8331 937-301

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
