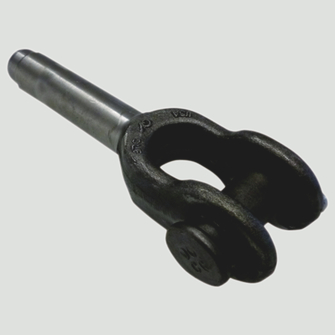

Open swaged fitting 585

Open swaged fitting 585
Open swaged fittings 585 are forged from high-quality carbon steel and are swaged directly onto the end of the rope. They are often used in combination with closed swaged fittings 584.
Advantages
  • Handy – extra-slim
  • Robust – made of carbon steel
  • Temperature-resistant – cold resistant to –20 °C
technical infos

Material

  • Carbon steel (cold resistant to –20 °C)

Surface

  • bright or galvanised

Application area

  • Round strand ropes

Indication

  • Pressed diameter on request
  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants

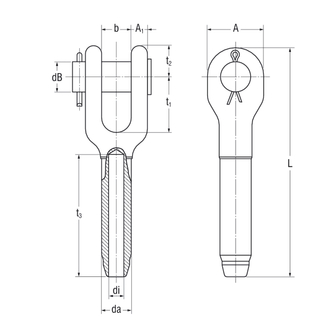

Length total L [mm]
Nominal size NG
Rope diameter range from [mm]
Rope diameter range to [mm]
Reference no.
Details
  • 122
    6
    6
    112288
    Gabelfitting S 501 6,0 bk dB17,5 b17,5
    Reference no. 112288
    Length total L [mm] 122
    Nominal size NG 6
    Width total A [mm] 35.1
    Fork arms Width A1 [mm] 7
    Fork Clearance b [mm] 17.5
    Rope diameter range from [mm] 6
    rope insertion depth t3 [mm] 54
    Diameter external da [mm] 12.7
    Diameter internal di [mm] 6.85
    Pin Diameter dB [mm] 17.5
    Length center of bolt to top edge of body t1 [mm] 38.1
    Length center of bolt to top edge of fitting t2 [mm] 20
    Weight approx. [kg] 0.24
  • 159
    8
    8
    112293
    Gabelfitting S 501 8,0 bk dB20,6 b20,6
    Reference no. 112293
    Length total L [mm] 159
    Nominal size NG 8
    Width total A [mm] 41.1
    Fork arms Width A1 [mm] 11.9
    Fork Clearance b [mm] 20.6
    Rope diameter range from [mm] 8
    rope insertion depth t3 [mm] 81
    Diameter external da [mm] 19.6
    Diameter internal di [mm] 8.65
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of body t1 [mm] 44.5
    Length center of bolt to top edge of fitting t2 [mm] 24
    Weight approx. [kg] 0.51
  • 159
    10
    9
    10
    112296
    Gabelfitting S 501 9,0-10,0 bk dB20,6 b20,6
    Reference no. 112296
    Length total L [mm] 159
    Nominal size NG 10
    Width total A [mm] 41.1
    Fork arms Width A1 [mm] 11.9
    Fork Clearance b [mm] 20.6
    Rope diameter range from [mm] 9
    Rope diameter range to [mm] 10
    rope insertion depth t3 [mm] 81
    Diameter external da [mm] 19.6
    Diameter internal di [mm] 10.4
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of body t1 [mm] 44.5
    Length center of bolt to top edge of fitting t2 [mm] 24
    Weight approx. [kg] 0.59
  • 198
    12
    11
    12
    112299
    Gabelfitting S 501 11,0-12,0 bk dB25,4 b25,4
    Reference no. 112299
    Length total L [mm] 198
    Nominal size NG 12
    Width total A [mm] 51
    Fork arms Width A1 [mm] 14.2
    Fork Clearance b [mm] 25.4
    Rope diameter range from [mm] 11
    Rope diameter range to [mm] 12
    rope insertion depth t3 [mm] 108
    Diameter external da [mm] 24.9
    Diameter internal di [mm] 12.2
    Pin Diameter dB [mm] 25.4
    Length center of bolt to top edge of body t1 [mm] 51
    Length center of bolt to top edge of fitting t2 [mm] 28
    Weight approx. [kg] 0.94
  • 198
    13
    13
    112303
    Gabelfitting S 501 13,0 bk dB25,4 b25,4
    Reference no. 112303
    Length total L [mm] 198
    Nominal size NG 13
    Width total A [mm] 51
    Fork arms Width A1 [mm] 14.2
    Fork Clearance b [mm] 25.4
    Rope diameter range from [mm] 13
    rope insertion depth t3 [mm] 108
    Diameter external da [mm] 24.9
    Diameter internal di [mm] 14
    Pin Diameter dB [mm] 25.4
    Length center of bolt to top edge of body t1 [mm] 51
    Length center of bolt to top edge of fitting t2 [mm] 28
    Weight approx. [kg] 0.94
  • 241
    14
    14
    112306
    Gabelfitting S 501 14,0 bk dB30,2 b31,8
    Reference no. 112306
    Length total L [mm] 241
    Nominal size NG 14
    Width total A [mm] 60.5
    Fork arms Width A1 [mm] 17.3
    Fork Clearance b [mm] 31.8
    Rope diameter range from [mm] 14
    rope insertion depth t3 [mm] 135
    Diameter external da [mm] 31.8
    Diameter internal di [mm] 15.5
    Pin Diameter dB [mm] 30.2
    Length center of bolt to top edge of body t1 [mm] 57
    Length center of bolt to top edge of fitting t2 [mm] 34
    Weight approx. [kg] 2.03
  • 241
    16
    16
    112310
    Gabelfitting S 501 16,0 bk dB30,2 b31,8
    Reference no. 112310
    Length total L [mm] 241
    Nominal size NG 16
    Width total A [mm] 60.5
    Fork arms Width A1 [mm] 17.3
    Fork Clearance b [mm] 31.8
    Rope diameter range from [mm] 16
    rope insertion depth t3 [mm] 135
    Diameter external da [mm] 31.8
    Diameter internal di [mm] 17
    Pin Diameter dB [mm] 30.2
    Length center of bolt to top edge of body t1 [mm] 57
    Length center of bolt to top edge of fitting t2 [mm] 34
    Weight approx. [kg] 2.05
  • 294
    20
    18
    20
    112313
    Gabelfitting S 501 18,0-20,0 bk dB35,1 b38,1
    Reference no. 112313
    Length total L [mm] 294
    Nominal size NG 20
    Width total A [mm] 70
    Fork arms Width A1 [mm] 19.8
    Fork Clearance b [mm] 38.1
    Rope diameter range from [mm] 18
    Rope diameter range to [mm] 20
    rope insertion depth t3 [mm] 162
    Diameter external da [mm] 39.4
    Diameter internal di [mm] 20.3
    Pin Diameter dB [mm] 35.1
    Length center of bolt to top edge of body t1 [mm] 70
    Length center of bolt to top edge of fitting t2 [mm] 40
    Weight approx. [kg] 3.62
  • 341
    22
    22
    112318
    Gabelfitting S 501 22,0 bk dB41,1 b44,5
    Reference no. 112318
    Length total L [mm] 341
    Nominal size NG 22
    Width total A [mm] 79.5
    Fork arms Width A1 [mm] 23.9
    Fork Clearance b [mm] 44.5
    Rope diameter range from [mm] 22
    rope insertion depth t3 [mm] 189
    Diameter external da [mm] 43.2
    Diameter internal di [mm] 23.9
    Pin Diameter dB [mm] 41.1
    Length center of bolt to top edge of body t1 [mm] 82.5
    Length center of bolt to top edge of fitting t2 [mm] 46
    Weight approx. [kg] 5.23
  • 393
    26
    24
    26
    112322
    Gabelfitting S 501 24,0-26,0 bk dB51,0 b51,0
    Reference no. 112322
    Length total L [mm] 393
    Nominal size NG 26
    Width total A [mm] 93.5
    Fork arms Width A1 [mm] 26.9
    Fork Clearance b [mm] 51
    Rope diameter range from [mm] 24
    Rope diameter range to [mm] 26
    rope insertion depth t3 [mm] 216
    Diameter external da [mm] 50.5
    Diameter internal di [mm] 26.9
    Pin Diameter dB [mm] 51
    Length center of bolt to top edge of body t1 [mm] 95.5
    Length center of bolt to top edge of fitting t2 [mm] 53
    Weight approx. [kg] 8.07
  • 440
    28
    28
    112327
    Gabelfitting S 501 28,0 bk dB57,0 b57,0
    Reference no. 112327
    Length total L [mm] 440
    Nominal size NG 28
    Width total A [mm] 103
    Fork arms Width A1 [mm] 30.2
    Fork Clearance b [mm] 57
    Rope diameter range from [mm] 28
    rope insertion depth t3 [mm] 243
    Diameter external da [mm] 57
    Diameter internal di [mm] 30.2
    Pin Diameter dB [mm] 57
    Length center of bolt to top edge of body t1 [mm] 108
    Length center of bolt to top edge of fitting t2 [mm] 59
    Weight approx. [kg] 11.5
  • 484
    32
    32
    112331
    Gabelfitting S 501 32,00 bk dB63,5 b63,5
    Reference no. 112331
    Length total L [mm] 484
    Nominal size NG 32
    Width total A [mm] 114
    Fork arms Width A1 [mm] 31
    Fork Clearance b [mm] 63.5
    Rope diameter range from [mm] 32
    rope insertion depth t3 [mm] 270
    Diameter external da [mm] 64.5
    Diameter internal di [mm] 33.8
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of body t1 [mm] 121
    Length center of bolt to top edge of fitting t2 [mm] 65
    Weight approx. [kg] 16.1
  • 532
    36
    34
    36
    112334
    Gabelfitting S 501 34,0-36,0 bk dB63,5 b63,5
    Reference no. 112334
    Length total L [mm] 532
    Nominal size NG 36
    Width total A [mm] 127
    Fork arms Width A1 [mm] 35.1
    Fork Clearance b [mm] 63.5
    Rope diameter range from [mm] 34
    Rope diameter range to [mm] 36
    rope insertion depth t3 [mm] 297
    Diameter external da [mm] 71
    Diameter internal di [mm] 36.8
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of body t1 [mm] 133
    Length center of bolt to top edge of fitting t2 [mm] 71
    Weight approx. [kg] 19.8
  • 581
    40
    38
    40
    112337
    Gabelfitting S 501 38,0-40,0 bk dB70,0 b76,0
    Reference no. 112337
    Length total L [mm] 581
    Nominal size NG 40
    Width total A [mm] 140
    Fork arms Width A1 [mm] 42.9
    Fork Clearance b [mm] 76
    Rope diameter range from [mm] 38
    Rope diameter range to [mm] 40
    rope insertion depth t3 [mm] 324
    Diameter external da [mm] 78
    Diameter internal di [mm] 40.1
    Pin Diameter dB [mm] 70
    Length center of bolt to top edge of body t1 [mm] 146
    Length center of bolt to top edge of fitting t2 [mm] 79
    Weight approx. [kg] 26.5
  • 676
    44
    44
    112341
    Gabelfitting S 501 44,0 bk dB89,0 b89,0
    Reference no. 112341
    Length total L [mm] 676
    Nominal size NG 44
    Width total A [mm] 170
    Fork arms Width A1 [mm] 53.5
    Fork Clearance b [mm] 89
    Rope diameter range from [mm] 44
    rope insertion depth t3 [mm] 378
    Diameter external da [mm] 86
    Diameter internal di [mm] 47.2
    Pin Diameter dB [mm] 89
    Length center of bolt to top edge of body t1 [mm] 171
    Length center of bolt to top edge of fitting t2 [mm] 92
    Weight approx. [kg] 40.3
  • 799
    52
    48
    52
    112343
    Gabelfitting S 501 48,0-52,0 bk dB95,5 b102,0
    Reference no. 112343
    Length total L [mm] 799
    Nominal size NG 52
    Width total A [mm] 203
    Fork arms Width A1 [mm] 60
    Fork Clearance b [mm] 102
    Rope diameter range from [mm] 48
    Rope diameter range to [mm] 52
    rope insertion depth t3 [mm] 432
    Diameter external da [mm] 100
    Diameter internal di [mm] 53.5
    Pin Diameter dB [mm] 95.5
    Length center of bolt to top edge of body t1 [mm] 203
    Length center of bolt to top edge of fitting t2 [mm] 116
    Weight approx. [kg] 66
Length total L [mm] 122
Nominal size NG 6
Rope diameter range from [mm] 6
Reference no. 112288
  • Details
    Gabelfitting S 501 6,0 bk dB17,5 b17,5
    Reference no. 112288
    Length total L [mm] 122
    Nominal size NG 6
    Width total A [mm] 35.1
    Fork arms Width A1 [mm] 7
    Fork Clearance b [mm] 17.5
    Rope diameter range from [mm] 6
    rope insertion depth t3 [mm] 54
    Diameter external da [mm] 12.7
    Diameter internal di [mm] 6.85
    Pin Diameter dB [mm] 17.5
    Length center of bolt to top edge of body t1 [mm] 38.1
    Length center of bolt to top edge of fitting t2 [mm] 20
    Weight approx. [kg] 0.24
Length total L [mm] 159
Nominal size NG 8
Rope diameter range from [mm] 8
Reference no. 112293
  • Details
    Gabelfitting S 501 8,0 bk dB20,6 b20,6
    Reference no. 112293
    Length total L [mm] 159
    Nominal size NG 8
    Width total A [mm] 41.1
    Fork arms Width A1 [mm] 11.9
    Fork Clearance b [mm] 20.6
    Rope diameter range from [mm] 8
    rope insertion depth t3 [mm] 81
    Diameter external da [mm] 19.6
    Diameter internal di [mm] 8.65
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of body t1 [mm] 44.5
    Length center of bolt to top edge of fitting t2 [mm] 24
    Weight approx. [kg] 0.51
Length total L [mm] 159
Nominal size NG 10
Rope diameter range from [mm] 9
Rope diameter range to [mm] 10
Reference no. 112296
  • Details
    Gabelfitting S 501 9,0-10,0 bk dB20,6 b20,6
    Reference no. 112296
    Length total L [mm] 159
    Nominal size NG 10
    Width total A [mm] 41.1
    Fork arms Width A1 [mm] 11.9
    Fork Clearance b [mm] 20.6
    Rope diameter range from [mm] 9
    Rope diameter range to [mm] 10
    rope insertion depth t3 [mm] 81
    Diameter external da [mm] 19.6
    Diameter internal di [mm] 10.4
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of body t1 [mm] 44.5
    Length center of bolt to top edge of fitting t2 [mm] 24
    Weight approx. [kg] 0.59
Length total L [mm] 198
Nominal size NG 12
Rope diameter range from [mm] 11
Rope diameter range to [mm] 12
Reference no. 112299
  • Details
    Gabelfitting S 501 11,0-12,0 bk dB25,4 b25,4
    Reference no. 112299
    Length total L [mm] 198
    Nominal size NG 12
    Width total A [mm] 51
    Fork arms Width A1 [mm] 14.2
    Fork Clearance b [mm] 25.4
    Rope diameter range from [mm] 11
    Rope diameter range to [mm] 12
    rope insertion depth t3 [mm] 108
    Diameter external da [mm] 24.9
    Diameter internal di [mm] 12.2
    Pin Diameter dB [mm] 25.4
    Length center of bolt to top edge of body t1 [mm] 51
    Length center of bolt to top edge of fitting t2 [mm] 28
    Weight approx. [kg] 0.94
Length total L [mm] 198
Nominal size NG 13
Rope diameter range from [mm] 13
Reference no. 112303
  • Details
    Gabelfitting S 501 13,0 bk dB25,4 b25,4
    Reference no. 112303
    Length total L [mm] 198
    Nominal size NG 13
    Width total A [mm] 51
    Fork arms Width A1 [mm] 14.2
    Fork Clearance b [mm] 25.4
    Rope diameter range from [mm] 13
    rope insertion depth t3 [mm] 108
    Diameter external da [mm] 24.9
    Diameter internal di [mm] 14
    Pin Diameter dB [mm] 25.4
    Length center of bolt to top edge of body t1 [mm] 51
    Length center of bolt to top edge of fitting t2 [mm] 28
    Weight approx. [kg] 0.94
Length total L [mm] 241
Nominal size NG 14
Rope diameter range from [mm] 14
Reference no. 112306
  • Details
    Gabelfitting S 501 14,0 bk dB30,2 b31,8
    Reference no. 112306
    Length total L [mm] 241
    Nominal size NG 14
    Width total A [mm] 60.5
    Fork arms Width A1 [mm] 17.3
    Fork Clearance b [mm] 31.8
    Rope diameter range from [mm] 14
    rope insertion depth t3 [mm] 135
    Diameter external da [mm] 31.8
    Diameter internal di [mm] 15.5
    Pin Diameter dB [mm] 30.2
    Length center of bolt to top edge of body t1 [mm] 57
    Length center of bolt to top edge of fitting t2 [mm] 34
    Weight approx. [kg] 2.03
Length total L [mm] 241
Nominal size NG 16
Rope diameter range from [mm] 16
Reference no. 112310
  • Details
    Gabelfitting S 501 16,0 bk dB30,2 b31,8
    Reference no. 112310
    Length total L [mm] 241
    Nominal size NG 16
    Width total A [mm] 60.5
    Fork arms Width A1 [mm] 17.3
    Fork Clearance b [mm] 31.8
    Rope diameter range from [mm] 16
    rope insertion depth t3 [mm] 135
    Diameter external da [mm] 31.8
    Diameter internal di [mm] 17
    Pin Diameter dB [mm] 30.2
    Length center of bolt to top edge of body t1 [mm] 57
    Length center of bolt to top edge of fitting t2 [mm] 34
    Weight approx. [kg] 2.05
Length total L [mm] 294
Nominal size NG 20
Rope diameter range from [mm] 18
Rope diameter range to [mm] 20
Reference no. 112313
  • Details
    Gabelfitting S 501 18,0-20,0 bk dB35,1 b38,1
    Reference no. 112313
    Length total L [mm] 294
    Nominal size NG 20
    Width total A [mm] 70
    Fork arms Width A1 [mm] 19.8
    Fork Clearance b [mm] 38.1
    Rope diameter range from [mm] 18
    Rope diameter range to [mm] 20
    rope insertion depth t3 [mm] 162
    Diameter external da [mm] 39.4
    Diameter internal di [mm] 20.3
    Pin Diameter dB [mm] 35.1
    Length center of bolt to top edge of body t1 [mm] 70
    Length center of bolt to top edge of fitting t2 [mm] 40
    Weight approx. [kg] 3.62
Length total L [mm] 341
Nominal size NG 22
Rope diameter range from [mm] 22
Reference no. 112318
  • Details
    Gabelfitting S 501 22,0 bk dB41,1 b44,5
    Reference no. 112318
    Length total L [mm] 341
    Nominal size NG 22
    Width total A [mm] 79.5
    Fork arms Width A1 [mm] 23.9
    Fork Clearance b [mm] 44.5
    Rope diameter range from [mm] 22
    rope insertion depth t3 [mm] 189
    Diameter external da [mm] 43.2
    Diameter internal di [mm] 23.9
    Pin Diameter dB [mm] 41.1
    Length center of bolt to top edge of body t1 [mm] 82.5
    Length center of bolt to top edge of fitting t2 [mm] 46
    Weight approx. [kg] 5.23
Length total L [mm] 393
Nominal size NG 26
Rope diameter range from [mm] 24
Rope diameter range to [mm] 26
Reference no. 112322
  • Details
    Gabelfitting S 501 24,0-26,0 bk dB51,0 b51,0
    Reference no. 112322
    Length total L [mm] 393
    Nominal size NG 26
    Width total A [mm] 93.5
    Fork arms Width A1 [mm] 26.9
    Fork Clearance b [mm] 51
    Rope diameter range from [mm] 24
    Rope diameter range to [mm] 26
    rope insertion depth t3 [mm] 216
    Diameter external da [mm] 50.5
    Diameter internal di [mm] 26.9
    Pin Diameter dB [mm] 51
    Length center of bolt to top edge of body t1 [mm] 95.5
    Length center of bolt to top edge of fitting t2 [mm] 53
    Weight approx. [kg] 8.07
Length total L [mm] 440
Nominal size NG 28
Rope diameter range from [mm] 28
Reference no. 112327
  • Details
    Gabelfitting S 501 28,0 bk dB57,0 b57,0
    Reference no. 112327
    Length total L [mm] 440
    Nominal size NG 28
    Width total A [mm] 103
    Fork arms Width A1 [mm] 30.2
    Fork Clearance b [mm] 57
    Rope diameter range from [mm] 28
    rope insertion depth t3 [mm] 243
    Diameter external da [mm] 57
    Diameter internal di [mm] 30.2
    Pin Diameter dB [mm] 57
    Length center of bolt to top edge of body t1 [mm] 108
    Length center of bolt to top edge of fitting t2 [mm] 59
    Weight approx. [kg] 11.5
Length total L [mm] 484
Nominal size NG 32
Rope diameter range from [mm] 32
Reference no. 112331
  • Details
    Gabelfitting S 501 32,00 bk dB63,5 b63,5
    Reference no. 112331
    Length total L [mm] 484
    Nominal size NG 32
    Width total A [mm] 114
    Fork arms Width A1 [mm] 31
    Fork Clearance b [mm] 63.5
    Rope diameter range from [mm] 32
    rope insertion depth t3 [mm] 270
    Diameter external da [mm] 64.5
    Diameter internal di [mm] 33.8
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of body t1 [mm] 121
    Length center of bolt to top edge of fitting t2 [mm] 65
    Weight approx. [kg] 16.1
Length total L [mm] 532
Nominal size NG 36
Rope diameter range from [mm] 34
Rope diameter range to [mm] 36
Reference no. 112334
  • Details
    Gabelfitting S 501 34,0-36,0 bk dB63,5 b63,5
    Reference no. 112334
    Length total L [mm] 532
    Nominal size NG 36
    Width total A [mm] 127
    Fork arms Width A1 [mm] 35.1
    Fork Clearance b [mm] 63.5
    Rope diameter range from [mm] 34
    Rope diameter range to [mm] 36
    rope insertion depth t3 [mm] 297
    Diameter external da [mm] 71
    Diameter internal di [mm] 36.8
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of body t1 [mm] 133
    Length center of bolt to top edge of fitting t2 [mm] 71
    Weight approx. [kg] 19.8
Length total L [mm] 581
Nominal size NG 40
Rope diameter range from [mm] 38
Rope diameter range to [mm] 40
Reference no. 112337
  • Details
    Gabelfitting S 501 38,0-40,0 bk dB70,0 b76,0
    Reference no. 112337
    Length total L [mm] 581
    Nominal size NG 40
    Width total A [mm] 140
    Fork arms Width A1 [mm] 42.9
    Fork Clearance b [mm] 76
    Rope diameter range from [mm] 38
    Rope diameter range to [mm] 40
    rope insertion depth t3 [mm] 324
    Diameter external da [mm] 78
    Diameter internal di [mm] 40.1
    Pin Diameter dB [mm] 70
    Length center of bolt to top edge of body t1 [mm] 146
    Length center of bolt to top edge of fitting t2 [mm] 79
    Weight approx. [kg] 26.5
Length total L [mm] 676
Nominal size NG 44
Rope diameter range from [mm] 44
Reference no. 112341
  • Details
    Gabelfitting S 501 44,0 bk dB89,0 b89,0
    Reference no. 112341
    Length total L [mm] 676
    Nominal size NG 44
    Width total A [mm] 170
    Fork arms Width A1 [mm] 53.5
    Fork Clearance b [mm] 89
    Rope diameter range from [mm] 44
    rope insertion depth t3 [mm] 378
    Diameter external da [mm] 86
    Diameter internal di [mm] 47.2
    Pin Diameter dB [mm] 89
    Length center of bolt to top edge of body t1 [mm] 171
    Length center of bolt to top edge of fitting t2 [mm] 92
    Weight approx. [kg] 40.3
Length total L [mm] 799
Nominal size NG 52
Rope diameter range from [mm] 48
Rope diameter range to [mm] 52
Reference no. 112343
  • Details
    Gabelfitting S 501 48,0-52,0 bk dB95,5 b102,0
    Reference no. 112343
    Length total L [mm] 799
    Nominal size NG 52
    Width total A [mm] 203
    Fork arms Width A1 [mm] 60
    Fork Clearance b [mm] 102
    Rope diameter range from [mm] 48
    Rope diameter range to [mm] 52
    rope insertion depth t3 [mm] 432
    Diameter external da [mm] 100
    Diameter internal di [mm] 53.5
    Pin Diameter dB [mm] 95.5
    Length center of bolt to top edge of body t1 [mm] 203
    Length center of bolt to top edge of fitting t2 [mm] 116
    Weight approx. [kg] 66
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-301
Fax +49 8331 937-123
E-Mail wireropes@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-181
Fax +49 8331 937-123
E-Mail seile@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Oktjaborskaja Nabereschnaja, No. 104, Korpus 23
RU-193079 St. Petersburg
Tel. +7 812 740 12-24
Fax +7 812 493 48-21
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Service centre
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
2023 Humble Westfield
US-Houston, TX 77037
Tel. +1 832 827 2923
Fax +1 281 784 2903
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
China
 PFEIFER Steel Wire Rope (Shanghai) Co., Ltd.
9th Floor, No. 2555 Jiayinyuan Road, Nanxiang Town, Jiading District
CN-Shanghai
Industrieseile/Industry ropes
Tel. +86 21 56 77 80 06
Fax +86 21 56 77 92 29
E-Mail info@pfeifer.com.cn
Web www.pfeifer.com.cn
 Sales subsidiary
Great Britain
 PFEIFER DRAKO Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail southampton@pfeifer.uk
Web www.pfeifer.co.uk
 Sales subsidiary
Hungary
 PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Pyzhevskiy pereulok, h. 5, bld.1, office 108
RU-119017 Moskau
Tel. +7 495 363 01-27
Fax +7 495 363 01-28
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Sales subsidiary
Spain
 PFEIFER Cables y Equipos de Elevación S.L.
Avda. de los Pirineos, 25 – Nave 20, San Sebastián de los Reyes
ES-28703 Madrid
Tel. +34 91 659-3185
Fax +34 91 659-3139
E-Mail p-es@pfeifer.es
Web www.pfeifer.es
 Sales subsidiary
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
600 Industry Drive
US-Hampton, VA 23661
Tel. +1 757 825 2544
Fax +1 757 825 2546
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Sales subsidiary
United Arab Emirates
 PFEIFER Middle East Wire Rope & Lifting Technology FZE
Jebel Ali Free Zone 1, RA08UA07, PO Box 263081
AE-Dubai
Tel. +971 4 883-8445
Fax +971 4 883-8446
E-Mail sales@pfeifer.ae
Web rope-lifting-ae.pfeifer.info
 Sales subsidiary
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Krönenbarg 92b
DE-21077 Hamburg
Tel. +49 40 78 04 63-0
Fax +49 40 78 70 13
E-Mail psh-hamburg@pfeifer.de
Web www.pfeifer.info
 Office
Switzerland
 pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
 Agency

Feel free to contact us

Tel.

+49 8331 937-301

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
