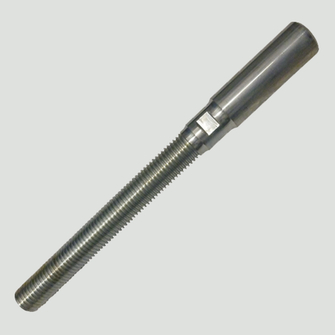

Swaged fitting with thread 93A

Swaged fitting with thread 93A
Swaged fittings with tread 93A are manufactured from quenched and tempered steel and are swaged onto the end of the rope. Development and manufacturing from a single source. The thread length can be manufactured according to customer requirements.
Advantages
  • Handy – extra-slim
  • Robust – made of stainless steel
  • Flexible – thread length according to customer request
technical infos

Material

  • Steel or stainless steel

Surface

  • bright or galvanised

Standard

  • ISO standard thread DIN 13-1

Loss factor

  • 0.9

Application area

  • Round strand ropes

Indication

  • thread length GL= variable
  • total length = variable
  • thread: right hand or left hand

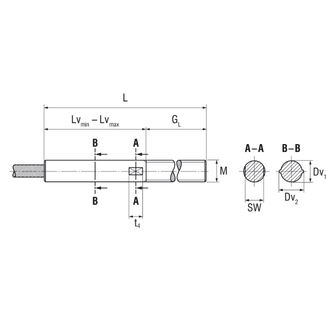

  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants
Nominal size NG
Rope Ø ds [mm]
Details
  • 8
    8
    Nominal size NG 8
    Rope Ø ds [mm] 8
    Thread M 16
    spanner flat t4 [mm] 8
    Length Diameter Dv1 [mm] 16
    Width Diameter Dv2 [mm] 18
    Length total Tolerance L Tol [mm] ± 2
    Length min Lvmin [mm] 72
    Length max Lvmax [mm] 75
    Wrench size AF [mm] 14
    Minimum breaking load MBL [kN] 89.2
  • 9
    9
    Nominal size NG 9
    Rope Ø ds [mm] 9
    Thread M 18
    spanner flat t4 [mm] 8
    Length Diameter Dv1 [mm] 19
    Width Diameter Dv2 [mm] 21.5
    Length total Tolerance L Tol [mm] ± 2
    Length min Lvmin [mm] 81
    Length max Lvmax [mm] 84
    Wrench size AF [mm] 16
    Minimum breaking load MBL [kN] 109.6
  • 10
    10
    Nominal size NG 10
    Rope Ø ds [mm] 10
    Thread M 20
    spanner flat t4 [mm] 9
    Length Diameter Dv1 [mm] 20
    Width Diameter Dv2 [mm] 22.7
    Length total Tolerance L Tol [mm] ± 2
    Length min Lvmin [mm] 87
    Length max Lvmax [mm] 90
    Wrench size AF [mm] 18
    Minimum breaking load MBL [kN] 139.3
  • 11
    11
    Nominal size NG 11
    Rope Ø ds [mm] 11
    Thread M 20
    spanner flat t4 [mm] 9
    Length Diameter Dv1 [mm] 20
    Width Diameter Dv2 [mm] 22.8
    Length total Tolerance L Tol [mm] ± 3
    Length min Lvmin [mm] 93
    Length max Lvmax [mm] 98
    Wrench size AF [mm] 18
    Minimum breaking load MBL [kN] 139.3
  • 12
    12
    Nominal size NG 12
    Rope Ø ds [mm] 12
    Thread M 22
    spanner flat t4 [mm] 12
    Length Diameter Dv1 [mm] 22
    Width Diameter Dv2 [mm] 25
    Length total Tolerance L Tol [mm] ± 3
    Length min Lvmin [mm] 100
    Length max Lvmax [mm] 106
    Wrench size AF [mm] 20
    Minimum breaking load MBL [kN] 172.6
  • 13
    13
    Nominal size NG 13
    Rope Ø ds [mm] 13
    Thread M 24
    spanner flat t4 [mm] 15
    Length Diameter Dv1 [mm] 24
    Width Diameter Dv2 [mm] 27.2
    Length total Tolerance L Tol [mm] ± 3
    Length min Lvmin [mm] 115
    Length max Lvmax [mm] 121
    Wrench size AF [mm] 22
    Minimum breaking load MBL [kN] 200.6
  • 14
    14
    Nominal size NG 14
    Rope Ø ds [mm] 14
    Thread M 27
    spanner flat t4 [mm] 18
    Length Diameter Dv1 [mm] 28
    Width Diameter Dv2 [mm] 31.5
    Length total Tolerance L Tol [mm] ± 3
    Length min Lvmin [mm] 126
    Length max Lvmax [mm] 131
    Wrench size AF [mm] 24
    Minimum breaking load MBL [kN] 261.4
  • 15
    15
    Nominal size NG 15
    Rope Ø ds [mm] 15
    Thread M 27
    spanner flat t4 [mm] 18
    Length Diameter Dv1 [mm] 28
    Width Diameter Dv2 [mm] 31.7
    Length total Tolerance L Tol [mm] ± 3
    Length min Lvmin [mm] 133
    Length max Lvmax [mm] 140
    Wrench size AF [mm] 24
    Minimum breaking load MBL [kN] 261.4
  • 16
    16
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Thread M 30
    spanner flat t4 [mm] 20
    Length Diameter Dv1 [mm] 30
    Width Diameter Dv2 [mm] 33.8
    Length total Tolerance L Tol [mm] ± 3
    Length min Lvmin [mm] 138
    Length max Lvmax [mm] 145
    Wrench size AF [mm] 27
    Minimum breaking load MBL [kN] 319
  • 17
    17
    Nominal size NG 17
    Rope Ø ds [mm] 17
    Thread M 34
    spanner flat t4 [mm] 22
    Length Diameter Dv1 [mm] 34
    Width Diameter Dv2 [mm] 38.4
    Length total Tolerance L Tol [mm] ± 3
    Length min Lvmin [mm] 152
    Length max Lvmax [mm] 158
    Wrench size AF [mm] 30
    Minimum breaking load MBL [kN] 394.5
  • 18
    18
    Nominal size NG 18
    Rope Ø ds [mm] 18
    Thread M 34
    spanner flat t4 [mm] 22
    Length Diameter Dv1 [mm] 34
    Width Diameter Dv2 [mm] 38.5
    Length total Tolerance L Tol [mm] ± 3
    Length min Lvmin [mm] 158
    Length max Lvmax [mm] 165
    Wrench size AF [mm] 30
    Minimum breaking load MBL [kN] 394.5
  • 19
    19
    Nominal size NG 19
    Rope Ø ds [mm] 19
    Thread M 36
    spanner flat t4 [mm] 22
    Length Diameter Dv1 [mm] 36
    Width Diameter Dv2 [mm] 41
    Length total Tolerance L Tol [mm] ± 3
    Length min Lvmin [mm] 165
    Length max Lvmax [mm] 173
    Wrench size AF [mm] 34
    Minimum breaking load MBL [kN] 464.6
  • 20
    20
    Nominal size NG 20
    Rope Ø ds [mm] 20
    Thread M 36
    spanner flat t4 [mm] 22
    Length Diameter Dv1 [mm] 36
    Width Diameter Dv2 [mm] 41.1
    Length total Tolerance L Tol [mm] ± 3
    Length min Lvmin [mm] 170
    Length max Lvmax [mm] 179
    Wrench size AF [mm] 34
    Minimum breaking load MBL [kN] 464.6
  • 22
    22
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Thread M 40
    spanner flat t4 [mm] 22
    Length Diameter Dv1 [mm] 40
    Width Diameter Dv2 [mm] 45.5
    Length total Tolerance L Tol [mm] ± 4
    Length min Lvmin [mm] 182
    Length max Lvmax [mm] 192
    Wrench size AF [mm] 36
    Minimum breaking load MBL [kN] 555
  • 24
    24
    Nominal size NG 24
    Rope Ø ds [mm] 24
    Thread M 48
    spanner flat t4 [mm] 26
    Length Diameter Dv1 [mm] 48
    Width Diameter Dv2 [mm] 54.3
    Length total Tolerance L Tol [mm] ± 4
    Length min Lvmin [mm] 204
    Length max Lvmax [mm] 213
    Wrench size AF [mm] 46
    Minimum breaking load MBL [kN] 837.9
  • 26
    26
    Nominal size NG 26
    Rope Ø ds [mm] 26
    Thread M 48
    spanner flat t4 [mm] 26
    Length Diameter Dv1 [mm] 48
    Width Diameter Dv2 [mm] 54.5
    Length total Tolerance L Tol [mm] ± 4
    Length min Lvmin [mm] 216
    Length max Lvmax [mm] 227
    Wrench size AF [mm] 50
    Minimum breaking load MBL [kN] 837.9
  • 28
    28
    Nominal size NG 28
    Rope Ø ds [mm] 28
    Thread M 52
    spanner flat t4 [mm] 30
    Length Diameter Dv1 [mm] 52
    Width Diameter Dv2 [mm] 59
    Length total Tolerance L Tol [mm] ± 4
    Length min Lvmin [mm] 237
    Length max Lvmax [mm] 249
    Wrench size AF [mm] 50
    Minimum breaking load MBL [kN] 999.7
  • 30
    30
    Nominal size NG 30
    Rope Ø ds [mm] 30
    Thread M 56
    spanner flat t4 [mm] 30
    Length Diameter Dv1 [mm] 56
    Width Diameter Dv2 [mm] 63.4
    Length total Tolerance L Tol [mm] ± 4
    Length min Lvmin [mm] 249
    Length max Lvmax [mm] 261
    Wrench size AF [mm] 50
    Minimum breaking load MBL [kN] 1154.5
  • 32
    32
    Nominal size NG 32
    Rope Ø ds [mm] 32
    Thread M 60
    spanner flat t4 [mm] 30
    Length Diameter Dv1 [mm] 62
    Width Diameter Dv2 [mm] 70.3
    Length total Tolerance L Tol [mm] ± 5
    Length min Lvmin [mm] 262
    Length max Lvmax [mm] 274
    Wrench size AF [mm] 55
    Minimum breaking load MBL [kN] 1343.2
  • 34
    34
    Nominal size NG 34
    Rope Ø ds [mm] 34
    Thread M 60
    spanner flat t4 [mm] 30
    Length Diameter Dv1 [mm] 62
    Width Diameter Dv2 [mm] 70.7
    Length total Tolerance L Tol [mm] ± 5
    Length min Lvmin [mm] 274
    Length max Lvmax [mm] 289
    Wrench size AF [mm] 55
    Minimum breaking load MBL [kN] 1343.2
  • 36
    36
    Nominal size NG 36
    Rope Ø ds [mm] 36
    Thread M 64
    spanner flat t4 [mm] 35
    Length Diameter Dv1 [mm] 66
    Width Diameter Dv2 [mm] 75.1
    Length total Tolerance L Tol [mm] ± 5
    Length min Lvmin [mm] 297
    Length max Lvmax [mm] 312
    Wrench size AF [mm] 55
    Minimum breaking load MBL [kN] 1521.8
