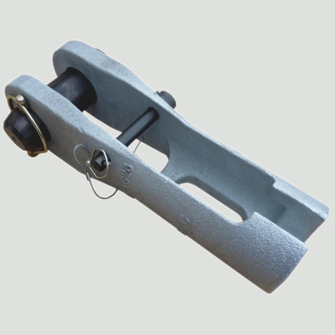

Pouch Socket PSH 22A

Pouch Socket PSH 22A
The pouch socket PSH 22A is used when quickly and securely re-reeving crane ropes. It can be used with Resin Sockets 13A and 14A as well as with swaged sleeves 11A and 12A. Can be used at temperatures down to –40 °C.
Advantages
  • Temperature-resistant – cold resistant to –40 °C
  • Safe – secured bolt and wedge
  • Safe – fast and safe re-reeving of crane ropes
technical infos

Material bolt

  • Quenched and tempered steel

Surface bolt

  • Plasma nitrided

Material housing

  • Cast steel (cold resistant to –40 °C)

Surface housing

  • hot-dip galvanised

Surface hinged safety pin

  • galvanized

Application area

  • Round strand ropes

Indication

  • Please note that these are castings with tolerances. Detailed measurements on request!
  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!

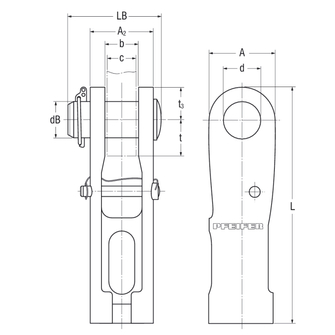

Product variants
WLL WLL [kN]
Length total L [mm]
Nominal size NG
Rope diameter range from [mm]
Rope diameter range to [mm]
Reference no.
Details
  • 85
    246.5
    16
    14
    16
    237744
    Taschenschloss PFEIFER 14,0 -16,0 tzn
    Reference no. 237744
    WLL WLL [kN] 85
    Length total L [mm] 246.5
    Nominal size NG 16
    Width total A [mm] 58
    Fork width external A2 [mm] 60
    Fork Clearance b [mm] 32
    Rope diameter range from [mm] 14
    Rope diameter range to [mm] 16
    Diameter drilled hole d [mm] 31.5
    Pin Length LB [mm] 97.75
    Pin Diameter dB [mm] 30
    insertion depth max. tmax [mm] 57.5
    Length center of bolt to top edge of fork t3 [mm] 29
    Connection component Width max. c max [mm] 31
    Weight approx. [kg] 2.813
  • 120
    285.5
    19
    17
    19
    237745
    Taschenschloss PFEIFER 17,0 -19,0 tzn
    Reference no. 237745
    WLL WLL [kN] 120
    Length total L [mm] 285.5
    Nominal size NG 19
    Width total A [mm] 70
    Fork width external A2 [mm] 72
    Fork Clearance b [mm] 38
    Rope diameter range from [mm] 17
    Rope diameter range to [mm] 19
    Diameter drilled hole d [mm] 36.5
    Pin Length LB [mm] 114.75
    Pin Diameter dB [mm] 35
    insertion depth max. tmax [mm] 62.5
    Length center of bolt to top edge of fork t3 [mm] 35
    Connection component Width max. c max [mm] 37
    Weight approx. [kg] 4.678
  • 160
    310.5
    22
    20
    22
    237746
    Taschenschloss PFEIFER 20,0 -22,0 tzn
    Reference no. 237746
    WLL WLL [kN] 160
    Length total L [mm] 310.5
    Nominal size NG 22
    Width total A [mm] 80
    Fork width external A2 [mm] 83
    Fork Clearance b [mm] 45
    Rope diameter range from [mm] 20
    Rope diameter range to [mm] 22
    Diameter drilled hole d [mm] 42.5
    Pin Length LB [mm] 128.75
    Pin Diameter dB [mm] 41
    insertion depth max. tmax [mm] 67.5
    Length center of bolt to top edge of fork t3 [mm] 40
    Connection component Width max. c max [mm] 44
    Weight approx. [kg] 4.678
  • 220
    357
    26
    23
    26
    237747
    Taschenschloss PFEIFER 23,0 -26,0 tzn
    Reference no. 237747
    WLL WLL [kN] 220
    Length total L [mm] 357
    Nominal size NG 26
    Width total A [mm] 95
    Fork width external A2 [mm] 95
    Fork Clearance b [mm] 51
    Rope diameter range from [mm] 23
    Rope diameter range to [mm] 26
    Diameter drilled hole d [mm] 51.5
    Pin Length LB [mm] 148.75
    Pin Diameter dB [mm] 50
    insertion depth max. tmax [mm] 72.5
    Length center of bolt to top edge of fork t3 [mm] 47.5
    Connection component Width max. c max [mm] 50
    Weight approx. [kg] 10.843
  • 275
    398
    29
    27
    29
    237748
    Taschenschloss PFEIFER 27,0 -29,0 tzn
    Reference no. 237748
    WLL WLL [kN] 275
    Length total L [mm] 398
    Nominal size NG 29
    Width total A [mm] 107
    Fork width external A2 [mm] 107
    Fork Clearance b [mm] 57
    Rope diameter range from [mm] 27
    Rope diameter range to [mm] 29
    Diameter drilled hole d [mm] 58.5
    Pin Length LB [mm] 163.75
    Pin Diameter dB [mm] 57
    insertion depth max. tmax [mm] 77.5
    Length center of bolt to top edge of fork t3 [mm] 53.5
    Connection component Width max. c max [mm] 56
    Weight approx. [kg] 15.551
  • 335
    436.5
    32
    30
    32
    237749
    Taschenschloss PFEIFER 30,0 -32,0 tzn
    Reference no. 237749
    WLL WLL [kN] 335
    Length total L [mm] 436.5
    Nominal size NG 32
    Width total A [mm] 120
    Fork width external A2 [mm] 120
    Fork Clearance b [mm] 63
    Rope diameter range from [mm] 30
    Rope diameter range to [mm] 32
    Diameter drilled hole d [mm] 65
    Pin Length LB [mm] 179.75
    Pin Diameter dB [mm] 63.5
    insertion depth max. tmax [mm] 82.5
    Length center of bolt to top edge of fork t3 [mm] 58.82
    Connection component Width max. c max [mm] 62
    Weight approx. [kg] 21.811
  • 425
    487
    36
    33
    36
    237750
    Taschenschloss PFEIFER 33,0 -36,0 tzn
    Reference no. 237750
    WLL WLL [kN] 425
    Length total L [mm] 487
    Nominal size NG 36
    Width total A [mm] 134
    Fork width external A2 [mm] 134
    Fork Clearance b [mm] 70
    Rope diameter range from [mm] 33
    Rope diameter range to [mm] 36
    Diameter drilled hole d [mm] 75
    Pin Length LB [mm] 202.25
    Pin Diameter dB [mm] 73.5
    insertion depth max. tmax [mm] 90
    Length center of bolt to top edge of fork t3 [mm] 67
    Connection component Width max. c max [mm] 69
    Weight approx. [kg] 29.742
  • 520
    543
    40
    37
    40
    237751
    Taschenschloss PFEIFER 37,0 -40,0 tzn
    Reference no. 237751
    WLL WLL [kN] 520
    Length total L [mm] 543
    Nominal size NG 40
    Width total A [mm] 150
    Fork width external A2 [mm] 150
    Fork Clearance b [mm] 77
    Rope diameter range from [mm] 37
    Rope diameter range to [mm] 40
    Diameter drilled hole d [mm] 82.5
    Pin Length LB [mm] 221.75
    Pin Diameter dB [mm] 81
    insertion depth max. tmax [mm] 100
    Length center of bolt to top edge of fork t3 [mm] 75
    Connection component Width max. c max [mm] 75
    Weight approx. [kg] 42.287
  • 630
    545.5
    44
    41
    44
    237752
    Taschenschloss PFEIFER 41,0 -44,0 tzn
    Reference no. 237752
    WLL WLL [kN] 630
    Length total L [mm] 545.5
    Nominal size NG 44
    Width total A [mm] 165
    Fork width external A2 [mm] 165
    Fork Clearance b [mm] 85
    Rope diameter range from [mm] 41
    Rope diameter range to [mm] 44
    Diameter drilled hole d [mm] 86.5
    Pin Length LB [mm] 241.75
    Pin Diameter dB [mm] 85
    insertion depth max. tmax [mm] 110
    Length center of bolt to top edge of fork t3 [mm] 82.5
    Connection component Width max. c max [mm] 83
    Weight approx. [kg] 55.931
  • 755
    659
    48
    45
    48
    237753
    Taschenschloss PFEIFER 45,0 -48,0 tzn
    Reference no. 237753
    WLL WLL [kN] 755
    Length total L [mm] 659
    Nominal size NG 48
    Width total A [mm] 180
    Fork width external A2 [mm] 180
    Fork Clearance b [mm] 94
    Rope diameter range from [mm] 45
    Rope diameter range to [mm] 48
    Diameter drilled hole d [mm] 91.5
    Pin Length LB [mm] 262.25
    Pin Diameter dB [mm] 90
    insertion depth max. tmax [mm] 120
    Length center of bolt to top edge of fork t3 [mm] 90
    Connection component Width max. c max [mm] 92
    Weight approx. [kg] 71.392
  • 885
    710
    52
    49
    52
    237754
    Taschenschloss PFEIFER 49,0 -52,0 tzn
    Reference no. 237754
    WLL WLL [kN] 885
    Length total L [mm] 710
    Nominal size NG 52
    Width total A [mm] 196
    Fork width external A2 [mm] 196
    Fork Clearance b [mm] 104
    Rope diameter range from [mm] 49
    Rope diameter range to [mm] 52
    Diameter drilled hole d [mm] 96.5
    Pin Length LB [mm] 281.75
    Pin Diameter dB [mm] 95
    insertion depth max. tmax [mm] 130
    Length center of bolt to top edge of fork t3 [mm] 98
    Connection component Width max. c max [mm] 102
    Weight approx. [kg] 90.09
  • 1025
    771.5
    56
    53
    56
    273711
    Taschenschloss PFEIFER 53,0 -56,0 tzn
    Reference no. 273711
    WLL WLL [kN] 1025
    Length total L [mm] 771.5
    Nominal size NG 56
    Width total A [mm] 213
    Fork width external A2 [mm] 213
    Fork Clearance b [mm] 115
    Rope diameter range from [mm] 53
    Rope diameter range to [mm] 56
    Diameter drilled hole d [mm] 101.5
    Pin Length LB [mm] 304
    Pin Diameter dB [mm] 100
    insertion depth max. tmax [mm] 140
    Length center of bolt to top edge of fork t3 [mm] 106.5
    Connection component Width max. c max [mm] 112
    Weight approx. [kg] 116.6
  • 1180
    828.5
    60
    57
    60
    272359
    Taschenschloss PFEIFER 57,0 -60,0 tzn
    Reference no. 272359
    WLL WLL [kN] 1180
    Length total L [mm] 828.5
    Nominal size NG 60
    Width total A [mm] 233
    Fork width external A2 [mm] 233
    Fork Clearance b [mm] 127
    Rope diameter range from [mm] 57
    Rope diameter range to [mm] 60
    Diameter drilled hole d [mm] 106.5
    Pin Length LB [mm] 314
    Pin Diameter dB [mm] 105
    insertion depth max. tmax [mm] 150
    Length center of bolt to top edge of fork t3 [mm] 116.5
    Connection component Width max. c max [mm] 124
    Weight approx. [kg] 150
