Heavy duty thimbles

Heavy duty thimbles

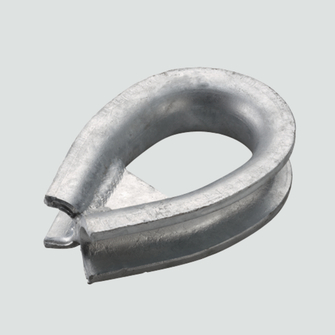

Heavy duty thimbles provide a high level of protection to the rope eye against wear and tear and deformation thanks to reinforced material. Additional stability thanks to integrated cross-piece.
Advantages
  • Economical – extension of the rope lifetime through protection of the rope eyes
  • Robust – very small reduction in the minimum breaking load (10%)
  • Robust – high load capacity through reinforced material
technical infos

Surface

  • painted, galvanized or bare

Indication

  • with welded-in cross-piece
  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants
Nominal size NG
Rope Ø ds [mm]
Reference no.
Details
  • 35
    35
    211009
    Schwerlast-Kausche m.Steg 33,00 tzn dB80,0 H
    Reference no. 211009
    Nominal size NG 35
    Rope Ø ds [mm] 35

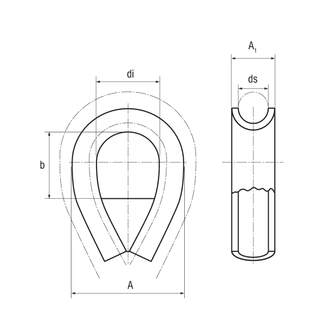

    Width total A [mm] 150
    Rope guide Width A1 [mm] 55
    Fork Clearance b [mm] 100
    Diameter internal di [mm] 80
    Weight approx. [kg] 3.2
  • 40
    40
    211010
    Schwerlast-Kausche m.Steg 38,00 tzn dB90,0 H
    Reference no. 211010
    Nominal size NG 40
    Rope Ø ds [mm] 40
    Width total A [mm] 160
    Rope guide Width A1 [mm] 65
    Fork Clearance b [mm] 120
    Diameter internal di [mm] 90
    Weight approx. [kg] 5.1
  • 50
    50
    211011
    Schwerlast-Kausche m.Steg 47,00 tzn dB110,0 H
    Reference no. 211011
    Nominal size NG 50
    Rope Ø ds [mm] 50
    Width total A [mm] 200
    Rope guide Width A1 [mm] 80
    Fork Clearance b [mm] 125
    Diameter internal di [mm] 110
    Weight approx. [kg] 9.2
  • 62
    62
    211012
    Schwerlast-Kausche m.Steg 59,00 tzn dB140,0 H
    Reference no. 211012
    Nominal size NG 62
    Rope Ø ds [mm] 62
    Width total A [mm] 250
    Rope guide Width A1 [mm] 100
    Fork Clearance b [mm] 160
    Diameter internal di [mm] 140
    Weight approx. [kg] 17.4
  • 72
    72
    211013
    Schwerlast-Kausche m.Steg 68,00 tzn dB160,0 H
    Reference no. 211013
    Nominal size NG 72
    Rope Ø ds [mm] 72
    Width total A [mm] 265
    Rope guide Width A1 [mm] 115
    Fork Clearance b [mm] 175
    Diameter internal di [mm] 160
    Weight approx. [kg] 19.4
  • 85
    85
    211014
    Schwerlast-Kausche m.Steg 81,00 tzn dB190,0 H
    Reference no. 211014
    Nominal size NG 85
    Rope Ø ds [mm] 85
    Width total A [mm] 300
    Rope guide Width A1 [mm] 125
    Fork Clearance b [mm] 245
    Diameter internal di [mm] 190
    Weight approx. [kg] 29
  • 100
    100
    211015
    Schwerlast-Kausche m.Steg 90,00 tzn dB200,0 H
    Reference no. 211015
    Nominal size NG 100
    Rope Ø ds [mm] 100
    Width total A [mm] 370
    Rope guide Width A1 [mm] 150
    Fork Clearance b [mm] 290
    Diameter internal di [mm] 200
    Weight approx. [kg] 39
  • 115
    115
    211016
    Schwerlast-Kausche m.Steg 100,00 tzn dB210,0 H
    Reference no. 211016
    Nominal size NG 115
    Rope Ø ds [mm] 115
    Width total A [mm] 380
    Rope guide Width A1 [mm] 165
    Fork Clearance b [mm] 300
    Diameter internal di [mm] 210
    Weight approx. [kg] 52
Nominal size NG 35
Rope Ø ds [mm] 35
Reference no. 211009
  • Details
    Schwerlast-Kausche m.Steg 33,00 tzn dB80,0 H
    Reference no. 211009
    Nominal size NG 35
    Rope Ø ds [mm] 35
    Width total A [mm] 150
    Rope guide Width A1 [mm] 55
    Fork Clearance b [mm] 100
    Diameter internal di [mm] 80
    Weight approx. [kg] 3.2
Nominal size NG 40
Rope Ø ds [mm] 40
Reference no. 211010
  • Details
    Schwerlast-Kausche m.Steg 38,00 tzn dB90,0 H
    Reference no. 211010
    Nominal size NG 40
    Rope Ø ds [mm] 40
    Width total A [mm] 160
    Rope guide Width A1 [mm] 65
    Fork Clearance b [mm] 120
    Diameter internal di [mm] 90
    Weight approx. [kg] 5.1
Nominal size NG 50
Rope Ø ds [mm] 50
Reference no. 211011
  • Details
    Schwerlast-Kausche m.Steg 47,00 tzn dB110,0 H
    Reference no. 211011
    Nominal size NG 50
    Rope Ø ds [mm] 50
    Width total A [mm] 200
    Rope guide Width A1 [mm] 80
    Fork Clearance b [mm] 125
    Diameter internal di [mm] 110
    Weight approx. [kg] 9.2
Nominal size NG 62
Rope Ø ds [mm] 62
Reference no. 211012
  • Details
    Schwerlast-Kausche m.Steg 59,00 tzn dB140,0 H
    Reference no. 211012
    Nominal size NG 62
    Rope Ø ds [mm] 62
    Width total A [mm] 250
    Rope guide Width A1 [mm] 100
    Fork Clearance b [mm] 160
    Diameter internal di [mm] 140
    Weight approx. [kg] 17.4
Nominal size NG 72
Rope Ø ds [mm] 72
Reference no. 211013
  • Details
    Schwerlast-Kausche m.Steg 68,00 tzn dB160,0 H
    Reference no. 211013
    Nominal size NG 72
    Rope Ø ds [mm] 72
    Width total A [mm] 265
    Rope guide Width A1 [mm] 115
    Fork Clearance b [mm] 175
    Diameter internal di [mm] 160
    Weight approx. [kg] 19.4
Nominal size NG 85
Rope Ø ds [mm] 85
Reference no. 211014
  • Details
    Schwerlast-Kausche m.Steg 81,00 tzn dB190,0 H
    Reference no. 211014
    Nominal size NG 85
    Rope Ø ds [mm] 85
    Width total A [mm] 300
    Rope guide Width A1 [mm] 125
    Fork Clearance b [mm] 245
    Diameter internal di [mm] 190
    Weight approx. [kg] 29
Nominal size NG 100
Rope Ø ds [mm] 100
Reference no. 211015
  • Details
    Schwerlast-Kausche m.Steg 90,00 tzn dB200,0 H
    Reference no. 211015
    Nominal size NG 100
    Rope Ø ds [mm] 100
    Width total A [mm] 370
    Rope guide Width A1 [mm] 150
    Fork Clearance b [mm] 290
    Diameter internal di [mm] 200
    Weight approx. [kg] 39
Nominal size NG 115
Rope Ø ds [mm] 115
Reference no. 211016
  • Details
    Schwerlast-Kausche m.Steg 100,00 tzn dB210,0 H
    Reference no. 211016
    Nominal size NG 115
    Rope Ø ds [mm] 115
    Width total A [mm] 380
    Rope guide Width A1 [mm] 165
    Fork Clearance b [mm] 300
    Diameter internal di [mm] 210
    Weight approx. [kg] 52
