Solid thimble DIN 3091 - galv 527

Solid thimble DIN 3091 - galv 527
Solid thimbles 527 are manufactured to DIN 3091, thus guaranteeing constant quality. Full thimbles 527 can be drilled out to a specific diameter.
Advantages
  • Economical – extension of the rope lifetime through protection of the rope eyes
  • Robust – very small reduction in the minimum breaking load (10%)
  • Standardised – DIN 3091
technical infos

Material

  • Cast iron

Surface

  • galvanized

Application area

  • Round strand rope pressed acc. to EN 13411-3

Indication

  • Nominal size = max. rope diameter
  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants

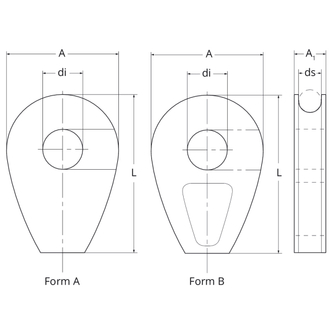

Length total L [mm]
Nominal size NG
Reference no.
Details
  • 66
    8
    111411
    Vollkausche DIN3091 roh 12/88 8,00 GE tzn dB14,0 NG8
    Reference no. 111411
    Length total L [mm] 66
    Nominal size NG 8
    groove width RW [mm] 8
    Shape A
    Width total A [mm] 40
    Rope guide Width A1 [mm] 15
    Diameter internal di [mm] 14
    Diameter internal max dimax [mm] 20
    Weight approx. [kg] 0.2
  • 82
    10
    111414
    Vollkausche DIN3091 roh 12/88 10,00 GE tzn dB18,0 NG10
    Reference no. 111414
    Length total L [mm] 82
    Nominal size NG 10
    groove width RW [mm] 10
    Shape A
    Width total A [mm] 50
    Rope guide Width A1 [mm] 17.5
    Diameter internal di [mm] 18
    Diameter internal max dimax [mm] 25
    Weight approx. [kg] 0.3
  • 98
    12
    111422
    Vollkausche DIN3091 roh 12/88 12,00 GE tzn dB21,0 NG12
    Reference no. 111422
    Length total L [mm] 98
    Nominal size NG 12
    groove width RW [mm] 12
    Shape A
    Width total A [mm] 60
    Rope guide Width A1 [mm] 20
    Diameter internal di [mm] 21
    Diameter internal max dimax [mm] 30
    Weight approx. [kg] 0.5
  • 114
    14
    111425
    Vollkausche DIN3091 roh 12/88 14,00 GE tzn dB25,0 NG14
    Reference no. 111425
    Length total L [mm] 114
    Nominal size NG 14
    groove width RW [mm] 14
    Shape A
    Width total A [mm] 70
    Rope guide Width A1 [mm] 23.5
    Diameter internal di [mm] 25
    Diameter internal max dimax [mm] 35
    Weight approx. [kg] 0.7
  • 130
    16
    111432
    Vollkausche DIN3091 roh 12/88 16,00 GE tzn dB28,0 NG16
    Reference no. 111432
    Length total L [mm] 130
    Nominal size NG 16
    groove width RW [mm] 16
    Shape B
    Width total A [mm] 80
    Rope guide Width A1 [mm] 26
    Diameter internal di [mm] 28
    Diameter internal max dimax [mm] 40
    Weight approx. [kg] 0.8
  • 145
    18
    111437
    Vollkausche DIN3091 roh 12/88 18,00 GE tzn dB31,0 NG18
    Reference no. 111437
    Length total L [mm] 145
    Nominal size NG 18
    groove width RW [mm] 18
    Shape B
    Width total A [mm] 90
    Rope guide Width A1 [mm] 28.5
    Diameter internal di [mm] 31
    Diameter internal max dimax [mm] 45
    Weight approx. [kg] 1.1
  • 161
    20
    111443
    Vollkausche DIN3091 roh 12/88 20,00 GE tzn dB35,0 NG20
    Reference no. 111443
    Length total L [mm] 161
    Nominal size NG 20
    groove width RW [mm] 20
    Shape B
    Width total A [mm] 100
    Rope guide Width A1 [mm] 31
    Diameter internal di [mm] 35
    Diameter internal max dimax [mm] 50
    Weight approx. [kg] 1.4
  • 177
    22
    111450
    Vollkausche DIN3091 roh 12/88 22,00 GE tzn dB38,0 NG22
    Reference no. 111450
    Length total L [mm] 177
    Nominal size NG 22
    groove width RW [mm] 22
    Shape B
    Width total A [mm] 110
    Rope guide Width A1 [mm] 33.5
    Diameter internal di [mm] 38
    Diameter internal max dimax [mm] 55
    Weight approx. [kg] 1.8
  • 193
    24
    111453
    Vollkausche DIN3091 roh 12/88 24,00 GE tzn dB41,0 NG24
    Reference no. 111453
    Length total L [mm] 193
    Nominal size NG 24
    groove width RW [mm] 24
    Shape B
    Width total A [mm] 120
    Rope guide Width A1 [mm] 36
    Diameter internal di [mm] 41
    Diameter internal max dimax [mm] 60
    Weight approx. [kg] 2.3
  • 209
    26
    111459
    Vollkausche DIN3091 roh 12/88 26,00 GE tzn dB44,0 NG26
    Reference no. 111459
    Length total L [mm] 209
    Nominal size NG 26
    groove width RW [mm] 26
    Shape B
    Width total A [mm] 130
    Rope guide Width A1 [mm] 39.5
    Diameter internal di [mm] 44
    Diameter internal max dimax [mm] 65
    Weight approx. [kg] 3
  • 224
    28
    111466
    Vollkausche DIN3091 roh 12/88 28,00 GE tzn dB47,0 NG28
    Reference no. 111466
    Length total L [mm] 224
    Nominal size NG 28
    groove width RW [mm] 28
    Shape B
    Width total A [mm] 140
    Rope guide Width A1 [mm] 42
    Diameter internal di [mm] 47
    Diameter internal max dimax [mm] 70
    Weight approx. [kg] 3.7
  • 256
    32
    111472
    Vollkausche DIN3091 roh 12/88 32,00 GE tzn dB53,0 NG32
    Reference no. 111472
    Length total L [mm] 256
    Nominal size NG 32
    groove width RW [mm] 32
    Shape B
    Width total A [mm] 160
    Rope guide Width A1 [mm] 47
    Diameter internal di [mm] 53
    Diameter internal max dimax [mm] 80
    Weight approx. [kg] 5.3
  • 288
    36
    111480
    Vollkausche DIN3091 roh 12/88 36,00 GE tzn dB59,0 NG36
    Reference no. 111480
    Length total L [mm] 288
    Nominal size NG 36
    groove width RW [mm] 36
    Shape B
    Width total A [mm] 180
    Rope guide Width A1 [mm] 53
    Diameter internal di [mm] 59
    Diameter internal max dimax [mm] 90
    Weight approx. [kg] 7.5
  • 320
    40
    111488
    Vollkausche DIN3091 roh 12/88 40,00 GE tzn dB65,0 NG40
    Reference no. 111488
    Length total L [mm] 320
    Nominal size NG 40
    groove width RW [mm] 40
    Shape B
    Width total A [mm] 200
    Rope guide Width A1 [mm] 58
    Diameter internal di [mm] 65
    Diameter internal max dimax [mm] 100
    Weight approx. [kg] 10.4
Length total L [mm] 66
Nominal size NG 8
Reference no. 111411
  • Details
    Vollkausche DIN3091 roh 12/88 8,00 GE tzn dB14,0 NG8
    Reference no. 111411
    Length total L [mm] 66
    Nominal size NG 8
    groove width RW [mm] 8
    Shape A
    Width total A [mm] 40
    Rope guide Width A1 [mm] 15
    Diameter internal di [mm] 14
    Diameter internal max dimax [mm] 20
    Weight approx. [kg] 0.2
Length total L [mm] 82
Nominal size NG 10
Reference no. 111414
  • Details
    Vollkausche DIN3091 roh 12/88 10,00 GE tzn dB18,0 NG10
    Reference no. 111414
    Length total L [mm] 82
    Nominal size NG 10
    groove width RW [mm] 10
    Shape A
    Width total A [mm] 50
    Rope guide Width A1 [mm] 17.5
    Diameter internal di [mm] 18
    Diameter internal max dimax [mm] 25
    Weight approx. [kg] 0.3
Length total L [mm] 98
Nominal size NG 12
Reference no. 111422
  • Details
    Vollkausche DIN3091 roh 12/88 12,00 GE tzn dB21,0 NG12
    Reference no. 111422
    Length total L [mm] 98
    Nominal size NG 12
    groove width RW [mm] 12
    Shape A
    Width total A [mm] 60
    Rope guide Width A1 [mm] 20
    Diameter internal di [mm] 21
    Diameter internal max dimax [mm] 30
    Weight approx. [kg] 0.5
Length total L [mm] 114
Nominal size NG 14
Reference no. 111425
  • Details
    Vollkausche DIN3091 roh 12/88 14,00 GE tzn dB25,0 NG14
    Reference no. 111425
    Length total L [mm] 114
    Nominal size NG 14
    groove width RW [mm] 14
    Shape A
    Width total A [mm] 70
    Rope guide Width A1 [mm] 23.5
    Diameter internal di [mm] 25
    Diameter internal max dimax [mm] 35
    Weight approx. [kg] 0.7
Length total L [mm] 130
Nominal size NG 16
Reference no. 111432
  • Details
    Vollkausche DIN3091 roh 12/88 16,00 GE tzn dB28,0 NG16
    Reference no. 111432
    Length total L [mm] 130
    Nominal size NG 16
    groove width RW [mm] 16
    Shape B
    Width total A [mm] 80
    Rope guide Width A1 [mm] 26
    Diameter internal di [mm] 28
    Diameter internal max dimax [mm] 40
    Weight approx. [kg] 0.8
Length total L [mm] 145
Nominal size NG 18
Reference no. 111437
  • Details
    Vollkausche DIN3091 roh 12/88 18,00 GE tzn dB31,0 NG18
    Reference no. 111437
    Length total L [mm] 145
    Nominal size NG 18
    groove width RW [mm] 18
    Shape B
    Width total A [mm] 90
    Rope guide Width A1 [mm] 28.5
    Diameter internal di [mm] 31
    Diameter internal max dimax [mm] 45
    Weight approx. [kg] 1.1
Length total L [mm] 161
Nominal size NG 20
Reference no. 111443
  • Details
    Vollkausche DIN3091 roh 12/88 20,00 GE tzn dB35,0 NG20
    Reference no. 111443
    Length total L [mm] 161
    Nominal size NG 20
    groove width RW [mm] 20
    Shape B
    Width total A [mm] 100
    Rope guide Width A1 [mm] 31
    Diameter internal di [mm] 35
    Diameter internal max dimax [mm] 50
    Weight approx. [kg] 1.4
Length total L [mm] 177
Nominal size NG 22
Reference no. 111450
  • Details
    Vollkausche DIN3091 roh 12/88 22,00 GE tzn dB38,0 NG22
    Reference no. 111450
    Length total L [mm] 177
    Nominal size NG 22
    groove width RW [mm] 22
    Shape B
    Width total A [mm] 110
    Rope guide Width A1 [mm] 33.5
    Diameter internal di [mm] 38
    Diameter internal max dimax [mm] 55
    Weight approx. [kg] 1.8
Length total L [mm] 193
Nominal size NG 24
Reference no. 111453
  • Details
    Vollkausche DIN3091 roh 12/88 24,00 GE tzn dB41,0 NG24
    Reference no. 111453
    Length total L [mm] 193
    Nominal size NG 24
    groove width RW [mm] 24
    Shape B
    Width total A [mm] 120
    Rope guide Width A1 [mm] 36
    Diameter internal di [mm] 41
    Diameter internal max dimax [mm] 60
    Weight approx. [kg] 2.3
Length total L [mm] 209
Nominal size NG 26
Reference no. 111459
  • Details
    Vollkausche DIN3091 roh 12/88 26,00 GE tzn dB44,0 NG26
    Reference no. 111459
    Length total L [mm] 209
    Nominal size NG 26
    groove width RW [mm] 26
    Shape B
    Width total A [mm] 130
    Rope guide Width A1 [mm] 39.5
    Diameter internal di [mm] 44
    Diameter internal max dimax [mm] 65
    Weight approx. [kg] 3
Length total L [mm] 224
Nominal size NG 28
Reference no. 111466
  • Details
    Vollkausche DIN3091 roh 12/88 28,00 GE tzn dB47,0 NG28
    Reference no. 111466
    Length total L [mm] 224
    Nominal size NG 28
    groove width RW [mm] 28
    Shape B
    Width total A [mm] 140
    Rope guide Width A1 [mm] 42
    Diameter internal di [mm] 47
    Diameter internal max dimax [mm] 70
    Weight approx. [kg] 3.7
Length total L [mm] 256
Nominal size NG 32
Reference no. 111472
  • Details
    Vollkausche DIN3091 roh 12/88 32,00 GE tzn dB53,0 NG32
    Reference no. 111472
    Length total L [mm] 256
    Nominal size NG 32
    groove width RW [mm] 32
    Shape B
    Width total A [mm] 160
    Rope guide Width A1 [mm] 47
    Diameter internal di [mm] 53
    Diameter internal max dimax [mm] 80
    Weight approx. [kg] 5.3
Length total L [mm] 288
Nominal size NG 36
Reference no. 111480
  • Details
    Vollkausche DIN3091 roh 12/88 36,00 GE tzn dB59,0 NG36
    Reference no. 111480
    Length total L [mm] 288
    Nominal size NG 36
    groove width RW [mm] 36
    Shape B
    Width total A [mm] 180
    Rope guide Width A1 [mm] 53
    Diameter internal di [mm] 59
    Diameter internal max dimax [mm] 90
    Weight approx. [kg] 7.5
Length total L [mm] 320
Nominal size NG 40
Reference no. 111488
  • Details
    Vollkausche DIN3091 roh 12/88 40,00 GE tzn dB65,0 NG40
    Reference no. 111488
    Length total L [mm] 320
    Nominal size NG 40
    groove width RW [mm] 40
    Shape B
    Width total A [mm] 200
    Rope guide Width A1 [mm] 58
    Diameter internal di [mm] 65
    Diameter internal max dimax [mm] 100
    Weight approx. [kg] 10.4
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-301
Fax +49 8331 937-123
E-Mail wireropes@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-181
Fax +49 8331 937-123
E-Mail seile@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Oktjaborskaja Nabereschnaja, No. 104, Korpus 23
RU-193079 St. Petersburg
Tel. +7 812 740 12-24
Fax +7 812 493 48-21
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Service centre
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
2023 Humble Westfield
US-Houston, TX 77037
Tel. +1 832 827 2923
Fax +1 281 784 2903
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
China
 PFEIFER Steel Wire Rope (Shanghai) Co., Ltd.
9th Floor, No. 2555 Jiayinyuan Road, Nanxiang Town, Jiading District
CN-Shanghai
Industrieseile/Industry ropes
Tel. +86 21 56 77 80 06
Fax +86 21 56 77 92 29
E-Mail info@pfeifer.com.cn
Web www.pfeifer.com.cn
 Sales subsidiary
Great Britain
 PFEIFER DRAKO Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail southampton@pfeifer.uk
Web www.pfeifer.co.uk
 Sales subsidiary
Hungary
 PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Pyzhevskiy pereulok, h. 5, bld.1, office 108
RU-119017 Moskau
Tel. +7 495 363 01-27
Fax +7 495 363 01-28
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Sales subsidiary
Spain
 PFEIFER Cables y Equipos de Elevación S.L.
Avda. de los Pirineos, 25 – Nave 20, San Sebastián de los Reyes
ES-28703 Madrid
Tel. +34 91 659-3185
Fax +34 91 659-3139
E-Mail p-es@pfeifer.es
Web www.pfeifer.es
 Sales subsidiary
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
600 Industry Drive
US-Hampton, VA 23661
Tel. +1 757 825 2544
Fax +1 757 825 2546
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Sales subsidiary
United Arab Emirates
 PFEIFER Middle East Wire Rope & Lifting Technology FZE
Jebel Ali Free Zone 1, RA08UA07, PO Box 263081
AE-Dubai
Tel. +971 4 883-8445
Fax +971 4 883-8446
E-Mail sales@pfeifer.ae
Web rope-lifting-ae.pfeifer.info
 Sales subsidiary
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Krönenbarg 92b
DE-21077 Hamburg
Tel. +49 40 78 04 63-0
Fax +49 40 78 70 13
E-Mail psh-hamburg@pfeifer.de
Web www.pfeifer.info
 Office
Switzerland
 pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
 Agency

Feel free to contact us

Tel.

+49 8331 937-301

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
