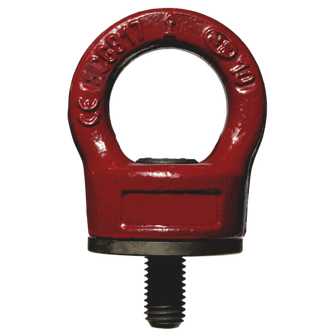

Twist eye bolt
Twist eye bolt
Technical data
Quality grade
- 10
Operating temperature
- –20 °C to +110 °C
- reduced carrying capacities outside this range
Standard
- EN 1677-1
Certification
- H-stamp
Marking
- Batch number
Safety factor
- 4
Rotation
- 360° (under load)
Tilting
- rigid
Safety
Please note the admissible load angle.
Options
- A selection of the options available on request can be found below. Please contact us for your individual offer!
Labelling options
- with RFID chip
- with individual serial number or labelling
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
-
750M 12281535
ARS TWT C817X-0.75T-M12X1.75-EL18MM

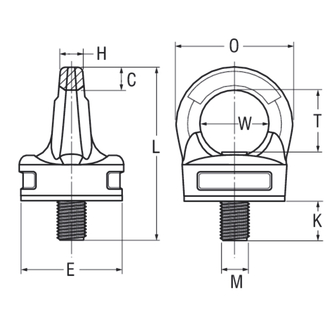

Reference no. 281535 Working load limit [kg] 750 Overall length L [mm] 82.5 Thread length K [mm] 18 Tightening torque MA [Nm] 28 Stirrup width H 11 Stirrup height C [mm] 11 Ø of contact surface E 44 Clear height T [mm] 32 Clearance W [mm] 34 Outer ring Ø O [mm] 56 Weight approx. [kg] 0.46 Thread diameter metric M M 12 Working load limit single-leg with cross bar 0° [t] 0.75 Working load limit single-leg with cross bar 90° [t] 0.75 Working load limit 2-leg with cross bar 0° [t] 1.5 Working load limit 2-leg with cross bar 90° [t] 1.5 Working load limit 2-leg symmetrical 0°–45° [t] 1 Working load limit 2-leg symmetrical 45°–60° [t] 0.75 Working load limit 2-leg asymmetrical [t] 0.75 Working load limit 3/4-leg symmetrical 0°–45° [t] 1.6 Working load limit 3/4-leg symmetrical 45°–60° [t] 1.12 Working load limit 3 or 4 leg asymmetrical [t] 0.75 -
1500M 16281536
ARS TWT C817X-1.5T-M16X2-EL24MM
Reference no. 281536 Working load limit [kg] 1500 Overall length L [mm] 93.5 Thread length K [mm] 24 Tightening torque MA [Nm] 70 Stirrup width H 14.5 Stirrup height C [mm] 13 Ø of contact surface E 56 Clear height T [mm] 33 Clearance W [mm] 39 Outer ring Ø O [mm] 65 Weight approx. [kg] 0.9 Thread diameter metric M M 16 Working load limit single-leg with cross bar 0° [t] 1.5 Working load limit single-leg with cross bar 90° [t] 1.5 Working load limit 2-leg with cross bar 0° [t] 3 Working load limit 2-leg with cross bar 90° [t] 3 Working load limit 2-leg symmetrical 0°–45° [t] 2 Working load limit 2-leg symmetrical 45°–60° [t] 1.5 Working load limit 2-leg asymmetrical [t] 1.5 Working load limit 3/4-leg symmetrical 0°–45° [t] 3.15 Working load limit 3/4-leg symmetrical 45°–60° [t] 2.25 Working load limit 3 or 4 leg asymmetrical [t] 1.5 -
2300M 20281537
ARS TWT C817X-2.3T-M20X2.5-EL30MM
Reference no. 281537 Working load limit [kg] 2300 Overall length L [mm] 111 Thread length K [mm] 30 Tightening torque MA [Nm] 165 Stirrup width H 17 Stirrup height C [mm] 14 Ø of contact surface E 58 Clear height T [mm] 40 Clearance W [mm] 42 Outer ring Ø O [mm] 70 Weight approx. [kg] 1.15 Thread diameter metric M M 20 Working load limit single-leg with cross bar 0° [t] 2.3 Working load limit single-leg with cross bar 90° [t] 2.3 Working load limit 2-leg with cross bar 0° [t] 4.6 Working load limit 2-leg with cross bar 90° [t] 4.6 Working load limit 2-leg symmetrical 0°–45° [t] 3.22 Working load limit 2-leg symmetrical 45°–60° [t] 2.3 Working load limit 2-leg asymmetrical [t] 2.3 Working load limit 3/4-leg symmetrical 0°–45° [t] 4.83 Working load limit 3/4-leg symmetrical 45°–60° [t] 3.45 Working load limit 3 or 4 leg asymmetrical [t] 2.3 -
3200M 24281538
ARS TWT C817X-3.2T-M24X3-EL38.5MM
Reference no. 281538 Working load limit [kg] 3200 Overall length L [mm] 136.5 Thread length K [mm] 38.5 Tightening torque MA [Nm] 230 Stirrup width H 19 Stirrup height C [mm] 18 Ø of contact surface E 73 Clear height T [mm] 44.5 Clearance W [mm] 52 Outer ring Ø O [mm] 88 Weight approx. [kg] 2.05 Thread diameter metric M M 24 Working load limit single-leg with cross bar 0° [t] 3.2 Working load limit single-leg with cross bar 90° [t] 3.2 Working load limit 2-leg with cross bar 0° [t] 6.4 Working load limit 2-leg with cross bar 90° [t] 6.4 Working load limit 2-leg symmetrical 0°–45° [t] 4.48 Working load limit 2-leg symmetrical 45°–60° [t] 3.2 Working load limit 2-leg asymmetrical [t] 3.2 Working load limit 3/4-leg symmetrical 0°–45° [t] 6.7 Working load limit 3/4-leg symmetrical 45°–60° [t] 4.8 Working load limit 3 or 4 leg asymmetrical [t] 3.2 -
4500M 30281539
ARS TWT C817X-4.5T-M30X3.5-EL44MM
Reference no. 281539 Working load limit [kg] 4500 Overall length L [mm] 167 Thread length K [mm] 44 Tightening torque MA [Nm] 465 Stirrup width H 27 Stirrup height C [mm] 22 Ø of contact surface E 80 Clear height T [mm] 53 Clearance W [mm] 62 Outer ring Ø O [mm] 106 Weight approx. [kg] 4 Thread diameter metric M M 30 Working load limit single-leg with cross bar 0° [t] 4.5 Working load limit single-leg with cross bar 90° [t] 4.5 Working load limit 2-leg with cross bar 0° [t] 9 Working load limit 2-leg with cross bar 90° [t] 9 Working load limit 2-leg symmetrical 0°–45° [t] 6.3 Working load limit 2-leg symmetrical 45°–60° [t] 4.5 Working load limit 2-leg asymmetrical [t] 4.5 Working load limit 3/4-leg symmetrical 0°–45° [t] 9.4 Working load limit 3/4-leg symmetrical 45°–60° [t] 6.7 Working load limit 3 or 4 leg asymmetrical [t] 4.5
Working load limit [kg]
750
Thread diameter metric M
M 12
Reference no.
281535
-
Details
ARS TWT C817X-0.75T-M12X1.75-EL18MM
Reference no. 281535 Working load limit [kg] 750 Overall length L [mm] 82.5 Thread length K [mm] 18 Tightening torque MA [Nm] 28 Stirrup width H 11 Stirrup height C [mm] 11 Ø of contact surface E 44 Clear height T [mm] 32 Clearance W [mm] 34 Outer ring Ø O [mm] 56 Weight approx. [kg] 0.46 Thread diameter metric M M 12 Working load limit single-leg with cross bar 0° [t] 0.75 Working load limit single-leg with cross bar 90° [t] 0.75 Working load limit 2-leg with cross bar 0° [t] 1.5 Working load limit 2-leg with cross bar 90° [t] 1.5 Working load limit 2-leg symmetrical 0°–45° [t] 1 Working load limit 2-leg symmetrical 45°–60° [t] 0.75 Working load limit 2-leg asymmetrical [t] 0.75 Working load limit 3/4-leg symmetrical 0°–45° [t] 1.6 Working load limit 3/4-leg symmetrical 45°–60° [t] 1.12 Working load limit 3 or 4 leg asymmetrical [t] 0.75
Working load limit [kg]
1500
Thread diameter metric M
M 16
Reference no.
281536
-
Details
ARS TWT C817X-1.5T-M16X2-EL24MM
Reference no. 281536 Working load limit [kg] 1500 Overall length L [mm] 93.5 Thread length K [mm] 24 Tightening torque MA [Nm] 70 Stirrup width H 14.5 Stirrup height C [mm] 13 Ø of contact surface E 56 Clear height T [mm] 33 Clearance W [mm] 39 Outer ring Ø O [mm] 65 Weight approx. [kg] 0.9 Thread diameter metric M M 16 Working load limit single-leg with cross bar 0° [t] 1.5 Working load limit single-leg with cross bar 90° [t] 1.5 Working load limit 2-leg with cross bar 0° [t] 3 Working load limit 2-leg with cross bar 90° [t] 3 Working load limit 2-leg symmetrical 0°–45° [t] 2 Working load limit 2-leg symmetrical 45°–60° [t] 1.5 Working load limit 2-leg asymmetrical [t] 1.5 Working load limit 3/4-leg symmetrical 0°–45° [t] 3.15 Working load limit 3/4-leg symmetrical 45°–60° [t] 2.25 Working load limit 3 or 4 leg asymmetrical [t] 1.5
Working load limit [kg]
2300
Thread diameter metric M
M 20
Reference no.
281537
-
Details
ARS TWT C817X-2.3T-M20X2.5-EL30MM
Reference no. 281537 Working load limit [kg] 2300 Overall length L [mm] 111 Thread length K [mm] 30 Tightening torque MA [Nm] 165 Stirrup width H 17 Stirrup height C [mm] 14 Ø of contact surface E 58 Clear height T [mm] 40 Clearance W [mm] 42 Outer ring Ø O [mm] 70 Weight approx. [kg] 1.15 Thread diameter metric M M 20 Working load limit single-leg with cross bar 0° [t] 2.3 Working load limit single-leg with cross bar 90° [t] 2.3 Working load limit 2-leg with cross bar 0° [t] 4.6 Working load limit 2-leg with cross bar 90° [t] 4.6 Working load limit 2-leg symmetrical 0°–45° [t] 3.22 Working load limit 2-leg symmetrical 45°–60° [t] 2.3 Working load limit 2-leg asymmetrical [t] 2.3 Working load limit 3/4-leg symmetrical 0°–45° [t] 4.83 Working load limit 3/4-leg symmetrical 45°–60° [t] 3.45 Working load limit 3 or 4 leg asymmetrical [t] 2.3
Working load limit [kg]
3200
Thread diameter metric M
M 24
Reference no.
281538
-
Details
ARS TWT C817X-3.2T-M24X3-EL38.5MM
Reference no. 281538 Working load limit [kg] 3200 Overall length L [mm] 136.5 Thread length K [mm] 38.5 Tightening torque MA [Nm] 230 Stirrup width H 19 Stirrup height C [mm] 18 Ø of contact surface E 73 Clear height T [mm] 44.5 Clearance W [mm] 52 Outer ring Ø O [mm] 88 Weight approx. [kg] 2.05 Thread diameter metric M M 24 Working load limit single-leg with cross bar 0° [t] 3.2 Working load limit single-leg with cross bar 90° [t] 3.2 Working load limit 2-leg with cross bar 0° [t] 6.4 Working load limit 2-leg with cross bar 90° [t] 6.4 Working load limit 2-leg symmetrical 0°–45° [t] 4.48 Working load limit 2-leg symmetrical 45°–60° [t] 3.2 Working load limit 2-leg asymmetrical [t] 3.2 Working load limit 3/4-leg symmetrical 0°–45° [t] 6.7 Working load limit 3/4-leg symmetrical 45°–60° [t] 4.8 Working load limit 3 or 4 leg asymmetrical [t] 3.2
Working load limit [kg]
4500
Thread diameter metric M
M 30
Reference no.
281539
-
Details
ARS TWT C817X-4.5T-M30X3.5-EL44MM
Reference no. 281539 Working load limit [kg] 4500 Overall length L [mm] 167 Thread length K [mm] 44 Tightening torque MA [Nm] 465 Stirrup width H 27 Stirrup height C [mm] 22 Ø of contact surface E 80 Clear height T [mm] 53 Clearance W [mm] 62 Outer ring Ø O [mm] 106 Weight approx. [kg] 4 Thread diameter metric M M 30 Working load limit single-leg with cross bar 0° [t] 4.5 Working load limit single-leg with cross bar 90° [t] 4.5 Working load limit 2-leg with cross bar 0° [t] 9 Working load limit 2-leg with cross bar 90° [t] 9 Working load limit 2-leg symmetrical 0°–45° [t] 6.3 Working load limit 2-leg symmetrical 45°–60° [t] 4.5 Working load limit 2-leg asymmetrical [t] 4.5 Working load limit 3/4-leg symmetrical 0°–45° [t] 9.4 Working load limit 3/4-leg symmetrical 45°–60° [t] 6.7 Working load limit 3 or 4 leg asymmetrical [t] 4.5
