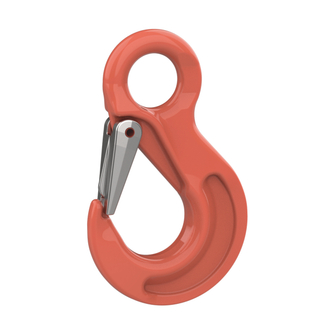

HIT PRO 1-CAX eye load hook, quality grade 10

HIT PRO 1-CAX eye load hook, quality grade 10
Standard load hook, from 1.4 t to 19 t. As end hook or suspension hook for simple and fast connection of the chain sling to the load. With forged safety latch according to standard.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Type

  • Standard
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 1400
    6
    207587
    B1H 10B-OESE-H-CAX-1.40T-6MM-81
    Reference no. 207587
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6

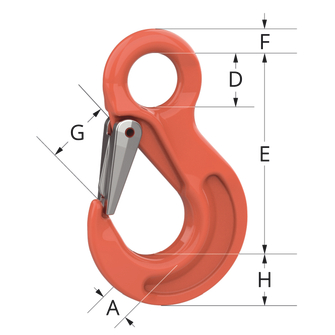

    Ring section diameter F 10
    Eye Ø D [mm] 20.5
    Hook opening width G [mm] 19
    hook base height H [mm] 20
    Hook thickness A [mm] 16
    Distance suspension point E [mm] 81
    Weight approx. [kg] 0.34
  • 2500
    8
    207588
    B1H 10B-OESE-H-CAX-2.50T-8MM
    Reference no. 207588
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Ring section diameter F 11
    Eye Ø D [mm] 25
    Hook opening width G [mm] 26
    hook base height H [mm] 29
    Hook thickness A [mm] 19
    Distance suspension point E [mm] 101
    Weight approx. [kg] 0.5
  • 4000
    10
    207589
    B1H 10B-OESE-H-CAX-4T-10MM
    Reference no. 207589
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 16
    Eye Ø D [mm] 34
    Hook opening width G [mm] 31
    hook base height H [mm] 33
    Hook thickness A [mm] 26
    Distance suspension point E [mm] 131
    Weight approx. [kg] 0.97
  • 6700
    13
    207590
    B1H 10B-OESE-H-CAX-6.70T-13MM
    Reference no. 207590
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 19
    Eye Ø D [mm] 43
    Hook opening width G [mm] 40
    hook base height H [mm] 42
    Hook thickness A [mm] 33
    Distance suspension point E [mm] 159
    Weight approx. [kg] 1.9
  • 10000
    16
    207591
    B1H 10B-OESE-H-CAX-10T-16MM
    Reference no. 207591
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 24.5
    Eye Ø D [mm] 50
    Hook opening width G [mm] 45
    hook base height H [mm] 50
    Hook thickness A [mm] 40
    Distance suspension point E [mm] 183
    Weight approx. [kg] 3.3
  • 16000
    20
    207592
    B1H 10B-OESE-H-CAX-16T-20MM
    Reference no. 207592
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Ring section diameter F 27
    Eye Ø D [mm] 55
    Hook opening width G [mm] 52
    hook base height H [mm] 53
    Hook thickness A [mm] 48
    Distance suspension point E [mm] 203
    Weight approx. [kg] 4.5
  • 19000
    22
    207593
    B1H 10B-OESE-H-CAX-19T-22MM
    Reference no. 207593
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Ring section diameter F 29
    Eye Ø D [mm] 60
    Hook opening width G [mm] 62
    hook base height H [mm] 60
    Hook thickness A [mm] 50
    Distance suspension point E [mm] 224
    Weight approx. [kg] 7.1
  • 26500
    26
    245897
    B1H 10B-OESE-H-CAX-26.50T-26MM
    Reference no. 245897
    Working load limit [kg] 26500
    for nominal chain thickness [mm] 26
    Ring section diameter F 35
    Eye Ø D [mm] 70
    Hook opening width G [mm] 73
    hook base height H [mm] 75
    Hook thickness A [mm] 60
    Distance suspension point E [mm] 257
    Weight approx. [kg] 12
  • 40000
    32
    502285
    B1H 10B-OESE-H-CAX-40T-32MM
    Reference no. 502285
    Working load limit [kg] 40000
    for nominal chain thickness [mm] 32
    Ring section diameter F 42
    Eye Ø D [mm] 84
    Hook opening width G [mm] 94
    hook base height H [mm] 91
    Hook thickness A [mm] 73
    Distance suspension point E [mm] 335
    Weight approx. [kg] 27
Working load limit [kg] 1400
for nominal chain thickness [mm] 6
Reference no. 207587
  • Details
    B1H 10B-OESE-H-CAX-1.40T-6MM-81
    Reference no. 207587
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6
    Ring section diameter F 10
    Eye Ø D [mm] 20.5
    Hook opening width G [mm] 19
    hook base height H [mm] 20
    Hook thickness A [mm] 16
    Distance suspension point E [mm] 81
    Weight approx. [kg] 0.34
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 207588
  • Details
    B1H 10B-OESE-H-CAX-2.50T-8MM
    Reference no. 207588
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Ring section diameter F 11
    Eye Ø D [mm] 25
    Hook opening width G [mm] 26
    hook base height H [mm] 29
    Hook thickness A [mm] 19
    Distance suspension point E [mm] 101
    Weight approx. [kg] 0.5
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 207589
  • Details
    B1H 10B-OESE-H-CAX-4T-10MM
    Reference no. 207589
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 16
    Eye Ø D [mm] 34
    Hook opening width G [mm] 31
    hook base height H [mm] 33
    Hook thickness A [mm] 26
    Distance suspension point E [mm] 131
    Weight approx. [kg] 0.97
Working load limit [kg] 6700
for nominal chain thickness [mm] 13
Reference no. 207590
  • Details
    B1H 10B-OESE-H-CAX-6.70T-13MM
    Reference no. 207590
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 19
    Eye Ø D [mm] 43
    Hook opening width G [mm] 40
    hook base height H [mm] 42
    Hook thickness A [mm] 33
    Distance suspension point E [mm] 159
    Weight approx. [kg] 1.9
Working load limit [kg] 10000
for nominal chain thickness [mm] 16
Reference no. 207591
  • Details
    B1H 10B-OESE-H-CAX-10T-16MM
    Reference no. 207591
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 24.5
    Eye Ø D [mm] 50
    Hook opening width G [mm] 45
    hook base height H [mm] 50
    Hook thickness A [mm] 40
    Distance suspension point E [mm] 183
    Weight approx. [kg] 3.3
Working load limit [kg] 16000
for nominal chain thickness [mm] 20
Reference no. 207592
  • Details
    B1H 10B-OESE-H-CAX-16T-20MM
    Reference no. 207592
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Ring section diameter F 27
    Eye Ø D [mm] 55
    Hook opening width G [mm] 52
    hook base height H [mm] 53
    Hook thickness A [mm] 48
    Distance suspension point E [mm] 203
    Weight approx. [kg] 4.5
Working load limit [kg] 19000
for nominal chain thickness [mm] 22
Reference no. 207593
  • Details
    B1H 10B-OESE-H-CAX-19T-22MM
    Reference no. 207593
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Ring section diameter F 29
    Eye Ø D [mm] 60
    Hook opening width G [mm] 62
    hook base height H [mm] 60
    Hook thickness A [mm] 50
    Distance suspension point E [mm] 224
    Weight approx. [kg] 7.1
Working load limit [kg] 26500
for nominal chain thickness [mm] 26
Reference no. 245897
  • Details
    B1H 10B-OESE-H-CAX-26.50T-26MM
    Reference no. 245897
    Working load limit [kg] 26500
    for nominal chain thickness [mm] 26
    Ring section diameter F 35
    Eye Ø D [mm] 70
    Hook opening width G [mm] 73
    hook base height H [mm] 75
    Hook thickness A [mm] 60
    Distance suspension point E [mm] 257
    Weight approx. [kg] 12
Working load limit [kg] 40000
for nominal chain thickness [mm] 32
Reference no. 502285
  • Details
    B1H 10B-OESE-H-CAX-40T-32MM
    Reference no. 502285
    Working load limit [kg] 40000
    for nominal chain thickness [mm] 32
    Ring section diameter F 42
    Eye Ø D [mm] 84
    Hook opening width G [mm] 94
    hook base height H [mm] 91
    Hook thickness A [mm] 73
    Distance suspension point E [mm] 335
    Weight approx. [kg] 27
