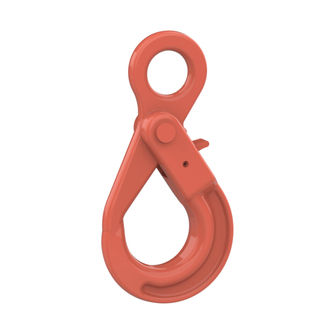

HIT PRO 1-CROX eye safety load hook, quality grade 10

HIT PRO 1-CROX eye safety load hook, quality grade 10
Hook with eye connector and intelligent locking system for increased safety.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 1400
    6
    207594
    B1H 10B-OESE-SI-H-CROX-1.40T-6MM
    Reference no. 207594
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6

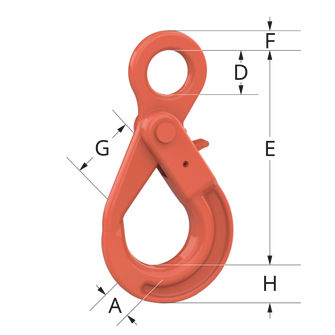

    Ring section diameter F 11
    Clearance W 35
    Eye Ø D [mm] 21
    Hook opening width G [mm] 28
    hook base height H [mm] 21
    Hook thickness A [mm] 16
    Distance suspension point E [mm] 109
    Weight approx. [kg] 0.5
  • 2500
    8
    207595
    B1H 10B-OESE-SI-H-CROX-2.50T-8MM
    Reference no. 207595
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Ring section diameter F 12
    Clearance W 43
    Eye Ø D [mm] 25
    Hook opening width G [mm] 34
    hook base height H [mm] 26
    Hook thickness A [mm] 20
    Distance suspension point E [mm] 135
    Weight approx. [kg] 0.96
  • 4000
    10
    207596
    B1H 10B-OESE-SI-H-CROX-4T-10MM
    Reference no. 207596
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 16
    Clearance W 56
    Eye Ø D [mm] 33
    Hook opening width G [mm] 45
    hook base height H [mm] 30
    Hook thickness A [mm] 25
    Distance suspension point E [mm] 168
    Weight approx. [kg] 1.65
  • 6700
    13
    207597
    B1H 10B-OESE-SI-H-CROX-6.70T-13MM
    Reference no. 207597
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 20
    Clearance W 69
    Eye Ø D [mm] 40
    Hook opening width G [mm] 51
    hook base height H [mm] 40
    Hook thickness A [mm] 35
    Distance suspension point E [mm] 205
    Weight approx. [kg] 3.25
  • 10000
    16
    207598
    B1H 10B-OESE-SI-H-CROX-10T-16MM
    Reference no. 207598
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 27
    Clearance W 80
    Eye Ø D [mm] 50
    Hook opening width G [mm] 60
    hook base height H [mm] 50
    Hook thickness A [mm] 36
    Distance suspension point E [mm] 251
    Weight approx. [kg] 6.1
  • 16000
    20
    219770
    B1H 10B-OESE-SI-H-CROX-16T-20MM
    Reference no. 219770
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Ring section diameter F 30
    Clearance W 90
    Eye Ø D [mm] 60
    Hook opening width G [mm] 70
    hook base height H [mm] 67
    Hook thickness A [mm] 60
    Distance suspension point E [mm] 290
    Weight approx. [kg] 9.8
  • 19000
    22
    230479
    B1H 10B-OESE-SI-H-CROX-19T-22MM
    Reference no. 230479
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Ring section diameter F 32
    Clearance W 100
    Eye Ø D [mm] 70
    Hook opening width G [mm] 80
    hook base height H [mm] 70
    Hook thickness A [mm] 62
    Distance suspension point E [mm] 322
    Weight approx. [kg] 14.4
Working load limit [kg] 1400
for nominal chain thickness [mm] 6
Reference no. 207594
  • Details
    B1H 10B-OESE-SI-H-CROX-1.40T-6MM
    Reference no. 207594
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6
    Ring section diameter F 11
    Clearance W 35
    Eye Ø D [mm] 21
    Hook opening width G [mm] 28
    hook base height H [mm] 21
    Hook thickness A [mm] 16
    Distance suspension point E [mm] 109
    Weight approx. [kg] 0.5
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 207595
  • Details
    B1H 10B-OESE-SI-H-CROX-2.50T-8MM
    Reference no. 207595
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Ring section diameter F 12
    Clearance W 43
    Eye Ø D [mm] 25
    Hook opening width G [mm] 34
    hook base height H [mm] 26
    Hook thickness A [mm] 20
    Distance suspension point E [mm] 135
    Weight approx. [kg] 0.96
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 207596
  • Details
    B1H 10B-OESE-SI-H-CROX-4T-10MM
    Reference no. 207596
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 16
    Clearance W 56
    Eye Ø D [mm] 33
    Hook opening width G [mm] 45
    hook base height H [mm] 30
    Hook thickness A [mm] 25
    Distance suspension point E [mm] 168
    Weight approx. [kg] 1.65
Working load limit [kg] 6700
for nominal chain thickness [mm] 13
Reference no. 207597
  • Details
    B1H 10B-OESE-SI-H-CROX-6.70T-13MM
    Reference no. 207597
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 20
    Clearance W 69
    Eye Ø D [mm] 40
    Hook opening width G [mm] 51
    hook base height H [mm] 40
    Hook thickness A [mm] 35
    Distance suspension point E [mm] 205
    Weight approx. [kg] 3.25
Working load limit [kg] 10000
for nominal chain thickness [mm] 16
Reference no. 207598
  • Details
    B1H 10B-OESE-SI-H-CROX-10T-16MM
    Reference no. 207598
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 27
    Clearance W 80
    Eye Ø D [mm] 50
    Hook opening width G [mm] 60
    hook base height H [mm] 50
    Hook thickness A [mm] 36
    Distance suspension point E [mm] 251
    Weight approx. [kg] 6.1
Working load limit [kg] 16000
for nominal chain thickness [mm] 20
Reference no. 219770
  • Details
    B1H 10B-OESE-SI-H-CROX-16T-20MM
    Reference no. 219770
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Ring section diameter F 30
    Clearance W 90
    Eye Ø D [mm] 60
    Hook opening width G [mm] 70
    hook base height H [mm] 67
    Hook thickness A [mm] 60
    Distance suspension point E [mm] 290
    Weight approx. [kg] 9.8
Working load limit [kg] 19000
for nominal chain thickness [mm] 22
Reference no. 230479
  • Details
    B1H 10B-OESE-SI-H-CROX-19T-22MM
    Reference no. 230479
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Ring section diameter F 32
    Clearance W 100
    Eye Ø D [mm] 70
    Hook opening width G [mm] 80
    hook base height H [mm] 70
    Hook thickness A [mm] 62
    Distance suspension point E [mm] 322
    Weight approx. [kg] 14.4
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
