HIT PRO 1-CDFX coupling shortening fix hook grade 10

HIT PRO 1-CDFX coupling shortening fix hook grade 10

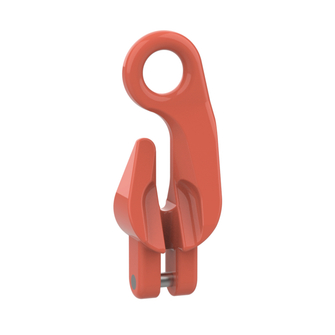

Shortening hook with eye connector for easy, secure shortening of chain slings. The shortener enables horizontal alignment of the load in multi-leg attachment even with difficult transport procedures as well as suitable adjustment of the load for assemblies.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Technical note

  • For direct connection to the chain by means of coupling connection.
  • Connection to the suspension gear by means of HIT CW / CWP universal connecting link.
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 1400
    6
    502298
    B1V 10B-OESE-FIXH-CDFX-1.40T-6MM
    Reference no. 502298
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6

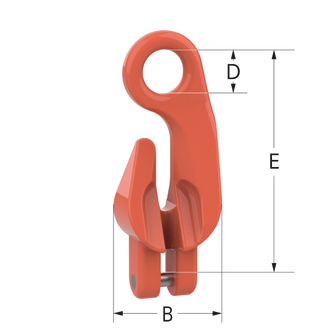

    Component width B [mm] 37
    Eye Ø D [mm] 18
    Distance suspension point E [mm] 85
    Weight approx. [kg] 0.3
  • 2500
    8
    502299
    B1V 10B-OESE-FIXH-CDFX-2.50T-8MM
    Reference no. 502299
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Component width B [mm] 54
    Eye Ø D [mm] 24
    Distance suspension point E [mm] 122
    Weight approx. [kg] 0.67
  • 4000
    10
    502300
    B1V 10B-OESE-FIXH-CDFX-4T-10MM
    Reference no. 502300
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Component width B [mm] 70
    Eye Ø D [mm] 31
    Distance suspension point E [mm] 160
    Weight approx. [kg] 1.3
  • 6700
    13
    502301
    B1V 10B-OESE-FIXH-CDFX-6.70T-13MM
    Reference no. 502301
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Component width B [mm] 92
    Eye Ø D [mm] 37
    Distance suspension point E [mm] 204
    Weight approx. [kg] 3
  • 10000
    16
    502297
    B1V 10B-OESE-FIXH-CDFX-10T-16MM
    Reference no. 502297
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Component width B [mm] 102
    Eye Ø D [mm] 48
    Distance suspension point E [mm] 232
    Weight approx. [kg] 5.2
Working load limit [kg] 1400
for nominal chain thickness [mm] 6
Reference no. 502298
  • Details
    B1V 10B-OESE-FIXH-CDFX-1.40T-6MM
    Reference no. 502298
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6
    Component width B [mm] 37
    Eye Ø D [mm] 18
    Distance suspension point E [mm] 85
    Weight approx. [kg] 0.3
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 502299
  • Details
    B1V 10B-OESE-FIXH-CDFX-2.50T-8MM
    Reference no. 502299
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Component width B [mm] 54
    Eye Ø D [mm] 24
    Distance suspension point E [mm] 122
    Weight approx. [kg] 0.67
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 502300
  • Details
    B1V 10B-OESE-FIXH-CDFX-4T-10MM
    Reference no. 502300
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Component width B [mm] 70
    Eye Ø D [mm] 31
    Distance suspension point E [mm] 160
    Weight approx. [kg] 1.3
Working load limit [kg] 6700
for nominal chain thickness [mm] 13
Reference no. 502301
  • Details
    B1V 10B-OESE-FIXH-CDFX-6.70T-13MM
    Reference no. 502301
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Component width B [mm] 92
    Eye Ø D [mm] 37
    Distance suspension point E [mm] 204
    Weight approx. [kg] 3
Working load limit [kg] 10000
for nominal chain thickness [mm] 16
Reference no. 502297
  • Details
    B1V 10B-OESE-FIXH-CDFX-10T-16MM
    Reference no. 502297
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Component width B [mm] 102
    Eye Ø D [mm] 48
    Distance suspension point E [mm] 232
    Weight approx. [kg] 5.2
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
