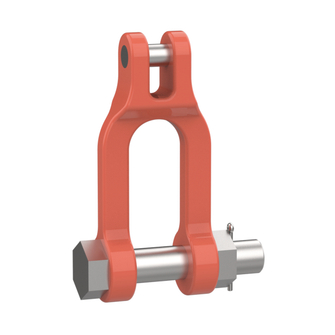

HIT PRO 1-CWX coupling shackle grade 10
HIT PRO 1-CWX coupling shackle grade 10
Technical data
Quality grade
- 10
Operating temperature
- –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit
Standard
- on the basis of DIN EN 1677
Certification
- H-stamp
Marking
- Batch number
Safety factor
- 4
Type
- Standard
Product variants
for nominal chain thickness [mm]
Working load limit [kg]
Reference no.
Details
-
82500711772
B1S 10B-KPL-SCH-CWX-2.5T-8MM

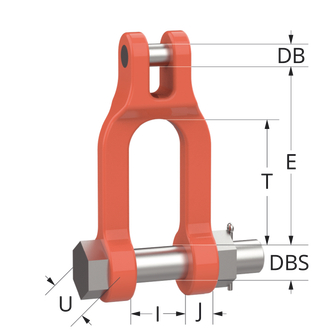

Reference no. 711772 for nominal chain thickness [mm] 8 Working load limit [kg] 2500 Clear height T [mm] 55 Stud bolt Ø DBS 16 Distance suspension point E [mm] 75 Interior fork clearance I 27 Fork tines width J 13.5 Body thickness U 32 Bolt Ø DB 16 Weight approx. [kg] 0.55 -
104000711773
B1S 10B-KPL-SCH-CWX-4T-10MM
Reference no. 711773 for nominal chain thickness [mm] 10 Working load limit [kg] 4000 Clear height T [mm] 76 Stud bolt Ø DBS 20 Distance suspension point E [mm] 104.5 Interior fork clearance I 33 Fork tines width J 18 Body thickness U 40 Bolt Ø DB 20 Weight approx. [kg] 1.15 -
136700711774
B1S 10B-KPL-SCH-CWX-6.7T-13MM
Reference no. 711774 for nominal chain thickness [mm] 13 Working load limit [kg] 6700 Clear height T [mm] 77 Stud bolt Ø DBS 24 Distance suspension point E [mm] 113 Interior fork clearance I 44 Fork tines width J 24 Body thickness U 50 Bolt Ø DB 24 Weight approx. [kg] 2.1
for nominal chain thickness [mm]
8
Working load limit [kg]
2500
Reference no.
711772
-
Details
B1S 10B-KPL-SCH-CWX-2.5T-8MM
Reference no. 711772 for nominal chain thickness [mm] 8 Working load limit [kg] 2500 Clear height T [mm] 55 Stud bolt Ø DBS 16 Distance suspension point E [mm] 75 Interior fork clearance I 27 Fork tines width J 13.5 Body thickness U 32 Bolt Ø DB 16 Weight approx. [kg] 0.55
for nominal chain thickness [mm]
10
Working load limit [kg]
4000
Reference no.
711773
-
Details
B1S 10B-KPL-SCH-CWX-4T-10MM
Reference no. 711773 for nominal chain thickness [mm] 10 Working load limit [kg] 4000 Clear height T [mm] 76 Stud bolt Ø DBS 20 Distance suspension point E [mm] 104.5 Interior fork clearance I 33 Fork tines width J 18 Body thickness U 40 Bolt Ø DB 20 Weight approx. [kg] 1.15
for nominal chain thickness [mm]
13
Working load limit [kg]
6700
Reference no.
711774
-
Details
B1S 10B-KPL-SCH-CWX-6.7T-13MM
Reference no. 711774 for nominal chain thickness [mm] 13 Working load limit [kg] 6700 Clear height T [mm] 77 Stud bolt Ø DBS 24 Distance suspension point E [mm] 113 Interior fork clearance I 44 Fork tines width J 24 Body thickness U 50 Bolt Ø DB 24 Weight approx. [kg] 2.1
