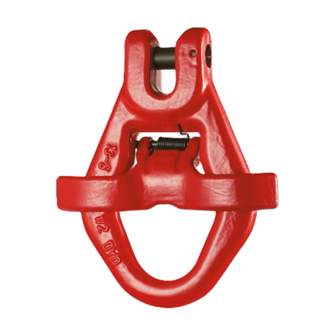

HIT-RAK rhombic link
HIT-RAK rhombic link
Technical data
Quality grade
- 8
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
-
530013135927
LRG 80B-RHOMB-LINK-RAK-5.30T-13MM-COAT

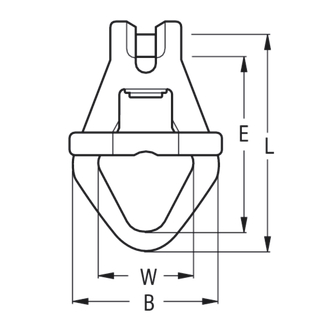

Reference no. 135927 Working load limit [kg] 5300 for nominal chain thickness [mm] 13 Overall length L [mm] 194 Clearance W 72 Component width B [mm] 128 Distance suspension point E [mm] 145 Weight approx. [kg] 2.23
Working load limit [kg]
5300
for nominal chain thickness [mm]
13
Reference no.
135927
-
Details
LRG 80B-RHOMB-LINK-RAK-5.30T-13MM-COAT
Reference no. 135927 Working load limit [kg] 5300 for nominal chain thickness [mm] 13 Overall length L [mm] 194 Clearance W 72 Component width B [mm] 128 Distance suspension point E [mm] 145 Weight approx. [kg] 2.23
