Product variants

Product variants

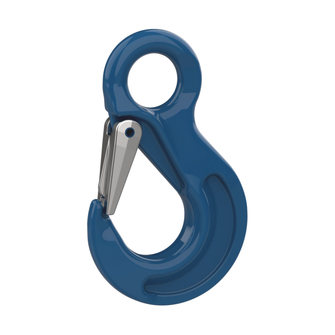

B1H 10A-OESE-H-HSW-HIGH10-20MM-LACK

Reference no.	710043
Working load limit [kg]	16000
for nominal chain thickness [mm]	20

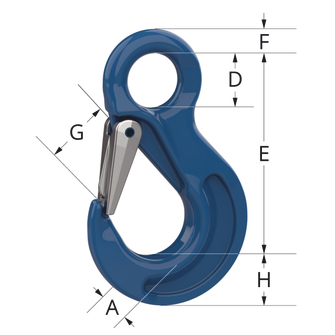

Ring section diameter F	27
Eye Ø D [mm]	55
Hook opening width G [mm]	53
hook base height H [mm]	55
Hook thickness A [mm]	48
Distance suspension point E [mm]	205
Weight approx. [kg]	6.1

B1H 10A-OESE-H-HSW-HIGH10-22MM-LACK

Reference no.	710044
Working load limit [kg]	19000
for nominal chain thickness [mm]	22
Ring section diameter F	29
Eye Ø D [mm]	60
Hook opening width G [mm]	64
hook base height H [mm]	62
Hook thickness A [mm]	50
Distance suspension point E [mm]	239
Weight approx. [kg]	6

B1H 10A-OESE-H-HSW-HIGH10-26MM-LACK

Reference no.	710045
Working load limit [kg]	26500
for nominal chain thickness [mm]	26
Ring section diameter F	38
Eye Ø D [mm]	70
Hook opening width G [mm]	65
hook base height H [mm]	75
Hook thickness A [mm]	60
Distance suspension point E [mm]	258
Weight approx. [kg]	14.3

B1H 10A-OESE-H-HSW-HIGH10-32MM-LACK

Reference no.	710046
Working load limit [kg]	40000
for nominal chain thickness [mm]	32
Ring section diameter F	42
Eye Ø D [mm]	64
Hook opening width G [mm]	82
hook base height H [mm]	97
Hook thickness A [mm]	82
Distance suspension point E [mm]	300
Weight approx. [kg]	22.7

Working load limit [kg] 16000

for nominal chain thickness [mm] 20

Reference no. 710043

B1H 10A-OESE-H-HSW-HIGH10-20MM-LACK

Reference no.	710043
Working load limit [kg]	16000
for nominal chain thickness [mm]	20
Ring section diameter F	27
Eye Ø D [mm]	55
Hook opening width G [mm]	53
hook base height H [mm]	55
Hook thickness A [mm]	48
Distance suspension point E [mm]	205
Weight approx. [kg]	6.1

Working load limit [kg] 19000

for nominal chain thickness [mm] 22

Reference no. 710044

B1H 10A-OESE-H-HSW-HIGH10-22MM-LACK

Reference no.	710044
Working load limit [kg]	19000
for nominal chain thickness [mm]	22
Ring section diameter F	29
Eye Ø D [mm]	60
Hook opening width G [mm]	64
hook base height H [mm]	62
Hook thickness A [mm]	50
Distance suspension point E [mm]	239
Weight approx. [kg]	6

Working load limit [kg] 26500

for nominal chain thickness [mm] 26

Reference no. 710045

B1H 10A-OESE-H-HSW-HIGH10-26MM-LACK

Reference no.	710045
Working load limit [kg]	26500
for nominal chain thickness [mm]	26
Ring section diameter F	38
Eye Ø D [mm]	70
Hook opening width G [mm]	65
hook base height H [mm]	75
Hook thickness A [mm]	60
Distance suspension point E [mm]	258
Weight approx. [kg]	14.3

Working load limit [kg] 40000

for nominal chain thickness [mm] 32

Reference no. 710046

B1H 10A-OESE-H-HSW-HIGH10-32MM-LACK

Reference no.	710046
Working load limit [kg]	40000
for nominal chain thickness [mm]	32
Ring section diameter F	42
Eye Ø D [mm]	64
Hook opening width G [mm]	82
hook base height H [mm]	97
Hook thickness A [mm]	82
Distance suspension point E [mm]	300
Weight approx. [kg]	22.7
