HIT ECO-Chain sling, quality grade 10, single-leg, can be shortened Standard load hook

HIT ECO-Chain sling, quality grade 10, single-leg, can be shortened Standard load hook

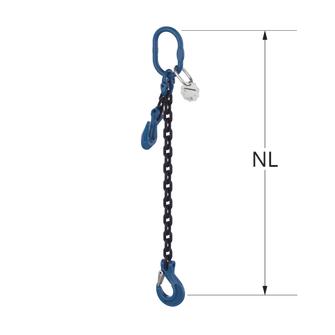

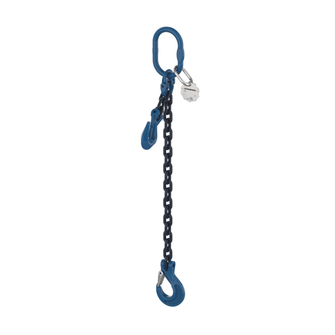

Chain sling with shortener parallel hook and standard load hook for single-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; below –40 °C = use not permitted; above +200 °C = use not permitted

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • "Quality grade no. ""10"" (every 300 mm on the chain)"
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • blue

Component surface

  • coated

Component colour

  • blue

Shortening

  • can be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1400
    1120
    6
    2
    700565
    G11 E1A-6-1.4T-RA-PKU-HK-2M
    Reference no. 700565
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.7
  • 1400
    1120
    6
    3
    700566
    G11 E1A-6-1.4T-RA-PKU-HK-3M
    Reference no. 700566
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.6
  • 1400
    1120
    6
    4
    700567
    G11 E1A-6-1.4T-RA-PKU-HK-4M
    Reference no. 700567
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.4
  • 1400
    1120
    6
    5
    700568
    G11 E1A-6-1.4T-RA-PKU-HK-5M
    Reference no. 700568
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 5.2
  • 1400
    1120
    6
    6
    700569
    G11 E1A-6-1.4T-RA-PKU-HK-6M
    Reference no. 700569
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 6
  • 2500
    2000
    8
    2
    700570
    G11 E1A-8-2.5T-RA-PKU-HK-2M
    Reference no. 700570
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 5
  • 2500
    2000
    8
    3
    700571
    G11 E1A-8-2.5T-RA-PKU-HK-3M
    Reference no. 700571
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 6.4
  • 2500
    2000
    8
    4
    700572
    G11 E1A-8-2.5T-RA-PKU-HK-4M
    Reference no. 700572
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.9
  • 2500
    2000
    8
    5
    700573
    G11 E1A-8-2.5T-RA-PKU-HK-5M
    Reference no. 700573
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 9.5
  • 2500
    2000
    8
    6
    700574
    G11 E1A-8-2.5T-RA-PKU-HK-6M
    Reference no. 700574
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 11
  • 4000
    3150
    10
    2
    700575
    G11 E1A-10-4T-RA-PKU-HK-2M
    Reference no. 700575
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 8.4
  • 4000
    3150
    10
    3
    700576
    G11 E1A-10-4T-RA-PKU-HK-3M
    Reference no. 700576
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 10.8
  • 4000
    3150
    10
    4
    700577
    G11 E1A-10-4T-RA-PKU-HK-4M
    Reference no. 700577
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 13.3
  • 4000
    3150
    10
    5
    700578
    G11 E1A-10-4T-RA-PKU-HK-5M
    Reference no. 700578
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 15.6
  • 4000
    3150
    10
    6
    700579
    G11 E1A-10-4T-RA-PKU-HK-6M
    Reference no. 700579
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 18
  • 6700
    5300
    13
    2
    700580
    G11 E1A-13-6.7T-RA-PKU-HK-2M
    Reference no. 700580
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 14.6
  • 6700
    5300
    13
    3
    700581
    G11 E1A-13-6.7T-RA-PKU-HK-3M
    Reference no. 700581
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 18.7
  • 6700
    5300
    13
    4
    700582
    G11 E1A-13-6.7T-RA-PKU-HK-4M
    Reference no. 700582
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 22.7
  • 6700
    5300
    13
    5
    700583
    G11 E1A-13-6.7T-RA-PKU-HK-5M
    Reference no. 700583
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 26.8
  • 6700
    5300
    13
    6
    700360
    G11 E1A-13-6.7T-RA-PKU-HK-6M
    Reference no. 700360
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 30.5
  • 10000
    8000
    16
    2
    700584
    C11 E1A-16-10T-RA-PKU-HK-2M
    Reference no. 700584
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 21.4
  • 10000
    8000
    16
    3
    700585
    C11 E1A-16-10T-RA-PKU-HK-3M
    Reference no. 700585
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 27.1
  • 10000
    8000
    16
    4
    700586
    C11 E1A-16-10T-RA-PKU-HK-4M
    Reference no. 700586
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 33.4
  • 10000
    8000
    16
    5
    700587
    C11 E1A-16-10T-RA-PKU-HK-5M
    Reference no. 700587
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 39.2
  • 10000
    8000
    16
    6
    700588
    C11 E1A-16-10T-RA-PKU-HK-6M
    Reference no. 700588
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 45
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 700565
  • Details
    G11 E1A-6-1.4T-RA-PKU-HK-2M
    Reference no. 700565
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.7
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 700566
  • Details
    G11 E1A-6-1.4T-RA-PKU-HK-3M
    Reference no. 700566
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.6
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 700567
  • Details
    G11 E1A-6-1.4T-RA-PKU-HK-4M
    Reference no. 700567
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.4
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 700568
  • Details
    G11 E1A-6-1.4T-RA-PKU-HK-5M
    Reference no. 700568
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 5.2
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 700569
  • Details
    G11 E1A-6-1.4T-RA-PKU-HK-6M
    Reference no. 700569
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 6
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 700570
  • Details
    G11 E1A-8-2.5T-RA-PKU-HK-2M
    Reference no. 700570
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 5
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 700571
  • Details
    G11 E1A-8-2.5T-RA-PKU-HK-3M
    Reference no. 700571
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 6.4
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 700572
  • Details
    G11 E1A-8-2.5T-RA-PKU-HK-4M
    Reference no. 700572
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.9
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 700573
  • Details
    G11 E1A-8-2.5T-RA-PKU-HK-5M
    Reference no. 700573
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 9.5
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 700574
  • Details
    G11 E1A-8-2.5T-RA-PKU-HK-6M
    Reference no. 700574
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 11
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 700575
  • Details
    G11 E1A-10-4T-RA-PKU-HK-2M
    Reference no. 700575
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 8.4
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 700576
  • Details
    G11 E1A-10-4T-RA-PKU-HK-3M
    Reference no. 700576
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 10.8
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 700577
  • Details
    G11 E1A-10-4T-RA-PKU-HK-4M
    Reference no. 700577
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 13.3
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 700578
  • Details
    G11 E1A-10-4T-RA-PKU-HK-5M
    Reference no. 700578
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 15.6
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 700579
  • Details
    G11 E1A-10-4T-RA-PKU-HK-6M
    Reference no. 700579
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 18
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 700580
  • Details
    G11 E1A-13-6.7T-RA-PKU-HK-2M
    Reference no. 700580
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 14.6
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 700581
  • Details
    G11 E1A-13-6.7T-RA-PKU-HK-3M
    Reference no. 700581
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 18.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 700582
  • Details
    G11 E1A-13-6.7T-RA-PKU-HK-4M
    Reference no. 700582
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 22.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 700583
  • Details
    G11 E1A-13-6.7T-RA-PKU-HK-5M
    Reference no. 700583
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 26.8
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 700360
  • Details
    G11 E1A-13-6.7T-RA-PKU-HK-6M
    Reference no. 700360
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 30.5
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 700584
  • Details
    C11 E1A-16-10T-RA-PKU-HK-2M
    Reference no. 700584
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 21.4
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 700585
  • Details
    C11 E1A-16-10T-RA-PKU-HK-3M
    Reference no. 700585
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 27.1
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 700586
  • Details
    C11 E1A-16-10T-RA-PKU-HK-4M
    Reference no. 700586
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 33.4
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 700587
  • Details
    C11 E1A-16-10T-RA-PKU-HK-5M
    Reference no. 700587
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 39.2
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 700588
  • Details
    C11 E1A-16-10T-RA-PKU-HK-6M
    Reference no. 700588
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 45
Downloads

Description

Product brochure

Download

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
