HIT ECO-Chain sling, quality grade 10, single-leg Safety load hooks

HIT ECO-Chain sling, quality grade 10, single-leg Safety load hooks

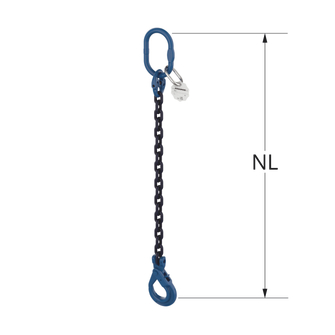

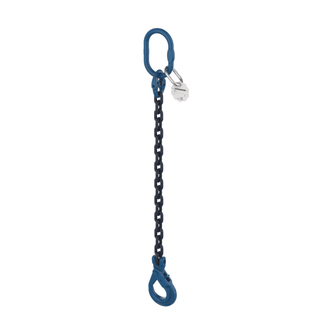

Chain sling with self-closing safety load hook for single-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; below –40 °C = use not permitted; above +200 °C = use not permitted

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • "Quality grade no. ""10"" (every 300 mm on the chain)"
  • Quality grade and working load limit symbol
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • blue

Component surface

  • coated

Component colour

  • blue

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1400
    1120
    6
    1
    700279
    G11 E1A-6-1.4T-RA-SHK-1M
    Reference no. 700279
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.8
  • 1400
    1120
    6
    1.5
    700280
    G11 E1A-6-1.4T-RA-SHK-1.5M
    Reference no. 700280
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.2
  • 1400
    1120
    6
    2
    700281
    G11 E1A-6-1.4T-RA-SHK-2M
    Reference no. 700281
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.6
  • 1400
    1120
    6
    2.5
    700282
    G11 E1A-6-1.4T-RA-SHK-2.5M
    Reference no. 700282
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 3
  • 1400
    1120
    6
    3
    700283
    G11 E1A-6-1.4T-RA-SHK-3M
    Reference no. 700283
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.5
  • 1400
    1120
    6
    4
    700284
    G11 E1A-6-1.4T-RA-SHK-4M
    Reference no. 700284
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.3
  • 1400
    1120
    6
    5
    700285
    G11 E1A-6-1.4T-RA-SHK-5M
    Reference no. 700285
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 5.1
  • 1400
    1120
    6
    6
    700286
    G11 E1A-6-1.4T-RA-SHK-6M
    Reference no. 700286
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.9
  • 2500
    2000
    8
    1
    700287
    G11 E1A-8-2.5T-RA-SHK-1M
    Reference no. 700287
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.8
  • 2500
    2000
    8
    1.5
    700288
    G11 E1A-8-2.5T-RA-SHK-1.5M
    Reference no. 700288
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.6
  • 2500
    2000
    8
    2
    700289
    G11 E1A-8-2.5T-RA-SHK-2M
    Reference no. 700289
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.4
  • 2500
    2000
    8
    2.5
    700290
    G11 E1A-8-2.5T-RA-SHK-2.5M
    Reference no. 700290
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5.1
  • 2500
    2000
    8
    3
    700291
    G11 E1A-8-2.5T-RA-SHK-3M
    Reference no. 700291
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.9
  • 2500
    2000
    8
    4
    700292
    G11 E1A-8-2.5T-RA-SHK-4M
    Reference no. 700292
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.4
  • 2500
    2000
    8
    5
    700293
    G11 E1A-8-2.5T-RA-SHK-5M
    Reference no. 700293
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 8.9
  • 2500
    2000
    8
    6
    700294
    G11 E1A-8-2.5T-RA-SHK-6M
    Reference no. 700294
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.4
  • 4000
    3150
    10
    1
    700295
    G11 E1A-10-4T-RA-SHK-1M
    Reference no. 700295
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.6
  • 4000
    3150
    10
    1.5
    700296
    G11 E1A-10-4T-RA-SHK-1.5M
    Reference no. 700296
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.9
  • 4000
    3150
    10
    2
    700297
    G11 E1A-10-4T-RA-SHK-2M
    Reference no. 700297
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7.1
  • 4000
    3150
    10
    2.5
    700298
    G11 E1A-10-4T-RA-SHK-2.5M
    Reference no. 700298
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 8.2
  • 4000
    3150
    10
    3
    700299
    G11 E1A-10-4T-RA-SHK-3M
    Reference no. 700299
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.5
  • 4000
    3150
    10
    4
    700300
    G11 E1A-10-4T-RA-SHK-4M
    Reference no. 700300
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 11.8
  • 4000
    3150
    10
    5
    700301
    G11 E1A-10-4T-RA-SHK-5M
    Reference no. 700301
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 14.3
  • 4000
    3150
    10
    6
    700302
    G11 E1A-10-4T-RA-SHK-6M
    Reference no. 700302
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 16.7
  • 6700
    5300
    13
    1
    700303
    G11 E1A-13-6.7T-RA-SHK-1M
    Reference no. 700303
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 8
  • 6700
    5300
    13
    1.5
    700304
    G11 E1A-13-6.7T-RA-SHK-1.5M
    Reference no. 700304
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 10.2
  • 6700
    5300
    13
    2
    700305
    G11 E1A-13-6.7T-RA-SHK-2M
    Reference no. 700305
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 12.1
  • 6700
    5300
    13
    2.5
    700306
    G11 E1A-13-6.7T-RA-SHK-2.5M
    Reference no. 700306
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 14.3
  • 6700
    5300
    13
    3
    700307
    G11 E1A-13-6.7T-RA-SHK-3M
    Reference no. 700307
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 16.1
  • 6700
    5300
    13
    4
    700308
    G11 E1A-13-6.7T-RA-SHK-4M
    Reference no. 700308
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 20.2
  • 6700
    5300
    13
    5
    700309
    G11 E1A-13-6.7T-RA-SHK-5M
    Reference no. 700309
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 24.2
  • 6700
    5300
    13
    6
    700310
    G11 E1A-13-6.7T-RA-SHK-6M
    Reference no. 700310
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 28.3
  • 10000
    8000
    16
    1
    700311
    C11 E1A-16-10T-RA-SHK-1M
    Reference no. 700311
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 13.4
  • 10000
    8000
    16
    1.5
    700312
    C11 E1A-16-10T-RA-SHK-1.5M
    Reference no. 700312
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 16.3
  • 10000
    8000
    16
    2
    700313
    C11 E1A-16-10T-RA-SHK-2M
    Reference no. 700313
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 19.2
  • 10000
    8000
    16
    2.5
    700314
    C11 E1A-16-10T-RA-SHK-2.5M
    Reference no. 700314
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 22.1
  • 10000
    8000
    16
    3
    700315
    C11 E1A-16-10T-RA-SHK-3M
    Reference no. 700315
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 24.9
  • 10000
    8000
    16
    4
    700316
    C11 E1A-16-10T-RA-SHK-4M
    Reference no. 700316
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 31.3
  • 1000
    8000
    16
    5
    700317
    C11 E1A-16-10T-RA-SHK-5M
    Reference no. 700317
    Working load limit 0° [kg] 1000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 37
  • 10000
    8000
    16
    6
    700318
    C11 E1A-16-10T-RA-SHK-6M
    Reference no. 700318
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 43.4
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 700279
  • Details
    G11 E1A-6-1.4T-RA-SHK-1M
    Reference no. 700279
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.8
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 700280
  • Details
    G11 E1A-6-1.4T-RA-SHK-1.5M
    Reference no. 700280
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.2
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 700281
  • Details
    G11 E1A-6-1.4T-RA-SHK-2M
    Reference no. 700281
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.6
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 700282
  • Details
    G11 E1A-6-1.4T-RA-SHK-2.5M
    Reference no. 700282
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 3
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 700283
  • Details
    G11 E1A-6-1.4T-RA-SHK-3M
    Reference no. 700283
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.5
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 700284
  • Details
    G11 E1A-6-1.4T-RA-SHK-4M
    Reference no. 700284
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.3
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 700285
  • Details
    G11 E1A-6-1.4T-RA-SHK-5M
    Reference no. 700285
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 5.1
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 700286
  • Details
    G11 E1A-6-1.4T-RA-SHK-6M
    Reference no. 700286
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.9
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 700287
  • Details
    G11 E1A-8-2.5T-RA-SHK-1M
    Reference no. 700287
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.8
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 700288
  • Details
    G11 E1A-8-2.5T-RA-SHK-1.5M
    Reference no. 700288
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.6
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 700289
  • Details
    G11 E1A-8-2.5T-RA-SHK-2M
    Reference no. 700289
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.4
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 700290
  • Details
    G11 E1A-8-2.5T-RA-SHK-2.5M
    Reference no. 700290
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5.1
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 700291
  • Details
    G11 E1A-8-2.5T-RA-SHK-3M
    Reference no. 700291
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.9
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 700292
  • Details
    G11 E1A-8-2.5T-RA-SHK-4M
    Reference no. 700292
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.4
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 700293
  • Details
    G11 E1A-8-2.5T-RA-SHK-5M
    Reference no. 700293
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 8.9
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 700294
  • Details
    G11 E1A-8-2.5T-RA-SHK-6M
    Reference no. 700294
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.4
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 700295
  • Details
    G11 E1A-10-4T-RA-SHK-1M
    Reference no. 700295
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.6
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 700296
  • Details
    G11 E1A-10-4T-RA-SHK-1.5M
    Reference no. 700296
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.9
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 700297
  • Details
    G11 E1A-10-4T-RA-SHK-2M
    Reference no. 700297
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7.1
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 700298
  • Details
    G11 E1A-10-4T-RA-SHK-2.5M
    Reference no. 700298
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 8.2
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 700299
  • Details
    G11 E1A-10-4T-RA-SHK-3M
    Reference no. 700299
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.5
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 700300
  • Details
    G11 E1A-10-4T-RA-SHK-4M
    Reference no. 700300
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 11.8
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 700301
  • Details
    G11 E1A-10-4T-RA-SHK-5M
    Reference no. 700301
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 14.3
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 700302
  • Details
    G11 E1A-10-4T-RA-SHK-6M
    Reference no. 700302
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 16.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 700303
  • Details
    G11 E1A-13-6.7T-RA-SHK-1M
    Reference no. 700303
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 8
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 700304
  • Details
    G11 E1A-13-6.7T-RA-SHK-1.5M
    Reference no. 700304
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 10.2
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 700305
  • Details
    G11 E1A-13-6.7T-RA-SHK-2M
    Reference no. 700305
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 12.1
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 700306
  • Details
    G11 E1A-13-6.7T-RA-SHK-2.5M
    Reference no. 700306
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 14.3
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 700307
  • Details
    G11 E1A-13-6.7T-RA-SHK-3M
    Reference no. 700307
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 16.1
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 700308
  • Details
    G11 E1A-13-6.7T-RA-SHK-4M
    Reference no. 700308
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 20.2
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 700309
  • Details
    G11 E1A-13-6.7T-RA-SHK-5M
    Reference no. 700309
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 24.2
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 700310
  • Details
    G11 E1A-13-6.7T-RA-SHK-6M
    Reference no. 700310
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 28.3
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 700311
  • Details
    C11 E1A-16-10T-RA-SHK-1M
    Reference no. 700311
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 13.4
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 700312
  • Details
    C11 E1A-16-10T-RA-SHK-1.5M
    Reference no. 700312
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 16.3
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 700313
  • Details
    C11 E1A-16-10T-RA-SHK-2M
    Reference no. 700313
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 19.2
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 700314
  • Details
    C11 E1A-16-10T-RA-SHK-2.5M
    Reference no. 700314
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 22.1
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 700315
  • Details
    C11 E1A-16-10T-RA-SHK-3M
    Reference no. 700315
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 24.9
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 700316
  • Details
    C11 E1A-16-10T-RA-SHK-4M
    Reference no. 700316
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 31.3
Working load limit 0° [kg] 1000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 700317
  • Details
    C11 E1A-16-10T-RA-SHK-5M
    Reference no. 700317
    Working load limit 0° [kg] 1000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 37
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 700318
  • Details
    C11 E1A-16-10T-RA-SHK-6M
    Reference no. 700318
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 43.4
Downloads

Description

Product brochure

Download

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
