HIT ECO-Chain sling, quality grade 10, single-leg Standard load hook

HIT ECO-Chain sling, quality grade 10, single-leg Standard load hook

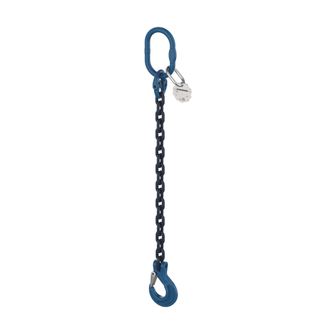

Chain sling with standard load hook for single-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; below –40 °C = use not permitted; above +200 °C = use not permitted

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • "Quality grade no. ""10"" (every 300 mm on the chain)"
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • blue

Component surface

  • coated

Component colour

  • blue

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]

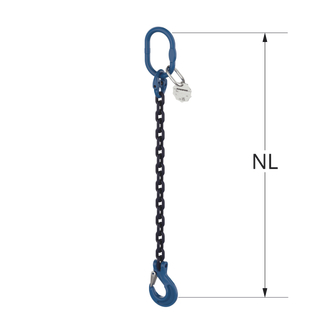

Effective length WLL [m]
Reference no.
Details
  • 1400
    1120
    6
    1
    700057
    G11 E1A-6-1.4T-RA-HK-1M
    Reference no. 700057
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.6
  • 1400
    1120
    6
    1.5
    700058
    G11 E1A-6-1.4T-RA-HK-1.5M
    Reference no. 700058
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2
  • 1400
    1120
    6
    2
    700059
    G11 E1A-6-1.4T-RA-HK-2M
    Reference no. 700059
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.4
  • 1400
    1120
    6
    2.5
    700060
    G11 E1A-6-1.4T-RA-HK-2.5M
    Reference no. 700060
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 2.9
  • 1400
    1120
    6
    3
    700061
    G11 E1A-6-1.4T-RA-HK-3M
    Reference no. 700061
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.3
  • 1400
    1120
    6
    4
    700062
    G11 E1A-6-1.4T-RA-HK-4M
    Reference no. 700062
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.1
  • 1400
    1120
    6
    5
    700063
    G11 E1A-6-1.4T-RA-HK-5M
    Reference no. 700063
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 4.9
  • 1400
    1120
    6
    6
    700064
    G11 E1A-6-1.4T-RA-HK-6M
    Reference no. 700064
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.8
  • 2500
    2000
    8
    1
    700247
    G11 E1A-8-2.5T-RA-HK-1M
    Reference no. 700247
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.7
  • 2500
    2000
    8
    1.5
    700248
    G11 E1A-8-2.5T-RA-HK-1.5M
    Reference no. 700248
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.5
  • 2500
    2000
    8
    2
    700249
    G11 E1A-8-2.5T-RA-HK-2M
    Reference no. 700249
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.2
  • 2500
    2000
    8
    2.5
    700250
    G11 E1A-8-2.5T-RA-HK-2.5M
    Reference no. 700250
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5
  • 2500
    2000
    8
    3
    700251
    G11 E1A-8-2.5T-RA-HK-3M
    Reference no. 700251
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.7
  • 2500
    2000
    8
    4
    700252
    G11 E1A-8-2.5T-RA-HK-4M
    Reference no. 700252
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.2
  • 2500
    2000
    8
    5
    700253
    G11 E1A-8-2.5T-RA-HK-5M
    Reference no. 700253
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 8.7
  • 2500
    2000
    8
    6
    700254
    G11 E1A-8-2.5T-RA-HK-6M
    Reference no. 700254
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.3
  • 4000
    3150
    10
    1
    700255
    G11 E1A-10-4T-RA-HK-1M
    Reference no. 700255
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.5
  • 4000
    3150
    10
    1.5
    700256
    G11 E1A-10-4T-RA-HK-1.5M
    Reference no. 700256
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.6
  • 4000
    3150
    10
    2
    700257
    G11 E1A-10-4T-RA-HK-2M
    Reference no. 700257
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 6.8
  • 4000
    3150
    10
    2.5
    700258
    G11 E1A-10-4T-RA-HK-2.5M
    Reference no. 700258
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 8.1
  • 4000
    3150
    10
    3
    700259
    G11 E1A-10-4T-RA-HK-3M
    Reference no. 700259
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.2
  • 4000
    3150
    10
    4
    700260
    G11 E1A-10-4T-RA-HK-4M
    Reference no. 700260
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 11.7
  • 4000
    3150
    10
    5
    700261
    G11 E1A-10-4T-RA-HK-5M
    Reference no. 700261
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 14
  • 4000
    3150
    10
    6
    700262
    G11 E1A-10-4T-RA-HK-6M
    Reference no. 700262
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 16.4
  • 6700
    5300
    13
    1
    700263
    G11 E1A-13-6.7T-RA-HK-1M
    Reference no. 700263
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 7.5
  • 6700
    5300
    13
    1.5
    700264
    G11 E1A-13-6.7T-RA-HK-1.5M
    Reference no. 700264
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 9.7
  • 6700
    5300
    13
    2
    700265
    G11 E1A-13-6.7T-RA-HK-2M
    Reference no. 700265
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 11.6
  • 6700
    5300
    13
    2.5
    700266
    G11 E1A-13-6.7T-RA-HK-2.5M
    Reference no. 700266
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 13.8
  • 6700
    5300
    13
    3
    700267
    G11 E1A-13-6.7T-RA-HK-3M
    Reference no. 700267
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 15.7
  • 6700
    5300
    13
    4
    700268
    G11 E1A-13-6.7T-RA-HK-4M
    Reference no. 700268
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 19.7
  • 6700
    5300
    13
    5
    700269
    G11 E1A-13-6.7T-RA-HK-5M
    Reference no. 700269
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 23.8
  • 6700
    5300
    13
    6
    700270
    G11 E1A-13-6.7T-RA-HK-6M
    Reference no. 700270
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 27.5
  • 10000
    8000
    16
    1
    700271
    C11 E1A-16-10T-RA-HK-1M
    Reference no. 700271
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 11.1
  • 10000
    8000
    16
    1.5
    700272
    C11 E1A-16-10T-RA-HK-1.5M
    Reference no. 700272
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 13.9
  • 10000
    8000
    16
    2
    700273
    C11 E1A-16-10T-RA-HK-2M
    Reference no. 700273
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 17.4
  • 10000
    8000
    16
    2.5
    700274
    C11 E1A-16-10T-RA-HK-2.5M
    Reference no. 700274
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 20.3
  • 10000
    8000
    16
    3
    700275
    C11 E1A-16-10T-RA-HK-3M
    Reference no. 700275
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 23.2
  • 10000
    8000
    16
    4
    700276
    C11 E1A-16-10T-RA-HK-4M
    Reference no. 700276
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 29.5
  • 10000
    8000
    16
    5
    700277
    C11 E1A-16-10T-RA-HK-5M
    Reference no. 700277
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 35.3
  • 10000
    8000
    16
    6
    700278
    C11 E1A-16-10T-RA-HK-6M
    Reference no. 700278
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 41
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 700057
  • Details
    G11 E1A-6-1.4T-RA-HK-1M
    Reference no. 700057
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.6
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 700058
  • Details
    G11 E1A-6-1.4T-RA-HK-1.5M
    Reference no. 700058
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 700059
  • Details
    G11 E1A-6-1.4T-RA-HK-2M
    Reference no. 700059
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.4
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 700060
  • Details
    G11 E1A-6-1.4T-RA-HK-2.5M
    Reference no. 700060
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 2.9
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 700061
  • Details
    G11 E1A-6-1.4T-RA-HK-3M
    Reference no. 700061
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.3
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 700062
  • Details
    G11 E1A-6-1.4T-RA-HK-4M
    Reference no. 700062
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.1
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 700063
  • Details
    G11 E1A-6-1.4T-RA-HK-5M
    Reference no. 700063
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 4.9
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 700064
  • Details
    G11 E1A-6-1.4T-RA-HK-6M
    Reference no. 700064
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.8
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 700247
  • Details
    G11 E1A-8-2.5T-RA-HK-1M
    Reference no. 700247
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.7
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 700248
  • Details
    G11 E1A-8-2.5T-RA-HK-1.5M
    Reference no. 700248
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.5
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 700249
  • Details
    G11 E1A-8-2.5T-RA-HK-2M
    Reference no. 700249
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.2
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 700250
  • Details
    G11 E1A-8-2.5T-RA-HK-2.5M
    Reference no. 700250
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 700251
  • Details
    G11 E1A-8-2.5T-RA-HK-3M
    Reference no. 700251
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.7
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 700252
  • Details
    G11 E1A-8-2.5T-RA-HK-4M
    Reference no. 700252
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.2
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 700253
  • Details
    G11 E1A-8-2.5T-RA-HK-5M
    Reference no. 700253
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 8.7
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 700254
  • Details
    G11 E1A-8-2.5T-RA-HK-6M
    Reference no. 700254
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.3
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 700255
  • Details
    G11 E1A-10-4T-RA-HK-1M
    Reference no. 700255
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.5
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 700256
  • Details
    G11 E1A-10-4T-RA-HK-1.5M
    Reference no. 700256
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.6
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 700257
  • Details
    G11 E1A-10-4T-RA-HK-2M
    Reference no. 700257
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 6.8
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 700258
  • Details
    G11 E1A-10-4T-RA-HK-2.5M
    Reference no. 700258
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 8.1
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 700259
  • Details
    G11 E1A-10-4T-RA-HK-3M
    Reference no. 700259
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.2
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 700260
  • Details
    G11 E1A-10-4T-RA-HK-4M
    Reference no. 700260
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 11.7
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 700261
  • Details
    G11 E1A-10-4T-RA-HK-5M
    Reference no. 700261
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 14
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 700262
  • Details
    G11 E1A-10-4T-RA-HK-6M
    Reference no. 700262
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 16.4
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 700263
  • Details
    G11 E1A-13-6.7T-RA-HK-1M
    Reference no. 700263
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 7.5
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 700264
  • Details
    G11 E1A-13-6.7T-RA-HK-1.5M
    Reference no. 700264
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 9.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 700265
  • Details
    G11 E1A-13-6.7T-RA-HK-2M
    Reference no. 700265
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 11.6
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 700266
  • Details
    G11 E1A-13-6.7T-RA-HK-2.5M
    Reference no. 700266
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 13.8
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 700267
  • Details
    G11 E1A-13-6.7T-RA-HK-3M
    Reference no. 700267
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 15.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 700268
  • Details
    G11 E1A-13-6.7T-RA-HK-4M
    Reference no. 700268
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 19.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 700269
  • Details
    G11 E1A-13-6.7T-RA-HK-5M
    Reference no. 700269
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 23.8
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 700270
  • Details
    G11 E1A-13-6.7T-RA-HK-6M
    Reference no. 700270
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 27.5
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 700271
  • Details
    C11 E1A-16-10T-RA-HK-1M
    Reference no. 700271
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 11.1
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 700272
  • Details
    C11 E1A-16-10T-RA-HK-1.5M
    Reference no. 700272
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 13.9
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 700273
  • Details
    C11 E1A-16-10T-RA-HK-2M
    Reference no. 700273
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 17.4
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 700274
  • Details
    C11 E1A-16-10T-RA-HK-2.5M
    Reference no. 700274
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 20.3
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 700275
  • Details
    C11 E1A-16-10T-RA-HK-3M
    Reference no. 700275
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 23.2
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 700276
  • Details
    C11 E1A-16-10T-RA-HK-4M
    Reference no. 700276
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 29.5
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 700277
  • Details
    C11 E1A-16-10T-RA-HK-5M
    Reference no. 700277
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 35.3
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 700278
  • Details
    C11 E1A-16-10T-RA-HK-6M
    Reference no. 700278
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 41
Downloads

Description

Product brochure

Download

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
