Chain slings

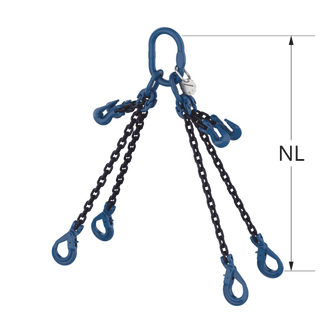

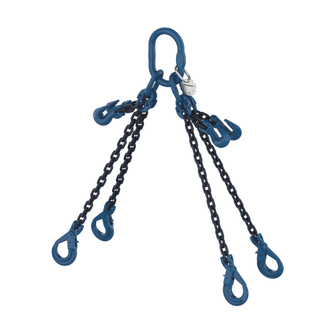

HIT ECO-Chain sling, quality grade 10, 4-leg, can be shortened Safety load hooks
HIT ECO-Chain sling, quality grade 10, 4-leg, can be shortened Safety load hooks
Technical data
Quality grade
- 10
Legs Quantity
- 4-leg
Operating temperature
- –40 °C to +200 °C = 100 % working load limit; below –40 °C = use not permitted; above +200 °C = use not permitted
Standard
- Chain following EN 818
- EN 1677-compliant chain components
Marking
- Batch number and serial number
- "Quality grade no. ""10"" (every 300 mm on the chain)"
- Quality grade and working load limit symbol
Safety factor
- 4
Chain surface
- coated
Chain colour
- blue
Component surface
- coated
Component colour
- blue
Shortening
- can be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
-
3000212062700688
-
3000212063700689
-
3000212064700690
-
3000212065700691
-
3000212066700692
-
5300375082700693
-
5300375083700694
-
5300375084700695
-
5300375085700696
-
5300375086700697
-
80006000102700698
-
80006000103700699
-
80006000104700700
-
80006000105700701
-
80006000106700702
-
1400010000132700703
-
1400010000133700704
-
1400010000134700705
-
1400010000135700706
-
1400010000136700707
-
2120015000162700708
-
2120015000163700709
-
2120015000164700710
-
2120015000165700711
-
2120015000166700712
Working load limit 0–45° [kg]
3000
Working load limit 45−60° [kg]
2120
Nominal size of chain [mm]
6
Effective length WLL [m]
2
Reference no.
700688
Working load limit 0–45° [kg]
3000
Working load limit 45−60° [kg]
2120
Nominal size of chain [mm]
6
Effective length WLL [m]
3
Reference no.
700689
Working load limit 0–45° [kg]
3000
Working load limit 45−60° [kg]
2120
Nominal size of chain [mm]
6
Effective length WLL [m]
4
Reference no.
700690
Working load limit 0–45° [kg]
3000
Working load limit 45−60° [kg]
2120
Nominal size of chain [mm]
6
Effective length WLL [m]
5
Reference no.
700691
Working load limit 0–45° [kg]
3000
Working load limit 45−60° [kg]
2120
Nominal size of chain [mm]
6
Effective length WLL [m]
6
Reference no.
700692
Working load limit 0–45° [kg]
5300
Working load limit 45−60° [kg]
3750
Nominal size of chain [mm]
8
Effective length WLL [m]
2
Reference no.
700693
Working load limit 0–45° [kg]
5300
Working load limit 45−60° [kg]
3750
Nominal size of chain [mm]
8
Effective length WLL [m]
3
Reference no.
700694
Working load limit 0–45° [kg]
5300
Working load limit 45−60° [kg]
3750
Nominal size of chain [mm]
8
Effective length WLL [m]
4
Reference no.
700695
Working load limit 0–45° [kg]
5300
Working load limit 45−60° [kg]
3750
Nominal size of chain [mm]
8
Effective length WLL [m]
5
Reference no.
700696
Working load limit 0–45° [kg]
5300
Working load limit 45−60° [kg]
3750
Nominal size of chain [mm]
8
Effective length WLL [m]
6
Reference no.
700697
Working load limit 0–45° [kg]
8000
Working load limit 45−60° [kg]
6000
Nominal size of chain [mm]
10
Effective length WLL [m]
2
Reference no.
700698
Working load limit 0–45° [kg]
8000
Working load limit 45−60° [kg]
6000
Nominal size of chain [mm]
10
Effective length WLL [m]
3
Reference no.
700699
Working load limit 0–45° [kg]
8000
Working load limit 45−60° [kg]
6000
Nominal size of chain [mm]
10
Effective length WLL [m]
4
Reference no.
700700
Working load limit 0–45° [kg]
8000
Working load limit 45−60° [kg]
6000
Nominal size of chain [mm]
10
Effective length WLL [m]
5
Reference no.
700701
Working load limit 0–45° [kg]
8000
Working load limit 45−60° [kg]
6000
Nominal size of chain [mm]
10
Effective length WLL [m]
6
Reference no.
700702
Working load limit 0–45° [kg]
14000
Working load limit 45−60° [kg]
10000
Nominal size of chain [mm]
13
Effective length WLL [m]
2
Reference no.
700703
Working load limit 0–45° [kg]
14000
Working load limit 45−60° [kg]
10000
Nominal size of chain [mm]
13
Effective length WLL [m]
3
Reference no.
700704
Working load limit 0–45° [kg]
14000
Working load limit 45−60° [kg]
10000
Nominal size of chain [mm]
13
Effective length WLL [m]
4
Reference no.
700705
Working load limit 0–45° [kg]
14000
Working load limit 45−60° [kg]
10000
Nominal size of chain [mm]
13
Effective length WLL [m]
5
Reference no.
700706
Working load limit 0–45° [kg]
14000
Working load limit 45−60° [kg]
10000
Nominal size of chain [mm]
13
Effective length WLL [m]
6
Reference no.
700707
Working load limit 0–45° [kg]
21200
Working load limit 45−60° [kg]
15000
Nominal size of chain [mm]
16
Effective length WLL [m]
2
Reference no.
700708
Working load limit 0–45° [kg]
21200
Working load limit 45−60° [kg]
15000
Nominal size of chain [mm]
16
Effective length WLL [m]
3
Reference no.
700709
Working load limit 0–45° [kg]
21200
Working load limit 45−60° [kg]
15000
Nominal size of chain [mm]
16
Effective length WLL [m]
4
Reference no.
700710
Working load limit 0–45° [kg]
21200
Working load limit 45−60° [kg]
15000
Nominal size of chain [mm]
16
Effective length WLL [m]
5
Reference no.
700711
Working load limit 0–45° [kg]
21200
Working load limit 45−60° [kg]
15000
Nominal size of chain [mm]
16
Effective length WLL [m]
6
Reference no.
700712
