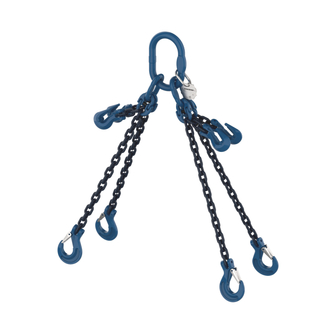

HIT ECO-Chain sling, quality grade 10, 4-leg, can be shortened Standard load hook

HIT ECO-Chain sling, quality grade 10, 4-leg, can be shortened Standard load hook
Chain sling with shortener parallel hook and standard load hook for 4-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; below –40 °C = use not permitted; above +200 °C = use not permitted

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • "Quality grade no. ""10"" (every 300 mm on the chain)"
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • blue

Component surface

  • coated

Component colour

  • blue

Shortening

  • can be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]

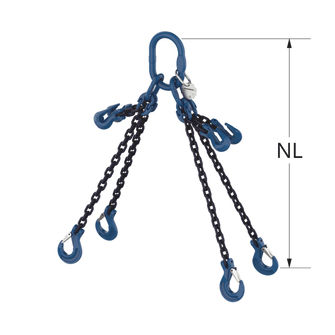

Effective length WLL [m]
Reference no.
Details
  • 3000
    2120
    6
    2
    700663
    G14 E1A-6-3T-GA-PKU-HK-2M
    Reference no. 700663
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.9
  • 3000
    2120
    6
    3
    700664
    G14 E1A-6-3T-GA-PKU-HK-3M
    Reference no. 700664
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13.2
  • 3000
    2120
    6
    4
    700665
    G14 E1A-6-3T-GA-PKU-HK-4M
    Reference no. 700665
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 16.5
  • 3000
    2120
    6
    5
    700666
    G14 E1A-6-3T-GA-PKU-HK-5M
    Reference no. 700666
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 19.8
  • 3000
    2120
    6
    6
    700667
    G14 E1A-6-3T-GA-PKU-HK-6M
    Reference no. 700667
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 23.1
  • 5300
    3750
    8
    2
    700668
    G14 E1A-8-5.3T-GA-PKU-HK-2M
    Reference no. 700668
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 18.6
  • 5300
    3750
    8
    3
    700669
    G14 E1A-8-5.3T-GA-PKU-HK-3M
    Reference no. 700669
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 24.4
  • 5300
    3750
    8
    4
    700670
    G14 E1A-8-5.3T-GA-PKU-HK-4M
    Reference no. 700670
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 30.5
  • 5300
    3750
    8
    5
    700671
    G14 E1A-8-5.3T-GA-PKU-HK-5M
    Reference no. 700671
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 36.6
  • 5300
    3750
    8
    6
    700672
    G14 E1A-8-5.3T-GA-PKU-HK-6M
    Reference no. 700672
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 42.7
  • 8000
    6000
    10
    2
    700673
    G14 E1A-10-8T-GA-PKU-HK-2M
    Reference no. 700673
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 32.4
  • 8000
    6000
    10
    3
    700674
    G14 E1A-10-8T-GA-PKU-HK-3M
    Reference no. 700674
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 41.6
  • 8000
    6000
    10
    4
    700675
    G14 E1A-10-8T-GA-PKU-HK-4M
    Reference no. 700675
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 51.4
  • 8000
    6000
    10
    5
    700676
    G14 E1A-10-8T-GA-PKU-HK-5M
    Reference no. 700676
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 61.2
  • 8000
    6000
    10
    6
    700677
    G14 E1A-10-8T-GA-PKU-HK-6M
    Reference no. 700677
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 70.4
  • 14000
    10000
    13
    2
    700678
    G14 E1A-13-14T-GA-PKU-HK-2M
    Reference no. 700678
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 55.5
  • 14000
    10000
    13
    3
    700679
    G14 E1A-13-14T-GA-PKU-HK-3M
    Reference no. 700679
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 71.7
  • 14000
    10000
    13
    4
    700680
    G14 E1A-13-14T-GA-PKU-HK-4M
    Reference no. 700680
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 86.7
  • 14000
    10000
    13
    5
    700681
    G14 E1A-13-14T-GA-PKU-HK-5M
    Reference no. 700681
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 102.9
  • 14000
    10000
    13
    6
    700682
    G14 E1A-13-14T-GA-PKU-HK-6M
    Reference no. 700682
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 119.1
  • 21200
    15000
    16
    2
    700683
    C14 E1A-16-21.2T-GA-PKU-HK-2M
    Reference no. 700683
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 81.8
  • 21200
    15000
    16
    3
    700684
    C14 E1A-16-21.2T-GA-PKU-HK-3M
    Reference no. 700684
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 104.9
  • 21200
    15000
    16
    4
    700685
    C14 E1A-16-21.2T-GA-PKU-HK-4M
    Reference no. 700685
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 130.2
  • 21200
    15000
    16
    5
    700686
    C14 E1A-16-21.2T-GA-PKU-HK-5M
    Reference no. 700686
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 153.3
  • 21200
    15000
    16
    6
    700687
    C14 E1A-16-21.2T-GA-PKU-HK-6M
    Reference no. 700687
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 178.6
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 700663
  • Details
    G14 E1A-6-3T-GA-PKU-HK-2M
    Reference no. 700663
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.9
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 700664
  • Details
    G14 E1A-6-3T-GA-PKU-HK-3M
    Reference no. 700664
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13.2
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 700665
  • Details
    G14 E1A-6-3T-GA-PKU-HK-4M
    Reference no. 700665
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 16.5
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 700666
  • Details
    G14 E1A-6-3T-GA-PKU-HK-5M
    Reference no. 700666
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 19.8
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 700667
  • Details
    G14 E1A-6-3T-GA-PKU-HK-6M
    Reference no. 700667
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 23.1
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 700668
  • Details
    G14 E1A-8-5.3T-GA-PKU-HK-2M
    Reference no. 700668
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 18.6
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 700669
  • Details
    G14 E1A-8-5.3T-GA-PKU-HK-3M
    Reference no. 700669
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 24.4
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 700670
  • Details
    G14 E1A-8-5.3T-GA-PKU-HK-4M
    Reference no. 700670
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 30.5
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 700671
  • Details
    G14 E1A-8-5.3T-GA-PKU-HK-5M
    Reference no. 700671
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 36.6
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 700672
  • Details
    G14 E1A-8-5.3T-GA-PKU-HK-6M
    Reference no. 700672
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 42.7
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 700673
  • Details
    G14 E1A-10-8T-GA-PKU-HK-2M
    Reference no. 700673
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 32.4
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 700674
  • Details
    G14 E1A-10-8T-GA-PKU-HK-3M
    Reference no. 700674
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 41.6
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 700675
  • Details
    G14 E1A-10-8T-GA-PKU-HK-4M
    Reference no. 700675
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 51.4
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 700676
  • Details
    G14 E1A-10-8T-GA-PKU-HK-5M
    Reference no. 700676
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 61.2
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 700677
  • Details
    G14 E1A-10-8T-GA-PKU-HK-6M
    Reference no. 700677
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 70.4
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 700678
  • Details
    G14 E1A-13-14T-GA-PKU-HK-2M
    Reference no. 700678
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 55.5
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 700679
  • Details
    G14 E1A-13-14T-GA-PKU-HK-3M
    Reference no. 700679
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 71.7
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 700680
  • Details
    G14 E1A-13-14T-GA-PKU-HK-4M
    Reference no. 700680
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 86.7
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 700681
  • Details
    G14 E1A-13-14T-GA-PKU-HK-5M
    Reference no. 700681
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 102.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 700682
  • Details
    G14 E1A-13-14T-GA-PKU-HK-6M
    Reference no. 700682
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 119.1
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 700683
  • Details
    C14 E1A-16-21.2T-GA-PKU-HK-2M
    Reference no. 700683
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 81.8
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 700684
  • Details
    C14 E1A-16-21.2T-GA-PKU-HK-3M
    Reference no. 700684
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 104.9
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 700685
  • Details
    C14 E1A-16-21.2T-GA-PKU-HK-4M
    Reference no. 700685
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 130.2
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 700686
  • Details
    C14 E1A-16-21.2T-GA-PKU-HK-5M
    Reference no. 700686
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 153.3
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 700687
  • Details
    C14 E1A-16-21.2T-GA-PKU-HK-6M
    Reference no. 700687
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 178.6
Downloads

Applications

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
Parent company/Head office
Germany
PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
Service centre
Germany
PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
Service centre
Austria
PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
Sales subsidiary
France
PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
Sales subsidiary
Luxemburg
PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
Sales subsidiary
Poland
PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
