HIT ECO-Chain sling, quality grade 10, 4-leg Safety load hooks

HIT ECO-Chain sling, quality grade 10, 4-leg Safety load hooks

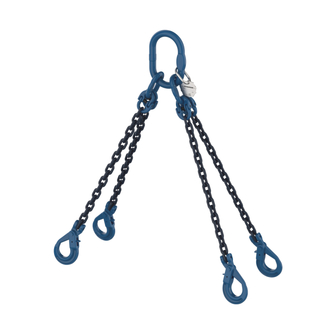

Chain sling with safety load hook for 4-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; below –40 °C = use not permitted; above +200 °C = use not permitted

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • "Quality grade no. ""10"" (every 300 mm on the chain)"
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • blue

Component surface

  • coated

Component colour

  • blue

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]

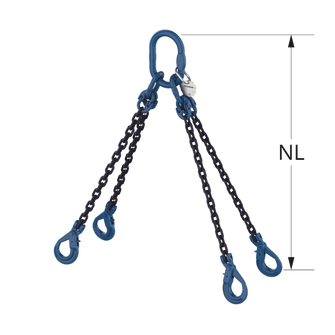

Effective length WLL [m]
Reference no.
Details
  • 3000
    2120
    6
    1
    700524
    G14 E1A-6-3T-GA-SHK-1M
    Reference no. 700524
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 6.2
  • 3000
    2120
    6
    1.5
    700525
    G14 E1A-6-3T-GA-SHK-1.5M
    Reference no. 700525
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 7.7
  • 3000
    2120
    6
    2
    700526
    G14 E1A-6-3T-GA-SHK-2M
    Reference no. 700526
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.4
  • 3000
    2120
    6
    2.5
    700527
    G14 E1A-6-3T-GA-SHK-2.5M
    Reference no. 700527
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 11.1
  • 3000
    2120
    6
    3
    700528
    G14 E1A-6-3T-GA-SHK-3M
    Reference no. 700528
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 12.8
  • 3000
    2120
    6
    4
    700529
    G14 E1A-6-3T-GA-SHK-4M
    Reference no. 700529
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 16.1
  • 3000
    2120
    6
    5
    700530
    G14 E1A-6-3T-GA-SHK-5M
    Reference no. 700530
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 19.5
  • 3000
    2120
    6
    6
    700531
    G14 E1A-6-3T-GA-SHK-6M
    Reference no. 700531
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 22.7
  • 5300
    3750
    8
    1
    700532
    G14 E1A-8-5.3T-GA-SHK-1M
    Reference no. 700532
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 10.1
  • 5300
    3750
    8
    1.5
    700533
    G14 E1A-8-5.3T-GA-SHK-1.5M
    Reference no. 700533
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 13.3
  • 5300
    3750
    8
    2
    700534
    G14 E1A-8-5.3T-GA-SHK-2M
    Reference no. 700534
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 16.2
  • 5300
    3750
    8
    2.5
    700535
    G14 E1A-8-5.3T-GA-SHK-2.5M
    Reference no. 700535
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 22.3
  • 5300
    3750
    8
    3
    700536
    G14 E1A-8-5.3T-GA-SHK-3M
    Reference no. 700536
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 28.4
  • 5300
    3750
    8
    4
    700537
    G14 E1A-8-5.3T-GA-SHK-4M
    Reference no. 700537
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 34.4
  • 5300
    3750
    8
    5
    700538
    G14 E1A-8-5.3T-GA-SHK-5M
    Reference no. 700538
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 40.2
  • 5300
    3750
    8
    6
    700539
    G14 E1A-8-5.3T-GA-SHK-6M
    Reference no. 700539
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 19.1
  • 8000
    6000
    10
    1
    700541
    G14 E1A-10-8T-GA-SHK-1M
    Reference no. 700541
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 17.5
  • 8000
    6000
    10
    1.5
    700542
    G14 E1A-10-8T-GA-SHK-1.5M
    Reference no. 700542
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 22.1
  • 8000
    6000
    10
    2
    700543
    G14 E1A-10-8T-GA-SHK-2M
    Reference no. 700543
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 26.7
  • 8000
    6000
    10
    2.5
    700544
    G14 E1A-10-8T-GA-SHK-2.5M
    Reference no. 700544
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 31.9
  • 8000
    6000
    10
    3
    700545
    G14 E1A-10-8T-GA-SHK-3M
    Reference no. 700545
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 36.5
  • 8000
    6000
    10
    4
    700546
    G14 E1A-10-8T-GA-SHK-4M
    Reference no. 700546
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 46.3
  • 8000
    6000
    10
    5
    700547
    G14 E1A-10-8T-GA-SHK-5M
    Reference no. 700547
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 55.5
  • 8000
    6000
    10
    6
    700548
    G14 E1A-10-8T-GA-SHK-6M
    Reference no. 700548
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 65.3
  • 14000
    10000
    13
    1
    700549
    G14 E1A-13-14T-GA-SHK-1M
    Reference no. 700549
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 29.2
  • 14000
    10000
    13
    1.5
    700550
    G14 E1A-13-14T-GA-SHK-1.5M
    Reference no. 700550
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 36.6
  • 14000
    10000
    13
    2
    700551
    G14 E1A-13-14T-GA-SHK-2M
    Reference no. 700551
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 45.4
  • 14000
    10000
    13
    2.5
    700552
    G14 E1A-13-14T-GA-SHK-2.5M
    Reference no. 700552
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 52.9
  • 14000
    10000
    13
    3
    700553
    G14 E1A-13-14T-GA-SHK-3M
    Reference no. 700553
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 61.6
  • 14000
    10000
    13
    4
    700554
    G14 E1A-13-14T-GA-SHK-4M
    Reference no. 700554
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 76.6
  • 14000
    10000
    13
    5
    700555
    G14 E1A-13-14T-GA-SHK-5M
    Reference no. 700555
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 92.8
  • 14000
    10000
    13
    6
    700556
    G14 E1A-13-14T-GA-SHK-6M
    Reference no. 700556
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 109
  • 21200
    15000
    16
    1
    700557
    C14 E1A-16-21.2T-GA-SHK-1M
    Reference no. 700557
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 50.1
  • 21200
    15000
    16
    1.5
    700558
    C14 E1A-16-21.2T-GA-SHK-1.5M
    Reference no. 700558
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 61.6
  • 21200
    15000
    16
    2
    700559
    C14 E1A-16-21.2T-GA-SHK-2M
    Reference no. 700559
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 73.1
  • 21200
    15000
    16
    2.5
    700560
    C14 E1A-16-21.2T-GA-SHK-2.5M
    Reference no. 700560
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 84.6
  • 21200
    15000
    16
    3
    700561
    C14 E1A-16-21.2T-GA-SHK-3M
    Reference no. 700561
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 98.5
  • 21200
    15000
    16
    4
    700562
    C14 E1A-16-21.2T-GA-SHK-4M
    Reference no. 700562
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 121.5
  • 21200
    15000
    16
    5
    700563
    C14 E1A-16-21.2T-GA-SHK-5M
    Reference no. 700563
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 146.9
  • 21200
    15000
    16
    6
    700564
    C14 E1A-16-21.2T-GA-SHK-6M
    Reference no. 700564
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 169.9
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 700524
  • Details
    G14 E1A-6-3T-GA-SHK-1M
    Reference no. 700524
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 6.2
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 700525
  • Details
    G14 E1A-6-3T-GA-SHK-1.5M
    Reference no. 700525
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 7.7
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 700526
  • Details
    G14 E1A-6-3T-GA-SHK-2M
    Reference no. 700526
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.4
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 700527
  • Details
    G14 E1A-6-3T-GA-SHK-2.5M
    Reference no. 700527
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 11.1
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 700528
  • Details
    G14 E1A-6-3T-GA-SHK-3M
    Reference no. 700528
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 12.8
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 700529
  • Details
    G14 E1A-6-3T-GA-SHK-4M
    Reference no. 700529
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 16.1
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 700530
  • Details
    G14 E1A-6-3T-GA-SHK-5M
    Reference no. 700530
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 19.5
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 700531
  • Details
    G14 E1A-6-3T-GA-SHK-6M
    Reference no. 700531
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 22.7
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 700532
  • Details
    G14 E1A-8-5.3T-GA-SHK-1M
    Reference no. 700532
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 10.1
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 700533
  • Details
    G14 E1A-8-5.3T-GA-SHK-1.5M
    Reference no. 700533
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 13.3
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 700534
  • Details
    G14 E1A-8-5.3T-GA-SHK-2M
    Reference no. 700534
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 16.2
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 700535
  • Details
    G14 E1A-8-5.3T-GA-SHK-2.5M
    Reference no. 700535
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 22.3
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 700536
  • Details
    G14 E1A-8-5.3T-GA-SHK-3M
    Reference no. 700536
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 28.4
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 700537
  • Details
    G14 E1A-8-5.3T-GA-SHK-4M
    Reference no. 700537
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 34.4
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 700538
  • Details
    G14 E1A-8-5.3T-GA-SHK-5M
    Reference no. 700538
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 40.2
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 700539
  • Details
    G14 E1A-8-5.3T-GA-SHK-6M
    Reference no. 700539
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 19.1
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 700541
  • Details
    G14 E1A-10-8T-GA-SHK-1M
    Reference no. 700541
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 17.5
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 700542
  • Details
    G14 E1A-10-8T-GA-SHK-1.5M
    Reference no. 700542
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 22.1
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 700543
  • Details
    G14 E1A-10-8T-GA-SHK-2M
    Reference no. 700543
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 26.7
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 700544
  • Details
    G14 E1A-10-8T-GA-SHK-2.5M
    Reference no. 700544
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 31.9
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 700545
  • Details
    G14 E1A-10-8T-GA-SHK-3M
    Reference no. 700545
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 36.5
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 700546
  • Details
    G14 E1A-10-8T-GA-SHK-4M
    Reference no. 700546
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 46.3
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 700547
  • Details
    G14 E1A-10-8T-GA-SHK-5M
    Reference no. 700547
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 55.5
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 700548
  • Details
    G14 E1A-10-8T-GA-SHK-6M
    Reference no. 700548
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 65.3
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 700549
  • Details
    G14 E1A-13-14T-GA-SHK-1M
    Reference no. 700549
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 29.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 700550
  • Details
    G14 E1A-13-14T-GA-SHK-1.5M
    Reference no. 700550
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 36.6
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 700551
  • Details
    G14 E1A-13-14T-GA-SHK-2M
    Reference no. 700551
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 45.4
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 700552
  • Details
    G14 E1A-13-14T-GA-SHK-2.5M
    Reference no. 700552
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 52.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 700553
  • Details
    G14 E1A-13-14T-GA-SHK-3M
    Reference no. 700553
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 61.6
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 700554
  • Details
    G14 E1A-13-14T-GA-SHK-4M
    Reference no. 700554
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 76.6
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 700555
  • Details
    G14 E1A-13-14T-GA-SHK-5M
    Reference no. 700555
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 92.8
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 700556
  • Details
    G14 E1A-13-14T-GA-SHK-6M
    Reference no. 700556
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 109
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 700557
  • Details
    C14 E1A-16-21.2T-GA-SHK-1M
    Reference no. 700557
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 50.1
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 700558
  • Details
    C14 E1A-16-21.2T-GA-SHK-1.5M
    Reference no. 700558
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 61.6
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 700559
  • Details
    C14 E1A-16-21.2T-GA-SHK-2M
    Reference no. 700559
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 73.1
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 700560
  • Details
    C14 E1A-16-21.2T-GA-SHK-2.5M
    Reference no. 700560
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 84.6
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 700561
  • Details
    C14 E1A-16-21.2T-GA-SHK-3M
    Reference no. 700561
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 98.5
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 700562
  • Details
    C14 E1A-16-21.2T-GA-SHK-4M
    Reference no. 700562
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 121.5
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 700563
  • Details
    C14 E1A-16-21.2T-GA-SHK-5M
    Reference no. 700563
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 146.9
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 700564
  • Details
    C14 E1A-16-21.2T-GA-SHK-6M
    Reference no. 700564
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 169.9
Downloads

Description

Product brochure

Download

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
