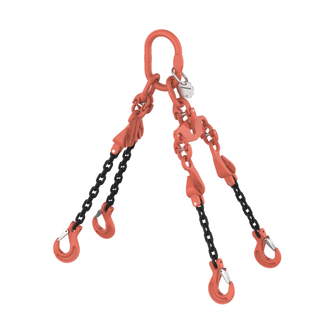

HIT PRO 1 chain balancing suspension gear in quality grade 10, 4-leg, can be shortened, rocker

HIT PRO 1 chain balancing suspension gear in quality grade 10, 4-leg, can be shortened, rocker
Chain suspension with balancing device with VW standard suspension link, balancing rocker for increased working load limit, integrated shortener and KHSW/HSW standard load hooks for 4-leg attachment. The balancing rocker compensates for the admissible length tolerances of chain legs in 4-leg assemblies, achieving working load limits with 4 load-bearing legs and symmetrical loading. The shortener enables horizontal alignment of the load in multi-leg attachment even with difficult transport procedures as well as suitable adjustment of the load for assemblies. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. Cathodic EPD provides extreme corrosion-protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 4-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • can be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]

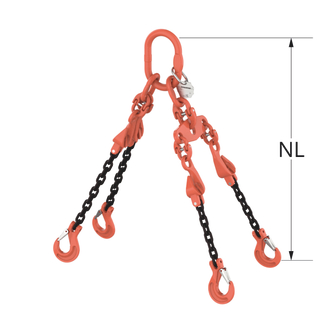

Effective length WLL [m]
Reference no.
Details
  • 4000
    2800
    6
    2
    711325
    G14 P1B-6-4T-GA-XKI-HK-2M W
    Reference no. 711325
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 10.7
  • 4000
    2800
    6
    3
    711326
    G14 P1B-6-4T-GA-XKI-HK-3M W
    Reference no. 711326
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 14.5
  • 4000
    2800
    6
    4
    711327
    G14 P1B-6-4T-GA-XKI-HK-4M W
    Reference no. 711327
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 18.4
  • 4000
    2800
    6
    5
    711328
    G14 P1B-6-4T-GA-XKI-HK-5M W
    Reference no. 711328
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 22.2
  • 4000
    2800
    6
    6
    711329
    G14 P1B-6-4T-GA-XKI-HK-6M W
    Reference no. 711329
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 26.1
  • 7100
    5000
    8
    2
    711330
    G14 P1B-8-7.1T-GA-XKI-HK-2M W
    Reference no. 711330
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 20.3
  • 7100
    5000
    8
    3
    711331
    G14 P1B-8-7.1T-GA-XKI-HK-3M W
    Reference no. 711331
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 26.7
  • 7100
    5000
    8
    4
    711332
    G14 P1B-8-7.1T-GA-XKI-HK-4M W
    Reference no. 711332
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 32.8
  • 7100
    5000
    8
    5
    711333
    G14 P1B-8-7.1T-GA-XKI-HK-5M W
    Reference no. 711333
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 39.2
  • 7100
    5000
    8
    6
    711334
    G14 P1B-8-7.1T-GA-XKI-HK-6M W
    Reference no. 711334
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 45.5
  • 11200
    8000
    10
    2
    711335
    G14 P1B-10-11.2T-GA-XKI-HK-2M W
    Reference no. 711335
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 33.3
  • 11200
    8000
    10
    3
    711336
    G14 P1B-10-11.2T-GA-XKI-HK-3M W
    Reference no. 711336
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 43.4
  • 11200
    8000
    10
    4
    711337
    G14 P1B-10-11.2T-GA-XKI-HK-4M W
    Reference no. 711337
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 52.8
  • 11200
    8000
    10
    5
    711338
    G14 P1B-10-11.2T-GA-XKI-HK-5M W
    Reference no. 711338
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 62.9
  • 11200
    8000
    10
    6
    711339
    G14 P1B-10-11.2T-GA-XKI-HK-6M W
    Reference no. 711339
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 72.9
  • 19000
    13200
    13
    2
    711340
    G14 P1B-13-19T-GA-XKI-HK-2M W
    Reference no. 711340
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 56.5
  • 19000
    13200
    13
    3
    711341
    G14 P1B-13-19T-GA-XKI-HK-3M W
    Reference no. 711341
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 72.1
  • 19000
    13200
    13
    4
    711342
    G14 P1B-13-19T-GA-XKI-HK-4M W
    Reference no. 711342
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 89.1
  • 19000
    13200
    13
    5
    711343
    G14 P1B-13-19T-GA-XKI-HK-5M W
    Reference no. 711343
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 106
  • 19000
    13200
    13
    6
    711344
    G14 P1B-13-19T-GA-XKI-HK-6M W
    Reference no. 711344
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 123
  • 28000
    20000
    16
    2
    711345
    C14 P1B-16-28T-GA-XKI-HK-2M W
    Reference no. 711345
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 95.6
  • 28000
    20000
    16
    3
    711346
    C14 P1B-16-28T-GA-XKI-HK-3M W
    Reference no. 711346
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 119.7
  • 28000
    20000
    16
    4
    711347
    C14 P1B-16-28T-GA-XKI-HK-4M W
    Reference no. 711347
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 146.3
  • 28000
    20000
    16
    5
    711348
    C14 P1B-16-28T-GA-XKI-HK-5M W
    Reference no. 711348
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 170.4
  • 28000
    20000
    16
    6
    711349
    C14 P1B-16-28T-GA-XKI-HK-6M W
    Reference no. 711349
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 196.9
  • 40000
    28000
    20
    2
    711350
    C14 P1B-20-40T-GA-PKU-HK-2M W
    Reference no. 711350
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 142.8
  • 40000
    28000
    20
    3
    711351
    C14 P1B-20-40T-GA-PKU-HK-3M W
    Reference no. 711351
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 179.4
  • 40000
    28000
    20
    4
    711352
    C14 P1B-20-40T-GA-PKU-HK-4M W
    Reference no. 711352
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 214
  • 40000
    28000
    20
    5
    711353
    C14 P1B-20-40T-GA-PKU-HK-5M W
    Reference no. 711353
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 250.6
  • 40000
    28000
    20
    6
    711354
    C14 P1B-20-40T-GA-PKU-HK-6M W
    Reference no. 711354
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 285.2
  • 53000
    37500
    22
    3
    711355

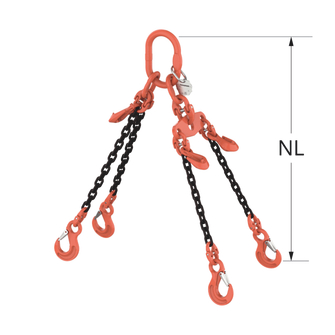

    C14 P1B-22-53T-GA-PH-HK-3M W
    Reference no. 711355
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 251.5
  • 53000
    37500
    22
    4
    711356
    C14 P1B-22-53T-GA-PH-HK-4M W
    Reference no. 711356
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 298.6
  • 53000
    37500
    22
    6
    711357
    C14 P1B-22-53T-GA-PH-HK-6M W
    Reference no. 711357
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 395.8
  • 75000
    53000
    26
    3
    711358
    C14 P1B-26-75T-GA-PH-H-3M W
    Reference no. 711358
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 320.7
  • 75000
    53000
    26
    4
    711359
    C14 P1B-26-75T-GA-PH-H-4M W
    Reference no. 711359
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 381.3
  • 75000
    53000
    26
    6
    711360
    C14 P1B-26-75T-GA-PH-H-6M W
    Reference no. 711360
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 512.5
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 711325
  • Details
    G14 P1B-6-4T-GA-XKI-HK-2M W
    Reference no. 711325
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 10.7
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 711326
  • Details
    G14 P1B-6-4T-GA-XKI-HK-3M W
    Reference no. 711326
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 14.5
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 711327
  • Details
    G14 P1B-6-4T-GA-XKI-HK-4M W
    Reference no. 711327
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 18.4
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 711328
  • Details
    G14 P1B-6-4T-GA-XKI-HK-5M W
    Reference no. 711328
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 22.2
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 711329
  • Details
    G14 P1B-6-4T-GA-XKI-HK-6M W
    Reference no. 711329
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 26.1
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 711330
  • Details
    G14 P1B-8-7.1T-GA-XKI-HK-2M W
    Reference no. 711330
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 20.3
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 711331
  • Details
    G14 P1B-8-7.1T-GA-XKI-HK-3M W
    Reference no. 711331
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 26.7
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 711332
  • Details
    G14 P1B-8-7.1T-GA-XKI-HK-4M W
    Reference no. 711332
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 32.8
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 711333
  • Details
    G14 P1B-8-7.1T-GA-XKI-HK-5M W
    Reference no. 711333
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 39.2
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 711334
  • Details
    G14 P1B-8-7.1T-GA-XKI-HK-6M W
    Reference no. 711334
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 45.5
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 711335
  • Details
    G14 P1B-10-11.2T-GA-XKI-HK-2M W
    Reference no. 711335
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 33.3
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 711336
  • Details
    G14 P1B-10-11.2T-GA-XKI-HK-3M W
    Reference no. 711336
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 43.4
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 711337
  • Details
    G14 P1B-10-11.2T-GA-XKI-HK-4M W
    Reference no. 711337
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 52.8
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 711338
  • Details
    G14 P1B-10-11.2T-GA-XKI-HK-5M W
    Reference no. 711338
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 62.9
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 711339
  • Details
    G14 P1B-10-11.2T-GA-XKI-HK-6M W
    Reference no. 711339
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 72.9
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 711340
  • Details
    G14 P1B-13-19T-GA-XKI-HK-2M W
    Reference no. 711340
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 56.5
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 711341
  • Details
    G14 P1B-13-19T-GA-XKI-HK-3M W
    Reference no. 711341
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 72.1
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 711342
  • Details
    G14 P1B-13-19T-GA-XKI-HK-4M W
    Reference no. 711342
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 89.1
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 711343
  • Details
    G14 P1B-13-19T-GA-XKI-HK-5M W
    Reference no. 711343
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 106
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 711344
  • Details
    G14 P1B-13-19T-GA-XKI-HK-6M W
    Reference no. 711344
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 123
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 711345
  • Details
    C14 P1B-16-28T-GA-XKI-HK-2M W
    Reference no. 711345
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 95.6
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 711346
  • Details
    C14 P1B-16-28T-GA-XKI-HK-3M W
    Reference no. 711346
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 119.7
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 711347
  • Details
    C14 P1B-16-28T-GA-XKI-HK-4M W
    Reference no. 711347
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 146.3
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 711348
  • Details
    C14 P1B-16-28T-GA-XKI-HK-5M W
    Reference no. 711348
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 170.4
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 711349
  • Details
    C14 P1B-16-28T-GA-XKI-HK-6M W
    Reference no. 711349
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 196.9
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 711350
  • Details
    C14 P1B-20-40T-GA-PKU-HK-2M W
    Reference no. 711350
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 142.8
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 711351
  • Details
    C14 P1B-20-40T-GA-PKU-HK-3M W
    Reference no. 711351
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 179.4
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 711352
  • Details
    C14 P1B-20-40T-GA-PKU-HK-4M W
    Reference no. 711352
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 214
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 711353
  • Details
    C14 P1B-20-40T-GA-PKU-HK-5M W
    Reference no. 711353
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 250.6
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711354
  • Details
    C14 P1B-20-40T-GA-PKU-HK-6M W
    Reference no. 711354
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 285.2
Working load limit 0–45° [kg] 53000
Working load limit 45−60° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711355
  • Details
    C14 P1B-22-53T-GA-PH-HK-3M W
    Reference no. 711355
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 251.5
Working load limit 0–45° [kg] 53000
Working load limit 45−60° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711356
  • Details
    C14 P1B-22-53T-GA-PH-HK-4M W
    Reference no. 711356
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 298.6
Working load limit 0–45° [kg] 53000
Working load limit 45−60° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711357
  • Details
    C14 P1B-22-53T-GA-PH-HK-6M W
    Reference no. 711357
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 395.8
Working load limit 0–45° [kg] 75000
Working load limit 45−60° [kg] 53000
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 711358
  • Details
    C14 P1B-26-75T-GA-PH-H-3M W
    Reference no. 711358
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 320.7
Working load limit 0–45° [kg] 75000
Working load limit 45−60° [kg] 53000
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 711359
  • Details
    C14 P1B-26-75T-GA-PH-H-4M W
    Reference no. 711359
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 381.3
Working load limit 0–45° [kg] 75000
Working load limit 45−60° [kg] 53000
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 711360
  • Details
    C14 P1B-26-75T-GA-PH-H-6M W
    Reference no. 711360
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 512.5
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
