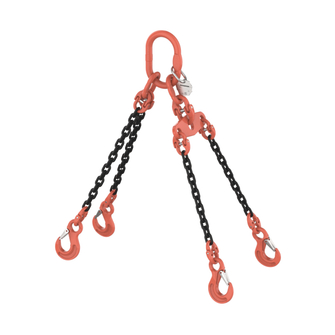

HIT PRO 1 Chain balancing suspension gear quality grade 10, 4-leg rocker

HIT PRO 1 Chain balancing suspension gear quality grade 10, 4-leg rocker
Chain suspension gear with balancing device with VW standard suspension link, balancing rocker for increased working load limit and KHSW/HSW standard load hooks for 4-leg attachment. The balancing rocker compensates for the admissible length tolerances of chain legs in 4-leg assemblies, achieving working load limits with 4 load-bearing legs and symmetrical loading. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. Cathodic EPD provides extreme corrosion-protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 4-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]

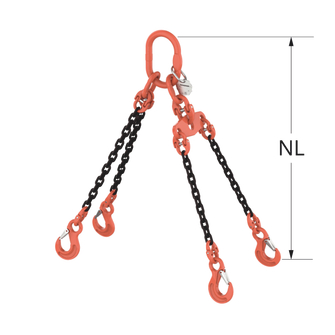

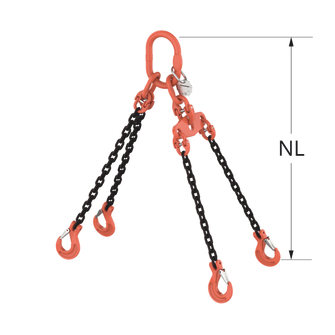

Effective length WLL [m]
Reference no.
Details
  • 4000
    2800
    6
    1
    711273
    G14 P1B-6-4T-GA-HK-1M W
    Reference no. 711273
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 6
  • 4000
    2800
    6
    1.5
    711274
    G14 P1B-6-4T-GA-HK-1.5M W
    Reference no. 711274
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 7.9
  • 4000
    2800
    6
    2
    711275
    G14 P1B-6-4T-GA-HK-2M W
    Reference no. 711275
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.9
  • 4000
    2800
    6
    2.5
    711276
    G14 P1B-6-4T-GA-HK-2.5M W
    Reference no. 711276
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 11.8
  • 4000
    2800
    6
    3
    711277
    G14 P1B-6-4T-GA-HK-3M W
    Reference no. 711277
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13.7
  • 4000
    2800
    6
    4
    711278
    G14 P1B-6-4T-GA-HK-4M W
    Reference no. 711278
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 17.6
  • 4000
    2800
    6
    5
    711279
    G14 P1B-6-4T-GA-HK-5M W
    Reference no. 711279
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 21.4
  • 4000
    2800
    6
    6
    711280
    G14 P1B-6-4T-GA-HK-6M W
    Reference no. 711280
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 25.2
  • 7100
    5000
    8
    1
    711281
    G14 P1B-8-7.1T-GA-HK-1M W
    Reference no. 711281
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 12.2
  • 7100
    5000
    8
    1.5
    711282
    G14 P1B-8-7.1T-GA-HK-1.5M W
    Reference no. 711282
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 15.2
  • 7100
    5000
    8
    2
    711283
    G14 P1B-8-7.1T-GA-HK-2M W
    Reference no. 711283
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 18.4
  • 7100
    5000
    8
    2.5
    711284
    G14 P1B-8-7.1T-GA-HK-2.5M W
    Reference no. 711284
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 21.6
  • 7100
    5000
    8
    3
    711285
    G14 P1B-8-7.1T-GA-HK-3M W
    Reference no. 711285
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 24.7
  • 7100
    5000
    8
    4
    711286
    G14 P1B-8-7.1T-GA-HK-4M W
    Reference no. 711286
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 31.1
  • 7100
    5000
    8
    5
    711287
    G14 P1B-8-7.1T-GA-HK-5M W
    Reference no. 711287
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 37.2
  • 7100
    5000
    8
    6
    711288
    G14 P1B-8-7.1T-GA-HK-6M W
    Reference no. 711288
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 43.6
  • 11200
    8000
    10
    1
    711289
    G14 P1B-10-11.2T-GA-HK-1M W
    Reference no. 711289
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 19.6
  • 11200
    8000
    10
    1.5
    711290
    G14 P1B-10-11.2T-GA-HK-1.5M W
    Reference no. 711290
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 24.9
  • 11200
    8000
    10
    2
    711291
    G14 P1B-10-11.2T-GA-HK-2M W
    Reference no. 711291
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 29.6
  • 11200
    8000
    10
    2.5
    711292
    G14 P1B-10-11.2T-GA-HK-2.5M W
    Reference no. 711292
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 34.3
  • 11200
    8000
    10
    3
    711293
    G14 P1B-10-11.2T-GA-HK-3M W
    Reference no. 711293
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 39.6
  • 11200
    8000
    10
    4
    711294
    G14 P1B-10-11.2T-GA-HK-4M W
    Reference no. 711294
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 49.1
  • 11200
    8000
    10
    5
    711295
    G14 P1B-10-11.2T-GA-HK-5M W
    Reference no. 711295
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 59.1
  • 11200
    8000
    10
    6
    711296
    G14 P1B-10-11.2T-GA-HK-6M W
    Reference no. 711296
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 69.2
  • 19000
    13200
    13
    1
    711297
    G14 P1B-13-19T-GA-HK-1M W
    Reference no. 711297
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 30.8
  • 19000
    13200
    13
    1.5
    711298
    G14 P1B-13-19T-GA-HK-1.5M W
    Reference no. 711298
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 38.6
  • 19000
    13200
    13
    2
    711299
    G14 P1B-13-19T-GA-HK-2M W
    Reference no. 711299
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 47.7
  • 19000
    13200
    13
    2.5
    711300
    G14 P1B-13-19T-GA-HK-2.5M W
    Reference no. 711300
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 55.6
  • 19000
    13200
    13
    3
    711301
    G14 P1B-13-19T-GA-HK-3M W
    Reference no. 711301
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 63.4
  • 19000
    13200
    13
    4
    711302
    G14 P1B-13-19T-GA-HK-4M W
    Reference no. 711302
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 80.3
  • 19000
    13200
    13
    5
    711303
    G14 P1B-13-19T-GA-HK-5M W
    Reference no. 711303
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 97.3
  • 19000
    13200
    13
    6
    711304
    G14 P1B-13-19T-GA-HK-6M W
    Reference no. 711304
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 114.3
  • 28000
    20000
    16
    1
    711305
    C14 P1B-16-28T-GA-HK-1M W
    Reference no. 711305
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 54.3
  • 28000
    20000
    16
    1.5
    711306
    C14 P1B-16-28T-GA-HK-1.5M W
    Reference no. 711306
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 68.8
  • 28000
    20000
    16
    2
    711307
    C14 P1B-16-28T-GA-HK-2M W
    Reference no. 711307
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 80.9
  • 28000
    20000
    16
    2.5
    711308
    C14 P1B-16-28T-GA-HK-2.5M W
    Reference no. 711308
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 92.9
  • 28000
    20000
    16
    3
    711309
    C14 P1B-16-28T-GA-HK-3M W
    Reference no. 711309
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 105
  • 28000
    20000
    16
    4
    711310
    C14 P1B-16-28T-GA-HK-4M W
    Reference no. 711310
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 131.5
  • 28000
    20000
    16
    5
    711311
    C14 P1B-16-28T-GA-HK-5M W
    Reference no. 711311
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 155.6
  • 28000
    20000
    16
    6
    711312
    C14 P1B-16-28T-GA-HK-6M W
    Reference no. 711312
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 182.1
  • 40000
    28000
    20
    2
    711313
    C14 P1B-20-40T-GA-HK-2M W
    Reference no. 711313
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 122
  • 40000
    28000
    20
    2.5
    711314
    C14 P1B-20-40T-GA-HK-2.5M W
    Reference no. 711314
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 140.3
  • 40000
    28000
    20
    3
    711315
    C14 P1B-20-40T-GA-HK-3M W
    Reference no. 711315
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 158.6
  • 40000
    28000
    20
    4
    711316
    C14 P1B-20-40T-GA-HK-4M W
    Reference no. 711316
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 193.2
  • 40000
    28000
    20
    5
    711317
    C14 P1B-20-40T-GA-HK-5M W
    Reference no. 711317
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 229.8
  • 40000
    28000
    20
    6
    711318
    C14 P1B-20-40T-GA-HK-6M W
    Reference no. 711318
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 264.4
  • 53000
    37500
    22
    3
    711319
    C14 P1B-22-53T-GA-HK-3M W
    Reference no. 711319
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 221.5
  • 53000
    37500
    22
    4
    711320
    C14 P1B-22-53T-GA-HK-4M W
    Reference no. 711320
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 268.6
  • 53000
    37500
    22
    6
    711321
    C14 P1B-22-53T-GA-HK-6M W
    Reference no. 711321
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 365.8
  • 75000
    53000
    26
    3
    711322
    C14 P1B-26-75T-GA-H-3M W
    Reference no. 711322
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 268.7
  • 75000
    53000
    26
    4
    711323
    C14 P1B-26-75T-GA-H-4M W
    Reference no. 711323
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 329.3
  • 75000
    53000
    26
    6
    711324
    C14 P1B-26-75T-GA-H-6M W
    Reference no. 711324
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 460.5
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 711273
  • Details
    G14 P1B-6-4T-GA-HK-1M W
    Reference no. 711273
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 6
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 711274
  • Details
    G14 P1B-6-4T-GA-HK-1.5M W
    Reference no. 711274
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 7.9
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 711275
  • Details
    G14 P1B-6-4T-GA-HK-2M W
    Reference no. 711275
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.9
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 711276
  • Details
    G14 P1B-6-4T-GA-HK-2.5M W
    Reference no. 711276
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 11.8
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 711277
  • Details
    G14 P1B-6-4T-GA-HK-3M W
    Reference no. 711277
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13.7
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 711278
  • Details
    G14 P1B-6-4T-GA-HK-4M W
    Reference no. 711278
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 17.6
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 711279
  • Details
    G14 P1B-6-4T-GA-HK-5M W
    Reference no. 711279
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 21.4
Working load limit 0–45° [kg] 4000
Working load limit 45−60° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 711280
  • Details
    G14 P1B-6-4T-GA-HK-6M W
    Reference no. 711280
    Working load limit 0–45° [kg] 4000
    Working load limit 45−60° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 25.2
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 711281
  • Details
    G14 P1B-8-7.1T-GA-HK-1M W
    Reference no. 711281
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 12.2
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 711282
  • Details
    G14 P1B-8-7.1T-GA-HK-1.5M W
    Reference no. 711282
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 15.2
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 711283
  • Details
    G14 P1B-8-7.1T-GA-HK-2M W
    Reference no. 711283
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 18.4
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 711284
  • Details
    G14 P1B-8-7.1T-GA-HK-2.5M W
    Reference no. 711284
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 21.6
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 711285
  • Details
    G14 P1B-8-7.1T-GA-HK-3M W
    Reference no. 711285
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 24.7
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 711286
  • Details
    G14 P1B-8-7.1T-GA-HK-4M W
    Reference no. 711286
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 31.1
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 711287
  • Details
    G14 P1B-8-7.1T-GA-HK-5M W
    Reference no. 711287
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 37.2
Working load limit 0–45° [kg] 7100
Working load limit 45−60° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 711288
  • Details
    G14 P1B-8-7.1T-GA-HK-6M W
    Reference no. 711288
    Working load limit 0–45° [kg] 7100
    Working load limit 45−60° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 43.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 711289
  • Details
    G14 P1B-10-11.2T-GA-HK-1M W
    Reference no. 711289
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 19.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 711290
  • Details
    G14 P1B-10-11.2T-GA-HK-1.5M W
    Reference no. 711290
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 24.9
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 711291
  • Details
    G14 P1B-10-11.2T-GA-HK-2M W
    Reference no. 711291
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 29.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 711292
  • Details
    G14 P1B-10-11.2T-GA-HK-2.5M W
    Reference no. 711292
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 34.3
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 711293
  • Details
    G14 P1B-10-11.2T-GA-HK-3M W
    Reference no. 711293
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 39.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 711294
  • Details
    G14 P1B-10-11.2T-GA-HK-4M W
    Reference no. 711294
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 49.1
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 711295
  • Details
    G14 P1B-10-11.2T-GA-HK-5M W
    Reference no. 711295
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 59.1
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 711296
  • Details
    G14 P1B-10-11.2T-GA-HK-6M W
    Reference no. 711296
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 69.2
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 711297
  • Details
    G14 P1B-13-19T-GA-HK-1M W
    Reference no. 711297
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 30.8
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 711298
  • Details
    G14 P1B-13-19T-GA-HK-1.5M W
    Reference no. 711298
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 38.6
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 711299
  • Details
    G14 P1B-13-19T-GA-HK-2M W
    Reference no. 711299
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 47.7
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 711300
  • Details
    G14 P1B-13-19T-GA-HK-2.5M W
    Reference no. 711300
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 55.6
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 711301
  • Details
    G14 P1B-13-19T-GA-HK-3M W
    Reference no. 711301
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 63.4
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 711302
  • Details
    G14 P1B-13-19T-GA-HK-4M W
    Reference no. 711302
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 80.3
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 711303
  • Details
    G14 P1B-13-19T-GA-HK-5M W
    Reference no. 711303
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 97.3
Working load limit 0–45° [kg] 19000
Working load limit 45−60° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 711304
  • Details
    G14 P1B-13-19T-GA-HK-6M W
    Reference no. 711304
    Working load limit 0–45° [kg] 19000
    Working load limit 45−60° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 114.3
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 711305
  • Details
    C14 P1B-16-28T-GA-HK-1M W
    Reference no. 711305
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 54.3
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 711306
  • Details
    C14 P1B-16-28T-GA-HK-1.5M W
    Reference no. 711306
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 68.8
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 711307
  • Details
    C14 P1B-16-28T-GA-HK-2M W
    Reference no. 711307
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 80.9
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 711308
  • Details
    C14 P1B-16-28T-GA-HK-2.5M W
    Reference no. 711308
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 92.9
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 711309
  • Details
    C14 P1B-16-28T-GA-HK-3M W
    Reference no. 711309
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 105
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 711310
  • Details
    C14 P1B-16-28T-GA-HK-4M W
    Reference no. 711310
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 131.5
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 711311
  • Details
    C14 P1B-16-28T-GA-HK-5M W
    Reference no. 711311
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 155.6
Working load limit 0–45° [kg] 28000
Working load limit 45−60° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 711312
  • Details
    C14 P1B-16-28T-GA-HK-6M W
    Reference no. 711312
    Working load limit 0–45° [kg] 28000
    Working load limit 45−60° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 182.1
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 711313
  • Details
    C14 P1B-20-40T-GA-HK-2M W
    Reference no. 711313
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 122
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 2.5
Reference no. 711314
  • Details
    C14 P1B-20-40T-GA-HK-2.5M W
    Reference no. 711314
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 140.3
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 711315
  • Details
    C14 P1B-20-40T-GA-HK-3M W
    Reference no. 711315
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 158.6
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 711316
  • Details
    C14 P1B-20-40T-GA-HK-4M W
    Reference no. 711316
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 193.2
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 711317
  • Details
    C14 P1B-20-40T-GA-HK-5M W
    Reference no. 711317
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 229.8
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711318
  • Details
    C14 P1B-20-40T-GA-HK-6M W
    Reference no. 711318
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 264.4
Working load limit 0–45° [kg] 53000
Working load limit 45−60° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711319
  • Details
    C14 P1B-22-53T-GA-HK-3M W
    Reference no. 711319
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 221.5
Working load limit 0–45° [kg] 53000
Working load limit 45−60° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711320
  • Details
    C14 P1B-22-53T-GA-HK-4M W
    Reference no. 711320
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 268.6
Working load limit 0–45° [kg] 53000
Working load limit 45−60° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711321
  • Details
    C14 P1B-22-53T-GA-HK-6M W
    Reference no. 711321
    Working load limit 0–45° [kg] 53000
    Working load limit 45−60° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 365.8
Working load limit 0–45° [kg] 75000
Working load limit 45−60° [kg] 53000
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 711322
  • Details
    C14 P1B-26-75T-GA-H-3M W
    Reference no. 711322
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 268.7
Working load limit 0–45° [kg] 75000
Working load limit 45−60° [kg] 53000
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 711323
  • Details
    C14 P1B-26-75T-GA-H-4M W
    Reference no. 711323
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 329.3
Working load limit 0–45° [kg] 75000
Working load limit 45−60° [kg] 53000
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 711324
  • Details
    C14 P1B-26-75T-GA-H-6M W
    Reference no. 711324
    Working load limit 0–45° [kg] 75000
    Working load limit 45−60° [kg] 53000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 460.5
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
