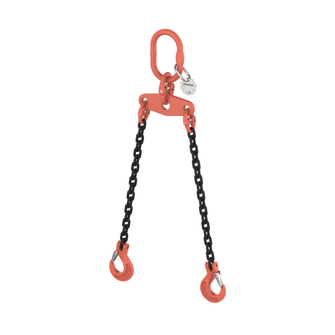

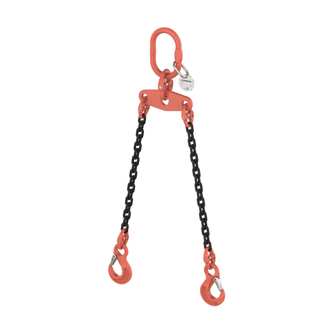

HIT PRO 1-Chain Balancing Hanger GK10, 2-Strand Seesaw

HIT PRO 1-Chain Balancing Hanger GK10, 2-Strand Seesaw
HIT PRO chain balancing suspension gear, quality grade 12 with rocker – 2-leg For individual use the working load limit of the individual 2-leg suspension gears. The balancing rocker compensates for the admissible length tolerances of chain legs in 4-leg assemblies, achieving working load limits with 4 load-bearing legs and symmetrical loading. Cathodic EPD provides extreme corrosion-protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 2 x 2-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]

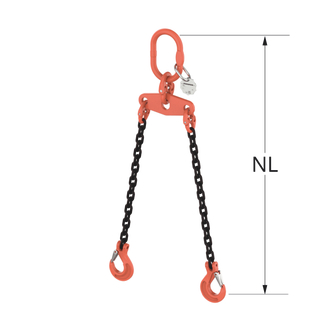

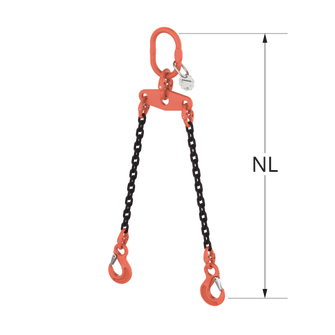

Effective length WLL [m]
Reference no.
Details
  • 2000
    1400
    6
    1
    711184
    G12 P1B-6-2T-RA-HK-1M W
    Reference no. 711184
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 3.4
  • 2000
    1400
    6
    1.5
    711185
    G12 P1B-6-2T-RA-HK-1.5M W
    Reference no. 711185
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 4.4
  • 2000
    1400
    6
    2
    711186
    G12 P1B-6-2T-RA-HK-2M W
    Reference no. 711186
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.4
  • 2000
    1400
    6
    2.5
    711187
    G12 P1B-6-2T-RA-HK-2.5M W
    Reference no. 711187
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 6.4
  • 2000
    1400
    6
    3
    711188
    G12 P1B-6-2T-RA-HK-3M W
    Reference no. 711188
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 7.2
  • 2000
    1400
    6
    4
    711189
    G12 P1B-6-2T-RA-HK-4M W
    Reference no. 711189
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 9.2
  • 2000
    1400
    6
    5
    711190
    G12 P1B-6-2T-RA-HK-5M W
    Reference no. 711190
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 11.1
  • 2000
    1400
    6
    6
    711191
    G12 P1B-6-2T-RA-HK-6M W
    Reference no. 711191
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13.1
  • 3550
    2500
    8
    1
    711192
    G12 P1B-8-3.55T-RA-HK-1M W
    Reference no. 711192
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 6.5
  • 3550
    2500
    8
    1.5
    711193
    G12 P1B-8-3.55T-RA-HK-1.5M W
    Reference no. 711193
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 8.2
  • 3550
    2500
    8
    2
    711194
    G12 P1B-8-3.55T-RA-HK-2M W
    Reference no. 711194
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 9.7
  • 3550
    2500
    8
    2.5
    711195
    G12 P1B-8-3.55T-RA-HK-2.5M W
    Reference no. 711195
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 11.2
  • 3550
    2500
    8
    3
    711196
    G12 P1B-8-3.55T-RA-HK-3M W
    Reference no. 711196
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 12.8
  • 3550
    2500
    8
    4
    711197
    G12 P1B-8-3.55T-RA-HK-4M W
    Reference no. 711197
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 16
  • 3550
    2500
    8
    5
    711198
    G12 P1B-8-3.55T-RA-HK-5M W
    Reference no. 711198
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 19.2
  • 3550
    2500
    8
    6
    711199
    G12 P1B-8-3.55T-RA-HK-6M W
    Reference no. 711199
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 22.2
  • 5600
    4000
    10
    1
    711200
    G12 P1B-10-5.6T-RA-HK-1M W
    Reference no. 711200
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 9.9
  • 5600
    4000
    10
    1.5
    711201
    G12 P1B-10-5.6T-RA-HK-1.5M W
    Reference no. 711201
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 12.3
  • 5600
    4000
    10
    2
    711202
    G12 P1B-10-5.6T-RA-HK-2M W
    Reference no. 711202
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 15
  • 5600
    4000
    10
    2.5
    711203
    G12 P1B-10-5.6T-RA-HK-2.5M W
    Reference no. 711203
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 17.3
  • 5600
    4000
    10
    3
    711204
    G12 P1B-10-5.6T-RA-HK-3M W
    Reference no. 711204
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 19.7
  • 5600
    4000
    10
    4
    711205
    G12 P1B-10-5.6T-RA-HK-4M W
    Reference no. 711205
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 24.7
  • 5600
    4000
    10
    5
    711206
    G12 P1B-10-5.6T-RA-HK-5M W
    Reference no. 711206
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 29.7
  • 5600
    4000
    10
    6
    711207
    G12 P1B-10-5.6T-RA-HK-6M W
    Reference no. 711207
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 34.4
  • 9500
    6700
    13
    1
    711208
    G12 P1B-13-9.5T-RA-HK-1M W
    Reference no. 711208
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 16.5
  • 9500
    6700
    13
    1.5
    711209
    G12 P1B-13-9.5T-RA-HK-1.5M W
    Reference no. 711209
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 20.5
  • 9500
    6700
    13
    2
    711210
    G12 P1B-13-9.5T-RA-HK-2M W
    Reference no. 711210
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 25
  • 9500
    6700
    13
    2.5
    711211
    G12 P1B-13-9.5T-RA-HK-2.5M W
    Reference no. 711211
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 28.9
  • 9500
    6700
    13
    3
    711212
    G12 P1B-13-9.5T-RA-HK-3M W
    Reference no. 711212
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 33.5
  • 9500
    6700
    13
    4
    711213
    G12 P1B-13-9.5T-RA-HK-4M W
    Reference no. 711213
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 41.3
  • 9500
    6700
    13
    5
    711214
    G12 P1B-13-9.5T-RA-HK-5M W
    Reference no. 711214
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 49.8
  • 9500
    6700
    13
    6
    711215
    G12 P1B-13-9.5T-RA-HK-6M W
    Reference no. 711215
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 58.3
  • 14000
    10000
    16
    1
    711216
    C12 P1B-16-14T-RA-HK-1M W
    Reference no. 711216
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 26.5
  • 14000
    10000
    16
    1.5
    711217
    C12 P1B-16-14T-RA-HK-1.5M W
    Reference no. 711217
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 32.5
  • 14000
    10000
    16
    2
    711218
    C12 P1B-16-14T-RA-HK-2M W
    Reference no. 711218
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 38.6
  • 14000
    10000
    16
    2.5
    711219
    C12 P1B-16-14T-RA-HK-2.5M W
    Reference no. 711219
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 45.8
  • 14000
    10000
    16
    3
    711220
    C12 P1B-16-14T-RA-HK-3M W
    Reference no. 711220
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 51.8
  • 14000
    10000
    16
    4
    711221
    C12 P1B-16-14T-RA-HK-4M W
    Reference no. 711221
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 63.9
  • 14000
    10000
    16
    5
    711222
    C12 P1B-16-14T-RA-HK-5M W
    Reference no. 711222
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 77.2
  • 14000
    10000
    16
    6
    711223
    C12 P1B-16-14T-RA-HK-6M W
    Reference no. 711223
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 89.2
  • 20000
    14000
    20
    2
    711224
    C12 P1B-20-20T-RA-HK-2M W
    Reference no. 711224
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 72.3
  • 20000
    14000
    20
    2.5
    711225
    C12 P1B-20-20T-RA-HK-2.5M W
    Reference no. 711225
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 80.5
  • 20000
    14000
    20
    3
    711226
    C12 P1B-20-20T-RA-HK-3M W
    Reference no. 711226
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 90.6
  • 20000
    14000
    20
    4
    711227
    C12 P1B-20-20T-RA-HK-4M W
    Reference no. 711227
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 106.9
  • 20000
    14000
    20
    5
    711228
    C12 P1B-20-20T-RA-HK-5M W
    Reference no. 711228
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 125.2
  • 20000
    14000
    20
    6
    711229
    C12 P1B-20-20T-RA-HK-6M W
    Reference no. 711229
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 143.5
  • 26500
    19000
    22
    3
    711230
    C12 P1B-22-26.5T-RA-HK-3M W
    Reference no. 711230
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 118.9
  • 26500
    19000
    22
    4
    711231
    C12 P1B-22-26.5T-RA-HK-4M W
    Reference no. 711231
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 144
  • 26500
    19000
    22
    6
    711232
    C12 P1B-22-26.5T-RA-HK-6M W
    Reference no. 711232
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 191.1
  • 37500
    26500
    26
    3
    711234
    C12 P1B-26-37.5T-RA-H-3M W
    Reference no. 711234
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 172.1
  • 37500
    26500
    26
    4
    711235
    C12 P1B-26-37.5T-RA-H-4M W
    Reference no. 711235
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 202.4
  • 37500
    26500
    26
    6
    711236
    C12 P1B-26-37.5T-RA-H-6M W
    Reference no. 711236
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 268
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 711184
  • Details
    G12 P1B-6-2T-RA-HK-1M W
    Reference no. 711184
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 3.4
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 711185
  • Details
    G12 P1B-6-2T-RA-HK-1.5M W
    Reference no. 711185
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 4.4
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 711186
  • Details
    G12 P1B-6-2T-RA-HK-2M W
    Reference no. 711186
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.4
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 711187
  • Details
    G12 P1B-6-2T-RA-HK-2.5M W
    Reference no. 711187
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 6.4
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 711188
  • Details
    G12 P1B-6-2T-RA-HK-3M W
    Reference no. 711188
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 7.2
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 711189
  • Details
    G12 P1B-6-2T-RA-HK-4M W
    Reference no. 711189
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 9.2
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 711190
  • Details
    G12 P1B-6-2T-RA-HK-5M W
    Reference no. 711190
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 11.1
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 711191
  • Details
    G12 P1B-6-2T-RA-HK-6M W
    Reference no. 711191
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13.1
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 711192
  • Details
    G12 P1B-8-3.55T-RA-HK-1M W
    Reference no. 711192
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 6.5
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 711193
  • Details
    G12 P1B-8-3.55T-RA-HK-1.5M W
    Reference no. 711193
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 8.2
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 711194
  • Details
    G12 P1B-8-3.55T-RA-HK-2M W
    Reference no. 711194
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 9.7
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 711195
  • Details
    G12 P1B-8-3.55T-RA-HK-2.5M W
    Reference no. 711195
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 11.2
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 711196
  • Details
    G12 P1B-8-3.55T-RA-HK-3M W
    Reference no. 711196
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 12.8
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 711197
  • Details
    G12 P1B-8-3.55T-RA-HK-4M W
    Reference no. 711197
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 16
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 711198
  • Details
    G12 P1B-8-3.55T-RA-HK-5M W
    Reference no. 711198
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 19.2
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 711199
  • Details
    G12 P1B-8-3.55T-RA-HK-6M W
    Reference no. 711199
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 22.2
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 711200
  • Details
    G12 P1B-10-5.6T-RA-HK-1M W
    Reference no. 711200
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 9.9
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 711201
  • Details
    G12 P1B-10-5.6T-RA-HK-1.5M W
    Reference no. 711201
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 12.3
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 711202
  • Details
    G12 P1B-10-5.6T-RA-HK-2M W
    Reference no. 711202
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 15
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 711203
  • Details
    G12 P1B-10-5.6T-RA-HK-2.5M W
    Reference no. 711203
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 17.3
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 711204
  • Details
    G12 P1B-10-5.6T-RA-HK-3M W
    Reference no. 711204
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 19.7
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 711205
  • Details
    G12 P1B-10-5.6T-RA-HK-4M W
    Reference no. 711205
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 24.7
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 711206
  • Details
    G12 P1B-10-5.6T-RA-HK-5M W
    Reference no. 711206
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 29.7
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 711207
  • Details
    G12 P1B-10-5.6T-RA-HK-6M W
    Reference no. 711207
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 34.4
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 711208
  • Details
    G12 P1B-13-9.5T-RA-HK-1M W
    Reference no. 711208
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 16.5
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 711209
  • Details
    G12 P1B-13-9.5T-RA-HK-1.5M W
    Reference no. 711209
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 20.5
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 711210
  • Details
    G12 P1B-13-9.5T-RA-HK-2M W
    Reference no. 711210
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 25
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 711211
  • Details
    G12 P1B-13-9.5T-RA-HK-2.5M W
    Reference no. 711211
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 28.9
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 711212
  • Details
    G12 P1B-13-9.5T-RA-HK-3M W
    Reference no. 711212
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 33.5
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 711213
  • Details
    G12 P1B-13-9.5T-RA-HK-4M W
    Reference no. 711213
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 41.3
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 711214
  • Details
    G12 P1B-13-9.5T-RA-HK-5M W
    Reference no. 711214
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 49.8
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 711215
  • Details
    G12 P1B-13-9.5T-RA-HK-6M W
    Reference no. 711215
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 58.3
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 711216
  • Details
    C12 P1B-16-14T-RA-HK-1M W
    Reference no. 711216
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 26.5
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 711217
  • Details
    C12 P1B-16-14T-RA-HK-1.5M W
    Reference no. 711217
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 32.5
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 711218
  • Details
    C12 P1B-16-14T-RA-HK-2M W
    Reference no. 711218
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 38.6
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 711219
  • Details
    C12 P1B-16-14T-RA-HK-2.5M W
    Reference no. 711219
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 45.8
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 711220
  • Details
    C12 P1B-16-14T-RA-HK-3M W
    Reference no. 711220
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 51.8
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 711221
  • Details
    C12 P1B-16-14T-RA-HK-4M W
    Reference no. 711221
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 63.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 711222
  • Details
    C12 P1B-16-14T-RA-HK-5M W
    Reference no. 711222
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 77.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 711223
  • Details
    C12 P1B-16-14T-RA-HK-6M W
    Reference no. 711223
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 89.2
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 711224
  • Details
    C12 P1B-20-20T-RA-HK-2M W
    Reference no. 711224
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 72.3
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 2.5
Reference no. 711225
  • Details
    C12 P1B-20-20T-RA-HK-2.5M W
    Reference no. 711225
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 80.5
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 711226
  • Details
    C12 P1B-20-20T-RA-HK-3M W
    Reference no. 711226
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 90.6
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 711227
  • Details
    C12 P1B-20-20T-RA-HK-4M W
    Reference no. 711227
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 106.9
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 711228
  • Details
    C12 P1B-20-20T-RA-HK-5M W
    Reference no. 711228
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 125.2
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711229
  • Details
    C12 P1B-20-20T-RA-HK-6M W
    Reference no. 711229
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 143.5
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711230
  • Details
    C12 P1B-22-26.5T-RA-HK-3M W
    Reference no. 711230
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 118.9
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711231
  • Details
    C12 P1B-22-26.5T-RA-HK-4M W
    Reference no. 711231
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 144
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711232
  • Details
    C12 P1B-22-26.5T-RA-HK-6M W
    Reference no. 711232
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 191.1
Working load limit 0–45° [kg] 37500
Working load limit 45−60° [kg] 26500
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 711234
  • Details
    C12 P1B-26-37.5T-RA-H-3M W
    Reference no. 711234
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 172.1
Working load limit 0–45° [kg] 37500
Working load limit 45−60° [kg] 26500
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 711235
  • Details
    C12 P1B-26-37.5T-RA-H-4M W
    Reference no. 711235
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 202.4
Working load limit 0–45° [kg] 37500
Working load limit 45−60° [kg] 26500
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 711236
  • Details
    C12 P1B-26-37.5T-RA-H-6M W
    Reference no. 711236
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 268
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
