HIT PRO 1 chain balancing suspension gear with rocker

HIT PRO 1 chain balancing suspension gear with rocker

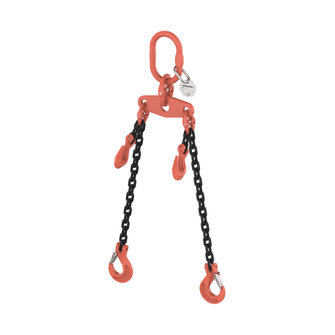

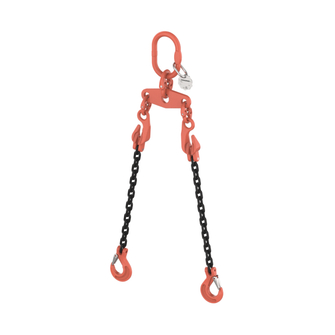

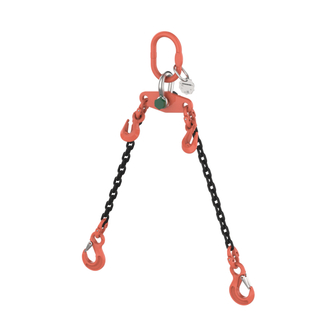

Chain balancing suspension gear consisting of a 2-leg chain sling and a 2-leg chain sling with rocker. HIT PRO chain balancing suspension gear in quality grade 10, 2-leg, can be shortened, The balancing rocker compensates for the admissible length tolerances of chain legs in 4-leg assemblies, achieving working load limits with 4 load-bearing legs and symmetrical loading. The shortener enables horizontal alignment of the load in multi-leg attachment even with difficult transport procedures as well as suitable adjustment of the load for assemblies. Cathodic EPD provides extreme corrosion-protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 2 x 2-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • can be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]

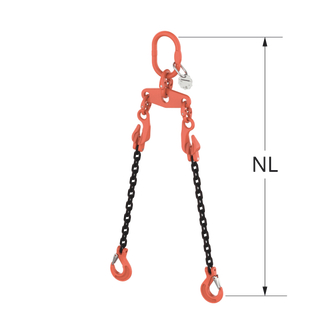

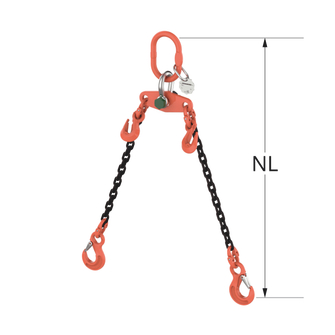

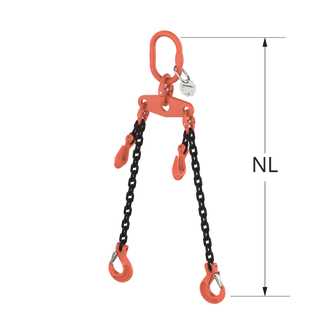

Effective length WLL [m]
Reference no.
Details
  • 2000
    1400
    6
    2
    711237
    G12 P1B-6-2T-RA-XKI-HK-2M W
    Reference no. 711237
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.8
  • 2000
    1400
    6
    3
    711238
    G12 P1B-6-2T-RA-XKI-HK-3M W
    Reference no. 711238
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 7.7
  • 2000
    1400
    6
    4
    711239
    G12 P1B-6-2T-RA-XKI-HK-4M W
    Reference no. 711239
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 9.6
  • 2000
    1400
    6
    5
    711240
    G12 P1B-6-2T-RA-XKI-HK-5M W
    Reference no. 711240
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 11.5
  • 2000
    1400
    6
    6
    711241
    G12 P1B-6-2T-RA-XKI-HK-6M W
    Reference no. 711241
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13.5
  • 3550
    2500
    8
    2
    711242
    G12 P1B-8-3.55T-RA-XKI-HK-2M W
    Reference no. 711242
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 10.6
  • 3550
    2500
    8
    3
    711243
    G12 P1B-8-3.55T-RA-XKI-HK-3M W
    Reference no. 711243
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 13.8
  • 3550
    2500
    8
    4
    711244
    G12 P1B-8-3.55T-RA-XKI-HK-4M W
    Reference no. 711244
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 17
  • 3550
    2500
    8
    5
    711245
    G12 P1B-8-3.55T-RA-XKI-HK-5M W
    Reference no. 711245
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 20.1
  • 3550
    2500
    8
    6
    711246
    G12 P1B-8-3.55T-RA-XKI-HK-6M W
    Reference no. 711246
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 23.1
  • 5600
    4000
    10
    2
    711247
    G12 P1B-10-5.6T-RA-XKI-HK-2M W
    Reference no. 711247
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 16.8
  • 5600
    4000
    10
    3
    711248
    G12 P1B-10-5.6T-RA-XKI-HK-3M W
    Reference no. 711248
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 21.5
  • 5600
    4000
    10
    4
    711249
    G12 P1B-10-5.6T-RA-XKI-HK-4M W
    Reference no. 711249
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 26.6
  • 5600
    4000
    10
    5
    711250
    G12 P1B-10-5.6T-RA-XKI-HK-5M W
    Reference no. 711250
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 31.6
  • 5600
    4000
    10
    6
    711251
    G12 P1B-10-5.6T-RA-XKI-HK-6M W
    Reference no. 711251
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 36.3
  • 9500
    6700
    13
    2
    711252
    G12 P1B-13-9.5T-RA-XKI-HK-2M W
    Reference no. 711252
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 29.4
  • 9500
    6700
    13
    3
    711253
    G12 P1B-13-9.5T-RA-XKI-HK-3M W
    Reference no. 711253
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 37.2
  • 9500
    6700
    13
    4
    711254
    G12 P1B-13-9.5T-RA-XKI-HK-4M W
    Reference no. 711254
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 45.7
  • 9500
    6700
    13
    5
    711255
    G12 P1B-13-9.5T-RA-XKI-HK-5M W
    Reference no. 711255
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 54.2
  • 9500
    6700
    13
    6
    711256
    G12 P1B-13-9.5T-RA-XKI-HK-6M W
    Reference no. 711256
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 62.6
  • 14000
    10000
    16
    2
    711257
    C12 P1B-16-14T-RA-XKI-HK-2M W
    Reference no. 711257
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 47.2
  • 14000
    10000
    16
    3
    711258
    C12 P1B-16-14T-RA-XKI-HK-3M W
    Reference no. 711258
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 59.2
  • 14000
    10000
    16
    4
    711259
    C12 P1B-16-14T-RA-XKI-HK-4M W
    Reference no. 711259
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 71.3
  • 14000
    10000
    16
    5
    711260
    C12 P1B-16-14T-RA-XKI-HK-5M W
    Reference no. 711260
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 84.5
  • 14000
    10000
    16
    6
    711261
    C12 P1B-16-14T-RA-XKI-HK-6M W
    Reference no. 711261
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 96.6
  • 20000
    14000
    20
    2
    711262
    C12 P1B-20-20T-RA-PKU-HK-2M W
    Reference no. 711262
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 82.7
  • 20000
    14000
    20
    3
    711263
    C12 P1B-20-20T-RA-PKU-HK-3M W
    Reference no. 711263
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 101
  • 20000
    14000
    20
    4
    711264
    C12 P1B-20-20T-RA-PKU-HK-4M W
    Reference no. 711264
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 117.3
  • 20000
    14000
    20
    5
    711265
    C12 P1B-20-20T-RA-PKU-HK-5M W
    Reference no. 711265
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 135.6
  • 20000
    14000
    20
    6
    711266
    C12 P1B-20-20T-RA-PKU-HK-6M W
    Reference no. 711266
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 153.9
  • 26500
    19000
    22
    3
    711267
    C12 P1B-22-26.5T-RA-PH-HK-3M W
    Reference no. 711267
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 133.9
  • 26500
    19000
    22
    4
    711268
    C12 P1B-22-26.5T-RA-PH-HK-4M W
    Reference no. 711268
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 159
  • 26500
    19000
    22
    6
    711269
    C12 P1B-22-26.5T-RA-PH-HK-6M W
    Reference no. 711269
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 206.1
  • 37500
    26500
    26
    3
    711270
    C12 P1B-26-37.5T-RA-PH-H-3M W
    Reference no. 711270
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 198.1
  • 37500
    26500
    26
    4
    711271
    C12 P1B-26-37.5T-RA-PH-H-4M W
    Reference no. 711271
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 228.4
  • 37500
    26500
    26
    6
    711272
    C12 P1B-26-37.5T-RA-PH-H-6M W
    Reference no. 711272
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 294
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 711237
  • Details
    G12 P1B-6-2T-RA-XKI-HK-2M W
    Reference no. 711237
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.8
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 711238
  • Details
    G12 P1B-6-2T-RA-XKI-HK-3M W
    Reference no. 711238
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 7.7
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 711239
  • Details
    G12 P1B-6-2T-RA-XKI-HK-4M W
    Reference no. 711239
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 9.6
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 711240
  • Details
    G12 P1B-6-2T-RA-XKI-HK-5M W
    Reference no. 711240
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 11.5
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 711241
  • Details
    G12 P1B-6-2T-RA-XKI-HK-6M W
    Reference no. 711241
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13.5
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 711242
  • Details
    G12 P1B-8-3.55T-RA-XKI-HK-2M W
    Reference no. 711242
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 10.6
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 711243
  • Details
    G12 P1B-8-3.55T-RA-XKI-HK-3M W
    Reference no. 711243
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 13.8
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 711244
  • Details
    G12 P1B-8-3.55T-RA-XKI-HK-4M W
    Reference no. 711244
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 17
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 711245
  • Details
    G12 P1B-8-3.55T-RA-XKI-HK-5M W
    Reference no. 711245
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 20.1
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 711246
  • Details
    G12 P1B-8-3.55T-RA-XKI-HK-6M W
    Reference no. 711246
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 23.1
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 711247
  • Details
    G12 P1B-10-5.6T-RA-XKI-HK-2M W
    Reference no. 711247
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 16.8
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 711248
  • Details
    G12 P1B-10-5.6T-RA-XKI-HK-3M W
    Reference no. 711248
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 21.5
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 711249
  • Details
    G12 P1B-10-5.6T-RA-XKI-HK-4M W
    Reference no. 711249
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 26.6
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 711250
  • Details
    G12 P1B-10-5.6T-RA-XKI-HK-5M W
    Reference no. 711250
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 31.6
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 711251
  • Details
    G12 P1B-10-5.6T-RA-XKI-HK-6M W
    Reference no. 711251
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 36.3
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 711252
  • Details
    G12 P1B-13-9.5T-RA-XKI-HK-2M W
    Reference no. 711252
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 29.4
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 711253
  • Details
    G12 P1B-13-9.5T-RA-XKI-HK-3M W
    Reference no. 711253
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 37.2
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 711254
  • Details
    G12 P1B-13-9.5T-RA-XKI-HK-4M W
    Reference no. 711254
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 45.7
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 711255
  • Details
    G12 P1B-13-9.5T-RA-XKI-HK-5M W
    Reference no. 711255
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 54.2
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 711256
  • Details
    G12 P1B-13-9.5T-RA-XKI-HK-6M W
    Reference no. 711256
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 62.6
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 711257
  • Details
    C12 P1B-16-14T-RA-XKI-HK-2M W
    Reference no. 711257
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 47.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 711258
  • Details
    C12 P1B-16-14T-RA-XKI-HK-3M W
    Reference no. 711258
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 59.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 711259
  • Details
    C12 P1B-16-14T-RA-XKI-HK-4M W
    Reference no. 711259
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 71.3
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 711260
  • Details
    C12 P1B-16-14T-RA-XKI-HK-5M W
    Reference no. 711260
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 84.5
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 711261
  • Details
    C12 P1B-16-14T-RA-XKI-HK-6M W
    Reference no. 711261
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 96.6
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 711262
  • Details
    C12 P1B-20-20T-RA-PKU-HK-2M W
    Reference no. 711262
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 82.7
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 711263
  • Details
    C12 P1B-20-20T-RA-PKU-HK-3M W
    Reference no. 711263
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 101
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 711264
  • Details
    C12 P1B-20-20T-RA-PKU-HK-4M W
    Reference no. 711264
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 117.3
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 711265
  • Details
    C12 P1B-20-20T-RA-PKU-HK-5M W
    Reference no. 711265
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 135.6
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711266
  • Details
    C12 P1B-20-20T-RA-PKU-HK-6M W
    Reference no. 711266
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 153.9
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711267
  • Details
    C12 P1B-22-26.5T-RA-PH-HK-3M W
    Reference no. 711267
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 133.9
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711268
  • Details
    C12 P1B-22-26.5T-RA-PH-HK-4M W
    Reference no. 711268
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 159
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711269
  • Details
    C12 P1B-22-26.5T-RA-PH-HK-6M W
    Reference no. 711269
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 206.1
Working load limit 0–45° [kg] 37500
Working load limit 45−60° [kg] 26500
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 711270
  • Details
    C12 P1B-26-37.5T-RA-PH-H-3M W
    Reference no. 711270
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 198.1
Working load limit 0–45° [kg] 37500
Working load limit 45−60° [kg] 26500
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 711271
  • Details
    C12 P1B-26-37.5T-RA-PH-H-4M W
    Reference no. 711271
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 228.4
Working load limit 0–45° [kg] 37500
Working load limit 45−60° [kg] 26500
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 711272
  • Details
    C12 P1B-26-37.5T-RA-PH-H-6M W
    Reference no. 711272
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 294
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
