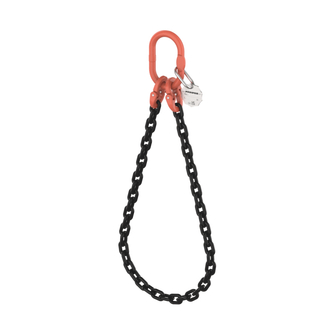

HIT PRO 1 basket chain, quality grade 10

HIT PRO 1 basket chain, quality grade 10
Chain sling with KMGW/AW standard suspension link with coupling connection in simple endless design for choker hitch. Cathodic EPD provides extreme corrosion-protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • endless

Operating temperature

  • reduced carrying capacities outside this range

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Nominal size of chain [mm]

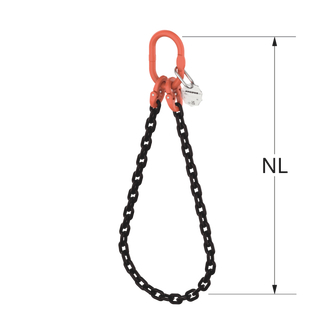

Effective length WLL [m]
Reference no.
Details
  • 2000
    6
    1
    711418
    G1K P1B-6-2T-RA-1M
    Reference no. 711418
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.9
  • 2000
    6
    1.5
    711419
    G1K P1B-6-2T-RA-1.5M
    Reference no. 711419
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.9
  • 2000
    6
    2
    711420
    G1K P1B-6-2T-RA-2M
    Reference no. 711420
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 3.9
  • 2000
    6
    2.5
    711421
    G1K P1B-6-2T-RA-2.5M
    Reference no. 711421
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 4.8
  • 2000
    6
    3
    711422
    G1K P1B-6-2T-RA-3M
    Reference no. 711422
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.8
  • 2000
    6
    4
    711423
    G1K P1B-6-2T-RA-4M
    Reference no. 711423
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 7.7
  • 2000
    6
    5
    711424
    G1K P1B-6-2T-RA-5M
    Reference no. 711424
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 9.6
  • 2000
    6
    6
    711425
    G1K P1B-6-2T-RA-6M
    Reference no. 711425
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 11.5
  • 3550
    8
    1
    711426
    G1K P1B-8-3.55T-RA-1M
    Reference no. 711426
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 3
  • 3550
    8
    1.5
    711427
    G1K P1B-8-3.55T-RA-1.5M
    Reference no. 711427
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 4.6
  • 3550
    8
    2
    711428
    G1K P1B-8-3.55T-RA-2M
    Reference no. 711428
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.2
  • 3550
    8
    2.5
    711429
    G1K P1B-8-3.55T-RA-2.5M
    Reference no. 711429
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 7.7
  • 3550
    8
    3
    711430
    G1K P1B-8-3.55T-RA-3M
    Reference no. 711430
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 9.3
  • 3550
    8
    4
    711431
    G1K P1B-8-3.55T-RA-4M
    Reference no. 711431
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 12.4
  • 3550
    8
    5
    711432
    G1K P1B-8-3.55T-RA-5M
    Reference no. 711432
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 15.6
  • 3550
    8
    6
    711433
    G1K P1B-8-3.55T-RA-6M
    Reference no. 711433
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 18.7
  • 5600
    10
    1
    711434
    G1K P1B-10-5.6T-RA-1M
    Reference no. 711434
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.6
  • 5600
    10
    1.5
    711435
    G1K P1B-10-5.6T-RA-1.5M
    Reference no. 711435
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 7
  • 5600
    10
    2
    711436
    G1K P1B-10-5.6T-RA-2M
    Reference no. 711436
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 9.5
  • 5600
    10
    2.5
    711437
    G1K P1B-10-5.6T-RA-2.5M
    Reference no. 711437
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 12
  • 5600
    10
    3
    711438
    G1K P1B-10-5.6T-RA-3M
    Reference no. 711438
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 14.4
  • 5600
    10
    4
    711439
    G1K P1B-10-5.6T-RA-4M
    Reference no. 711439
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 19.4
  • 5600
    10
    5
    711440
    G1K P1B-10-5.6T-RA-5M
    Reference no. 711440
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 24.2
  • 5600
    10
    6
    711441
    G1K P1B-10-5.6T-RA-6M
    Reference no. 711441
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 29.2
  • 9500
    13
    1
    711442
    G1K P1B-13-9.5T-RA-1M
    Reference no. 711442
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 7.6
  • 9500
    13
    2
    711444
    G1K P1B-13-9.5T-RA-2M
    Reference no. 711444
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 15.9
  • 9500
    13
    2.5
    711445
    G1K P1B-13-9.5T-RA-2.5M
    Reference no. 711445
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 20.2
  • 9500
    13
    3
    711446
    G1K P1B-13-9.5T-RA-3M
    Reference no. 711446
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 24.4
  • 9500
    13
    4
    711447
    G1K P1B-13-9.5T-RA-4M
    Reference no. 711447
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 32.7
  • 9500
    13
    5
    711448
    G1K P1B-13-9.5T-RA-5M
    Reference no. 711448
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 41
  • 9500
    13
    6
    711449
    G1K P1B-13-9.5T-RA-6M
    Reference no. 711449
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 49.3
  • 14000
    16
    1
    711450
    C1K P1B-16-14T-RA-1M
    Reference no. 711450
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 11
  • 14000
    16
    1.5
    711451
    C1K P1B-16-14T-RA-1.5M
    Reference no. 711451
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 17.3
  • 14000
    16
    2
    711452
    C1K P1B-16-14T-RA-2M
    Reference no. 711452
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 23.7
  • 14000
    16
    2.5
    711453
    C1K P1B-16-14T-RA-2.5M
    Reference no. 711453
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 30
  • 14000
    16
    3
    711454
    C1K P1B-16-14T-RA-3M
    Reference no. 711454
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 36.3
  • 14000
    16
    4
    711455
    C1K P1B-16-14T-RA-4M
    Reference no. 711455
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 48.7
  • 14000
    16
    5
    711456
    C1K P1B-16-14T-RA-5M
    Reference no. 711456
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 61.3
  • 14000
    16
    6
    711457
    C1K P1B-16-14T-RA-6M
    Reference no. 711457
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 74
  • 20000
    20
    1
    711458
    C1K P1B-20-20T-RA-1M
    Reference no. 711458
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 14.5
  • 20000
    20
    1.5
    711459
    C1K P1B-20-20T-RA-1.5M
    Reference no. 711459
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 23.6
  • 20000
    20
    2
    711460
    C1K P1B-20-20T-RA-2M
    Reference no. 711460
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 32.3
  • 20000
    20
    2.5
    711461
    C1K P1B-20-20T-RA-2.5M
    Reference no. 711461
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 41.4
  • 20000
    20
    3
    711462
    C1K P1B-20-20T-RA-3M
    Reference no. 711462
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 50.1
  • 20000
    20
    4
    711463
    C1K P1B-20-20T-RA-4M
    Reference no. 711463
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 67.8
  • 20000
    20
    5
    711464
    C1K P1B-20-20T-RA-5M
    Reference no. 711464
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 85.6
  • 20000
    20
    6
    711465
    C1K P1B-20-20T-RA-6M
    Reference no. 711465
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 103.9
  • 26500
    22
    3
    711466
    C1K P1B-22-26.5T-RA-3M
    Reference no. 711466
    Working load limit 0° [kg] 26500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 66
  • 26500
    22
    4
    711467
    C1K P1B-22-26.5T-RA-4M
    Reference no. 711467
    Working load limit 0° [kg] 26500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 89.5
  • 26500
    22
    6
    711468
    C1K P1B-22-26.5T-RA-6M
    Reference no. 711468
    Working load limit 0° [kg] 26500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 137.3
  • 40000
    26
    3
    711469
    C1K P1B-26-40T-RA-3M
    Reference no. 711469
    Working load limit 0° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 92
  • 40000
    26
    4
    711470
    C1K P1B-26-40T-RA-4M
    Reference no. 711470
    Working load limit 0° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 123.6
  • 40000
    26
    6
    711471
    C1K P1B-26-40T-RA-6M
    Reference no. 711471
    Working load limit 0° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 189.2
  • 63000
    32
    3
    711472
    C1K P1B-32-63T-RA-3M
    Reference no. 711472
    Working load limit 0° [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 153.1
  • 63000
    32
    4
    711473
    C1K P1B-32-63T-RA-4M
    Reference no. 711473
    Working load limit 0° [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 201.7
  • 63000
    32
    6
    711474
    C1K P1B-32-63T-RA-6M
    Reference no. 711474
    Working load limit 0° [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 298.9
Working load limit 0° [kg] 2000
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 711418
  • Details
    G1K P1B-6-2T-RA-1M
    Reference no. 711418
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.9
Working load limit 0° [kg] 2000
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 711419
  • Details
    G1K P1B-6-2T-RA-1.5M
    Reference no. 711419
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.9
Working load limit 0° [kg] 2000
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 711420
  • Details
    G1K P1B-6-2T-RA-2M
    Reference no. 711420
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 3.9
Working load limit 0° [kg] 2000
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 711421
  • Details
    G1K P1B-6-2T-RA-2.5M
    Reference no. 711421
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 4.8
Working load limit 0° [kg] 2000
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 711422
  • Details
    G1K P1B-6-2T-RA-3M
    Reference no. 711422
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.8
Working load limit 0° [kg] 2000
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 711423
  • Details
    G1K P1B-6-2T-RA-4M
    Reference no. 711423
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 7.7
Working load limit 0° [kg] 2000
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 711424
  • Details
    G1K P1B-6-2T-RA-5M
    Reference no. 711424
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 9.6
Working load limit 0° [kg] 2000
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 711425
  • Details
    G1K P1B-6-2T-RA-6M
    Reference no. 711425
    Working load limit 0° [kg] 2000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 11.5
Working load limit 0° [kg] 3550
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 711426
  • Details
    G1K P1B-8-3.55T-RA-1M
    Reference no. 711426
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 3
Working load limit 0° [kg] 3550
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 711427
  • Details
    G1K P1B-8-3.55T-RA-1.5M
    Reference no. 711427
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 4.6
Working load limit 0° [kg] 3550
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 711428
  • Details
    G1K P1B-8-3.55T-RA-2M
    Reference no. 711428
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.2
Working load limit 0° [kg] 3550
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 711429
  • Details
    G1K P1B-8-3.55T-RA-2.5M
    Reference no. 711429
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 7.7
Working load limit 0° [kg] 3550
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 711430
  • Details
    G1K P1B-8-3.55T-RA-3M
    Reference no. 711430
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 9.3
Working load limit 0° [kg] 3550
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 711431
  • Details
    G1K P1B-8-3.55T-RA-4M
    Reference no. 711431
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 12.4
Working load limit 0° [kg] 3550
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 711432
  • Details
    G1K P1B-8-3.55T-RA-5M
    Reference no. 711432
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 15.6
Working load limit 0° [kg] 3550
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 711433
  • Details
    G1K P1B-8-3.55T-RA-6M
    Reference no. 711433
    Working load limit 0° [kg] 3550
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 18.7
Working load limit 0° [kg] 5600
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 711434
  • Details
    G1K P1B-10-5.6T-RA-1M
    Reference no. 711434
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.6
Working load limit 0° [kg] 5600
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 711435
  • Details
    G1K P1B-10-5.6T-RA-1.5M
    Reference no. 711435
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 7
Working load limit 0° [kg] 5600
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 711436
  • Details
    G1K P1B-10-5.6T-RA-2M
    Reference no. 711436
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 9.5
Working load limit 0° [kg] 5600
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 711437
  • Details
    G1K P1B-10-5.6T-RA-2.5M
    Reference no. 711437
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 12
Working load limit 0° [kg] 5600
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 711438
  • Details
    G1K P1B-10-5.6T-RA-3M
    Reference no. 711438
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 14.4
Working load limit 0° [kg] 5600
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 711439
  • Details
    G1K P1B-10-5.6T-RA-4M
    Reference no. 711439
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 19.4
Working load limit 0° [kg] 5600
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 711440
  • Details
    G1K P1B-10-5.6T-RA-5M
    Reference no. 711440
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 24.2
Working load limit 0° [kg] 5600
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 711441
  • Details
    G1K P1B-10-5.6T-RA-6M
    Reference no. 711441
    Working load limit 0° [kg] 5600
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 29.2
Working load limit 0° [kg] 9500
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 711442
  • Details
    G1K P1B-13-9.5T-RA-1M
    Reference no. 711442
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 7.6
Working load limit 0° [kg] 9500
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 711444
  • Details
    G1K P1B-13-9.5T-RA-2M
    Reference no. 711444
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 15.9
Working load limit 0° [kg] 9500
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 711445
  • Details
    G1K P1B-13-9.5T-RA-2.5M
    Reference no. 711445
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 20.2
Working load limit 0° [kg] 9500
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 711446
  • Details
    G1K P1B-13-9.5T-RA-3M
    Reference no. 711446
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 24.4
Working load limit 0° [kg] 9500
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 711447
  • Details
    G1K P1B-13-9.5T-RA-4M
    Reference no. 711447
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 32.7
Working load limit 0° [kg] 9500
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 711448
  • Details
    G1K P1B-13-9.5T-RA-5M
    Reference no. 711448
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 41
Working load limit 0° [kg] 9500
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 711449
  • Details
    G1K P1B-13-9.5T-RA-6M
    Reference no. 711449
    Working load limit 0° [kg] 9500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 49.3
Working load limit 0° [kg] 14000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 711450
  • Details
    C1K P1B-16-14T-RA-1M
    Reference no. 711450
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 11
Working load limit 0° [kg] 14000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 711451
  • Details
    C1K P1B-16-14T-RA-1.5M
    Reference no. 711451
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 17.3
Working load limit 0° [kg] 14000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 711452
  • Details
    C1K P1B-16-14T-RA-2M
    Reference no. 711452
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 23.7
Working load limit 0° [kg] 14000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 711453
  • Details
    C1K P1B-16-14T-RA-2.5M
    Reference no. 711453
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 30
Working load limit 0° [kg] 14000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 711454
  • Details
    C1K P1B-16-14T-RA-3M
    Reference no. 711454
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 36.3
Working load limit 0° [kg] 14000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 711455
  • Details
    C1K P1B-16-14T-RA-4M
    Reference no. 711455
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 48.7
Working load limit 0° [kg] 14000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 711456
  • Details
    C1K P1B-16-14T-RA-5M
    Reference no. 711456
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 61.3
Working load limit 0° [kg] 14000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 711457
  • Details
    C1K P1B-16-14T-RA-6M
    Reference no. 711457
    Working load limit 0° [kg] 14000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 74
Working load limit 0° [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 1
Reference no. 711458
  • Details
    C1K P1B-20-20T-RA-1M
    Reference no. 711458
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 14.5
Working load limit 0° [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 1.5
Reference no. 711459
  • Details
    C1K P1B-20-20T-RA-1.5M
    Reference no. 711459
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 23.6
Working load limit 0° [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 711460
  • Details
    C1K P1B-20-20T-RA-2M
    Reference no. 711460
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 32.3
Working load limit 0° [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 2.5
Reference no. 711461
  • Details
    C1K P1B-20-20T-RA-2.5M
    Reference no. 711461
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 41.4
Working load limit 0° [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 711462
  • Details
    C1K P1B-20-20T-RA-3M
    Reference no. 711462
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 50.1
Working load limit 0° [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 711463
  • Details
    C1K P1B-20-20T-RA-4M
    Reference no. 711463
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 67.8
Working load limit 0° [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 711464
  • Details
    C1K P1B-20-20T-RA-5M
    Reference no. 711464
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 85.6
Working load limit 0° [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711465
  • Details
    C1K P1B-20-20T-RA-6M
    Reference no. 711465
    Working load limit 0° [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 103.9
Working load limit 0° [kg] 26500
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711466
  • Details
    C1K P1B-22-26.5T-RA-3M
    Reference no. 711466
    Working load limit 0° [kg] 26500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 66
Working load limit 0° [kg] 26500
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711467
  • Details
    C1K P1B-22-26.5T-RA-4M
    Reference no. 711467
    Working load limit 0° [kg] 26500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 89.5
Working load limit 0° [kg] 26500
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711468
  • Details
    C1K P1B-22-26.5T-RA-6M
    Reference no. 711468
    Working load limit 0° [kg] 26500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 137.3
Working load limit 0° [kg] 40000
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 711469
  • Details
    C1K P1B-26-40T-RA-3M
    Reference no. 711469
    Working load limit 0° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 92
Working load limit 0° [kg] 40000
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 711470
  • Details
    C1K P1B-26-40T-RA-4M
    Reference no. 711470
    Working load limit 0° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 123.6
Working load limit 0° [kg] 40000
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 711471
  • Details
    C1K P1B-26-40T-RA-6M
    Reference no. 711471
    Working load limit 0° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 189.2
Working load limit 0° [kg] 63000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 711472
  • Details
    C1K P1B-32-63T-RA-3M
    Reference no. 711472
    Working load limit 0° [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 153.1
Working load limit 0° [kg] 63000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 711473
  • Details
    C1K P1B-32-63T-RA-4M
    Reference no. 711473
    Working load limit 0° [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 201.7
Working load limit 0° [kg] 63000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 711474
  • Details
    C1K P1B-32-63T-RA-6M
    Reference no. 711474
    Working load limit 0° [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 298.9
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
