HIT PRO 1 chain sling, quality grade 10

HIT PRO 1 chain sling, quality grade 10

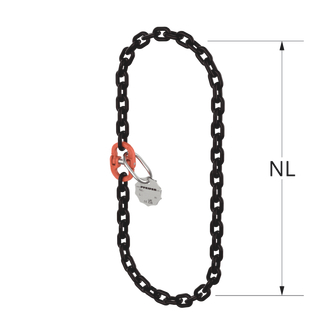

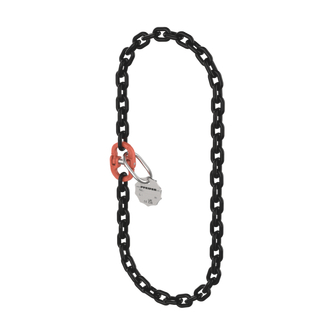

Chain sling with CW universal connecting link in simple endless design for choker hitches. Cathodic EPD provides extreme corrosion-protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • endless

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2800
    2240
    6
    1
    711361
    G1E P1B-6-2.24T-1M
    Reference no. 711361
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 2.2
  • 2800
    2240
    6
    1.5
    711362
    G1E P1B-6-2.24T-1.5M
    Reference no. 711362
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.2
  • 2800
    2240
    6
    2
    711363
    G1E P1B-6-2.24T-2M
    Reference no. 711363
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 4.1
  • 2800
    2240
    6
    2.5
    711364
    G1E P1B-6-2.24T-2.5M
    Reference no. 711364
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5.1
  • 2800
    2240
    6
    3
    711365
    G1E P1B-6-2.24T-3M
    Reference no. 711365
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 6
  • 2800
    2240
    6
    4
    711366
    G1E P1B-6-2.24T-4M
    Reference no. 711366
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 8
  • 2800
    2240
    6
    5
    711367
    G1E P1B-6-2.24T-5M
    Reference no. 711367
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 9.9
  • 2800
    2240
    6
    6
    711368
    G1E P1B-6-2.24T-6M
    Reference no. 711368
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 11.8
  • 5000
    4000
    8
    1
    711369
    G1E P1B-8-4T-1M
    Reference no. 711369
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 3.6
  • 5000
    4000
    8
    1.5
    711370
    G1E P1B-8-4T-1.5M
    Reference no. 711370
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.2
  • 5000
    4000
    8
    2
    711371
    G1E P1B-8-4T-2M
    Reference no. 711371
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.8
  • 5000
    4000
    8
    2.5
    711372
    G1E P1B-8-4T-2.5M
    Reference no. 711372
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 8.3
  • 5000
    4000
    8
    3
    711373
    G1E P1B-8-4T-3M
    Reference no. 711373
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 9.9
  • 5000
    4000
    8
    4
    711374
    G1E P1B-8-4T-4M
    Reference no. 711374
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 13
  • 5000
    4000
    8
    5
    711375
    G1E P1B-8-4T-5M
    Reference no. 711375
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 16.2
  • 5000
    4000
    8
    6
    711376
    G1E P1B-8-4T-6M
    Reference no. 711376
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 19.3
  • 8000
    6300
    10
    1
    711377
    G1E P1B-10-6.3T-1M
    Reference no. 711377
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 5.6
  • 8000
    6300
    10
    1.5
    711378
    G1E P1B-10-6.3T-1.5M
    Reference no. 711378
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 8.1
  • 8000
    6300
    10
    2
    711379
    G1E P1B-10-6.3T-2M
    Reference no. 711379
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 10.5
  • 8000
    6300
    10
    2.5
    711380
    G1E P1B-10-6.3T-2.5M
    Reference no. 711380
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 13
  • 8000
    6300
    10
    3
    711381
    G1E P1B-10-6.3T-3M
    Reference no. 711381
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 15.4
  • 8000
    6300
    10
    4
    711382
    G1E P1B-10-6.3T-4M
    Reference no. 711382
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 20.4
  • 8000
    6300
    10
    5
    711383
    G1E P1B-10-6.3T-5M
    Reference no. 711383
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 25.3
  • 8000
    6300
    10
    6
    711384
    G1E P1B-10-6.3T-6M
    Reference no. 711384
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 30.2
  • 13200
    10600
    13
    1
    711385
    G1E P1B-13-10.6T-1M
    Reference no. 711385
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 9.7
  • 13200
    10600
    13
    1.5
    711386
    G1E P1B-13-10.6T-1.5M
    Reference no. 711386
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 13.8
  • 13200
    10600
    13
    2
    711387
    G1E P1B-13-10.6T-2M
    Reference no. 711387
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 18
  • 13200
    10600
    13
    2.5
    711388
    G1E P1B-13-10.6T-2.5M
    Reference no. 711388
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 22.1
  • 13200
    10600
    13
    3
    711389
    G1E P1B-13-10.6T-3M
    Reference no. 711389
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 26.4
  • 13200
    10600
    13
    4
    711390
    G1E P1B-13-10.6T-4M
    Reference no. 711390
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 34.7
  • 13200
    10600
    13
    5
    711391
    G1E P1B-13-10.6T-5M
    Reference no. 711391
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 43.2
  • 13200
    10600
    13
    6
    711392
    G1E P1B-13-10.6T-6M
    Reference no. 711392
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 51.5
  • 20000
    16000
    16
    1
    711393
    C1E P1B-16-16T-1M
    Reference no. 711393
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 14.6
  • 20000
    16000
    16
    1.5
    711394
    C1E P1B-16-16T-1.5M
    Reference no. 711394
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 20.9
  • 20000
    16000
    16
    2
    711395
    C1E P1B-16-16T-2M
    Reference no. 711395
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 27.3
  • 20000
    16000
    16
    2.5
    711396
    C1E P1B-16-16T-2.5M
    Reference no. 711396
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 33.3
  • 20000
    16000
    16
    3
    711397
    C1E P1B-16-16T-3M
    Reference no. 711397
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 39.6
  • 20000
    16000
    16
    4
    711398
    C1E P1B-16-16T-4M
    Reference no. 711398
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 52.3
  • 20000
    16000
    16
    5
    711399
    C1E P1B-16-16T-5M
    Reference no. 711399
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 65
  • 20000
    16000
    16
    6
    711400
    C1E P1B-16-16T-6M
    Reference no. 711400
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 77.3
  • 28000
    22400
    20
    1
    711401
    C1E P1B-20-22.4T-1M
    Reference no. 711401
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 21.6
  • 28000
    22400
    20
    1.5
    711402
    C1E P1B-20-22.4T-1.5M
    Reference no. 711402
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 30.2
  • 28000
    22400
    20
    2
    711403
    C1E P1B-20-22.4T-2M
    Reference no. 711403
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 39.4
  • 28000
    22400
    20
    2.5
    711404
    C1E P1B-20-22.4T-2.5M
    Reference no. 711404
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 48
  • 28000
    22400
    20
    3
    711405
    C1E P1B-20-22.4T-3M
    Reference no. 711405
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 57.2
  • 28000
    22400
    20
    4
    711406
    C1E P1B-20-22.4T-4M
    Reference no. 711406
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 74.9
  • 28000
    22400
    20
    5
    711407
    C1E P1B-20-22.4T-5M
    Reference no. 711407
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 92.7
  • 28000
    22400
    20
    6
    711408
    C1E P1B-20-22.4T-6M
    Reference no. 711408
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 110.5
  • 37500
    30000
    22
    3
    711409
    C1E P1B-22-30T-3M
    Reference no. 711409
    Working load limit 0° [kg] 37500
    Working load limit [kg] 30000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 76.2
  • 37500
    30000
    22
    4
    711410
    C1E P1B-22-30T-4M
    Reference no. 711410
    Working load limit 0° [kg] 37500
    Working load limit [kg] 30000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 100.5
  • 37500
    30000
    22
    6
    711411
    C1E P1B-22-30T-6M
    Reference no. 711411
    Working load limit 0° [kg] 37500
    Working load limit [kg] 30000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 147.6
  • 53000
    42400
    26
    3
    711412
    C1E P1B-26-42.4T-3M
    Reference no. 711412
    Working load limit 0° [kg] 53000
    Working load limit [kg] 42400
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 106.7
  • 53000
    42400
    26
    4
    711413
    C1E P1B-26-42.4T-4M
    Reference no. 711413
    Working load limit 0° [kg] 53000
    Working load limit [kg] 42400
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 139.5
  • 53000
    42400
    26
    6
    711414
    C1E P1B-26-42.4T-6M
    Reference no. 711414
    Working load limit 0° [kg] 53000
    Working load limit [kg] 42400
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 203.9
  • 80000
    63000
    32
    3
    711415
    C1E P1B-32-63T-3M
    Reference no. 711415
    Working load limit 0° [kg] 80000
    Working load limit [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 162.1
  • 80000
    63000
    32
    4
    711416
    C1E P1B-32-63T-4M
    Reference no. 711416
    Working load limit 0° [kg] 80000
    Working load limit [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 210.7
  • 80000
    63000
    32
    6
    711417
    C1E P1B-32-63T-6M
    Reference no. 711417
    Working load limit 0° [kg] 80000
    Working load limit [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 305.5
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 711361
  • Details
    G1E P1B-6-2.24T-1M
    Reference no. 711361
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 2.2
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 711362
  • Details
    G1E P1B-6-2.24T-1.5M
    Reference no. 711362
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.2
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 711363
  • Details
    G1E P1B-6-2.24T-2M
    Reference no. 711363
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 4.1
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 711364
  • Details
    G1E P1B-6-2.24T-2.5M
    Reference no. 711364
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5.1
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 711365
  • Details
    G1E P1B-6-2.24T-3M
    Reference no. 711365
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 6
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 711366
  • Details
    G1E P1B-6-2.24T-4M
    Reference no. 711366
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 8
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 711367
  • Details
    G1E P1B-6-2.24T-5M
    Reference no. 711367
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 9.9
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 711368
  • Details
    G1E P1B-6-2.24T-6M
    Reference no. 711368
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 11.8
Working load limit 0° [kg] 5000
Working load limit [kg] 4000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 711369
  • Details
    G1E P1B-8-4T-1M
    Reference no. 711369
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 3.6
Working load limit 0° [kg] 5000
Working load limit [kg] 4000
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 711370
  • Details
    G1E P1B-8-4T-1.5M
    Reference no. 711370
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.2
Working load limit 0° [kg] 5000
Working load limit [kg] 4000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 711371
  • Details
    G1E P1B-8-4T-2M
    Reference no. 711371
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.8
Working load limit 0° [kg] 5000
Working load limit [kg] 4000
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 711372
  • Details
    G1E P1B-8-4T-2.5M
    Reference no. 711372
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 8.3
Working load limit 0° [kg] 5000
Working load limit [kg] 4000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 711373
  • Details
    G1E P1B-8-4T-3M
    Reference no. 711373
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 9.9
Working load limit 0° [kg] 5000
Working load limit [kg] 4000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 711374
  • Details
    G1E P1B-8-4T-4M
    Reference no. 711374
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 13
Working load limit 0° [kg] 5000
Working load limit [kg] 4000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 711375
  • Details
    G1E P1B-8-4T-5M
    Reference no. 711375
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 16.2
Working load limit 0° [kg] 5000
Working load limit [kg] 4000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 711376
  • Details
    G1E P1B-8-4T-6M
    Reference no. 711376
    Working load limit 0° [kg] 5000
    Working load limit [kg] 4000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 19.3
Working load limit 0° [kg] 8000
Working load limit [kg] 6300
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 711377
  • Details
    G1E P1B-10-6.3T-1M
    Reference no. 711377
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 5.6
Working load limit 0° [kg] 8000
Working load limit [kg] 6300
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 711378
  • Details
    G1E P1B-10-6.3T-1.5M
    Reference no. 711378
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 8.1
Working load limit 0° [kg] 8000
Working load limit [kg] 6300
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 711379
  • Details
    G1E P1B-10-6.3T-2M
    Reference no. 711379
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 10.5
Working load limit 0° [kg] 8000
Working load limit [kg] 6300
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 711380
  • Details
    G1E P1B-10-6.3T-2.5M
    Reference no. 711380
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 13
Working load limit 0° [kg] 8000
Working load limit [kg] 6300
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 711381
  • Details
    G1E P1B-10-6.3T-3M
    Reference no. 711381
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 15.4
Working load limit 0° [kg] 8000
Working load limit [kg] 6300
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 711382
  • Details
    G1E P1B-10-6.3T-4M
    Reference no. 711382
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 20.4
Working load limit 0° [kg] 8000
Working load limit [kg] 6300
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 711383
  • Details
    G1E P1B-10-6.3T-5M
    Reference no. 711383
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 25.3
Working load limit 0° [kg] 8000
Working load limit [kg] 6300
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 711384
  • Details
    G1E P1B-10-6.3T-6M
    Reference no. 711384
    Working load limit 0° [kg] 8000
    Working load limit [kg] 6300
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 30.2
Working load limit 0° [kg] 13200
Working load limit [kg] 10600
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 711385
  • Details
    G1E P1B-13-10.6T-1M
    Reference no. 711385
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 9.7
Working load limit 0° [kg] 13200
Working load limit [kg] 10600
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 711386
  • Details
    G1E P1B-13-10.6T-1.5M
    Reference no. 711386
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 13.8
Working load limit 0° [kg] 13200
Working load limit [kg] 10600
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 711387
  • Details
    G1E P1B-13-10.6T-2M
    Reference no. 711387
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 18
Working load limit 0° [kg] 13200
Working load limit [kg] 10600
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 711388
  • Details
    G1E P1B-13-10.6T-2.5M
    Reference no. 711388
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 22.1
Working load limit 0° [kg] 13200
Working load limit [kg] 10600
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 711389
  • Details
    G1E P1B-13-10.6T-3M
    Reference no. 711389
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 26.4
Working load limit 0° [kg] 13200
Working load limit [kg] 10600
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 711390
  • Details
    G1E P1B-13-10.6T-4M
    Reference no. 711390
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 34.7
Working load limit 0° [kg] 13200
Working load limit [kg] 10600
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 711391
  • Details
    G1E P1B-13-10.6T-5M
    Reference no. 711391
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 43.2
Working load limit 0° [kg] 13200
Working load limit [kg] 10600
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 711392
  • Details
    G1E P1B-13-10.6T-6M
    Reference no. 711392
    Working load limit 0° [kg] 13200
    Working load limit [kg] 10600
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 51.5
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 711393
  • Details
    C1E P1B-16-16T-1M
    Reference no. 711393
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 14.6
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 711394
  • Details
    C1E P1B-16-16T-1.5M
    Reference no. 711394
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 20.9
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 711395
  • Details
    C1E P1B-16-16T-2M
    Reference no. 711395
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 27.3
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 711396
  • Details
    C1E P1B-16-16T-2.5M
    Reference no. 711396
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 33.3
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 711397
  • Details
    C1E P1B-16-16T-3M
    Reference no. 711397
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 39.6
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 711398
  • Details
    C1E P1B-16-16T-4M
    Reference no. 711398
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 52.3
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 711399
  • Details
    C1E P1B-16-16T-5M
    Reference no. 711399
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 65
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 711400
  • Details
    C1E P1B-16-16T-6M
    Reference no. 711400
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 77.3
Working load limit 0° [kg] 28000
Working load limit [kg] 22400
Nominal size of chain [mm] 20
Effective length WLL [m] 1
Reference no. 711401
  • Details
    C1E P1B-20-22.4T-1M
    Reference no. 711401
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 21.6
Working load limit 0° [kg] 28000
Working load limit [kg] 22400
Nominal size of chain [mm] 20
Effective length WLL [m] 1.5
Reference no. 711402
  • Details
    C1E P1B-20-22.4T-1.5M
    Reference no. 711402
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 30.2
Working load limit 0° [kg] 28000
Working load limit [kg] 22400
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 711403
  • Details
    C1E P1B-20-22.4T-2M
    Reference no. 711403
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 39.4
Working load limit 0° [kg] 28000
Working load limit [kg] 22400
Nominal size of chain [mm] 20
Effective length WLL [m] 2.5
Reference no. 711404
  • Details
    C1E P1B-20-22.4T-2.5M
    Reference no. 711404
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 48
Working load limit 0° [kg] 28000
Working load limit [kg] 22400
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 711405
  • Details
    C1E P1B-20-22.4T-3M
    Reference no. 711405
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 57.2
Working load limit 0° [kg] 28000
Working load limit [kg] 22400
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 711406
  • Details
    C1E P1B-20-22.4T-4M
    Reference no. 711406
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 74.9
Working load limit 0° [kg] 28000
Working load limit [kg] 22400
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 711407
  • Details
    C1E P1B-20-22.4T-5M
    Reference no. 711407
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 92.7
Working load limit 0° [kg] 28000
Working load limit [kg] 22400
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711408
  • Details
    C1E P1B-20-22.4T-6M
    Reference no. 711408
    Working load limit 0° [kg] 28000
    Working load limit [kg] 22400
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 110.5
Working load limit 0° [kg] 37500
Working load limit [kg] 30000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711409
  • Details
    C1E P1B-22-30T-3M
    Reference no. 711409
    Working load limit 0° [kg] 37500
    Working load limit [kg] 30000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 76.2
Working load limit 0° [kg] 37500
Working load limit [kg] 30000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711410
  • Details
    C1E P1B-22-30T-4M
    Reference no. 711410
    Working load limit 0° [kg] 37500
    Working load limit [kg] 30000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 100.5
Working load limit 0° [kg] 37500
Working load limit [kg] 30000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711411
  • Details
    C1E P1B-22-30T-6M
    Reference no. 711411
    Working load limit 0° [kg] 37500
    Working load limit [kg] 30000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 147.6
Working load limit 0° [kg] 53000
Working load limit [kg] 42400
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 711412
  • Details
    C1E P1B-26-42.4T-3M
    Reference no. 711412
    Working load limit 0° [kg] 53000
    Working load limit [kg] 42400
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 106.7
Working load limit 0° [kg] 53000
Working load limit [kg] 42400
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 711413
  • Details
    C1E P1B-26-42.4T-4M
    Reference no. 711413
    Working load limit 0° [kg] 53000
    Working load limit [kg] 42400
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 139.5
Working load limit 0° [kg] 53000
Working load limit [kg] 42400
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 711414
  • Details
    C1E P1B-26-42.4T-6M
    Reference no. 711414
    Working load limit 0° [kg] 53000
    Working load limit [kg] 42400
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 203.9
Working load limit 0° [kg] 80000
Working load limit [kg] 63000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 711415
  • Details
    C1E P1B-32-63T-3M
    Reference no. 711415
    Working load limit 0° [kg] 80000
    Working load limit [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 162.1
Working load limit 0° [kg] 80000
Working load limit [kg] 63000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 711416
  • Details
    C1E P1B-32-63T-4M
    Reference no. 711416
    Working load limit 0° [kg] 80000
    Working load limit [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 210.7
Working load limit 0° [kg] 80000
Working load limit [kg] 63000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 711417
  • Details
    C1E P1B-32-63T-6M
    Reference no. 711417
    Working load limit 0° [kg] 80000
    Working load limit [kg] 63000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 305.5
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
