HIT-Anschlagkette GK10 1-strängig

HIT-Anschlagkette GK10 1-strängig
Chain sling for the single-leg attachment of 1.4 t to 40 t. With KAGW/AW standard suspension link or VLW oversized suspension link for single hook and KHSW or HSW standard load hook or KLHW safety load hook for increased safety. Ideally suited for all applications with standard crane hooks and for general lifting purposes
Advantages
  • Extreme corrosion protection through XLL coating
  • 10-year traceability via batch code
  • TOP quality *Made in Europe*
Technical infos

Quality grade

  • 10

Legs Quantity

  • single-line

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • Chain on the base of DIN EN 818
  • Chain components on the basis of DIN EN 1677

Marking

  • Batch number and serial number
  • Quality grade no. "10" (every 300 mm on the chain)
  • Quality grade and carrying capacity symbol

safety factor

  • 4

Chain surface

  • PFEIFER XLL cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Component colour

  • orange

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]
Reference no.
Details
  • 1400
    1120
    6
    135754
    Lifting Chain HIT G100 1-leg -KHSW-hook-1.4t-6mm
    Reference no. 135754
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Clear height [mm] 110
    Clearance [mm] 60
    Nominal size of chain [mm] 6

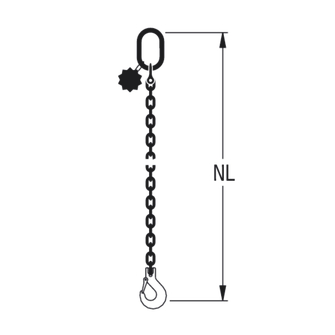

    Standard effective length NL [m] 1,0
    1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 1.613
    Weight per further meter [kg] 0.96
  • 2500
    2000
    8
    135755
    Lifting Chain HIT G100 1-leg KHSW-hook-2.5t-8mm
    Reference no. 135755
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Clear height [mm] 110
    Clearance [mm] 60
    Nominal size of chain [mm] 8
    Standard effective length NL [m] 1,0
    1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 2.765
    Weight per further meter [kg] 1.57
  • 4000
    3150
    10
    135756
    Lifting Chain HIT G100 1-leg KHSW-hook-4.0t-10mm
    Reference no. 135756
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Clear height [mm] 135
    Clearance [mm] 75
    Nominal size of chain [mm] 10
    Standard effective length NL [m] 1,0
    1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 4.506
    Weight per further meter [kg] 2.46
  • 6700
    5300
    13
    135757
    Lifting Chain HIT G100 1-leg KHSW-hook-6.7t-13mm
    Reference no. 135757
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Clear height [mm] 160
    Clearance [mm] 90
    Nominal size of chain [mm] 13
    Standard effective length NL [m] 1,0
    1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 7.847
    Weight per further meter [kg] 4.18
  • 10000
    8000
    16
    135758
    Lifting Chain HIT G100 1-leg KHSW-hook-10.0t-16mm-pc
    Reference no. 135758
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Clear height [mm] 180
    Clearance [mm] 100
    Nominal size of chain [mm] 16
    Standard effective length NL [m] 1,0
    1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 11.548
    Weight per further meter [kg] 6.28
  • 14000
    11200
    19
    180846
    Lifting Chain HIT G100 1-leg 1-leg HSW-hook-14.00t-19mm
    Reference no. 180846
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Clear height [mm] 200
    Clearance [mm] 110
    Nominal size of chain [mm] 19
    Standard effective length NL [m] 1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 19.127
    Weight per further meter [kg] 8.92
  • 19000
    15000
    22
    180847
    Lifting chain G100 1-leg -HSW-hook-19.0t-22mm
    Reference no. 180847
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 22
    Standard effective length NL [m] 1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 25.636
    Weight per further meter [kg] 11.88
  • 26500
    21200
    26
    215083
    Lifting chain G100 1-leg -HSW-hook-26.5t-26mm-pc
    Reference no. 215083
    Working load limit 0° [kg] 26500
    Working load limit laced 21200
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Standard effective length NL [m] 1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 44.258
    Weight per further meter [kg] 16.18
  • 40000
    32000
    32
    246795
    Lifting chain G100 1-leg -HSW-hook-40.0t-32mm-pc
    Reference no. 246795
    Working load limit 0° [kg] 40000
    Working load limit laced 32000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Standard effective length NL [m] 1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 66.64
    Weight per further meter [kg] 24.1
Working load limit 0° [kg] 1400
Working load limit laced 1120
Nominal size of chain [mm] 6
Reference no. 135754
  • Details
    Lifting Chain HIT G100 1-leg -KHSW-hook-1.4t-6mm
    Reference no. 135754
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Clear height [mm] 110
    Clearance [mm] 60
    Nominal size of chain [mm] 6
    Standard effective length NL [m] 1,0
    1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 1.613
    Weight per further meter [kg] 0.96
Working load limit 0° [kg] 2500
Working load limit laced 2000
Nominal size of chain [mm] 8
Reference no. 135755
  • Details
    Lifting Chain HIT G100 1-leg KHSW-hook-2.5t-8mm
    Reference no. 135755
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Clear height [mm] 110
    Clearance [mm] 60
    Nominal size of chain [mm] 8
    Standard effective length NL [m] 1,0
    1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 2.765
    Weight per further meter [kg] 1.57
Working load limit 0° [kg] 4000
Working load limit laced 3150
Nominal size of chain [mm] 10
Reference no. 135756
  • Details
    Lifting Chain HIT G100 1-leg KHSW-hook-4.0t-10mm
    Reference no. 135756
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Clear height [mm] 135
    Clearance [mm] 75
    Nominal size of chain [mm] 10
    Standard effective length NL [m] 1,0
    1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 4.506
    Weight per further meter [kg] 2.46
Working load limit 0° [kg] 6700
Working load limit laced 5300
Nominal size of chain [mm] 13
Reference no. 135757
  • Details
    Lifting Chain HIT G100 1-leg KHSW-hook-6.7t-13mm
    Reference no. 135757
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Clear height [mm] 160
    Clearance [mm] 90
    Nominal size of chain [mm] 13
    Standard effective length NL [m] 1,0
    1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 7.847
    Weight per further meter [kg] 4.18
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 16
Reference no. 135758
  • Details
    Lifting Chain HIT G100 1-leg KHSW-hook-10.0t-16mm-pc
    Reference no. 135758
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Clear height [mm] 180
    Clearance [mm] 100
    Nominal size of chain [mm] 16
    Standard effective length NL [m] 1,0
    1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 11.548
    Weight per further meter [kg] 6.28
Working load limit 0° [kg] 14000
Working load limit laced 11200
Nominal size of chain [mm] 19
Reference no. 180846
  • Details
    Lifting Chain HIT G100 1-leg 1-leg HSW-hook-14.00t-19mm
    Reference no. 180846
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Clear height [mm] 200
    Clearance [mm] 110
    Nominal size of chain [mm] 19
    Standard effective length NL [m] 1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 19.127
    Weight per further meter [kg] 8.92
Working load limit 0° [kg] 19000
Working load limit laced 15000
Nominal size of chain [mm] 22
Reference no. 180847
  • Details
    Lifting chain G100 1-leg -HSW-hook-19.0t-22mm
    Reference no. 180847
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 22
    Standard effective length NL [m] 1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 25.636
    Weight per further meter [kg] 11.88
Working load limit 0° [kg] 26500
Working load limit laced 21200
Nominal size of chain [mm] 26
Reference no. 215083
  • Details
    Lifting chain G100 1-leg -HSW-hook-26.5t-26mm-pc
    Reference no. 215083
    Working load limit 0° [kg] 26500
    Working load limit laced 21200
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Standard effective length NL [m] 1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 44.258
    Weight per further meter [kg] 16.18
Working load limit 0° [kg] 40000
Working load limit laced 32000
Nominal size of chain [mm] 32
Reference no. 246795
  • Details
    Lifting chain G100 1-leg -HSW-hook-40.0t-32mm-pc
    Reference no. 246795
    Working load limit 0° [kg] 40000
    Working load limit laced 32000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Standard effective length NL [m] 1,5
    2,0
    3,0
    4,0
    Weight approx. [kg] 66.64
    Weight per further meter [kg] 24.1
Please always specify the reference number and effective length NL when ordering!
