HIT PRO 1 chain sling quality grade 10, single-leg, can be shortened Safety load hooks

HIT PRO 1 chain sling quality grade 10, single-leg, can be shortened Safety load hooks

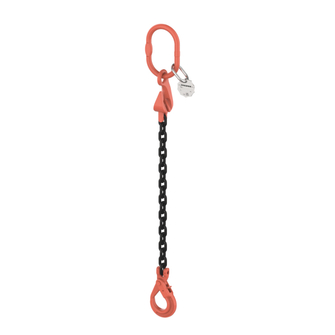

Chain sling with shortening parallel hook and safety load hook for single-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • single-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Quality grade and working load limit symbol
  • Batch number and serial number

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • can be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Working load limit wrapped around to 6° [kg]
Nominal size of chain [mm]

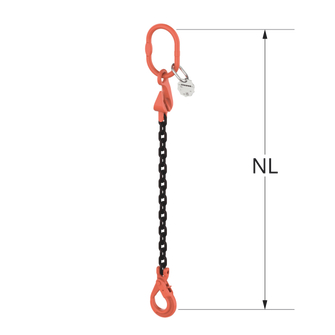

Effective length WLL [m]
Reference no.
Details
  • 1400
    1120
    2800
    6
    2
    710791
    G11 P1B-6-1.4T-RAVK-SHK-2M
    Reference no. 710791
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 3
  • 1400
    1120
    2800
    6
    3
    710792
    G11 P1B-6-1.4T-RAVK-SHK-3M
    Reference no. 710792
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.9
  • 1400
    1120
    2800
    6
    4
    710793
    G11 P1B-6-1.4T-RAVK-SHK-4M
    Reference no. 710793
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.9
  • 1400
    1120
    2800
    6
    5
    710794
    G11 P1B-6-1.4T-RAVK-SHK-5M
    Reference no. 710794
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 5.8
  • 1400
    1120
    2800
    6
    6
    710795
    G11 P1B-6-1.4T-RAVK-SHK-6M
    Reference no. 710795
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 6.8
  • 2500
    2000
    5000
    8
    2
    710796
    G11 P1B-8-2.5T-RAVK-SHK-2M
    Reference no. 710796
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 5
  • 2500
    2000
    5000
    8
    3
    710797
    G11 P1B-8-2.5T-RAVK-SHK-3M
    Reference no. 710797
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 6.6
  • 2500
    2000
    5000
    8
    4
    710798
    G11 P1B-8-2.5T-RAVK-SHK-4M
    Reference no. 710798
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 8.1
  • 2500
    2000
    5000
    8
    5
    710799
    G11 P1B-8-2.5T-RAVK-SHK-5M
    Reference no. 710799
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 9.7
  • 2500
    2000
    5000
    8
    6
    710800
    G11 P1B-8-2.5T-RAVK-SHK-6M
    Reference no. 710800
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 11.3
  • 4000
    3150
    8000
    10
    2
    710801
    G11 P1B-10-4T-RAVK-SHK-2M
    Reference no. 710801
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7.8
  • 4000
    3150
    8000
    10
    3
    710802
    G11 P1B-10-4T-RAVK-SHK-3M
    Reference no. 710802
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 10.2
  • 4000
    3150
    8000
    10
    4
    710803
    G11 P1B-10-4T-RAVK-SHK-4M
    Reference no. 710803
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 12.7
  • 4000
    3150
    8000
    10
    5
    710804
    G11 P1B-10-4T-RAVK-SHK-5M
    Reference no. 710804
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 15.2
  • 4000
    3150
    8000
    10
    6
    710805
    G11 P1B-10-4T-RAVK-SHK-6M
    Reference no. 710805
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 17.6
  • 6700
    5300
    13200
    13
    2
    710806
    G11 P1B-13-6.7T-RAVK-SHK-2M
    Reference no. 710806
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 14
  • 6700
    5300
    13200
    13
    3
    710807
    G11 P1B-13-6.7T-RAVK-SHK-3M
    Reference no. 710807
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 18.3
  • 6700
    5300
    13200
    13
    4
    710808
    G11 P1B-13-6.7T-RAVK-SHK-4M
    Reference no. 710808
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 22.5
  • 6700
    5300
    13200
    13
    5
    710809
    G11 P1B-13-6.7T-RAVK-SHK-5M
    Reference no. 710809
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 26.8
  • 6700
    5300
    13200
    13
    6
    710810
    G11 P1B-13-6.7T-RAVK-SHK-6M
    Reference no. 710810
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 30.7
  • 10000
    8000
    20000
    16
    2
    710811
    C11 P1B-16-10T-RAVK-SHK-2M
    Reference no. 710811
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 22.8
  • 10000
    8000
    20000
    16
    3
    710812
    C11 P1B-16-10T-RAVK-SHK-3M
    Reference no. 710812
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 28.9
  • 10000
    8000
    20000
    16
    4
    710813
    C11 P1B-16-10T-RAVK-SHK-4M
    Reference no. 710813
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 35.5
  • 10000
    8000
    20000
    16
    5
    710814
    C11 P1B-16-10T-RAVK-SHK-5M
    Reference no. 710814
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 41.5
  • 10000
    8000
    20000
    16
    6
    710815
    C11 P1B-16-10T-RAVK-SHK-6M
    Reference no. 710815
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 47.6
  • 14000
    11200
    28000
    20
    2
    710816

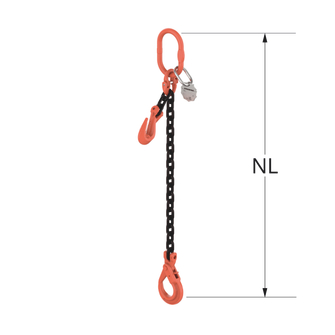

    C11 P1B-20-14T-RA-PKU-SHK-2M
    Reference no. 710816
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 35
  • 14000
    11200
    28000
    20
    3
    710817
    C11 P1B-20-14T-RA-PKU-SHK-3M
    Reference no. 710817
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 44.2
  • 14000
    11200
    28000
    20
    4
    710818
    C11 P1B-20-14T-RA-PKU-SHK-4M
    Reference no. 710818
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 53.4
  • 14000
    11200
    28000
    20
    5
    710819
    C11 P1B-20-14T-RA-PKU-SHK-5M
    Reference no. 710819
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 61.5
  • 14000
    11200
    28000
    20
    6
    710820
    C11 P1B-20-14T-RA-PKU-SHK-6M
    Reference no. 710820
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 70.6
  • 19000
    15000
    37500
    22
    3
    710821
    C11 P1B-22-19T-RA-PKU-SHK-3M
    Reference no. 710821
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 66.6
  • 19000
    15000
    37500
    22
    4
    710822
    C11 P1B-22-19T-RA-PKU-SHK-4M
    Reference no. 710822
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 79.1
  • 19000
    15000
    37500
    22
    6
    710823
    C11 P1B-22-19T-RA-PKU-SHK-6M
    Reference no. 710823
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 102.7
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 710791
  • Details
    G11 P1B-6-1.4T-RAVK-SHK-2M
    Reference no. 710791
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 3
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 710792
  • Details
    G11 P1B-6-1.4T-RAVK-SHK-3M
    Reference no. 710792
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.9
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 710793
  • Details
    G11 P1B-6-1.4T-RAVK-SHK-4M
    Reference no. 710793
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.9
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 710794
  • Details
    G11 P1B-6-1.4T-RAVK-SHK-5M
    Reference no. 710794
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 5.8
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 710795
  • Details
    G11 P1B-6-1.4T-RAVK-SHK-6M
    Reference no. 710795
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 6.8
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 710796
  • Details
    G11 P1B-8-2.5T-RAVK-SHK-2M
    Reference no. 710796
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 5
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 710797
  • Details
    G11 P1B-8-2.5T-RAVK-SHK-3M
    Reference no. 710797
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 6.6
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 710798
  • Details
    G11 P1B-8-2.5T-RAVK-SHK-4M
    Reference no. 710798
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 8.1
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 710799
  • Details
    G11 P1B-8-2.5T-RAVK-SHK-5M
    Reference no. 710799
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 9.7
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 710800
  • Details
    G11 P1B-8-2.5T-RAVK-SHK-6M
    Reference no. 710800
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 11.3
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 710801
  • Details
    G11 P1B-10-4T-RAVK-SHK-2M
    Reference no. 710801
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7.8
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 710802
  • Details
    G11 P1B-10-4T-RAVK-SHK-3M
    Reference no. 710802
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 10.2
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 710803
  • Details
    G11 P1B-10-4T-RAVK-SHK-4M
    Reference no. 710803
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 12.7
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 710804
  • Details
    G11 P1B-10-4T-RAVK-SHK-5M
    Reference no. 710804
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 15.2
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 710805
  • Details
    G11 P1B-10-4T-RAVK-SHK-6M
    Reference no. 710805
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 17.6
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 710806
  • Details
    G11 P1B-13-6.7T-RAVK-SHK-2M
    Reference no. 710806
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 14
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 710807
  • Details
    G11 P1B-13-6.7T-RAVK-SHK-3M
    Reference no. 710807
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 18.3
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 710808
  • Details
    G11 P1B-13-6.7T-RAVK-SHK-4M
    Reference no. 710808
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 22.5
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 710809
  • Details
    G11 P1B-13-6.7T-RAVK-SHK-5M
    Reference no. 710809
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 26.8
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 710810
  • Details
    G11 P1B-13-6.7T-RAVK-SHK-6M
    Reference no. 710810
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 30.7
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 710811
  • Details
    C11 P1B-16-10T-RAVK-SHK-2M
    Reference no. 710811
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 22.8
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 710812
  • Details
    C11 P1B-16-10T-RAVK-SHK-3M
    Reference no. 710812
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 28.9
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 710813
  • Details
    C11 P1B-16-10T-RAVK-SHK-4M
    Reference no. 710813
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 35.5
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 710814
  • Details
    C11 P1B-16-10T-RAVK-SHK-5M
    Reference no. 710814
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 41.5
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 710815
  • Details
    C11 P1B-16-10T-RAVK-SHK-6M
    Reference no. 710815
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 47.6
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 710816
  • Details
    C11 P1B-20-14T-RA-PKU-SHK-2M
    Reference no. 710816
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 35
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 710817
  • Details
    C11 P1B-20-14T-RA-PKU-SHK-3M
    Reference no. 710817
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 44.2
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 710818
  • Details
    C11 P1B-20-14T-RA-PKU-SHK-4M
    Reference no. 710818
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 53.4
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 710819
  • Details
    C11 P1B-20-14T-RA-PKU-SHK-5M
    Reference no. 710819
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 61.5
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 710820
  • Details
    C11 P1B-20-14T-RA-PKU-SHK-6M
    Reference no. 710820
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 70.6
Working load limit 0° [kg] 19000
Working load limit laced 15000
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 710821
  • Details
    C11 P1B-22-19T-RA-PKU-SHK-3M
    Reference no. 710821
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 66.6
Working load limit 0° [kg] 19000
Working load limit laced 15000
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 710822
  • Details
    C11 P1B-22-19T-RA-PKU-SHK-4M
    Reference no. 710822
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 79.1
Working load limit 0° [kg] 19000
Working load limit laced 15000
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 710823
  • Details
    C11 P1B-22-19T-RA-PKU-SHK-6M
    Reference no. 710823
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 102.7
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
