HIT PRO 1 chain sling, quality grade 10, single-leg Safety load hooks

HIT PRO 1 chain sling, quality grade 10, single-leg Safety load hooks

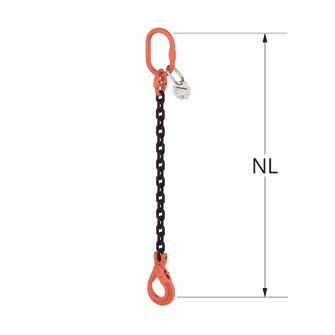

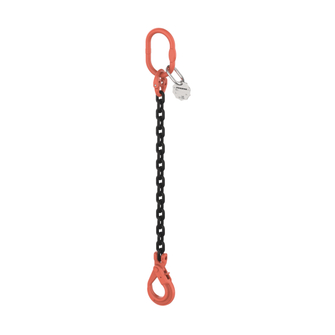

Chain sling with self-closing safety load hook for single-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • single-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Quality grade and working load limit symbol
  • Batch number and serial number

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Working load limit wrapped around to 6° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1400
    1120
    2800
    6
    1
    710701
    G11 P1B-6-1.4T-RA-SHK-1M
    Reference no. 710701
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.8
  • 1400
    1120
    2800
    6
    1.5
    710702
    G11 P1B-6-1.4T-RA-SHK-1.5M
    Reference no. 710702
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.3
  • 140
    1120
    2800
    6
    2
    710703
    G11 P1B-6-1.4T-RA-SHK-2M
    Reference no. 710703
    Working load limit 0° [kg] 140
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.8
  • 1400
    1120
    2800
    6
    2.5
    710704
    G11 P1B-6-1.4T-RA-SHK-2.5M
    Reference no. 710704
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 3.3
  • 1400
    1120
    2800
    6
    3
    710705
    G11 P1B-6-1.4T-RA-SHK-3M
    Reference no. 710705
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.8
  • 1400
    1120
    2800
    6
    4
    710706
    G11 P1B-6-1.4T-RA-SHK-4M
    Reference no. 710706
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.7
  • 1400
    1120
    2800
    6
    5
    710707
    G11 P1B-6-1.4T-RA-SHK-5M
    Reference no. 710707
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 5.7
  • 1400
    1120
    2800
    6
    6
    710708
    G11 P1B-6-1.4T-RA-SHK-6M
    Reference no. 710708
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 6.6
  • 2500
    2000
    5000
    8
    1
    710709
    G11 P1B-8-2.5T-RA-SHK-1M
    Reference no. 710709
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 3
  • 2500
    2000
    5000
    8
    1.5
    710710
    G11 P1B-8-2.5T-RA-SHK-1.5M
    Reference no. 710710
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.9
  • 2500
    2000
    5000
    8
    2
    710711
    G11 P1B-8-2.5T-RA-SHK-2M
    Reference no. 710711
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.6
  • 2500
    2000
    5000
    8
    2.5
    710712
    G11 P1B-8-2.5T-RA-SHK-2.5M
    Reference no. 710712
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5.4
  • 2500
    2000
    5000
    8
    3
    710713
    G11 P1B-8-2.5T-RA-SHK-3M
    Reference no. 710713
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 6.2
  • 2500
    2000
    5000
    8
    4
    710714
    G11 P1B-8-2.5T-RA-SHK-4M
    Reference no. 710714
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.8
  • 2500
    2000
    5000
    8
    5
    710715
    G11 P1B-8-2.5T-RA-SHK-5M
    Reference no. 710715
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 9.4
  • 2500
    2000
    5000
    8
    6
    710716
    G11 P1B-8-2.5T-RA-SHK-6M
    Reference no. 710716
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.9
  • 4000
    3150
    8000
    10
    1
    710717
    G11 P1B-10-4T-RA-SHK-1M
    Reference no. 710717
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.8
  • 4000
    3150
    8000
    10
    1.5
    710718
    G11 P1B-10-4T-RA-SHK-1.5M
    Reference no. 710718
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 6.1
  • 4000
    3150
    8000
    10
    2
    710719
    G11 P1B-10-4T-RA-SHK-2M
    Reference no. 710719
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7.3
  • 4000
    3150
    8000
    10
    2.5
    710720
    G11 P1B-10-4T-RA-SHK-2.5M
    Reference no. 710720
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 8.4
  • 4000
    3150
    8000
    10
    3
    710721
    G11 P1B-10-4T-RA-SHK-3M
    Reference no. 710721
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.8
  • 4000
    3150
    8000
    10
    4
    710722
    G11 P1B-10-4T-RA-SHK-4M
    Reference no. 710722
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 12.1
  • 4000
    3150
    8000
    10
    5
    710723
    G11 P1B-10-4T-RA-SHK-5M
    Reference no. 710723
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 14.6
  • 4000
    3150
    8000
    10
    6
    710724
    G11 P1B-10-4T-RA-SHK-6M
    Reference no. 710724
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 17.2
  • 6700
    5300
    13200
    13
    1
    710725
    G11 P1B-13-6.7T-RA-SHK-1M
    Reference no. 710725
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 8.5
  • 6700
    5300
    13200
    13
    1.5
    710726
    G11 P1B-13-6.7T-RA-SHK-1.5M
    Reference no. 710726
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 10.5
  • 6700
    5300
    13200
    13
    2
    710727
    G11 P1B-13-6.7T-RA-SHK-2M
    Reference no. 710727
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 12.7
  • 6700
    5300
    13200
    13
    2.5
    710728
    G11 P1B-13-6.7T-RA-SHK-2.5M
    Reference no. 710728
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 14.7
  • 6700
    5300
    13200
    13
    3
    710729
    G11 P1B-13-6.7T-RA-SHK-3M
    Reference no. 710729
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 16.7
  • 6700
    5300
    13200
    13
    4
    710730
    G11 P1B-13-6.7T-RA-SHK-4M
    Reference no. 710730
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 20.9
  • 6700
    5300
    13200
    13
    5
    710731
    G11 P1B-13-6.7T-RA-SHK-5M
    Reference no. 710731
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 25.1
  • 6700
    5300
    13200
    13
    6
    710732
    G11 P1B-13-6.7T-RA-SHK-6M
    Reference no. 710732
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 29.4
  • 10000
    8000
    20000
    16
    1
    710733
    C11 P1B-16-10T-RA-SHK-1M
    Reference no. 710733
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 13.7
  • 10000
    8000
    20000
    16
    1.5
    710734
    C11 P1B-16-10T-RA-SHK-1.5M
    Reference no. 710734
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 16.7
  • 10000
    8000
    20000
    16
    2
    710735
    C11 P1B-16-10T-RA-SHK-2M
    Reference no. 710735
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 19.8
  • 10000
    8000
    20000
    16
    2.5
    710736
    C11 P1B-16-10T-RA-SHK-2.5M
    Reference no. 710736
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 22.8
  • 10000
    8000
    20000
    16
    3
    710737
    C11 P1B-16-10T-RA-SHK-3M
    Reference no. 710737
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 26.4
  • 10000
    8000
    20000
    16
    4
    710738
    C11 P1B-16-10T-RA-SHK-4M
    Reference no. 710738
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 32.4
  • 10000
    8000
    20000
    16
    5
    710739
    C11 P1B-16-10T-RA-SHK-5M
    Reference no. 710739
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 38.4
  • 10000
    8000
    20000
    16
    6
    710740
    C11 P1B-16-10T-RA-SHK-6M
    Reference no. 710740
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 45.1
  • 14000
    11200
    28000
    20
    1
    710741
    C11 P1B-20-14T-RA-SHK-1M
    Reference no. 710741
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 20.7
  • 14000
    11200
    28000
    20
    1.5
    710742
    C11 P1B-20-14T-RA-SHK-1.5M
    Reference no. 710742
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 25.8
  • 14000
    11200
    28000
    20
    2
    710743
    C11 P1B-20-14T-RA-SHK-2M
    Reference no. 710743
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 29.8
  • 14000
    11200
    28000
    20
    2.5
    710744
    C11 P1B-20-14T-RA-SHK-2.5M
    Reference no. 710744
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 33.9
  • 14000
    11200
    28000
    20
    3
    710745
    C11 P1B-20-14T-RA-SHK-3M
    Reference no. 710745
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 39
  • 14000
    11200
    28000
    20
    4
    710746
    C11 P1B-20-14T-RA-SHK-4M
    Reference no. 710746
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 48.2
  • 14000
    11200
    28000
    20
    5
    710747
    C11 P1B-20-14T-RA-SHK-5M
    Reference no. 710747
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 56.3
  • 14000
    11200
    28000
    20
    6
    710748
    C11 P1B-20-14T-RA-SHK-6M
    Reference no. 710748
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 65.4
  • 19000
    15000
    37500
    22
    3
    710749
    C11 P1B-22-19T-RA-SHK-3M
    Reference no. 710749
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 55.7
  • 19000
    15000
    37500
    22
    4
    710750
    C11 P1B-22-19T-RA-SHK-4M
    Reference no. 710750
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 68.2
  • 19000
    15000
    37500
    22
    6
    710751
    C11 P1B-22-19T-RA-SHK-6M
    Reference no. 710751
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 91.7
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 710701
  • Details
    G11 P1B-6-1.4T-RA-SHK-1M
    Reference no. 710701
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.8
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 710702
  • Details
    G11 P1B-6-1.4T-RA-SHK-1.5M
    Reference no. 710702
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.3
Working load limit 0° [kg] 140
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 710703
  • Details
    G11 P1B-6-1.4T-RA-SHK-2M
    Reference no. 710703
    Working load limit 0° [kg] 140
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.8
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 710704
  • Details
    G11 P1B-6-1.4T-RA-SHK-2.5M
    Reference no. 710704
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 3.3
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 710705
  • Details
    G11 P1B-6-1.4T-RA-SHK-3M
    Reference no. 710705
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.8
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 710706
  • Details
    G11 P1B-6-1.4T-RA-SHK-4M
    Reference no. 710706
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.7
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 710707
  • Details
    G11 P1B-6-1.4T-RA-SHK-5M
    Reference no. 710707
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 5.7
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 710708
  • Details
    G11 P1B-6-1.4T-RA-SHK-6M
    Reference no. 710708
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 6.6
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 710709
  • Details
    G11 P1B-8-2.5T-RA-SHK-1M
    Reference no. 710709
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 3
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 710710
  • Details
    G11 P1B-8-2.5T-RA-SHK-1.5M
    Reference no. 710710
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.9
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 710711
  • Details
    G11 P1B-8-2.5T-RA-SHK-2M
    Reference no. 710711
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.6
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 710712
  • Details
    G11 P1B-8-2.5T-RA-SHK-2.5M
    Reference no. 710712
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5.4
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 710713
  • Details
    G11 P1B-8-2.5T-RA-SHK-3M
    Reference no. 710713
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 6.2
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 710714
  • Details
    G11 P1B-8-2.5T-RA-SHK-4M
    Reference no. 710714
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.8
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 710715
  • Details
    G11 P1B-8-2.5T-RA-SHK-5M
    Reference no. 710715
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 9.4
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 710716
  • Details
    G11 P1B-8-2.5T-RA-SHK-6M
    Reference no. 710716
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.9
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 710717
  • Details
    G11 P1B-10-4T-RA-SHK-1M
    Reference no. 710717
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.8
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 710718
  • Details
    G11 P1B-10-4T-RA-SHK-1.5M
    Reference no. 710718
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 6.1
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 710719
  • Details
    G11 P1B-10-4T-RA-SHK-2M
    Reference no. 710719
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7.3
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 710720
  • Details
    G11 P1B-10-4T-RA-SHK-2.5M
    Reference no. 710720
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 8.4
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 710721
  • Details
    G11 P1B-10-4T-RA-SHK-3M
    Reference no. 710721
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.8
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 710722
  • Details
    G11 P1B-10-4T-RA-SHK-4M
    Reference no. 710722
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 12.1
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 710723
  • Details
    G11 P1B-10-4T-RA-SHK-5M
    Reference no. 710723
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 14.6
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 710724
  • Details
    G11 P1B-10-4T-RA-SHK-6M
    Reference no. 710724
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 17.2
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 710725
  • Details
    G11 P1B-13-6.7T-RA-SHK-1M
    Reference no. 710725
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 8.5
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 710726
  • Details
    G11 P1B-13-6.7T-RA-SHK-1.5M
    Reference no. 710726
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 10.5
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 710727
  • Details
    G11 P1B-13-6.7T-RA-SHK-2M
    Reference no. 710727
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 12.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 710728
  • Details
    G11 P1B-13-6.7T-RA-SHK-2.5M
    Reference no. 710728
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 14.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 710729
  • Details
    G11 P1B-13-6.7T-RA-SHK-3M
    Reference no. 710729
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 16.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 710730
  • Details
    G11 P1B-13-6.7T-RA-SHK-4M
    Reference no. 710730
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 20.9
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 710731
  • Details
    G11 P1B-13-6.7T-RA-SHK-5M
    Reference no. 710731
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 25.1
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 710732
  • Details
    G11 P1B-13-6.7T-RA-SHK-6M
    Reference no. 710732
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 29.4
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 710733
  • Details
    C11 P1B-16-10T-RA-SHK-1M
    Reference no. 710733
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 13.7
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 710734
  • Details
    C11 P1B-16-10T-RA-SHK-1.5M
    Reference no. 710734
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 16.7
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 710735
  • Details
    C11 P1B-16-10T-RA-SHK-2M
    Reference no. 710735
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 19.8
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 710736
  • Details
    C11 P1B-16-10T-RA-SHK-2.5M
    Reference no. 710736
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 22.8
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 710737
  • Details
    C11 P1B-16-10T-RA-SHK-3M
    Reference no. 710737
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 26.4
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 710738
  • Details
    C11 P1B-16-10T-RA-SHK-4M
    Reference no. 710738
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 32.4
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 710739
  • Details
    C11 P1B-16-10T-RA-SHK-5M
    Reference no. 710739
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 38.4
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 710740
  • Details
    C11 P1B-16-10T-RA-SHK-6M
    Reference no. 710740
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 45.1
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 1
Reference no. 710741
  • Details
    C11 P1B-20-14T-RA-SHK-1M
    Reference no. 710741
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 20.7
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 1.5
Reference no. 710742
  • Details
    C11 P1B-20-14T-RA-SHK-1.5M
    Reference no. 710742
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 25.8
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 710743
  • Details
    C11 P1B-20-14T-RA-SHK-2M
    Reference no. 710743
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 29.8
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 2.5
Reference no. 710744
  • Details
    C11 P1B-20-14T-RA-SHK-2.5M
    Reference no. 710744
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 33.9
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 710745
  • Details
    C11 P1B-20-14T-RA-SHK-3M
    Reference no. 710745
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 39
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 710746
  • Details
    C11 P1B-20-14T-RA-SHK-4M
    Reference no. 710746
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 48.2
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 710747
  • Details
    C11 P1B-20-14T-RA-SHK-5M
    Reference no. 710747
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 56.3
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 710748
  • Details
    C11 P1B-20-14T-RA-SHK-6M
    Reference no. 710748
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 65.4
Working load limit 0° [kg] 19000
Working load limit laced 15000
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 710749
  • Details
    C11 P1B-22-19T-RA-SHK-3M
    Reference no. 710749
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 55.7
Working load limit 0° [kg] 19000
Working load limit laced 15000
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 710750
  • Details
    C11 P1B-22-19T-RA-SHK-4M
    Reference no. 710750
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 68.2
Working load limit 0° [kg] 19000
Working load limit laced 15000
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 710751
  • Details
    C11 P1B-22-19T-RA-SHK-6M
    Reference no. 710751
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 91.7
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
