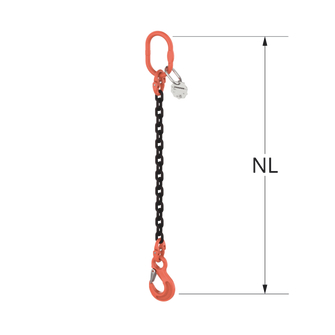

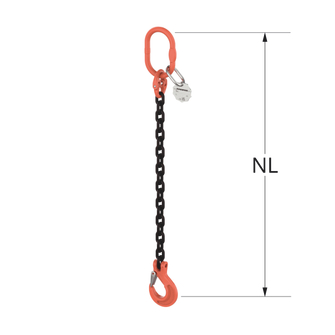

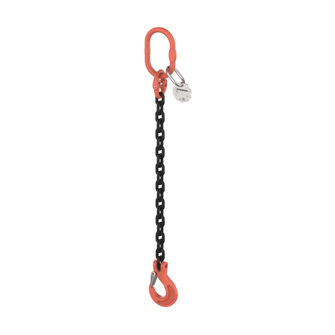

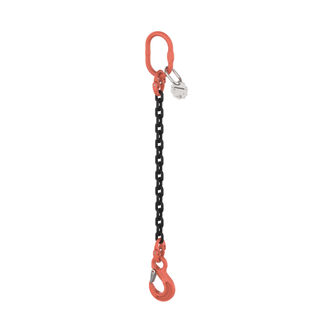

HIT PRO 1 chain sling, quality grade 10, single-leg Standard load hook

HIT PRO 1 chain sling, quality grade 10, single-leg Standard load hook
Chain sling with standard load hook for single-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • single-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Quality grade and working load limit symbol
  • Batch number and serial number

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Working load limit wrapped around to 6° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1400
    1120
    2800
    6
    1
    710644
    G11 P1B-6-1.4T-RA-HK-1M
    Reference no. 710644
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.6
  • 1400
    1120
    2800
    6
    1.5
    710645
    G11 P1B-6-1.4T-RA-HK-1.5M
    Reference no. 710645
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.1
  • 1400
    1120
    2800
    6
    2
    710646
    G11 P1B-6-1.4T-RA-HK-2M
    Reference no. 710646
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.6
  • 1400
    1120
    2800
    6
    2.5
    710647
    G11 P1B-6-1.4T-RA-HK-2.5M
    Reference no. 710647
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 3.1
  • 1400
    1120
    2800
    6
    3
    710648
    G11 P1B-6-1.4T-RA-HK-3M
    Reference no. 710648
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.6
  • 1400
    1120
    2800
    6
    4
    710649
    G11 P1B-6-1.4T-RA-HK-4M
    Reference no. 710649
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.5
  • 1400
    1120
    2800
    6
    5
    710650
    G11 P1B-6-1.4T-RA-HK-5M
    Reference no. 710650
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 5.5
  • 1400
    1120
    2800
    6
    6
    710651
    G11 P1B-6-1.4T-RA-HK-6M
    Reference no. 710651
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 6.4
  • 2500
    2000
    5000
    8
    1
    710652
    G11 P1B-8-2.5T-RA-HK-1M
    Reference no. 710652
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.7
  • 2500
    2000
    5000
    8
    1.5
    710653
    G11 P1B-8-2.5T-RA-HK-1.5M
    Reference no. 710653
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.4
  • 2500
    2000
    5000
    8
    2
    710654
    G11 P1B-8-2.5T-RA-HK-2M
    Reference no. 710654
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.2
  • 2500
    2000
    5000
    8
    2.5
    710655
    G11 P1B-8-2.5T-RA-HK-2.5M
    Reference no. 710655
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5
  • 2500
    2000
    5000
    8
    3
    710656
    G11 P1B-8-2.5T-RA-HK-3M
    Reference no. 710656
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.8
  • 2500
    2000
    5000
    8
    4
    710657
    G11 P1B-8-2.5T-RA-HK-4M
    Reference no. 710657
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.3
  • 2500
    2000
    5000
    8
    5
    710658
    G11 P1B-8-2.5T-RA-HK-5M
    Reference no. 710658
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 8.9
  • 2500
    2000
    5000
    8
    6
    710659
    G11 P1B-8-2.5T-RA-HK-6M
    Reference no. 710659
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.5
  • 4000
    3150
    8000
    10
    1
    710660
    G11 P1B-10-4T-RA-HK-1M
    Reference no. 710660
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.5
  • 4000
    3150
    8000
    10
    1.5
    710661
    G11 P1B-10-4T-RA-HK-1.5M
    Reference no. 710661
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.7
  • 4000
    3150
    8000
    10
    2
    710662
    G11 P1B-10-4T-RA-HK-2M
    Reference no. 710662
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7
  • 4000
    3150
    8000
    10
    2.5
    710663
    G11 P1B-10-4T-RA-HK-2.5M
    Reference no. 710663
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 8.2
  • 4000
    3150
    8000
    10
    3
    710664
    G11 P1B-10-4T-RA-HK-3M
    Reference no. 710664
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.4
  • 4000
    3150
    8000
    10
    4
    710665
    G11 P1B-10-4T-RA-HK-4M
    Reference no. 710665
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 11.9
  • 4000
    3150
    8000
    10
    5
    710666
    G11 P1B-10-4T-RA-HK-5M
    Reference no. 710666
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 14.4
  • 4000
    3150
    8000
    10
    6
    710667
    G11 P1B-10-4T-RA-HK-6M
    Reference no. 710667
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 16.7
  • 6700
    5300
    13200
    13
    1
    710668
    G11 P1B-13-6.7T-RA-HK-1M
    Reference no. 710668
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 7
  • 6700
    5300
    13200
    13
    1.5
    710669
    G11 P1B-13-6.7T-RA-HK-1.5M
    Reference no. 710669
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 9.3
  • 6700
    5300
    13200
    13
    2
    710670
    G11 P1B-13-6.7T-RA-HK-2M
    Reference no. 710670
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 11.2
  • 6700
    5300
    13200
    13
    2.5
    710671
    G11 P1B-13-6.7T-RA-HK-2.5M
    Reference no. 710671
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 13.5
  • 6700
    5300
    13200
    13
    3
    710672
    G11 P1B-13-6.7T-RA-HK-3M
    Reference no. 710672
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 15.5
  • 6700
    5300
    13200
    13
    4
    710673
    G11 P1B-13-6.7T-RA-HK-4M
    Reference no. 710673
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 19.7
  • 6700
    5300
    13200
    13
    5
    710674
    G11 P1B-13-6.7T-RA-HK-5M
    Reference no. 710674
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 24
  • 6700
    5300
    13200
    13
    6
    710675
    G11 P1B-13-6.7T-RA-HK-6M
    Reference no. 710675
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 28.2
  • 10000
    8000
    20000
    16
    1
    710676
    C11 P1B-16-10T-RA-HK-1M
    Reference no. 710676
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 10.9
  • 10000
    8000
    20000
    16
    1.5
    710677
    C11 P1B-16-10T-RA-HK-1.5M
    Reference no. 710677
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 14.5
  • 10000
    8000
    20000
    16
    2
    710678
    C11 P1B-16-10T-RA-HK-2M
    Reference no. 710678
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 17.6
  • 10000
    8000
    20000
    16
    2.5
    710679
    C11 P1B-16-10T-RA-HK-2.5M
    Reference no. 710679
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 20.6
  • 10000
    8000
    20000
    16
    3
    710680
    C11 P1B-16-10T-RA-HK-3M
    Reference no. 710680
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 23.6
  • 10000
    8000
    20000
    16
    4
    710681
    C11 P1B-16-10T-RA-HK-4M
    Reference no. 710681
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 30.2
  • 10000
    8000
    20000
    16
    5
    710682
    C11 P1B-16-10T-RA-HK-5M
    Reference no. 710682
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 36.3
  • 10000
    8000
    20000
    16
    6
    710683
    C11 P1B-16-10T-RA-HK-6M
    Reference no. 710683
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 42.3
  • 14000
    11200
    28000
    20
    1
    710684
    C11 P1B-20-14T-RA-HK-1M
    Reference no. 710684
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 16.9
  • 14000
    11200
    28000
    20
    1.5
    710685
    C11 P1B-20-14T-RA-HK-1.5M
    Reference no. 710685
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 21
  • 14000
    11200
    28000
    20
    2
    710686
    C11 P1B-20-14T-RA-HK-2M
    Reference no. 710686
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 26.1
  • 14000
    11200
    28000
    20
    2.5
    710687
    C11 P1B-20-14T-RA-HK-2.5M
    Reference no. 710687
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 30.1
  • 14000
    11200
    28000
    20
    3
    710688
    C11 P1B-20-14T-RA-HK-3M
    Reference no. 710688
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 34.2
  • 14000
    11200
    28000
    20
    4
    710689
    C11 P1B-20-14T-RA-HK-4M
    Reference no. 710689
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 43.4
  • 14000
    11200
    28000
    20
    5
    710690
    C11 P1B-20-14T-RA-HK-5M
    Reference no. 710690
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 52.5
  • 14000
    11200
    28000
    20
    6
    710691
    C11 P1B-20-14T-RA-HK-6M
    Reference no. 710691
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 61.7
  • 19000
    15000
    37500
    22
    3
    710692
    C11 P1B-22-19T-RA-HK-3M
    Reference no. 710692
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 55.1
  • 19000
    15000
    37500
    22
    4
    710693
    C11 P1B-22-19T-RA-HK-4M
    Reference no. 710693
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 66.1
  • 19000
    15000
    37500
    22
    6
    710694
    C11 P1B-22-19T-RA-HK-6M
    Reference no. 710694
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 89.6
  • 26500
    21200
    37500
    26
    3
    710695
    C11 P1B-26-26.5T-RA-H-3M
    Reference no. 710695
    Working load limit 0° [kg] 26500
    Working load limit laced 21200
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 73.9
  • 26500
    21200
    37500
    26
    4
    710696
    C11 P1B-26-26.5T-RA-H-4M
    Reference no. 710696
    Working load limit 0° [kg] 26500
    Working load limit laced 21200
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 89.1
  • 26500
    21200
    37500
    26
    6
    710697
    C11 P1B-26-26.5T-RA-H-6M
    Reference no. 710697
    Working load limit 0° [kg] 26500
    Working load limit laced 21200
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 121.9
  • 40000
    32000
    80000
    32
    3
    710698
    C11 P1B-32-40T-RA-H-3M
    Reference no. 710698
    Working load limit 0° [kg] 40000
    Working load limit laced 32000
    Working load limit wrapped around to 6° [kg] 80000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 101.1
  • 40000
    32000
    80000
    32
    4
    710699
    C11 P1B-32-40T-RA-H-4M
    Reference no. 710699
    Working load limit 0° [kg] 40000
    Working load limit laced 32000
    Working load limit wrapped around to 6° [kg] 80000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 124.2
  • 40000
    32000
    80000
    32
    6
    710700
    C11 P1B-32-40T-RA-H-6M
    Reference no. 710700
    Working load limit 0° [kg] 40000
    Working load limit laced 32000
    Working load limit wrapped around to 6° [kg] 80000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 175.1
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 710644
  • Details
    G11 P1B-6-1.4T-RA-HK-1M
    Reference no. 710644
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.6
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 710645
  • Details
    G11 P1B-6-1.4T-RA-HK-1.5M
    Reference no. 710645
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.1
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 710646
  • Details
    G11 P1B-6-1.4T-RA-HK-2M
    Reference no. 710646
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.6
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 710647
  • Details
    G11 P1B-6-1.4T-RA-HK-2.5M
    Reference no. 710647
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 3.1
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 710648
  • Details
    G11 P1B-6-1.4T-RA-HK-3M
    Reference no. 710648
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.6
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 710649
  • Details
    G11 P1B-6-1.4T-RA-HK-4M
    Reference no. 710649
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.5
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 710650
  • Details
    G11 P1B-6-1.4T-RA-HK-5M
    Reference no. 710650
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 5.5
Working load limit 0° [kg] 1400
Working load limit laced 1120
Working load limit wrapped around to 6° [kg] 2800
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 710651
  • Details
    G11 P1B-6-1.4T-RA-HK-6M
    Reference no. 710651
    Working load limit 0° [kg] 1400
    Working load limit laced 1120
    Working load limit wrapped around to 6° [kg] 2800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 6.4
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 710652
  • Details
    G11 P1B-8-2.5T-RA-HK-1M
    Reference no. 710652
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.7
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 710653
  • Details
    G11 P1B-8-2.5T-RA-HK-1.5M
    Reference no. 710653
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.4
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 710654
  • Details
    G11 P1B-8-2.5T-RA-HK-2M
    Reference no. 710654
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.2
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 710655
  • Details
    G11 P1B-8-2.5T-RA-HK-2.5M
    Reference no. 710655
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 710656
  • Details
    G11 P1B-8-2.5T-RA-HK-3M
    Reference no. 710656
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.8
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 710657
  • Details
    G11 P1B-8-2.5T-RA-HK-4M
    Reference no. 710657
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.3
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 710658
  • Details
    G11 P1B-8-2.5T-RA-HK-5M
    Reference no. 710658
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 8.9
Working load limit 0° [kg] 2500
Working load limit laced 2000
Working load limit wrapped around to 6° [kg] 5000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 710659
  • Details
    G11 P1B-8-2.5T-RA-HK-6M
    Reference no. 710659
    Working load limit 0° [kg] 2500
    Working load limit laced 2000
    Working load limit wrapped around to 6° [kg] 5000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.5
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 710660
  • Details
    G11 P1B-10-4T-RA-HK-1M
    Reference no. 710660
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.5
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 710661
  • Details
    G11 P1B-10-4T-RA-HK-1.5M
    Reference no. 710661
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.7
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 710662
  • Details
    G11 P1B-10-4T-RA-HK-2M
    Reference no. 710662
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 710663
  • Details
    G11 P1B-10-4T-RA-HK-2.5M
    Reference no. 710663
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 8.2
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 710664
  • Details
    G11 P1B-10-4T-RA-HK-3M
    Reference no. 710664
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.4
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 710665
  • Details
    G11 P1B-10-4T-RA-HK-4M
    Reference no. 710665
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 11.9
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 710666
  • Details
    G11 P1B-10-4T-RA-HK-5M
    Reference no. 710666
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 14.4
Working load limit 0° [kg] 4000
Working load limit laced 3150
Working load limit wrapped around to 6° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 710667
  • Details
    G11 P1B-10-4T-RA-HK-6M
    Reference no. 710667
    Working load limit 0° [kg] 4000
    Working load limit laced 3150
    Working load limit wrapped around to 6° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 16.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 710668
  • Details
    G11 P1B-13-6.7T-RA-HK-1M
    Reference no. 710668
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 710669
  • Details
    G11 P1B-13-6.7T-RA-HK-1.5M
    Reference no. 710669
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 9.3
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 710670
  • Details
    G11 P1B-13-6.7T-RA-HK-2M
    Reference no. 710670
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 11.2
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 710671
  • Details
    G11 P1B-13-6.7T-RA-HK-2.5M
    Reference no. 710671
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 13.5
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 710672
  • Details
    G11 P1B-13-6.7T-RA-HK-3M
    Reference no. 710672
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 15.5
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 710673
  • Details
    G11 P1B-13-6.7T-RA-HK-4M
    Reference no. 710673
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 19.7
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 710674
  • Details
    G11 P1B-13-6.7T-RA-HK-5M
    Reference no. 710674
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 24
Working load limit 0° [kg] 6700
Working load limit laced 5300
Working load limit wrapped around to 6° [kg] 13200
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 710675
  • Details
    G11 P1B-13-6.7T-RA-HK-6M
    Reference no. 710675
    Working load limit 0° [kg] 6700
    Working load limit laced 5300
    Working load limit wrapped around to 6° [kg] 13200
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 28.2
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 710676
  • Details
    C11 P1B-16-10T-RA-HK-1M
    Reference no. 710676
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 10.9
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 710677
  • Details
    C11 P1B-16-10T-RA-HK-1.5M
    Reference no. 710677
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 14.5
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 710678
  • Details
    C11 P1B-16-10T-RA-HK-2M
    Reference no. 710678
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 17.6
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 710679
  • Details
    C11 P1B-16-10T-RA-HK-2.5M
    Reference no. 710679
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 20.6
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 710680
  • Details
    C11 P1B-16-10T-RA-HK-3M
    Reference no. 710680
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 23.6
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 710681
  • Details
    C11 P1B-16-10T-RA-HK-4M
    Reference no. 710681
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 30.2
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 710682
  • Details
    C11 P1B-16-10T-RA-HK-5M
    Reference no. 710682
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 36.3
Working load limit 0° [kg] 10000
Working load limit laced 8000
Working load limit wrapped around to 6° [kg] 20000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 710683
  • Details
    C11 P1B-16-10T-RA-HK-6M
    Reference no. 710683
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Working load limit wrapped around to 6° [kg] 20000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 42.3
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 1
Reference no. 710684
  • Details
    C11 P1B-20-14T-RA-HK-1M
    Reference no. 710684
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 16.9
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 1.5
Reference no. 710685
  • Details
    C11 P1B-20-14T-RA-HK-1.5M
    Reference no. 710685
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 21
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 710686
  • Details
    C11 P1B-20-14T-RA-HK-2M
    Reference no. 710686
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 26.1
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 2.5
Reference no. 710687
  • Details
    C11 P1B-20-14T-RA-HK-2.5M
    Reference no. 710687
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 30.1
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 710688
  • Details
    C11 P1B-20-14T-RA-HK-3M
    Reference no. 710688
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 34.2
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 710689
  • Details
    C11 P1B-20-14T-RA-HK-4M
    Reference no. 710689
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 43.4
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 710690
  • Details
    C11 P1B-20-14T-RA-HK-5M
    Reference no. 710690
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 52.5
Working load limit 0° [kg] 14000
Working load limit laced 11200
Working load limit wrapped around to 6° [kg] 28000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 710691
  • Details
    C11 P1B-20-14T-RA-HK-6M
    Reference no. 710691
    Working load limit 0° [kg] 14000
    Working load limit laced 11200
    Working load limit wrapped around to 6° [kg] 28000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 61.7
Working load limit 0° [kg] 19000
Working load limit laced 15000
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 710692
  • Details
    C11 P1B-22-19T-RA-HK-3M
    Reference no. 710692
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 55.1
Working load limit 0° [kg] 19000
Working load limit laced 15000
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 710693
  • Details
    C11 P1B-22-19T-RA-HK-4M
    Reference no. 710693
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 66.1
Working load limit 0° [kg] 19000
Working load limit laced 15000
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 710694
  • Details
    C11 P1B-22-19T-RA-HK-6M
    Reference no. 710694
    Working load limit 0° [kg] 19000
    Working load limit laced 15000
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 89.6
Working load limit 0° [kg] 26500
Working load limit laced 21200
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 710695
  • Details
    C11 P1B-26-26.5T-RA-H-3M
    Reference no. 710695
    Working load limit 0° [kg] 26500
    Working load limit laced 21200
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 73.9
Working load limit 0° [kg] 26500
Working load limit laced 21200
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 710696
  • Details
    C11 P1B-26-26.5T-RA-H-4M
    Reference no. 710696
    Working load limit 0° [kg] 26500
    Working load limit laced 21200
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 89.1
Working load limit 0° [kg] 26500
Working load limit laced 21200
Working load limit wrapped around to 6° [kg] 37500
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 710697
  • Details
    C11 P1B-26-26.5T-RA-H-6M
    Reference no. 710697
    Working load limit 0° [kg] 26500
    Working load limit laced 21200
    Working load limit wrapped around to 6° [kg] 37500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 121.9
Working load limit 0° [kg] 40000
Working load limit laced 32000
Working load limit wrapped around to 6° [kg] 80000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 710698
  • Details
    C11 P1B-32-40T-RA-H-3M
    Reference no. 710698
    Working load limit 0° [kg] 40000
    Working load limit laced 32000
    Working load limit wrapped around to 6° [kg] 80000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 101.1
Working load limit 0° [kg] 40000
Working load limit laced 32000
Working load limit wrapped around to 6° [kg] 80000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 710699
  • Details
    C11 P1B-32-40T-RA-H-4M
    Reference no. 710699
    Working load limit 0° [kg] 40000
    Working load limit laced 32000
    Working load limit wrapped around to 6° [kg] 80000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 124.2
Working load limit 0° [kg] 40000
Working load limit laced 32000
Working load limit wrapped around to 6° [kg] 80000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 710700
  • Details
    C11 P1B-32-40T-RA-H-6M
    Reference no. 710700
    Working load limit 0° [kg] 40000
    Working load limit laced 32000
    Working load limit wrapped around to 6° [kg] 80000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 175.1
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
