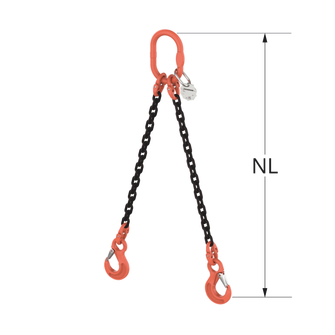

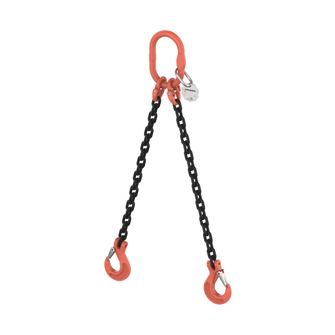

HIT PRO 1 chain sling, quality grade 10, 2-leg Standard load hook

HIT PRO 1 chain sling, quality grade 10, 2-leg Standard load hook
Chain sling with standard load hook for 2-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 2-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2000
    1400
    1600
    1120
    6
    1
    710824
    G12 P1B-6-2T-RA-HK-1M
    Reference no. 710824
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 2.9
  • 2000
    1400
    1600
    1120
    6
    1.5
    710825
    G12 P1B-6-2T-RA-HK-1.5M
    Reference no. 710825
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.9
  • 2000
    1400
    1600
    1120
    6
    2
    710826
    G12 P1B-6-2T-RA-HK-2M
    Reference no. 710826
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 4.9
  • 2000
    1400
    1600
    1120
    6
    2.5
    710827
    G12 P1B-6-2T-RA-HK-2.5M
    Reference no. 710827
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5.8
  • 2000
    1400
    1600
    1120
    6
    3
    710828
    G12 P1B-6-2T-RA-HK-3M
    Reference no. 710828
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 6.8
  • 2000
    1400
    1600
    1120
    6
    4
    710829
    G12 P1B-6-2T-RA-HK-4M
    Reference no. 710829
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 8.7
  • 2000
    1400
    1600
    1120
    6
    5
    710830
    G12 P1B-6-2T-RA-HK-5M
    Reference no. 710830
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 10.6
  • 2000
    1400
    1600
    1120
    6
    6
    710831
    G12 P1B-6-2T-RA-HK-6M
    Reference no. 710831
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 12.5
  • 3550
    2500
    2800
    2000
    8
    1
    710832
    G12 P1B-8-3.55T-RA-HK-1M
    Reference no. 710832
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 4.8
  • 3550
    2500
    2800
    2000
    8
    1.5
    710833
    G12 P1B-8-3.55T-RA-HK-1.5M
    Reference no. 710833
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 6.5
  • 3550
    2500
    2800
    2000
    8
    2
    710834
    G12 P1B-8-3.55T-RA-HK-2M
    Reference no. 710834
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 8
  • 3550
    2500
    2800
    2000
    8
    2.5
    710835
    G12 P1B-8-3.55T-RA-HK-2.5M
    Reference no. 710835
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 9.5
  • 3550
    2500
    2800
    2000
    8
    3
    710836
    G12 P1B-8-3.55T-RA-HK-3M
    Reference no. 710836
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 11.2
  • 3550
    2500
    2800
    2000
    8
    4
    710837
    G12 P1B-8-3.55T-RA-HK-4M
    Reference no. 710837
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 14.3
  • 3550
    2500
    2800
    2000
    8
    5
    710838
    G12 P1B-8-3.55T-RA-HK-5M
    Reference no. 710838
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 17.5
  • 3550
    2500
    2800
    2000
    8
    6
    710839
    G12 P1B-8-3.55T-RA-HK-6M
    Reference no. 710839
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 20.5
  • 5600
    4000
    4250
    3150
    10
    1
    710840
    G12 P1B-10-5.6T-RA-HK-1M
    Reference no. 710840
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 8.2
  • 5600
    4000
    4250
    3150
    10
    1.5
    710841
    G12 P1B-10-5.6T-RA-HK-1.5M
    Reference no. 710841
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 10.9
  • 5600
    4000
    4250
    3150
    10
    2
    710842
    G12 P1B-10-5.6T-RA-HK-2M
    Reference no. 710842
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 13.3
  • 5600
    4000
    4250
    3150
    10
    2.5
    710843
    G12 P1B-10-5.6T-RA-HK-2.5M
    Reference no. 710843
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 15.6
  • 5600
    4000
    4250
    3150
    10
    3
    710844
    G12 P1B-10-5.6T-RA-HK-3M
    Reference no. 710844
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 18.3
  • 5600
    4000
    4250
    3150
    10
    4
    710845
    G12 P1B-10-5.6T-RA-HK-4M
    Reference no. 710845
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 23
  • 5600
    4000
    4250
    3150
    10
    5
    710846
    G12 P1B-10-5.6T-RA-HK-5M
    Reference no. 710846
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 28
  • 5600
    4000
    4250
    3150
    10
    6
    710847
    G12 P1B-10-5.6T-RA-HK-6M
    Reference no. 710847
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 33
  • 9500
    6700
    7500
    5300
    13
    1
    710848
    G12 P1B-13-9.5T-RA-HK-1M
    Reference no. 710848
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 13.1
  • 9500
    6700
    7500
    5300
    13
    1.5
    710849
    G12 P1B-13-9.5T-RA-HK-1.5M
    Reference no. 710849
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 17.6
  • 9500
    6700
    7500
    5300
    13
    2
    710850
    G12 P1B-13-9.5T-RA-HK-2M
    Reference no. 710850
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 21.6
  • 9500
    6700
    7500
    5300
    13
    2.5
    710851
    G12 P1B-13-9.5T-RA-HK-2.5M
    Reference no. 710851
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 25.5
  • 9500
    6700
    7500
    5300
    13
    3
    710852
    G12 P1B-13-9.5T-RA-HK-3M
    Reference no. 710852
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 30
  • 9500
    6700
    7500
    5300
    13
    4
    710853
    G12 P1B-13-9.5T-RA-HK-4M
    Reference no. 710853
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 38.5
  • 9500
    6700
    7500
    5300
    13
    5
    710854
    G12 P1B-13-9.5T-RA-HK-5M
    Reference no. 710854
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 46.3
  • 9500
    6700
    7500
    5300
    13
    6
    710855
    G12 P1B-13-9.5T-RA-HK-6M
    Reference no. 710855
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 54.8
  • 14000
    10000
    11200
    8000
    16
    1
    710856
    C12 P1B-16-14T-RA-HK-1M
    Reference no. 710856
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 20.9
  • 14000
    10000
    11200
    8000
    16
    1.5
    710857
    C12 P1B-16-14T-RA-HK-1.5M
    Reference no. 710857
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 26.9
  • 14000
    10000
    11200
    8000
    16
    2
    710858
    C12 P1B-16-14T-RA-HK-2M
    Reference no. 710858
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 34.2
  • 14000
    10000
    11200
    8000
    16
    2.5
    710859
    C12 P1B-16-14T-RA-HK-2.5M
    Reference no. 710859
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 40.2
  • 14000
    10000
    11200
    8000
    16
    3
    710860
    C12 P1B-16-14T-RA-HK-3M
    Reference no. 710860
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 46.2
  • 14000
    10000
    11200
    8000
    16
    4
    710861
    C12 P1B-16-14T-RA-HK-4M
    Reference no. 710861
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 58.3
  • 14000
    1000
    11200
    8000
    16
    5
    710862
    C12 P1B-16-14T-RA-HK-5M
    Reference no. 710862
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 71.5
  • 14000
    10000
    11200
    8000
    16
    6
    710863
    C12 P1B-16-14T-RA-HK-6M
    Reference no. 710863
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 83.6
  • 20000
    14000
    16000
    11200
    20
    1
    710864
    C12 P1B-20-20T-RA-HK-1M
    Reference no. 710864
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 32.3
  • 20000
    14000
    16000
    11200
    20
    1.5
    710865
    C12 P1B-20-20T-RA-HK-1.5M
    Reference no. 710865
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 40.5
  • 20000
    14000
    16000
    11200
    20
    2
    710866
    C12 P1B-20-20T-RA-HK-2M
    Reference no. 710866
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 50.6
  • 20000
    14000
    16000
    11200
    20
    2.5
    710867
    C12 P1B-20-20T-RA-HK-2.5M
    Reference no. 710867
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 58.8
  • 20000
    14000
    16000
    11200
    20
    3
    710868
    C12 P1B-20-20T-RA-HK-3M
    Reference no. 710868
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 68.9
  • 20000
    14000
    16000
    11200
    20
    4
    710869
    C12 P1B-20-20T-RA-HK-4M
    Reference no. 710869
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 85.2
  • 20000
    14000
    16000
    11200
    20
    5
    710870
    C12 P1B-20-20T-RA-HK-5M
    Reference no. 710870
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 103.5
  • 20000
    14000
    16000
    11200
    20
    6
    710871
    C12 P1B-20-20T-RA-HK-6M
    Reference no. 710871
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 121.8
  • 26500
    19000
    21200
    15000
    22
    3
    710872
    C12 P1B-22-26.5T-RA-HK-3M
    Reference no. 710872
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 15000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 101.8
  • 26500
    19000
    21200
    15000
    22
    4
    710873
    C12 P1B-22-26.5T-RA-HK-4M
    Reference no. 710873
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 15000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 126.9
  • 26500
    19000
    21200
    15000
    22
    6
    710874
    C12 P1B-22-26.5T-RA-HK-6M
    Reference no. 710874
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 15000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 174
  • 37500
    26500
    30000
    21200
    26
    3
    710875
    C12 P1B-26-37.5T-RA-H-3M
    Reference no. 710875
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Working load limit laced 0–45° [kg] 30000
    Working load limit laced 45−60° [kg] 21200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 122.1
  • 37500
    26500
    30000
    21200
    26
    4
    710876
    C12 P1B-26-37.5T-RA-H-4M
    Reference no. 710876
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Working load limit laced 0–45° [kg] 30000
    Working load limit laced 45−60° [kg] 21200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 152.4
  • 37500
    26500
    30000
    21200
    26
    6
    710877
    C12 P1B-26-37.5T-RA-H-6M
    Reference no. 710877
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Working load limit laced 0–45° [kg] 30000
    Working load limit laced 45−60° [kg] 21200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 218
  • 56000
    40000
    44800
    32000
    32
    3
    710878
    C12 P1B-32-56T-RA-H-3M
    Reference no. 710878
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Working load limit laced 0–45° [kg] 44800
    Working load limit laced 45−60° [kg] 32000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 218.5
  • 56000
    40000
    44800
    32000
    32
    4
    710879
    C12 P1B-32-56T-RA-H-4M
    Reference no. 710879
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Working load limit laced 0–45° [kg] 44800
    Working load limit laced 45−60° [kg] 32000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 264.8
  • 56000
    40000
    44800
    32000
    32
    6
    710880
    C12 P1B-32-56T-RA-H-6M
    Reference no. 710880
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Working load limit laced 0–45° [kg] 44800
    Working load limit laced 45−60° [kg] 32000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 357.4
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 710824
  • Details
    G12 P1B-6-2T-RA-HK-1M
    Reference no. 710824
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 2.9
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 710825
  • Details
    G12 P1B-6-2T-RA-HK-1.5M
    Reference no. 710825
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.9
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 710826
  • Details
    G12 P1B-6-2T-RA-HK-2M
    Reference no. 710826
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 4.9
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 710827
  • Details
    G12 P1B-6-2T-RA-HK-2.5M
    Reference no. 710827
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 5.8
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 710828
  • Details
    G12 P1B-6-2T-RA-HK-3M
    Reference no. 710828
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 6.8
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 710829
  • Details
    G12 P1B-6-2T-RA-HK-4M
    Reference no. 710829
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 8.7
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 710830
  • Details
    G12 P1B-6-2T-RA-HK-5M
    Reference no. 710830
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 10.6
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 710831
  • Details
    G12 P1B-6-2T-RA-HK-6M
    Reference no. 710831
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 12.5
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 710832
  • Details
    G12 P1B-8-3.55T-RA-HK-1M
    Reference no. 710832
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 4.8
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 710833
  • Details
    G12 P1B-8-3.55T-RA-HK-1.5M
    Reference no. 710833
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 6.5
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 710834
  • Details
    G12 P1B-8-3.55T-RA-HK-2M
    Reference no. 710834
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 8
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 710835
  • Details
    G12 P1B-8-3.55T-RA-HK-2.5M
    Reference no. 710835
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 9.5
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 710836
  • Details
    G12 P1B-8-3.55T-RA-HK-3M
    Reference no. 710836
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 11.2
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 710837
  • Details
    G12 P1B-8-3.55T-RA-HK-4M
    Reference no. 710837
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 14.3
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 710838
  • Details
    G12 P1B-8-3.55T-RA-HK-5M
    Reference no. 710838
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 17.5
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 710839
  • Details
    G12 P1B-8-3.55T-RA-HK-6M
    Reference no. 710839
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 20.5
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 710840
  • Details
    G12 P1B-10-5.6T-RA-HK-1M
    Reference no. 710840
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 8.2
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 710841
  • Details
    G12 P1B-10-5.6T-RA-HK-1.5M
    Reference no. 710841
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 10.9
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 710842
  • Details
    G12 P1B-10-5.6T-RA-HK-2M
    Reference no. 710842
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 13.3
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 710843
  • Details
    G12 P1B-10-5.6T-RA-HK-2.5M
    Reference no. 710843
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 15.6
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 710844
  • Details
    G12 P1B-10-5.6T-RA-HK-3M
    Reference no. 710844
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 18.3
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 710845
  • Details
    G12 P1B-10-5.6T-RA-HK-4M
    Reference no. 710845
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 23
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 710846
  • Details
    G12 P1B-10-5.6T-RA-HK-5M
    Reference no. 710846
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 28
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 710847
  • Details
    G12 P1B-10-5.6T-RA-HK-6M
    Reference no. 710847
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 33
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 710848
  • Details
    G12 P1B-13-9.5T-RA-HK-1M
    Reference no. 710848
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 13.1
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 710849
  • Details
    G12 P1B-13-9.5T-RA-HK-1.5M
    Reference no. 710849
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 17.6
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 710850
  • Details
    G12 P1B-13-9.5T-RA-HK-2M
    Reference no. 710850
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 21.6
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 710851
  • Details
    G12 P1B-13-9.5T-RA-HK-2.5M
    Reference no. 710851
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 25.5
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 710852
  • Details
    G12 P1B-13-9.5T-RA-HK-3M
    Reference no. 710852
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 30
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 710853
  • Details
    G12 P1B-13-9.5T-RA-HK-4M
    Reference no. 710853
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 38.5
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 710854
  • Details
    G12 P1B-13-9.5T-RA-HK-5M
    Reference no. 710854
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 46.3
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 710855
  • Details
    G12 P1B-13-9.5T-RA-HK-6M
    Reference no. 710855
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 54.8
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 710856
  • Details
    C12 P1B-16-14T-RA-HK-1M
    Reference no. 710856
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 20.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 710857
  • Details
    C12 P1B-16-14T-RA-HK-1.5M
    Reference no. 710857
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 26.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 710858
  • Details
    C12 P1B-16-14T-RA-HK-2M
    Reference no. 710858
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 34.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 710859
  • Details
    C12 P1B-16-14T-RA-HK-2.5M
    Reference no. 710859
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 40.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 710860
  • Details
    C12 P1B-16-14T-RA-HK-3M
    Reference no. 710860
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 46.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 710861
  • Details
    C12 P1B-16-14T-RA-HK-4M
    Reference no. 710861
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 58.3
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 1000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 710862
  • Details
    C12 P1B-16-14T-RA-HK-5M
    Reference no. 710862
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 71.5
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 710863
  • Details
    C12 P1B-16-14T-RA-HK-6M
    Reference no. 710863
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 83.6
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 1
Reference no. 710864
  • Details
    C12 P1B-20-20T-RA-HK-1M
    Reference no. 710864
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 32.3
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 1.5
Reference no. 710865
  • Details
    C12 P1B-20-20T-RA-HK-1.5M
    Reference no. 710865
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 40.5
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 710866
  • Details
    C12 P1B-20-20T-RA-HK-2M
    Reference no. 710866
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 50.6
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 2.5
Reference no. 710867
  • Details
    C12 P1B-20-20T-RA-HK-2.5M
    Reference no. 710867
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 58.8
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 710868
  • Details
    C12 P1B-20-20T-RA-HK-3M
    Reference no. 710868
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 68.9
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 710869
  • Details
    C12 P1B-20-20T-RA-HK-4M
    Reference no. 710869
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 85.2
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 710870
  • Details
    C12 P1B-20-20T-RA-HK-5M
    Reference no. 710870
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 103.5
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 710871
  • Details
    C12 P1B-20-20T-RA-HK-6M
    Reference no. 710871
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 121.8
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Working load limit laced 0–45° [kg] 21200
Working load limit laced 45−60° [kg] 15000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 710872
  • Details
    C12 P1B-22-26.5T-RA-HK-3M
    Reference no. 710872
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 15000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 101.8
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Working load limit laced 0–45° [kg] 21200
Working load limit laced 45−60° [kg] 15000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 710873
  • Details
    C12 P1B-22-26.5T-RA-HK-4M
    Reference no. 710873
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 15000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 126.9
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Working load limit laced 0–45° [kg] 21200
Working load limit laced 45−60° [kg] 15000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 710874
  • Details
    C12 P1B-22-26.5T-RA-HK-6M
    Reference no. 710874
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 15000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 174
Working load limit 0–45° [kg] 37500
Working load limit 45−60° [kg] 26500
Working load limit laced 0–45° [kg] 30000
Working load limit laced 45−60° [kg] 21200
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 710875
  • Details
    C12 P1B-26-37.5T-RA-H-3M
    Reference no. 710875
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Working load limit laced 0–45° [kg] 30000
    Working load limit laced 45−60° [kg] 21200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 122.1
Working load limit 0–45° [kg] 37500
Working load limit 45−60° [kg] 26500
Working load limit laced 0–45° [kg] 30000
Working load limit laced 45−60° [kg] 21200
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 710876
  • Details
    C12 P1B-26-37.5T-RA-H-4M
    Reference no. 710876
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Working load limit laced 0–45° [kg] 30000
    Working load limit laced 45−60° [kg] 21200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 152.4
Working load limit 0–45° [kg] 37500
Working load limit 45−60° [kg] 26500
Working load limit laced 0–45° [kg] 30000
Working load limit laced 45−60° [kg] 21200
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 710877
  • Details
    C12 P1B-26-37.5T-RA-H-6M
    Reference no. 710877
    Working load limit 0–45° [kg] 37500
    Working load limit 45−60° [kg] 26500
    Working load limit laced 0–45° [kg] 30000
    Working load limit laced 45−60° [kg] 21200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 218
Working load limit 0–45° [kg] 56000
Working load limit 45−60° [kg] 40000
Working load limit laced 0–45° [kg] 44800
Working load limit laced 45−60° [kg] 32000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 710878
  • Details
    C12 P1B-32-56T-RA-H-3M
    Reference no. 710878
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Working load limit laced 0–45° [kg] 44800
    Working load limit laced 45−60° [kg] 32000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 218.5
Working load limit 0–45° [kg] 56000
Working load limit 45−60° [kg] 40000
Working load limit laced 0–45° [kg] 44800
Working load limit laced 45−60° [kg] 32000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 710879
  • Details
    C12 P1B-32-56T-RA-H-4M
    Reference no. 710879
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Working load limit laced 0–45° [kg] 44800
    Working load limit laced 45−60° [kg] 32000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 264.8
Working load limit 0–45° [kg] 56000
Working load limit 45−60° [kg] 40000
Working load limit laced 0–45° [kg] 44800
Working load limit laced 45−60° [kg] 32000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 710880
  • Details
    C12 P1B-32-56T-RA-H-6M
    Reference no. 710880
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Working load limit laced 0–45° [kg] 44800
    Working load limit laced 45−60° [kg] 32000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 357.4
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
