HIT PRO 1 chain sling, quality grade 10, 2-leg Safety load hooks

HIT PRO 1 chain sling, quality grade 10, 2-leg Safety load hooks

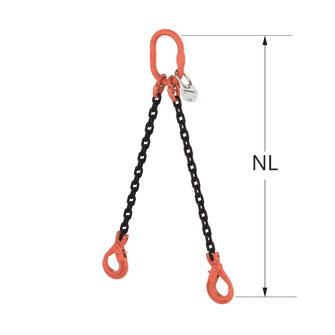

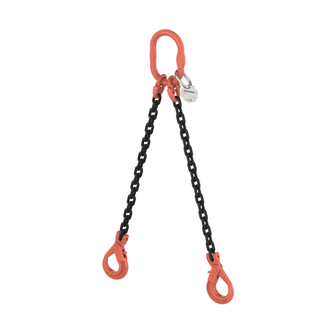

Chain sling with safety load hook for 2-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 2-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2000
    1400
    1600
    1120
    6
    1
    710881
    G12 P1B-6-2T-RA-SHK-1M
    Reference no. 710881
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 3.3
  • 2000
    1400
    1600
    1120
    6
    1.5
    710882
    G12 P1B-6-2T-RA-SHK-1.5M
    Reference no. 710882
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 4.3
  • 2000
    1400
    1600
    1120
    6
    2
    710883
    G12 P1B-6-2T-RA-SHK-2M
    Reference no. 710883
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.3
  • 2000
    1400
    1600
    1120
    6
    2.5
    710884
    G12 P1B-6-2T-RA-SHK-2.5M
    Reference no. 710884
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 6.2
  • 2000
    1400
    1600
    1120
    6
    3
    710885
    G12 P1B-6-2T-RA-SHK-3M
    Reference no. 710885
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 7.2
  • 2000
    1400
    1600
    1120
    6
    4
    710886
    G12 P1B-6-2T-RA-SHK-4M
    Reference no. 710886
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 9.2
  • 2000
    1400
    1600
    1120
    6
    5
    710887
    G12 P1B-6-2T-RA-SHK-5M
    Reference no. 710887
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 11
  • 2000
    1400
    1600
    1120
    6
    6
    710888
    G12 P1B-6-2T-RA-SHK-6M
    Reference no. 710888
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13
  • 3550
    2500
    2800
    2000
    8
    1
    710889
    G12 P1B-8-3.55T-RA-SHK-1M
    Reference no. 710889
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 5.7
  • 3550
    2500
    2800
    2000
    8
    1.5
    710890
    G12 P1B-8-3.55T-RA-SHK-1.5M
    Reference no. 710890
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 7.3
  • 3550
    2500
    2800
    2000
    8
    2
    710891
    G12 P1B-8-3.55T-RA-SHK-2M
    Reference no. 710891
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 8.8
  • 3550
    2500
    2800
    2000
    8
    2.5
    710892
    G12 P1B-8-3.55T-RA-SHK-2.5M
    Reference no. 710892
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 10.4
  • 3550
    2500
    2800
    2000
    8
    3
    710893
    G12 P1B-8-3.55T-RA-SHK-3M
    Reference no. 710893
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 11.9
  • 3550
    2500
    2800
    2000
    8
    4
    710894
    G12 P1B-8-3.55T-RA-SHK-4M
    Reference no. 710894
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 15.1
  • 3550
    2500
    2800
    2000
    8
    5
    710895
    G12 P1B-8-3.55T-RA-SHK-5M
    Reference no. 710895
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 18.3
  • 3550
    2500
    2800
    2000
    8
    6
    710896
    G12 P1B-8-3.55T-RA-SHK-6M
    Reference no. 710896
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 21.4
  • 5600
    4000
    4250
    3150
    10
    1
    710897
    G12 P1B-10-5.6T-RA-SHK-1M
    Reference no. 710897
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 9.1
  • 5600
    4000
    4250
    3150
    10
    1.5
    710898
    G12 P1B-10-5.6T-RA-SHK-1.5M
    Reference no. 710898
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 11.4
  • 5600
    4000
    4250
    3150
    10
    2
    710899
    G12 P1B-10-5.6T-RA-SHK-2M
    Reference no. 710899
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 14.1
  • 5600
    4000
    4250
    3150
    10
    2.5
    710900
    G12 P1B-10-5.6T-RA-SHK-2.5M
    Reference no. 710900
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 16.5
  • 5600
    4000
    4250
    3150
    10
    3
    710901
    G12 P1B-10-5.6T-RA-SHK-3M
    Reference no. 710901
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 18.8
  • 5600
    4000
    4250
    3150
    10
    4
    710902
    G12 P1B-10-5.6T-RA-SHK-4M
    Reference no. 710902
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 23.8
  • 5600
    4000
    4250
    3150
    10
    5
    710903
    G12 P1B-10-5.6T-RA-SHK-5M
    Reference no. 710903
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 28.9
  • 5600
    4000
    4250
    3150
    10
    6
    710904
    G12 P1B-10-5.6T-RA-SHK-6M
    Reference no. 710904
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 33.6
  • 9500
    6700
    7500
    5300
    13
    1
    710905
    G12 P1B-13-9.5T-RA-SHK-1M
    Reference no. 710905
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 16.1
  • 9500
    6700
    7500
    5300
    13
    1.5
    710906
    G12 P1B-13-9.5T-RA-SHK-1.5M
    Reference no. 710906
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 20
  • 9500
    6700
    7500
    5300
    13
    2
    710907
    G12 P1B-13-9.5T-RA-SHK-2M
    Reference no. 710907
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 23.9
  • 9500
    6700
    7500
    5300
    13
    2.5
    710908
    G12 P1B-13-9.5T-RA-SHK-2.5M
    Reference no. 710908
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 28.5
  • 9500
    6700
    7500
    5300
    13
    3
    710909
    G12 P1B-13-9.5T-RA-SHK-3M
    Reference no. 710909
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 32.4
  • 9500
    6700
    7500
    5300
    13
    4
    710910
    G12 P1B-13-9.5T-RA-SHK-4M
    Reference no. 710910
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 40.9
  • 9500
    6700
    7500
    5300
    13
    5
    710911
    G12 P1B-13-9.5T-RA-SHK-5M
    Reference no. 710911
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 49.3
  • 9500
    6700
    7500
    5300
    13
    6
    710912
    G12 P1B-13-9.5T-RA-SHK-6M
    Reference no. 710912
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 57.8
  • 14000
    10000
    11200
    8000
    16
    1
    710913
    C12 P1B-16-14T-RA-SHK-1M
    Reference no. 710913
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 26.5
  • 14000
    10000
    11200
    8000
    16
    1.5
    710914
    C12 P1B-16-14T-RA-SHK-1.5M
    Reference no. 710914
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 32.5
  • 14000
    10000
    11200
    8000
    16
    2
    710915
    C12 P1B-16-14T-RA-SHK-2M
    Reference no. 710915
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 38.5
  • 14000
    10000
    11200
    8000
    16
    2.5
    710916
    C12 P1B-16-14T-RA-SHK-2.5M
    Reference no. 710916
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 44.6
  • 14000
    10000
    11200
    8000
    16
    3
    710917
    C12 P1B-16-14T-RA-SHK-3M
    Reference no. 710917
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 50.6
  • 14000
    10000
    11200
    8000
    16
    4
    710918
    C12 P1B-16-14T-RA-SHK-4M
    Reference no. 710918
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 63.9
  • 14000
    10000
    11200
    8000
    16
    5
    710919
    C12 P1B-16-14T-RA-SHK-5M
    Reference no. 710919
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 75.9
  • 14000
    10000
    11200
    8000
    16
    6
    710920
    C12 P1B-16-14T-RA-SHK-6M
    Reference no. 710920
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 89.2
  • 20000
    14000
    16000
    11200
    20
    1
    710921
    C12 P1B-20-20T-RA-SHK-1M
    Reference no. 710921
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 39.9
  • 20000
    14000
    16000
    11200
    20
    1.5
    710922
    C12 P1B-20-20T-RA-SHK-1.5M
    Reference no. 710922
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 50.1
  • 20000
    14000
    16000
    11200
    20
    2
    710923
    C12 P1B-20-20T-RA-SHK-2M
    Reference no. 710923
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 58.2
  • 20000
    14000
    16000
    11200
    20
    2.5
    710924
    C12 P1B-20-20T-RA-SHK-2.5M
    Reference no. 710924
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 68.4
  • 20000
    14000
    16000
    11200
    20
    3
    710925
    C12 P1B-20-20T-RA-SHK-3M
    Reference no. 710925
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 76.5
  • 20000
    14000
    16000
    11200
    20
    4
    710926
    C12 P1B-20-20T-RA-SHK-4M
    Reference no. 710926
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 94.8
  • 20000
    14000
    16000
    11200
    20
    5
    710927
    C12 P1B-20-20T-RA-SHK-5M
    Reference no. 710927
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 113.1
  • 20000
    14000
    16000
    11200
    20
    6
    710928
    C12 P1B-20-20T-RA-SHK-6M
    Reference no. 710928
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 129.4
  • 26500
    19000
    21200
    11200
    22
    3
    710929
    C12 P1B-22-26.5T-RA-SHK-3M
    Reference no. 710929
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 102.9
  • 26500
    19000
    21200
    11200
    22
    4
    710930
    C12 P1B-22-26.5T-RA-SHK-4M
    Reference no. 710930
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 128
  • 26500
    19000
    21200
    11200
    22
    6
    710931
    C12 P1B-22-26.5T-RA-SHK-6M
    Reference no. 710931
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 175
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 710881
  • Details
    G12 P1B-6-2T-RA-SHK-1M
    Reference no. 710881
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 3.3
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 710882
  • Details
    G12 P1B-6-2T-RA-SHK-1.5M
    Reference no. 710882
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 4.3
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 710883
  • Details
    G12 P1B-6-2T-RA-SHK-2M
    Reference no. 710883
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.3
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 710884
  • Details
    G12 P1B-6-2T-RA-SHK-2.5M
    Reference no. 710884
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 6.2
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 710885
  • Details
    G12 P1B-6-2T-RA-SHK-3M
    Reference no. 710885
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 7.2
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 710886
  • Details
    G12 P1B-6-2T-RA-SHK-4M
    Reference no. 710886
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 9.2
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 710887
  • Details
    G12 P1B-6-2T-RA-SHK-5M
    Reference no. 710887
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 11
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 710888
  • Details
    G12 P1B-6-2T-RA-SHK-6M
    Reference no. 710888
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 710889
  • Details
    G12 P1B-8-3.55T-RA-SHK-1M
    Reference no. 710889
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 5.7
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 710890
  • Details
    G12 P1B-8-3.55T-RA-SHK-1.5M
    Reference no. 710890
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 7.3
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 710891
  • Details
    G12 P1B-8-3.55T-RA-SHK-2M
    Reference no. 710891
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 8.8
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 710892
  • Details
    G12 P1B-8-3.55T-RA-SHK-2.5M
    Reference no. 710892
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 10.4
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 710893
  • Details
    G12 P1B-8-3.55T-RA-SHK-3M
    Reference no. 710893
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 11.9
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 710894
  • Details
    G12 P1B-8-3.55T-RA-SHK-4M
    Reference no. 710894
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 15.1
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 710895
  • Details
    G12 P1B-8-3.55T-RA-SHK-5M
    Reference no. 710895
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 18.3
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 710896
  • Details
    G12 P1B-8-3.55T-RA-SHK-6M
    Reference no. 710896
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 21.4
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 710897
  • Details
    G12 P1B-10-5.6T-RA-SHK-1M
    Reference no. 710897
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 9.1
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 710898
  • Details
    G12 P1B-10-5.6T-RA-SHK-1.5M
    Reference no. 710898
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 11.4
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 710899
  • Details
    G12 P1B-10-5.6T-RA-SHK-2M
    Reference no. 710899
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 14.1
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 710900
  • Details
    G12 P1B-10-5.6T-RA-SHK-2.5M
    Reference no. 710900
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 16.5
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 710901
  • Details
    G12 P1B-10-5.6T-RA-SHK-3M
    Reference no. 710901
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 18.8
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 710902
  • Details
    G12 P1B-10-5.6T-RA-SHK-4M
    Reference no. 710902
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 23.8
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 710903
  • Details
    G12 P1B-10-5.6T-RA-SHK-5M
    Reference no. 710903
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 28.9
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 710904
  • Details
    G12 P1B-10-5.6T-RA-SHK-6M
    Reference no. 710904
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 33.6
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 710905
  • Details
    G12 P1B-13-9.5T-RA-SHK-1M
    Reference no. 710905
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 16.1
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 710906
  • Details
    G12 P1B-13-9.5T-RA-SHK-1.5M
    Reference no. 710906
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 20
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 710907
  • Details
    G12 P1B-13-9.5T-RA-SHK-2M
    Reference no. 710907
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 23.9
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 710908
  • Details
    G12 P1B-13-9.5T-RA-SHK-2.5M
    Reference no. 710908
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 28.5
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 710909
  • Details
    G12 P1B-13-9.5T-RA-SHK-3M
    Reference no. 710909
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 32.4
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 710910
  • Details
    G12 P1B-13-9.5T-RA-SHK-4M
    Reference no. 710910
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 40.9
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 710911
  • Details
    G12 P1B-13-9.5T-RA-SHK-5M
    Reference no. 710911
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 49.3
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 710912
  • Details
    G12 P1B-13-9.5T-RA-SHK-6M
    Reference no. 710912
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 57.8
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 710913
  • Details
    C12 P1B-16-14T-RA-SHK-1M
    Reference no. 710913
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 26.5
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 710914
  • Details
    C12 P1B-16-14T-RA-SHK-1.5M
    Reference no. 710914
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 32.5
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 710915
  • Details
    C12 P1B-16-14T-RA-SHK-2M
    Reference no. 710915
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 38.5
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 710916
  • Details
    C12 P1B-16-14T-RA-SHK-2.5M
    Reference no. 710916
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 44.6
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 710917
  • Details
    C12 P1B-16-14T-RA-SHK-3M
    Reference no. 710917
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 50.6
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 710918
  • Details
    C12 P1B-16-14T-RA-SHK-4M
    Reference no. 710918
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 63.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 710919
  • Details
    C12 P1B-16-14T-RA-SHK-5M
    Reference no. 710919
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 75.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 710920
  • Details
    C12 P1B-16-14T-RA-SHK-6M
    Reference no. 710920
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 89.2
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 1
Reference no. 710921
  • Details
    C12 P1B-20-20T-RA-SHK-1M
    Reference no. 710921
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 39.9
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 1.5
Reference no. 710922
  • Details
    C12 P1B-20-20T-RA-SHK-1.5M
    Reference no. 710922
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 50.1
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 710923
  • Details
    C12 P1B-20-20T-RA-SHK-2M
    Reference no. 710923
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 58.2
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 2.5
Reference no. 710924
  • Details
    C12 P1B-20-20T-RA-SHK-2.5M
    Reference no. 710924
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 68.4
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 710925
  • Details
    C12 P1B-20-20T-RA-SHK-3M
    Reference no. 710925
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 76.5
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 710926
  • Details
    C12 P1B-20-20T-RA-SHK-4M
    Reference no. 710926
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 94.8
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 710927
  • Details
    C12 P1B-20-20T-RA-SHK-5M
    Reference no. 710927
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 113.1
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Working load limit laced 0–45° [kg] 16000
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 710928
  • Details
    C12 P1B-20-20T-RA-SHK-6M
    Reference no. 710928
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Working load limit laced 0–45° [kg] 16000
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 129.4
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Working load limit laced 0–45° [kg] 21200
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 710929
  • Details
    C12 P1B-22-26.5T-RA-SHK-3M
    Reference no. 710929
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 102.9
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Working load limit laced 0–45° [kg] 21200
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 710930
  • Details
    C12 P1B-22-26.5T-RA-SHK-4M
    Reference no. 710930
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 128
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Working load limit laced 0–45° [kg] 21200
Working load limit laced 45−60° [kg] 11200
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 710931
  • Details
    C12 P1B-22-26.5T-RA-SHK-6M
    Reference no. 710931
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Working load limit laced 0–45° [kg] 21200
    Working load limit laced 45−60° [kg] 11200
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 175
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
