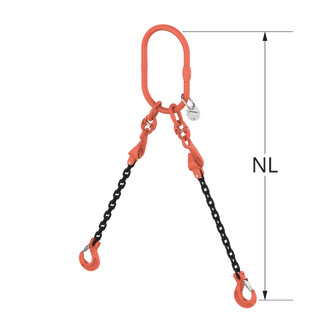

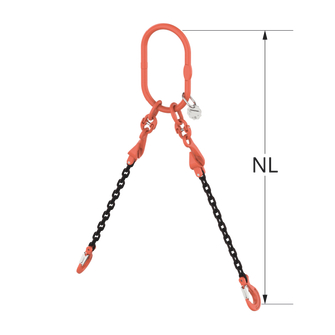

HIT PRO chain sling quality grade 10, 2-leg, can be shortened with extra-large suspension link

HIT PRO chain sling quality grade 10, 2-leg, can be shortened with extra-large suspension link
Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener enables horizontal alignment of the load in multi-leg attachment even with difficult transport procedures as well as suitable adjustment of the load for assemblies. Cathodic EPD provides extreme corrosion-protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 2-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • can be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 3550
    2500
    2800
    2000
    8
    4
    712137
    G12 P1B-8-3.55T-GL-XKI-HK-4M
    Reference no. 712137
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 19.9
  • 3550
    2500
    2800
    2000
    8
    6
    712138
    G12 P1B-8-3.55T-GL-XKI-HK-6M
    Reference no. 712138
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 26.1
  • 3550
    2500
    2800
    2000
    8
    8
    712139
    G12 P1B-8-3.55T-GL-XKI-HK-8M
    Reference no. 712139
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 8
    Weight approx. [kg] 32.4
  • 5600
    4000
    4250
    3150
    10
    4
    712140
    G12 P1B-10-5.6T-GL-XKI-HK-4M
    Reference no. 712140
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 29
  • 5600
    4000
    4250
    3150
    10
    6
    711993
    G12 P1B-10-5.6T-GL-XKI-HK-6M
    Reference no. 711993
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 39.4
  • 5600
    4000
    4250
    3150
    10
    8
    712141
    G12 P1B-10-5.6T-GL-XKI-HK-8M
    Reference no. 712141
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 8
    Weight approx. [kg] 48.5
  • 9500
    6700
    7500
    5300
    13
    4
    712142
    G12 P1B-13-9.5T-GL-XKI-HK-4M
    Reference no. 712142
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 50.5
  • 9500
    6700
    7500
    5300
    13
    6
    712143
    G12 P1B-13-9.5T-GL-XKI-HK-6M
    Reference no. 712143
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 62
  • 9500
    6700
    7500
    5300
    13
    8
    712144
    G12 P1B-13-9.5T-GL-XKI-HK-8M
    Reference no. 712144
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 8
    Weight approx. [kg] 83.7
  • 14000
    10000
    11200
    8000
    16
    4
    712145
    C12 P1B-16-14T-GL-XKI-HK-4M
    Reference no. 712145
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 73.1
  • 14000
    10000
    11200
    8000
    16
    6
    712146
    C12 P1B-16-14T-GL-XKI-HK-6M
    Reference no. 712146
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 97.2
  • 14000
    10000
    11200
    8000
    16
    8
    712147
    C12 P1B-16-14T-GL-XKI-HK-8M
    Reference no. 712147
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 8
    Weight approx. [kg] 122.5
