HIT PRO chain sling quality grade 10, 2-leg, can be shortened Safety load hooks

HIT PRO chain sling quality grade 10, 2-leg, can be shortened Safety load hooks

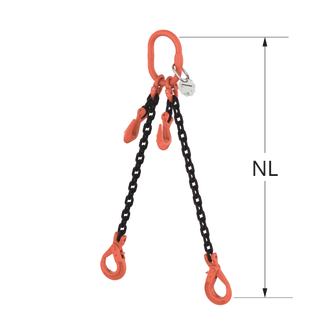

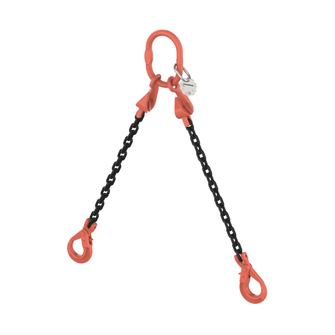

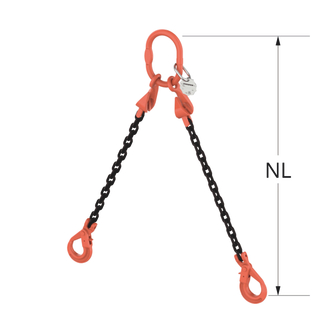

Chain sling with shortening parallel hook and safety load hook for 2-leg attachment Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 2-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • can be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2000
    1400
    6
    2
    710971
    G12 P1B-6-2T-RAVK-SHK-2M
    Reference no. 710971
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.5
  • 2000
    1400
    6
    3
    710972
    G12 P1B-6-2T-RAVK-SHK-3M
    Reference no. 710972
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 7.4
  • 2000
    1400
    6
    4
    710973
    G12 P1B-6-2T-RAVK-SHK-4M
    Reference no. 710973
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 9.4
  • 2000
    1400
    6
    5
    710974
    G12 P1B-6-2T-RAVK-SHK-5M
    Reference no. 710974
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 11.2
  • 2000
    1400
    6
    6
    710975
    G12 P1B-6-2T-RAVK-SHK-6M
    Reference no. 710975
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13.2
  • 3550
    2500
    8
    2
    710976
    G12 P1B-8-3.55T-RAVK-SHK-2M
    Reference no. 710976
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 9.5
  • 3550
    2500
    8
    3
    710977
    G12 P1B-8-3.55T-RAVK-SHK-3M
    Reference no. 710977
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 12.7
  • 3550
    2500
    8
    4
    710978
    G12 P1B-8-3.55T-RAVK-SHK-4M
    Reference no. 710978
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 15.8
  • 3550
    2500
    8
    5
    710979
    G12 P1B-8-3.55T-RAVK-SHK-5M
    Reference no. 710979
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 19
  • 3550
    2500
    8
    6
    710980
    G12 P1B-8-3.55T-RAVK-SHK-6M
    Reference no. 710980
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 22.2
  • 5600
    4000
    10
    2
    710981
    G12 P1B-10-5.6T-RAVK-SHK-2M
    Reference no. 710981
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 15.2
  • 5600
    4000
    10
    3
    710982
    G12 P1B-10-5.6T-RAVK-SHK-3M
    Reference no. 710982
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 20.2
  • 5600
    4000
    10
    4
    710983
    G12 P1B-10-5.6T-RAVK-SHK-4M
    Reference no. 710983
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 25
  • 5600
    4000
    10
    5
    710984
    G12 P1B-10-5.6T-RAVK-SHK-5M
    Reference no. 710984
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 30
  • 5600
    4000
    10
    6
    710985
    G12 P1B-10-5.6T-RAVK-SHK-6M
    Reference no. 710985
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 35
  • 9500
    6700
    13
    2
    710986
    G12 P1B-13-9.5T-RAVK-SHK-2M
    Reference no. 710986
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 27
  • 9500
    6700
    13
    3
    710987
    G12 P1B-13-9.5T-RAVK-SHK-3M
    Reference no. 710987
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 35.5
  • 9500
    6700
    13
    4
    710988
    G12 P1B-13-9.5T-RAVK-SHK-4M
    Reference no. 710988
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 44
  • 9500
    6700
    13
    5
    710989
    G12 P1B-13-9.5T-RAVK-SHK-5M
    Reference no. 710989
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 51.8
  • 9500
    6700
    13
    6
    710990
    G12 P1B-13-9.5T-RAVK-SHK-6M
    Reference no. 710990
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 60.3
  • 14000
    10000
    16
    2
    710991
    C12 P1B-16-14T-RAVK-SHK-2M
    Reference no. 710991
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 44.4
  • 14000
    10000
    16
    3
    710992
    C12 P1B-16-14T-RAVK-SHK-3M
    Reference no. 710992
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 56.4
  • 14000
    10000
    16
    4
    710993
    C12 P1B-16-14T-RAVK-SHK-4M
    Reference no. 710993
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 68.5
  • 14000
    10000
    16
    5
    710994
    C12 P1B-16-14T-RAVK-SHK-5M
    Reference no. 710994
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 81.8
  • 14000
    10000
    16
    6
    710995
    C12 P1B-16-14T-RAVK-SHK-6M
    Reference no. 710995
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 93.8
  • 20000
    14000
    20
    2
    710996
    C12 P1B-20-20T-RA-PKU-SHK-2M
    Reference no. 710996
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 68.6
  • 20000
    14000
    20
    3
    710997
    C12 P1B-20-20T-RA-PKU-SHK-3M
    Reference no. 710997
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 86.9
  • 20000
    14000
    20
    4
    710998
    C12 P1B-20-20T-RA-PKU-SHK-4M
    Reference no. 710998
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 105.2
  • 20000
    14000
    20
    5
    710999
    C12 P1B-20-20T-RA-PKU-SHK-5M
    Reference no. 710999
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 123.5
  • 20000
    14000
    20
    6
    711000
    C12 P1B-20-20T-RA-PKU-SHK-6M
    Reference no. 711000
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 139.8
  • 26500
    19000
    22
    3
    711001
    C12 P1B-22-26.5T-RA-PKU-SHK-3M
    Reference no. 711001
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 124.8
  • 26500
    19000
    22
    4
    711002
    C12 P1B-22-26.5T-RA-PKU-SHK-4M
    Reference no. 711002
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 149.9
  • 26500
    19000
    22
    6
    711003
    C12 P1B-22-26.5T-RA-PKU-SHK-6M
    Reference no. 711003
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 196.9
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 710971
  • Details
    G12 P1B-6-2T-RAVK-SHK-2M
    Reference no. 710971
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.5
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 710972
  • Details
    G12 P1B-6-2T-RAVK-SHK-3M
    Reference no. 710972
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 7.4
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 710973
  • Details
    G12 P1B-6-2T-RAVK-SHK-4M
    Reference no. 710973
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 9.4
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 710974
  • Details
    G12 P1B-6-2T-RAVK-SHK-5M
    Reference no. 710974
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 11.2
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 710975
  • Details
    G12 P1B-6-2T-RAVK-SHK-6M
    Reference no. 710975
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13.2
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 710976
  • Details
    G12 P1B-8-3.55T-RAVK-SHK-2M
    Reference no. 710976
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 9.5
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 710977
  • Details
    G12 P1B-8-3.55T-RAVK-SHK-3M
    Reference no. 710977
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 12.7
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 710978
  • Details
    G12 P1B-8-3.55T-RAVK-SHK-4M
    Reference no. 710978
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 15.8
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 710979
  • Details
    G12 P1B-8-3.55T-RAVK-SHK-5M
    Reference no. 710979
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 19
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 710980
  • Details
    G12 P1B-8-3.55T-RAVK-SHK-6M
    Reference no. 710980
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 22.2
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 710981
  • Details
    G12 P1B-10-5.6T-RAVK-SHK-2M
    Reference no. 710981
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 15.2
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 710982
  • Details
    G12 P1B-10-5.6T-RAVK-SHK-3M
    Reference no. 710982
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 20.2
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 710983
  • Details
    G12 P1B-10-5.6T-RAVK-SHK-4M
    Reference no. 710983
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 25
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 710984
  • Details
    G12 P1B-10-5.6T-RAVK-SHK-5M
    Reference no. 710984
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 30
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 710985
  • Details
    G12 P1B-10-5.6T-RAVK-SHK-6M
    Reference no. 710985
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 35
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 710986
  • Details
    G12 P1B-13-9.5T-RAVK-SHK-2M
    Reference no. 710986
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 27
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 710987
  • Details
    G12 P1B-13-9.5T-RAVK-SHK-3M
    Reference no. 710987
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 35.5
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 710988
  • Details
    G12 P1B-13-9.5T-RAVK-SHK-4M
    Reference no. 710988
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 44
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 710989
  • Details
    G12 P1B-13-9.5T-RAVK-SHK-5M
    Reference no. 710989
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 51.8
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 710990
  • Details
    G12 P1B-13-9.5T-RAVK-SHK-6M
    Reference no. 710990
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 60.3
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 710991
  • Details
    C12 P1B-16-14T-RAVK-SHK-2M
    Reference no. 710991
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 44.4
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 710992
  • Details
    C12 P1B-16-14T-RAVK-SHK-3M
    Reference no. 710992
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 56.4
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 710993
  • Details
    C12 P1B-16-14T-RAVK-SHK-4M
    Reference no. 710993
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 68.5
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 710994
  • Details
    C12 P1B-16-14T-RAVK-SHK-5M
    Reference no. 710994
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 81.8
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 710995
  • Details
    C12 P1B-16-14T-RAVK-SHK-6M
    Reference no. 710995
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 93.8
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 710996
  • Details
    C12 P1B-20-20T-RA-PKU-SHK-2M
    Reference no. 710996
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 68.6
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 710997
  • Details
    C12 P1B-20-20T-RA-PKU-SHK-3M
    Reference no. 710997
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 86.9
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 710998
  • Details
    C12 P1B-20-20T-RA-PKU-SHK-4M
    Reference no. 710998
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 105.2
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 710999
  • Details
    C12 P1B-20-20T-RA-PKU-SHK-5M
    Reference no. 710999
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 123.5
Working load limit 0–45° [kg] 20000
Working load limit 45−60° [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711000
  • Details
    C12 P1B-20-20T-RA-PKU-SHK-6M
    Reference no. 711000
    Working load limit 0–45° [kg] 20000
    Working load limit 45−60° [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 139.8
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711001
  • Details
    C12 P1B-22-26.5T-RA-PKU-SHK-3M
    Reference no. 711001
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 124.8
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711002
  • Details
    C12 P1B-22-26.5T-RA-PKU-SHK-4M
    Reference no. 711002
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 149.9
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711003
  • Details
    C12 P1B-22-26.5T-RA-PKU-SHK-6M
    Reference no. 711003
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 196.9
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
