HIT PRO 1 chain sling quality grade 10, 4-leg, can be shortened Safety load hooks

HIT PRO 1 chain sling quality grade 10, 4-leg, can be shortened Safety load hooks

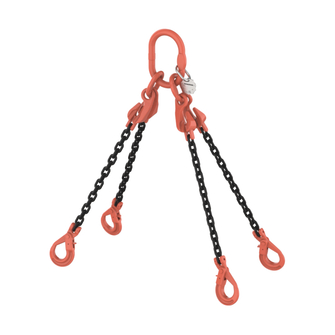

Chain sling with shortening parallel hook and safety load hook for 4-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 4-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • can be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]

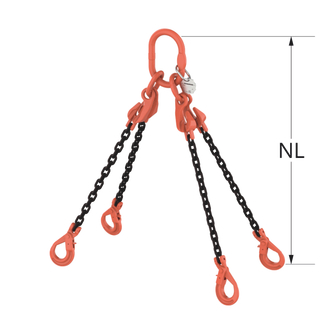

Effective length WLL [m]
Reference no.
Details
  • 3000
    2120
    6
    2
    711151
    G14 P1B-6-3T-RAVK-SHK-2M
    Reference no. 711151
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 11.1
  • 3000
    2120
    6
    3
    711152
    G14 P1B-6-3T-RAVK-SHK-3M
    Reference no. 711152
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 15
  • 3000
    2120
    6
    4
    711153
    G14 P1B-6-3T-RAVK-SHK-4M
    Reference no. 711153
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 18.9
  • 3000
    2120
    6
    5
    711154
    G14 P1B-6-3T-RAVK-SHK-5M
    Reference no. 711154
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 22.6
  • 3000
    2120
    6
    6
    711155
    G14 P1B-6-3T-RAVK-SHK-6M
    Reference no. 711155
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 26.5
  • 5300
    3750
    8
    2
    711156
    G14 P1B-8-5.3T-RAVK-SHK-2M
    Reference no. 711156
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 18.5
  • 5300
    3750
    8
    3
    711157
    G14 P1B-8-5.3T-RAVK-SHK-3M
    Reference no. 711157
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 24.8
  • 5300
    3750
    8
    4
    711158
    G14 P1B-8-5.3T-RAVK-SHK-4M
    Reference no. 711158
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 31.1
  • 5300
    3750
    8
    5
    711159
    G14 P1B-8-5.3T-RAVK-SHK-5M
    Reference no. 711159
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 37.5
  • 5300
    3750
    8
    6
    711160
    G14 P1B-8-5.3T-RAVK-SHK-6M
    Reference no. 711160
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 43.8
  • 8000
    6000
    10
    2
    711161
    G14 P1B-10-8T-RAVK-SHK-2M
    Reference no. 711161
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 29.7
  • 8000
    6000
    10
    3
    711162
    G14 P1B-10-8T-RAVK-SHK-3M
    Reference no. 711162
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 39.7
  • 8000
    6000
    10
    4
    711163
    G14 P1B-10-8T-RAVK-SHK-4M
    Reference no. 711163
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 49.7
  • 8000
    6000
    10
    5
    711164
    G14 P1B-10-8T-RAVK-SHK-5M
    Reference no. 711164
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 59.2
  • 8000
    6000
    10
    6
    711165
    G14 P1B-10-8T-RAVK-SHK-6M
    Reference no. 711165
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 69.2
  • 14000
    10000
    13
    2
    711166
    G14 P1B-13-14T-RAVK-SHK-2M
    Reference no. 711166
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 52.8
  • 14000
    10000
    13
    3
    711167
    G14 P1B-13-14T-RAVK-SHK-3M
    Reference no. 711167
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 69.8
  • 14000
    10000
    13
    4
    711168
    G14 P1B-13-14T-RAVK-SHK-4M
    Reference no. 711168
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 86.7
  • 14000
    10000
    13
    5
    711169
    G14 P1B-13-14T-RAVK-SHK-5M
    Reference no. 711169
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 103.7
  • 14000
    10000
    13
    6
    711170
    G14 P1B-13-14T-RAVK-SHK-6M
    Reference no. 711170
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 119.3
  • 21200
    15000
    16
    2
    711171
    C14 P1B-16-21.2T-RAVK-SHK-2M
    Reference no. 711171
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 83.3
  • 21200
    15000
    16
    3
    711172
    C14 P1B-16-21.2T-RAVK-SHK-3M
    Reference no. 711172
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 109.9
  • 21200
    15000
    16
    4
    711173
    C14 P1B-16-21.2T-RAVK-SHK-4M
    Reference no. 711173
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 134
  • 21200
    15000
    16
    5
    711174
    C14 P1B-16-21.2T-RAVK-SHK-5M
    Reference no. 711174
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 160.5
  • 21200
    15000
    16
    6
    711175
    C14 P1B-16-21.2T-RAVK-SHK-6M
    Reference no. 711175
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 184.6
  • 30000
    21200
    20
    2
    711176
    C14 P1B-20-30T-GA-PKU-SHK-2M
    Reference no. 711176
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 135.7
  • 30000
    21200
    20
    3
    711177
    C14 P1B-20-30T-GA-PKU-SHK-3M
    Reference no. 711177
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 172.3
  • 30000
    21200
    20
    4
    711178
    C14 P1B-20-30T-GA-PKU-SHK-4M
    Reference no. 711178
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 204.9
  • 30000
    21200
    20
    5
    711179
    C14 P1B-20-30T-GA-PKU-SHK-5M
    Reference no. 711179
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 241.5
  • 30000
    21200
    20
    6
    711180
    C14 P1B-20-30T-GA-PKU-SHK-6M
    Reference no. 711180
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 278.1
  • 40000
    28000
    22
    3
    711181
    C14 P1B-22-40T-GA-PKU-SHK-3M
    Reference no. 711181
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 245.8
  • 40000
    28000
    22
    4
    711182
    C14 P1B-22-40T-GA-PKU-SHK-4M
    Reference no. 711182
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 289.7
  • 40000
    28000
    22
    6
    711183
    C14 P1B-22-40T-GA-PKU-SHK-6M
    Reference no. 711183
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 383.8
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 711151
  • Details
    G14 P1B-6-3T-RAVK-SHK-2M
    Reference no. 711151
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 11.1
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 711152
  • Details
    G14 P1B-6-3T-RAVK-SHK-3M
    Reference no. 711152
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 15
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 711153
  • Details
    G14 P1B-6-3T-RAVK-SHK-4M
    Reference no. 711153
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 18.9
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 711154
  • Details
    G14 P1B-6-3T-RAVK-SHK-5M
    Reference no. 711154
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 22.6
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 711155
  • Details
    G14 P1B-6-3T-RAVK-SHK-6M
    Reference no. 711155
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 26.5
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 711156
  • Details
    G14 P1B-8-5.3T-RAVK-SHK-2M
    Reference no. 711156
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 18.5
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 711157
  • Details
    G14 P1B-8-5.3T-RAVK-SHK-3M
    Reference no. 711157
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 24.8
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 711158
  • Details
    G14 P1B-8-5.3T-RAVK-SHK-4M
    Reference no. 711158
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 31.1
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 711159
  • Details
    G14 P1B-8-5.3T-RAVK-SHK-5M
    Reference no. 711159
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 37.5
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 711160
  • Details
    G14 P1B-8-5.3T-RAVK-SHK-6M
    Reference no. 711160
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 43.8
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 711161
  • Details
    G14 P1B-10-8T-RAVK-SHK-2M
    Reference no. 711161
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 29.7
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 711162
  • Details
    G14 P1B-10-8T-RAVK-SHK-3M
    Reference no. 711162
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 39.7
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 711163
  • Details
    G14 P1B-10-8T-RAVK-SHK-4M
    Reference no. 711163
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 49.7
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 711164
  • Details
    G14 P1B-10-8T-RAVK-SHK-5M
    Reference no. 711164
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 59.2
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 711165
  • Details
    G14 P1B-10-8T-RAVK-SHK-6M
    Reference no. 711165
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 69.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 711166
  • Details
    G14 P1B-13-14T-RAVK-SHK-2M
    Reference no. 711166
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 52.8
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 711167
  • Details
    G14 P1B-13-14T-RAVK-SHK-3M
    Reference no. 711167
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 69.8
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 711168
  • Details
    G14 P1B-13-14T-RAVK-SHK-4M
    Reference no. 711168
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 86.7
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 711169
  • Details
    G14 P1B-13-14T-RAVK-SHK-5M
    Reference no. 711169
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 103.7
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 711170
  • Details
    G14 P1B-13-14T-RAVK-SHK-6M
    Reference no. 711170
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 119.3
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 711171
  • Details
    C14 P1B-16-21.2T-RAVK-SHK-2M
    Reference no. 711171
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 83.3
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 711172
  • Details
    C14 P1B-16-21.2T-RAVK-SHK-3M
    Reference no. 711172
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 109.9
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 711173
  • Details
    C14 P1B-16-21.2T-RAVK-SHK-4M
    Reference no. 711173
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 134
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 711174
  • Details
    C14 P1B-16-21.2T-RAVK-SHK-5M
    Reference no. 711174
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 160.5
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 711175
  • Details
    C14 P1B-16-21.2T-RAVK-SHK-6M
    Reference no. 711175
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 184.6
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 711176
  • Details
    C14 P1B-20-30T-GA-PKU-SHK-2M
    Reference no. 711176
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 135.7
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 711177
  • Details
    C14 P1B-20-30T-GA-PKU-SHK-3M
    Reference no. 711177
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 172.3
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 711178
  • Details
    C14 P1B-20-30T-GA-PKU-SHK-4M
    Reference no. 711178
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 204.9
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 711179
  • Details
    C14 P1B-20-30T-GA-PKU-SHK-5M
    Reference no. 711179
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 241.5
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711180
  • Details
    C14 P1B-20-30T-GA-PKU-SHK-6M
    Reference no. 711180
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 278.1
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711181
  • Details
    C14 P1B-22-40T-GA-PKU-SHK-3M
    Reference no. 711181
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 245.8
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711182
  • Details
    C14 P1B-22-40T-GA-PKU-SHK-4M
    Reference no. 711182
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 289.7
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711183
  • Details
    C14 P1B-22-40T-GA-PKU-SHK-6M
    Reference no. 711183
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 383.8
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
