HIT PRO 1 chain sling quality grade 10, 4-leg, can be shortened Standard load hook

HIT PRO 1 chain sling quality grade 10, 4-leg, can be shortened Standard load hook

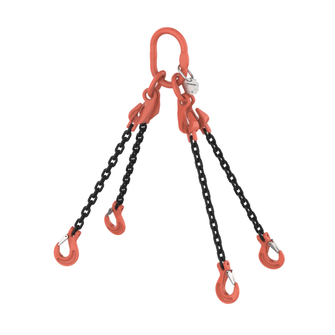

Chain sling with shortener parallel hook and standard load hook for 4-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 4-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • can be shortened
Product variants
Working load limit 0–45° [kg]
Nominal size of chain [mm]

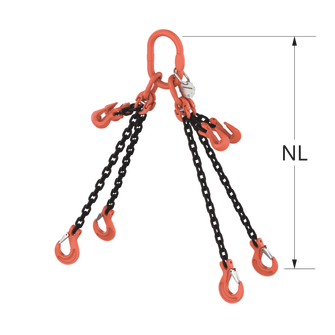

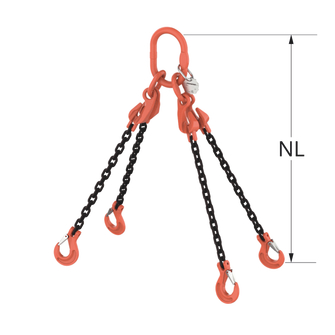

Effective length WLL [m]
Reference no.
Details
  • 3000
    6
    2
    711112
    G14 P1B-6-3T-RAVK-HK-2M
    Reference no. 711112
    Working load limit 0–45° [kg] 3000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 10.3
  • 3000
    6
    3
    711113
    G14 P1B-6-3T-RAVK-HK-3M
    Reference no. 711113
    Working load limit 0–45° [kg] 3000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 14
  • 3000
    6
    4
    711114
    G14 P1B-6-3T-RAVK-HK-4M
    Reference no. 711114
    Working load limit 0–45° [kg] 3000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 17.9
  • 3000
    6
    5
    711115
    G14 P1B-6-3T-RAVK-HK-5M
    Reference no. 711115
    Working load limit 0–45° [kg] 3000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 21.7
  • 3000
    6
    6
    711116
    G14 P1B-6-3T-RAVK-HK-6M
    Reference no. 711116
    Working load limit 0–45° [kg] 3000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 25.6
  • 5300
    8
    2
    711117
    G14 P1B-8-5.3T-RAVK-HK-2M
    Reference no. 711117
    Working load limit 0–45° [kg] 5300
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 17
  • 5300
    8
    3
    711118
    G14 P1B-8-5.3T-RAVK-HK-3M
    Reference no. 711118
    Working load limit 0–45° [kg] 5300
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 23.3
  • 5300
    8
    4
    711119
    G14 P1B-8-5.3T-RAVK-HK-4M
    Reference no. 711119
    Working load limit 0–45° [kg] 5300
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 29.6
  • 5300
    8
    5
    711120
    G14 P1B-8-5.3T-RAVK-HK-5M
    Reference no. 711120
    Working load limit 0–45° [kg] 5300
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 35.7
  • 5300
    8
    6
    711121
    G14 P1B-8-5.3T-RAVK-HK-6M
    Reference no. 711121
    Working load limit 0–45° [kg] 5300
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 42
  • 8000
    10
    2
    711122
    G14 P1B-10-8T-RAVK-HK-2M
    Reference no. 711122
    Working load limit 0–45° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 28.5
  • 8000
    10
    3
    711123
    G14 P1B-10-8T-RAVK-HK-3M
    Reference no. 711123
    Working load limit 0–45° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 38.6
  • 8000
    10
    4
    711124
    G14 P1B-10-8T-RAVK-HK-4M
    Reference no. 711124
    Working load limit 0–45° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 48
  • 8000
    10
    5
    711125
    G14 P1B-10-8T-RAVK-HK-5M
    Reference no. 711125
    Working load limit 0–45° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 58.1
  • 8000
    10
    6
    711126
    G14 P1B-10-8T-RAVK-HK-6M
    Reference no. 711126
    Working load limit 0–45° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 68.1
  • 14000
    13
    2
    711127
    G14 P1B-13-14T-RAVK-HK-2M
    Reference no. 711127
    Working load limit 0–45° [kg] 14000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 48.1
  • 14000
    13
    3
    711128
    G14 P1B-13-14T-RAVK-HK-3M
    Reference no. 711128
    Working load limit 0–45° [kg] 14000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 65.1
  • 14000
    13
    4
    711129
    G14 P1B-13-14T-RAVK-HK-4M
    Reference no. 711129
    Working load limit 0–45° [kg] 14000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 80.7
  • 14000
    13
    5
    711130
    G14 P1B-13-14T-RAVK-HK-5M
    Reference no. 711130
    Working load limit 0–45° [kg] 14000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 97.7
  • 14000
    13
    6
    711131
    G14 P1B-13-14T-RAVK-HK-6M
    Reference no. 711131
    Working load limit 0–45° [kg] 14000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 114.6
  • 21200
    16
    2
    711132
    C14 P1B-16-21.2T-RAVK-HK-2M
    Reference no. 711132
    Working load limit 0–45° [kg] 21200
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 74.5
  • 21200
    16
    3
    711133
    C14 P1B-16-21.2T-RAVK-HK-3M
    Reference no. 711133
    Working load limit 0–45° [kg] 21200
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 101.1
  • 21200
    16
    4
    711134
    C14 P1B-16-21.2T-RAVK-HK-4M
    Reference no. 711134
    Working load limit 0–45° [kg] 21200
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 125.2
  • 21200
    16
    5
    711135
    C14 P1B-16-21.2T-RAVK-HK-5M
    Reference no. 711135
    Working load limit 0–45° [kg] 21200
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 149.3
  • 21200
    16
    6
    711136
    C14 P1B-16-21.2T-RAVK-HK-6M
    Reference no. 711136
    Working load limit 0–45° [kg] 21200
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 175.8
  • 30000
    20
    2
    711137
    C14 P1B-20-30T-GA-PKU-HK-2M
    Reference no. 711137
    Working load limit 0–45° [kg] 30000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 122.7
  • 30000
    20
    3
    711138
    C14 P1B-20-30T-GA-PKU-HK-3M
    Reference no. 711138
    Working load limit 0–45° [kg] 30000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 159.3
  • 30000
    20
    4
    711139
    C14 P1B-20-30T-GA-PKU-HK-4M
    Reference no. 711139
    Working load limit 0–45° [kg] 30000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 195.9
  • 30000
    20
    5
    711140
    C14 P1B-20-30T-GA-PKU-HK-5M
    Reference no. 711140
    Working load limit 0–45° [kg] 30000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 228.4
  • 30000
    20
    6
    711141
    C14 P1B-20-30T-GA-PKU-HK-6M
    Reference no. 711141
    Working load limit 0–45° [kg] 30000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 265.1
  • 40000
    22
    3
    711142
    C14 P1B-22-40T-GA-PKU-HK-3M
    Reference no. 711142
    Working load limit 0–45° [kg] 40000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 246.6
  • 40000
    22
    4
    711143
    C14 P1B-22-40T-GA-PKU-HK-4M
    Reference no. 711143
    Working load limit 0–45° [kg] 40000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 290.5
  • 40000
    22
    6
    711144
    C14 P1B-22-40T-GA-PKU-HK-6M
    Reference no. 711144
    Working load limit 0–45° [kg] 40000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 384.6
  • 56000
    26
    3
    711145
    C14 P1B-26-56T-GA-PH-H-3M
    Reference no. 711145
    Working load limit 0–45° [kg] 56000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 316.8
  • 56000
    26
    4
    711146
    C14 P1B-26-56T-GA-PH-H-4M
    Reference no. 711146
    Working load limit 0–45° [kg] 56000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 377.4
  • 56000
    26
    6
    711147
    C14 P1B-26-56T-GA-PH-H-6M
    Reference no. 711147
    Working load limit 0–45° [kg] 56000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 508.6
  • 84000
    32
    3
    711148
    C14 P1B-32-84T-GA-PH-H-3M
    Reference no. 711148
    Working load limit 0–45° [kg] 84000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 543
  • 84000
    32
    4
    711149
    C14 P1B-32-84T-GA-PH-H-4M
    Reference no. 711149
    Working load limit 0–45° [kg] 84000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 635.6
  • 84000
    32
    6
    711150
    C14 P1B-32-84T-GA-PH-H-6M
    Reference no. 711150
    Working load limit 0–45° [kg] 84000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 820.7
Working load limit 0–45° [kg] 3000
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 711112
  • Details
    G14 P1B-6-3T-RAVK-HK-2M
    Reference no. 711112
    Working load limit 0–45° [kg] 3000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 10.3
Working load limit 0–45° [kg] 3000
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 711113
  • Details
    G14 P1B-6-3T-RAVK-HK-3M
    Reference no. 711113
    Working load limit 0–45° [kg] 3000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 14
Working load limit 0–45° [kg] 3000
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 711114
  • Details
    G14 P1B-6-3T-RAVK-HK-4M
    Reference no. 711114
    Working load limit 0–45° [kg] 3000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 17.9
Working load limit 0–45° [kg] 3000
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 711115
  • Details
    G14 P1B-6-3T-RAVK-HK-5M
    Reference no. 711115
    Working load limit 0–45° [kg] 3000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 21.7
Working load limit 0–45° [kg] 3000
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 711116
  • Details
    G14 P1B-6-3T-RAVK-HK-6M
    Reference no. 711116
    Working load limit 0–45° [kg] 3000
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 25.6
Working load limit 0–45° [kg] 5300
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 711117
  • Details
    G14 P1B-8-5.3T-RAVK-HK-2M
    Reference no. 711117
    Working load limit 0–45° [kg] 5300
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 17
Working load limit 0–45° [kg] 5300
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 711118
  • Details
    G14 P1B-8-5.3T-RAVK-HK-3M
    Reference no. 711118
    Working load limit 0–45° [kg] 5300
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 23.3
Working load limit 0–45° [kg] 5300
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 711119
  • Details
    G14 P1B-8-5.3T-RAVK-HK-4M
    Reference no. 711119
    Working load limit 0–45° [kg] 5300
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 29.6
Working load limit 0–45° [kg] 5300
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 711120
  • Details
    G14 P1B-8-5.3T-RAVK-HK-5M
    Reference no. 711120
    Working load limit 0–45° [kg] 5300
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 35.7
Working load limit 0–45° [kg] 5300
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 711121
  • Details
    G14 P1B-8-5.3T-RAVK-HK-6M
    Reference no. 711121
    Working load limit 0–45° [kg] 5300
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 42
Working load limit 0–45° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 711122
  • Details
    G14 P1B-10-8T-RAVK-HK-2M
    Reference no. 711122
    Working load limit 0–45° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 28.5
Working load limit 0–45° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 711123
  • Details
    G14 P1B-10-8T-RAVK-HK-3M
    Reference no. 711123
    Working load limit 0–45° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 38.6
Working load limit 0–45° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 711124
  • Details
    G14 P1B-10-8T-RAVK-HK-4M
    Reference no. 711124
    Working load limit 0–45° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 48
Working load limit 0–45° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 711125
  • Details
    G14 P1B-10-8T-RAVK-HK-5M
    Reference no. 711125
    Working load limit 0–45° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 58.1
Working load limit 0–45° [kg] 8000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 711126
  • Details
    G14 P1B-10-8T-RAVK-HK-6M
    Reference no. 711126
    Working load limit 0–45° [kg] 8000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 68.1
Working load limit 0–45° [kg] 14000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 711127
  • Details
    G14 P1B-13-14T-RAVK-HK-2M
    Reference no. 711127
    Working load limit 0–45° [kg] 14000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 48.1
Working load limit 0–45° [kg] 14000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 711128
  • Details
    G14 P1B-13-14T-RAVK-HK-3M
    Reference no. 711128
    Working load limit 0–45° [kg] 14000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 65.1
Working load limit 0–45° [kg] 14000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 711129
  • Details
    G14 P1B-13-14T-RAVK-HK-4M
    Reference no. 711129
    Working load limit 0–45° [kg] 14000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 80.7
Working load limit 0–45° [kg] 14000
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 711130
  • Details
    G14 P1B-13-14T-RAVK-HK-5M
    Reference no. 711130
    Working load limit 0–45° [kg] 14000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 97.7
Working load limit 0–45° [kg] 14000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 711131
  • Details
    G14 P1B-13-14T-RAVK-HK-6M
    Reference no. 711131
    Working load limit 0–45° [kg] 14000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 114.6
Working load limit 0–45° [kg] 21200
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 711132
  • Details
    C14 P1B-16-21.2T-RAVK-HK-2M
    Reference no. 711132
    Working load limit 0–45° [kg] 21200
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 74.5
Working load limit 0–45° [kg] 21200
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 711133
  • Details
    C14 P1B-16-21.2T-RAVK-HK-3M
    Reference no. 711133
    Working load limit 0–45° [kg] 21200
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 101.1
Working load limit 0–45° [kg] 21200
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 711134
  • Details
    C14 P1B-16-21.2T-RAVK-HK-4M
    Reference no. 711134
    Working load limit 0–45° [kg] 21200
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 125.2
Working load limit 0–45° [kg] 21200
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 711135
  • Details
    C14 P1B-16-21.2T-RAVK-HK-5M
    Reference no. 711135
    Working load limit 0–45° [kg] 21200
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 149.3
Working load limit 0–45° [kg] 21200
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 711136
  • Details
    C14 P1B-16-21.2T-RAVK-HK-6M
    Reference no. 711136
    Working load limit 0–45° [kg] 21200
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 175.8
Working load limit 0–45° [kg] 30000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 711137
  • Details
    C14 P1B-20-30T-GA-PKU-HK-2M
    Reference no. 711137
    Working load limit 0–45° [kg] 30000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 122.7
Working load limit 0–45° [kg] 30000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 711138
  • Details
    C14 P1B-20-30T-GA-PKU-HK-3M
    Reference no. 711138
    Working load limit 0–45° [kg] 30000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 159.3
Working load limit 0–45° [kg] 30000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 711139
  • Details
    C14 P1B-20-30T-GA-PKU-HK-4M
    Reference no. 711139
    Working load limit 0–45° [kg] 30000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 195.9
Working load limit 0–45° [kg] 30000
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 711140
  • Details
    C14 P1B-20-30T-GA-PKU-HK-5M
    Reference no. 711140
    Working load limit 0–45° [kg] 30000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 228.4
Working load limit 0–45° [kg] 30000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711141
  • Details
    C14 P1B-20-30T-GA-PKU-HK-6M
    Reference no. 711141
    Working load limit 0–45° [kg] 30000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 265.1
Working load limit 0–45° [kg] 40000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711142
  • Details
    C14 P1B-22-40T-GA-PKU-HK-3M
    Reference no. 711142
    Working load limit 0–45° [kg] 40000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 246.6
Working load limit 0–45° [kg] 40000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711143
  • Details
    C14 P1B-22-40T-GA-PKU-HK-4M
    Reference no. 711143
    Working load limit 0–45° [kg] 40000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 290.5
Working load limit 0–45° [kg] 40000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711144
  • Details
    C14 P1B-22-40T-GA-PKU-HK-6M
    Reference no. 711144
    Working load limit 0–45° [kg] 40000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 384.6
Working load limit 0–45° [kg] 56000
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 711145
  • Details
    C14 P1B-26-56T-GA-PH-H-3M
    Reference no. 711145
    Working load limit 0–45° [kg] 56000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 316.8
Working load limit 0–45° [kg] 56000
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 711146
  • Details
    C14 P1B-26-56T-GA-PH-H-4M
    Reference no. 711146
    Working load limit 0–45° [kg] 56000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 377.4
Working load limit 0–45° [kg] 56000
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 711147
  • Details
    C14 P1B-26-56T-GA-PH-H-6M
    Reference no. 711147
    Working load limit 0–45° [kg] 56000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 508.6
Working load limit 0–45° [kg] 84000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 711148
  • Details
    C14 P1B-32-84T-GA-PH-H-3M
    Reference no. 711148
    Working load limit 0–45° [kg] 84000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 543
Working load limit 0–45° [kg] 84000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 711149
  • Details
    C14 P1B-32-84T-GA-PH-H-4M
    Reference no. 711149
    Working load limit 0–45° [kg] 84000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 635.6
Working load limit 0–45° [kg] 84000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 711150
  • Details
    C14 P1B-32-84T-GA-PH-H-6M
    Reference no. 711150
    Working load limit 0–45° [kg] 84000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 820.7
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
