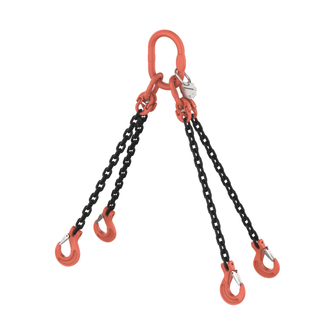

HIT PRO 1 chain sling, quality grade 10, 4-leg Standard load hook

HIT PRO 1 chain sling, quality grade 10, 4-leg Standard load hook
Chain sling with standard load hook for 4-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 4-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]

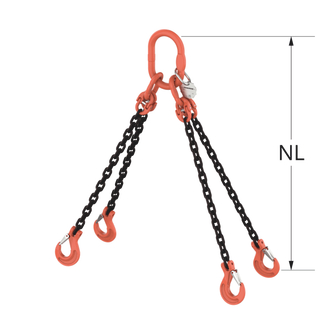

Effective length WLL [m]
Reference no.
Details
  • 3000
    2120
    6
    1
    711004
    G14 P1B-6-3T-GA-HK-1M
    Reference no. 711004
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 5.6
  • 3000
    2120
    6
    1.5
    711005
    G14 P1B-6-3T-GA-HK-1.5M
    Reference no. 711005
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 7.5
  • 3000
    2120
    6
    2
    711006
    G14 P1B-6-3T-GA-HK-2M
    Reference no. 711006
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.4
  • 3000
    2120
    6
    2.5
    711007
    G14 P1B-6-3T-GA-HK-2.5M
    Reference no. 711007
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 11.4
  • 3000
    2120
    6
    3
    711008
    G14 P1B-6-3T-GA-HK-3M
    Reference no. 711008
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13.3
  • 3000
    2120
    6
    4
    711009
    G14 P1B-6-3T-GA-HK-4M
    Reference no. 711009
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 17.2
  • 3000
    2120
    6
    5
    711010
    G14 P1B-6-3T-GA-HK-5M
    Reference no. 711010
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 20.9
  • 3000
    2120
    6
    6
    711011
    G14 P1B-6-3T-GA-HK-6M
    Reference no. 711011
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 24.8
  • 5300
    3750
    8
    1
    711012
    G14 P1B-8-5.3T-GA-HK-1M
    Reference no. 711012
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 9.5
  • 5300
    3750
    8
    1.5
    711013
    G14 P1B-8-5.3T-GA-HK-1.5M
    Reference no. 711013
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 12.5
  • 5300
    3750
    8
    2
    711014
    G14 P1B-8-5.3T-GA-HK-2M
    Reference no. 711014
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 15.9
  • 5300
    3750
    8
    2.5
    711015
    G14 P1B-8-5.3T-GA-HK-2.5M
    Reference no. 711015
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 18.9
  • 5300
    3750
    8
    3
    711016
    G14 P1B-8-5.3T-GA-HK-3M
    Reference no. 711016
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 21.9
  • 5300
    3750
    8
    4
    711017
    G14 P1B-8-5.3T-GA-HK-4M
    Reference no. 711017
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 28.2
  • 5300
    3750
    8
    5
    711018
    G14 P1B-8-5.3T-GA-HK-5M
    Reference no. 711018
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 34.6
  • 5300
    3750
    8
    6
    711019
    G14 P1B-8-5.3T-GA-HK-6M
    Reference no. 711019
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 40.9
  • 8000
    6000
    10
    1
    711020
    G14 P1B-10-8T-GA-HK-1M
    Reference no. 711020
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 15.7
  • 8000
    6000
    10
    1.5
    711021
    G14 P1B-10-8T-GA-HK-1.5M
    Reference no. 711021
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 21
  • 8000
    6000
    10
    2
    711022
    G14 P1B-10-8T-GA-HK-2M
    Reference no. 711022
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 25.8
  • 8000
    6000
    10
    2.5
    711023
    G14 P1B-10-8T-GA-HK-2.5M
    Reference no. 711023
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 30.5
  • 8000
    6000
    10
    3
    711024
    G14 P1B-10-8T-GA-HK-3M
    Reference no. 711024
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 35.8
  • 8000
    6000
    10
    4
    711025
    G14 P1B-10-8T-GA-HK-4M
    Reference no. 711025
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 45.2
  • 8000
    6000
    10
    5
    711026
    G14 P1B-10-8T-GA-HK-5M
    Reference no. 711026
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 55.3
  • 8000
    6000
    10
    6
    711027
    G14 P1B-10-8T-GA-HK-6M
    Reference no. 711027
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 65.3
  • 14000
    10000
    13
    1
    711028
    G14 P1B-13-14T-GA-HK-1M
    Reference no. 711028
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 25.3
  • 14000
    10000
    13
    1.5
    711029
    G14 P1B-13-14T-GA-HK-1.5M
    Reference no. 711029
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 33.2
  • 14000
    10000
    13
    2
    711030
    G14 P1B-13-14T-GA-HK-2M
    Reference no. 711030
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 42.3
  • 14000
    10000
    13
    2.5
    711031
    G14 P1B-13-14T-GA-HK-2.5M
    Reference no. 711031
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 50.1
  • 14000
    10000
    13
    3
    711032
    G14 P1B-13-14T-GA-HK-3M
    Reference no. 711032
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 59.2
  • 14000
    10000
    13
    4
    711033
    G14 P1B-13-14T-GA-HK-4M
    Reference no. 711033
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 74.9
  • 14000
    10000
    13
    5
    711034
    G14 P1B-13-14T-GA-HK-5M
    Reference no. 711034
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 91.9
  • 14000
    10000
    13
    6
    711035
    G14 P1B-13-14T-GA-HK-6M
    Reference no. 711035
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 108.8
  • 21200
    15000
    16
    1
    711036
    C14 P1B-16-21.2T-GA-HK-1M
    Reference no. 711036
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 39.2
  • 21200
    15000
    16
    1.5
    711037
    C14 P1B-16-21.2T-GA-HK-1.5M
    Reference no. 711037
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 51.3
  • 21200
    15000
    16
    2
    711038
    C14 P1B-16-21.2T-GA-HK-2M
    Reference no. 711038
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 63.4
  • 21200
    15000
    16
    2.5
    711039
    C14 P1B-16-21.2T-GA-HK-2.5M
    Reference no. 711039
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 75.4
  • 21200
    15000
    16
    3
    711040
    C14 P1B-16-21.2T-GA-HK-3M
    Reference no. 711040
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 87.5
  • 21200
    15000
    16
    4
    711041
    C14 P1B-16-21.2T-GA-HK-4M
    Reference no. 711041
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 114
  • 21200
    15000
    16
    5
    711042
    C14 P1B-16-21.2T-GA-HK-5M
    Reference no. 711042
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 138.1
  • 21200
    15000
    16
    6
    711043
    C14 P1B-16-21.2T-GA-HK-6M
    Reference no. 711043
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 164.6
  • 30000
    21200
    20
    1
    711044
    C14 P1B-20-30T-GA-HK-1M
    Reference no. 711044
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 63.2
  • 30000
    21200
    20
    1.5
    711045
    C14 P1B-20-30T-GA-HK-1.5M
    Reference no. 711045
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 79.5
  • 30000
    21200
    20
    2
    711046
    C14 P1B-20-30T-GA-HK-2M
    Reference no. 711046
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 99.8
  • 30000
    21200
    20
    2.5
    711047
    C14 P1B-20-30T-GA-HK-2.5M
    Reference no. 711047
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 116.1
  • 30000
    21200
    20
    3
    711048
    C14 P1B-20-30T-GA-HK-3M
    Reference no. 711048
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 132.3
  • 30000
    21200
    20
    4
    711049
    C14 P1B-20-30T-GA-HK-4M
    Reference no. 711049
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 168.9
  • 30000
    21200
    20
    5
    711050
    C14 P1B-20-30T-GA-HK-5M
    Reference no. 711050
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 205.5
  • 30000
    21200
    20
    6
    711051
    C14 P1B-20-30T-GA-HK-6M
    Reference no. 711051
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 242.2
  • 40000
    28000
    22
    3
    711052
    C14 P1B-22-40T-GA-HK-3M
    Reference no. 711052
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 193.6
  • 40000
    28000
    22
    4
    711053
    C14 P1B-22-40T-GA-HK-4M
    Reference no. 711053
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 243.8
  • 40000
    28000
    22
    6
    711054
    C14 P1B-22-40T-GA-HK-6M
    Reference no. 711054
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 337.9
  • 56000
    40000
    26
    3
    711055
    C14 P1B-26-56T-GA-H-3M
    Reference no. 711055
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 264.8
  • 56000
    40000
    26
    4
    711056
    C14 P1B-26-56T-GA-H-4M
    Reference no. 711056
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 325.4
  • 56000
    40000
    26
    6
    711057
    C14 P1B-26-56T-GA-H-6M
    Reference no. 711057
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 456.6
  • 84000
    60000
    32
    3
    711058
    C14 P1B-32-84T-GA-H-3M
    Reference no. 711058
    Working load limit 0–45° [kg] 84000
    Working load limit 45−60° [kg] 60000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 421
  • 84000
    60000
    32
    4
    711059
    C14 P1B-32-84T-GA-H-4M
    Reference no. 711059
    Working load limit 0–45° [kg] 84000
    Working load limit 45−60° [kg] 60000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 513.6
  • 84000
    60000
    32
    6
    711060
    C14 P1B-32-84T-GA-H-6M
    Reference no. 711060
    Working load limit 0–45° [kg] 84000
    Working load limit 45−60° [kg] 60000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 698.7
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 711004
  • Details
    G14 P1B-6-3T-GA-HK-1M
    Reference no. 711004
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 5.6
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 711005
  • Details
    G14 P1B-6-3T-GA-HK-1.5M
    Reference no. 711005
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 7.5
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 711006
  • Details
    G14 P1B-6-3T-GA-HK-2M
    Reference no. 711006
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.4
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 711007
  • Details
    G14 P1B-6-3T-GA-HK-2.5M
    Reference no. 711007
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 11.4
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 711008
  • Details
    G14 P1B-6-3T-GA-HK-3M
    Reference no. 711008
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13.3
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 711009
  • Details
    G14 P1B-6-3T-GA-HK-4M
    Reference no. 711009
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 17.2
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 711010
  • Details
    G14 P1B-6-3T-GA-HK-5M
    Reference no. 711010
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 20.9
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 711011
  • Details
    G14 P1B-6-3T-GA-HK-6M
    Reference no. 711011
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 24.8
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 711012
  • Details
    G14 P1B-8-5.3T-GA-HK-1M
    Reference no. 711012
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 9.5
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 711013
  • Details
    G14 P1B-8-5.3T-GA-HK-1.5M
    Reference no. 711013
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 12.5
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 711014
  • Details
    G14 P1B-8-5.3T-GA-HK-2M
    Reference no. 711014
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 15.9
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 711015
  • Details
    G14 P1B-8-5.3T-GA-HK-2.5M
    Reference no. 711015
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 18.9
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 711016
  • Details
    G14 P1B-8-5.3T-GA-HK-3M
    Reference no. 711016
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 21.9
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 711017
  • Details
    G14 P1B-8-5.3T-GA-HK-4M
    Reference no. 711017
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 28.2
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 711018
  • Details
    G14 P1B-8-5.3T-GA-HK-5M
    Reference no. 711018
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 34.6
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 711019
  • Details
    G14 P1B-8-5.3T-GA-HK-6M
    Reference no. 711019
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 40.9
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 711020
  • Details
    G14 P1B-10-8T-GA-HK-1M
    Reference no. 711020
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 15.7
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 711021
  • Details
    G14 P1B-10-8T-GA-HK-1.5M
    Reference no. 711021
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 21
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 711022
  • Details
    G14 P1B-10-8T-GA-HK-2M
    Reference no. 711022
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 25.8
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 711023
  • Details
    G14 P1B-10-8T-GA-HK-2.5M
    Reference no. 711023
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 30.5
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 711024
  • Details
    G14 P1B-10-8T-GA-HK-3M
    Reference no. 711024
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 35.8
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 711025
  • Details
    G14 P1B-10-8T-GA-HK-4M
    Reference no. 711025
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 45.2
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 711026
  • Details
    G14 P1B-10-8T-GA-HK-5M
    Reference no. 711026
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 55.3
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 711027
  • Details
    G14 P1B-10-8T-GA-HK-6M
    Reference no. 711027
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 65.3
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 711028
  • Details
    G14 P1B-13-14T-GA-HK-1M
    Reference no. 711028
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 25.3
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 711029
  • Details
    G14 P1B-13-14T-GA-HK-1.5M
    Reference no. 711029
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 33.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 711030
  • Details
    G14 P1B-13-14T-GA-HK-2M
    Reference no. 711030
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 42.3
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 711031
  • Details
    G14 P1B-13-14T-GA-HK-2.5M
    Reference no. 711031
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 50.1
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 711032
  • Details
    G14 P1B-13-14T-GA-HK-3M
    Reference no. 711032
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 59.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 711033
  • Details
    G14 P1B-13-14T-GA-HK-4M
    Reference no. 711033
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 74.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 711034
  • Details
    G14 P1B-13-14T-GA-HK-5M
    Reference no. 711034
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 91.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 711035
  • Details
    G14 P1B-13-14T-GA-HK-6M
    Reference no. 711035
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 108.8
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 711036
  • Details
    C14 P1B-16-21.2T-GA-HK-1M
    Reference no. 711036
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 39.2
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 711037
  • Details
    C14 P1B-16-21.2T-GA-HK-1.5M
    Reference no. 711037
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 51.3
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 711038
  • Details
    C14 P1B-16-21.2T-GA-HK-2M
    Reference no. 711038
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 63.4
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 711039
  • Details
    C14 P1B-16-21.2T-GA-HK-2.5M
    Reference no. 711039
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 75.4
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 711040
  • Details
    C14 P1B-16-21.2T-GA-HK-3M
    Reference no. 711040
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 87.5
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 711041
  • Details
    C14 P1B-16-21.2T-GA-HK-4M
    Reference no. 711041
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 114
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 711042
  • Details
    C14 P1B-16-21.2T-GA-HK-5M
    Reference no. 711042
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 138.1
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 711043
  • Details
    C14 P1B-16-21.2T-GA-HK-6M
    Reference no. 711043
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 164.6
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 1
Reference no. 711044
  • Details
    C14 P1B-20-30T-GA-HK-1M
    Reference no. 711044
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 63.2
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 1.5
Reference no. 711045
  • Details
    C14 P1B-20-30T-GA-HK-1.5M
    Reference no. 711045
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 79.5
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 711046
  • Details
    C14 P1B-20-30T-GA-HK-2M
    Reference no. 711046
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 99.8
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 2.5
Reference no. 711047
  • Details
    C14 P1B-20-30T-GA-HK-2.5M
    Reference no. 711047
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 116.1
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 711048
  • Details
    C14 P1B-20-30T-GA-HK-3M
    Reference no. 711048
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 132.3
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 711049
  • Details
    C14 P1B-20-30T-GA-HK-4M
    Reference no. 711049
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 168.9
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 711050
  • Details
    C14 P1B-20-30T-GA-HK-5M
    Reference no. 711050
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 205.5
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711051
  • Details
    C14 P1B-20-30T-GA-HK-6M
    Reference no. 711051
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 242.2
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711052
  • Details
    C14 P1B-22-40T-GA-HK-3M
    Reference no. 711052
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 193.6
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711053
  • Details
    C14 P1B-22-40T-GA-HK-4M
    Reference no. 711053
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 243.8
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711054
  • Details
    C14 P1B-22-40T-GA-HK-6M
    Reference no. 711054
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 337.9
Working load limit 0–45° [kg] 56000
Working load limit 45−60° [kg] 40000
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 711055
  • Details
    C14 P1B-26-56T-GA-H-3M
    Reference no. 711055
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 264.8
Working load limit 0–45° [kg] 56000
Working load limit 45−60° [kg] 40000
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 711056
  • Details
    C14 P1B-26-56T-GA-H-4M
    Reference no. 711056
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 325.4
Working load limit 0–45° [kg] 56000
Working load limit 45−60° [kg] 40000
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 711057
  • Details
    C14 P1B-26-56T-GA-H-6M
    Reference no. 711057
    Working load limit 0–45° [kg] 56000
    Working load limit 45−60° [kg] 40000
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 456.6
Working load limit 0–45° [kg] 84000
Working load limit 45−60° [kg] 60000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 711058
  • Details
    C14 P1B-32-84T-GA-H-3M
    Reference no. 711058
    Working load limit 0–45° [kg] 84000
    Working load limit 45−60° [kg] 60000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 421
Working load limit 0–45° [kg] 84000
Working load limit 45−60° [kg] 60000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 711059
  • Details
    C14 P1B-32-84T-GA-H-4M
    Reference no. 711059
    Working load limit 0–45° [kg] 84000
    Working load limit 45−60° [kg] 60000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 513.6
Working load limit 0–45° [kg] 84000
Working load limit 45−60° [kg] 60000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 711060
  • Details
    C14 P1B-32-84T-GA-H-6M
    Reference no. 711060
    Working load limit 0–45° [kg] 84000
    Working load limit 45−60° [kg] 60000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 698.7
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
