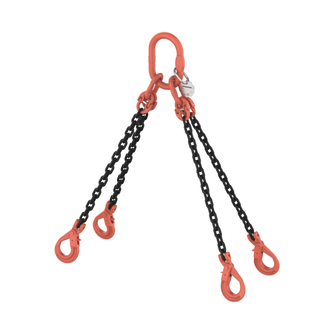

HIT PRO 1 chain sling, quality grade 10, 4-leg Safety load hooks

HIT PRO 1 chain sling, quality grade 10, 4-leg Safety load hooks
Chain sling with safety load hook for 4-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 4-leg

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • powder-coated

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]

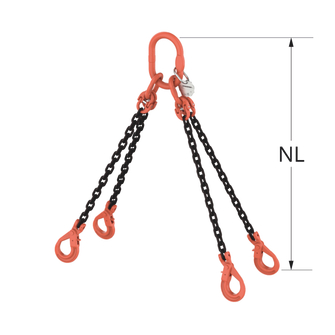

Effective length WLL [m]
Reference no.
Details
  • 3000
    2120
    6
    1
    711061
    G14 P1B-6-3T-GA-SHK-1M
    Reference no. 711061
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 6.6
  • 3000
    2120
    6
    1.5
    711062
    G14 P1B-6-3T-GA-SHK-1.5M
    Reference no. 711062
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 8.5
  • 3000
    2120
    6
    2
    711063
    G14 P1B-6-3T-GA-SHK-2M
    Reference no. 711063
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 10.3
  • 3000
    2120
    6
    2.5
    711064
    G14 P1B-6-3T-GA-SHK-2.5M
    Reference no. 711064
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 12.2
  • 3000
    2120
    6
    3
    711065
    G14 P1B-6-3T-GA-SHK-3M
    Reference no. 711065
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 14.2
  • 3000
    2120
    6
    4
    711066
    G14 P1B-6-3T-GA-SHK-4M
    Reference no. 711066
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 18
  • 3000
    2120
    6
    5
    711067
    G14 P1B-6-3T-GA-SHK-5M
    Reference no. 711067
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 21.9
  • 3000
    2120
    6
    6
    711068
    G14 P1B-6-3T-GA-SHK-6M
    Reference no. 711068
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 25.8
  • 5300
    3750
    8
    1
    711069
    G14 P1B-8-5.3T-GA-SHK-1M
    Reference no. 711069
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 11
  • 5300
    3750
    8
    1.5
    711070
    G14 P1B-8-5.3T-GA-SHK-1.5M
    Reference no. 711070
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 14.3
  • 5300
    3750
    8
    2
    711071
    G14 P1B-8-5.3T-GA-SHK-2M
    Reference no. 711071
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 17.4
  • 5300
    3750
    8
    2.5
    711072
    G14 P1B-8-5.3T-GA-SHK-2.5M
    Reference no. 711072
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 20.4
  • 5300
    3750
    8
    3
    711073
    G14 P1B-8-5.3T-GA-SHK-3M
    Reference no. 711073
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 23.7
  • 5300
    3750
    8
    4
    711074
    G14 P1B-8-5.3T-GA-SHK-4M
    Reference no. 711074
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 30
  • 5300
    3750
    8
    5
    711075
    G14 P1B-8-5.3T-GA-SHK-5M
    Reference no. 711075
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 36.4
  • 5300
    3750
    8
    6
    711076
    G14 P1B-8-5.3T-GA-SHK-6M
    Reference no. 711076
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 42.4
  • 8000
    6000
    10
    1
    711077
    G14 P1B-10-8T-GA-SHK-1M
    Reference no. 711077
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 17.4
  • 8000
    6000
    10
    1.5
    711078
    G14 P1B-10-8T-GA-SHK-1.5M
    Reference no. 711078
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 22.1
  • 8000
    6000
    10
    2
    711079
    G14 P1B-10-8T-GA-SHK-2M
    Reference no. 711079
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 26.9
  • 8000
    6000
    10
    2.5
    711080
    G14 P1B-10-8T-GA-SHK-2.5M
    Reference no. 711080
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 32.2
  • 8000
    6000
    10
    3
    711081
    G14 P1B-10-8T-GA-SHK-3M
    Reference no. 711081
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 36.9
  • 8000
    6000
    10
    4
    711082
    G14 P1B-10-8T-GA-SHK-4M
    Reference no. 711082
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 46.9
  • 8000
    6000
    10
    5
    711083
    G14 P1B-10-8T-GA-SHK-5M
    Reference no. 711083
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 56.4
  • 8000
    6000
    10
    6
    711084
    G14 P1B-10-8T-GA-SHK-6M
    Reference no. 711084
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 66.4
  • 14000
    10000
    13
    1
    711085
    G14 P1B-13-14T-GA-SHK-1M
    Reference no. 711085
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 30
  • 14000
    10000
    13
    1.5
    711086
    G14 P1B-13-14T-GA-SHK-1.5M
    Reference no. 711086
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 39.2
  • 14000
    10000
    13
    2
    711087
    G14 P1B-13-14T-GA-SHK-2M
    Reference no. 711087
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 47
  • 14000
    10000
    13
    2.5
    711088
    G14 P1B-13-14T-GA-SHK-2.5M
    Reference no. 711088
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 56.1
  • 14000
    10000
    13
    3
    711089
    G14 P1B-13-14T-GA-SHK-3M
    Reference no. 711089
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 63.9
  • 14000
    10000
    13
    4
    711090
    G14 P1B-13-14T-GA-SHK-4M
    Reference no. 711090
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 80.9
  • 14000
    10000
    13
    5
    711091
    G14 P1B-13-14T-GA-SHK-5M
    Reference no. 711091
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 97.9
  • 14000
    10000
    13
    6
    711092
    G14 P1B-13-14T-GA-SHK-6M
    Reference no. 711092
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 113.5
  • 21200
    15000
    16
    1
    711093
    C14 P1B-16-21.2T-GA-SHK-1M
    Reference no. 711093
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 48
  • 21200
    15000
    16
    1.5
    711094
    C14 P1B-16-21.2T-GA-SHK-1.5M
    Reference no. 711094
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 60.1
  • 21200
    15000
    16
    2
    711095
    C14 P1B-16-21.2T-GA-SHK-2M
    Reference no. 711095
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 72.2
  • 21200
    15000
    16
    2.5
    711096
    C14 P1B-16-21.2T-GA-SHK-2.5M
    Reference no. 711096
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 86.6
  • 21200
    15000
    16
    3
    711097
    C14 P1B-16-21.2T-GA-SHK-3M
    Reference no. 711097
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 98.7
  • 21200
    15000
    16
    4
    711098
    C14 P1B-16-21.2T-GA-SHK-4M
    Reference no. 711098
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 122.8
  • 21200
    15000
    16
    5
    711099
    C14 P1B-16-21.2T-GA-SHK-5M
    Reference no. 711099
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 149.3
  • 21200
    15000
    16
    6
    711100
    C14 P1B-16-21.2T-GA-SHK-6M
    Reference no. 711100
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 173.4
  • 30000
    21200
    20
    1
    711101
    C14 P1B-20-30T-GA-SHK-1M
    Reference no. 711101
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 78.3
  • 30000
    21200
    20
    1.5
    711102
    C14 P1B-20-30T-GA-SHK-1.5M
    Reference no. 711102
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 98.7
  • 30000
    21200
    20
    2
    711103
    C14 P1B-20-30T-GA-SHK-2M
    Reference no. 711103
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 114.9
  • 30000
    21200
    20
    2.5
    711104
    C14 P1B-20-30T-GA-SHK-2.5M
    Reference no. 711104
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 131.2
  • 30000
    21200
    20
    3
    711105
    C14 P1B-20-30T-GA-SHK-3M
    Reference no. 711105
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 151.5
  • 30000
    21200
    20
    4
    711106
    C14 P1B-20-30T-GA-SHK-4M
    Reference no. 711106
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 184.1
  • 30000
    21200
    20
    5
    711107
    C14 P1B-20-30T-GA-SHK-5M
    Reference no. 711107
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 220.7
  • 30000
    21200
    20
    6
    711108
    C14 P1B-20-30T-GA-SHK-6M
    Reference no. 711108
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 257.3
  • 40000
    28000
    22
    3
    711109
    C14 P1B-22-40T-GA-SHK-3M
    Reference no. 711109
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 202
  • 40000
    28000
    22
    4
    711110
    C14 P1B-22-40T-GA-SHK-4M
    Reference no. 711110
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 245.9
  • 40000
    28000
    22
    6
    711111
    C14 P1B-22-40T-GA-SHK-6M
    Reference no. 711111
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 340
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 711061
  • Details
    G14 P1B-6-3T-GA-SHK-1M
    Reference no. 711061
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 6.6
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 1.5
Reference no. 711062
  • Details
    G14 P1B-6-3T-GA-SHK-1.5M
    Reference no. 711062
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1.5
    Weight approx. [kg] 8.5
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 711063
  • Details
    G14 P1B-6-3T-GA-SHK-2M
    Reference no. 711063
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 10.3
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 2.5
Reference no. 711064
  • Details
    G14 P1B-6-3T-GA-SHK-2.5M
    Reference no. 711064
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2.5
    Weight approx. [kg] 12.2
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 711065
  • Details
    G14 P1B-6-3T-GA-SHK-3M
    Reference no. 711065
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 14.2
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 711066
  • Details
    G14 P1B-6-3T-GA-SHK-4M
    Reference no. 711066
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 18
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 711067
  • Details
    G14 P1B-6-3T-GA-SHK-5M
    Reference no. 711067
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 21.9
Working load limit 0–45° [kg] 3000
Working load limit 45−60° [kg] 2120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 711068
  • Details
    G14 P1B-6-3T-GA-SHK-6M
    Reference no. 711068
    Working load limit 0–45° [kg] 3000
    Working load limit 45−60° [kg] 2120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 25.8
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 711069
  • Details
    G14 P1B-8-5.3T-GA-SHK-1M
    Reference no. 711069
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 11
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 1.5
Reference no. 711070
  • Details
    G14 P1B-8-5.3T-GA-SHK-1.5M
    Reference no. 711070
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1.5
    Weight approx. [kg] 14.3
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 711071
  • Details
    G14 P1B-8-5.3T-GA-SHK-2M
    Reference no. 711071
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 17.4
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 2.5
Reference no. 711072
  • Details
    G14 P1B-8-5.3T-GA-SHK-2.5M
    Reference no. 711072
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2.5
    Weight approx. [kg] 20.4
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 711073
  • Details
    G14 P1B-8-5.3T-GA-SHK-3M
    Reference no. 711073
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 23.7
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 711074
  • Details
    G14 P1B-8-5.3T-GA-SHK-4M
    Reference no. 711074
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 30
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 711075
  • Details
    G14 P1B-8-5.3T-GA-SHK-5M
    Reference no. 711075
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 36.4
Working load limit 0–45° [kg] 5300
Working load limit 45−60° [kg] 3750
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 711076
  • Details
    G14 P1B-8-5.3T-GA-SHK-6M
    Reference no. 711076
    Working load limit 0–45° [kg] 5300
    Working load limit 45−60° [kg] 3750
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 42.4
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 711077
  • Details
    G14 P1B-10-8T-GA-SHK-1M
    Reference no. 711077
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 17.4
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 1.5
Reference no. 711078
  • Details
    G14 P1B-10-8T-GA-SHK-1.5M
    Reference no. 711078
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 22.1
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 711079
  • Details
    G14 P1B-10-8T-GA-SHK-2M
    Reference no. 711079
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 26.9
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 2.5
Reference no. 711080
  • Details
    G14 P1B-10-8T-GA-SHK-2.5M
    Reference no. 711080
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2.5
    Weight approx. [kg] 32.2
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 711081
  • Details
    G14 P1B-10-8T-GA-SHK-3M
    Reference no. 711081
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 36.9
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 711082
  • Details
    G14 P1B-10-8T-GA-SHK-4M
    Reference no. 711082
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 46.9
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 711083
  • Details
    G14 P1B-10-8T-GA-SHK-5M
    Reference no. 711083
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 56.4
Working load limit 0–45° [kg] 8000
Working load limit 45−60° [kg] 6000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 711084
  • Details
    G14 P1B-10-8T-GA-SHK-6M
    Reference no. 711084
    Working load limit 0–45° [kg] 8000
    Working load limit 45−60° [kg] 6000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 66.4
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 711085
  • Details
    G14 P1B-13-14T-GA-SHK-1M
    Reference no. 711085
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 30
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 1.5
Reference no. 711086
  • Details
    G14 P1B-13-14T-GA-SHK-1.5M
    Reference no. 711086
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1.5
    Weight approx. [kg] 39.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 711087
  • Details
    G14 P1B-13-14T-GA-SHK-2M
    Reference no. 711087
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 47
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 2.5
Reference no. 711088
  • Details
    G14 P1B-13-14T-GA-SHK-2.5M
    Reference no. 711088
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2.5
    Weight approx. [kg] 56.1
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 711089
  • Details
    G14 P1B-13-14T-GA-SHK-3M
    Reference no. 711089
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 63.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 711090
  • Details
    G14 P1B-13-14T-GA-SHK-4M
    Reference no. 711090
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 80.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 711091
  • Details
    G14 P1B-13-14T-GA-SHK-5M
    Reference no. 711091
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 97.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 711092
  • Details
    G14 P1B-13-14T-GA-SHK-6M
    Reference no. 711092
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 113.5
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 711093
  • Details
    C14 P1B-16-21.2T-GA-SHK-1M
    Reference no. 711093
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 48
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 1.5
Reference no. 711094
  • Details
    C14 P1B-16-21.2T-GA-SHK-1.5M
    Reference no. 711094
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1.5
    Weight approx. [kg] 60.1
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 711095
  • Details
    C14 P1B-16-21.2T-GA-SHK-2M
    Reference no. 711095
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 72.2
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 2.5
Reference no. 711096
  • Details
    C14 P1B-16-21.2T-GA-SHK-2.5M
    Reference no. 711096
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2.5
    Weight approx. [kg] 86.6
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 711097
  • Details
    C14 P1B-16-21.2T-GA-SHK-3M
    Reference no. 711097
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 98.7
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 711098
  • Details
    C14 P1B-16-21.2T-GA-SHK-4M
    Reference no. 711098
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 122.8
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 711099
  • Details
    C14 P1B-16-21.2T-GA-SHK-5M
    Reference no. 711099
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 149.3
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 711100
  • Details
    C14 P1B-16-21.2T-GA-SHK-6M
    Reference no. 711100
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 173.4
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 1
Reference no. 711101
  • Details
    C14 P1B-20-30T-GA-SHK-1M
    Reference no. 711101
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 78.3
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 1.5
Reference no. 711102
  • Details
    C14 P1B-20-30T-GA-SHK-1.5M
    Reference no. 711102
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1.5
    Weight approx. [kg] 98.7
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 711103
  • Details
    C14 P1B-20-30T-GA-SHK-2M
    Reference no. 711103
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 114.9
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 2.5
Reference no. 711104
  • Details
    C14 P1B-20-30T-GA-SHK-2.5M
    Reference no. 711104
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2.5
    Weight approx. [kg] 131.2
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 711105
  • Details
    C14 P1B-20-30T-GA-SHK-3M
    Reference no. 711105
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 151.5
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 711106
  • Details
    C14 P1B-20-30T-GA-SHK-4M
    Reference no. 711106
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 184.1
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 5
Reference no. 711107
  • Details
    C14 P1B-20-30T-GA-SHK-5M
    Reference no. 711107
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 220.7
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 711108
  • Details
    C14 P1B-20-30T-GA-SHK-6M
    Reference no. 711108
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 257.3
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 711109
  • Details
    C14 P1B-22-40T-GA-SHK-3M
    Reference no. 711109
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 202
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 711110
  • Details
    C14 P1B-22-40T-GA-SHK-4M
    Reference no. 711110
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 245.9
Working load limit 0–45° [kg] 40000
Working load limit 45−60° [kg] 28000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 711111
  • Details
    C14 P1B-22-40T-GA-SHK-6M
    Reference no. 711111
    Working load limit 0–45° [kg] 40000
    Working load limit 45−60° [kg] 28000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 340
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
