HIT basket chain quality grade 8

HIT basket chain quality grade 8

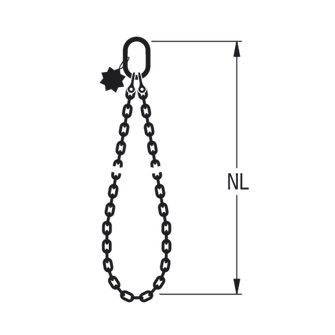

Chain sling with standard suspension link with coupling connection in simple endless design for choker hitch. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • endless

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1600
    1250
    6
    1
    701342
    G8K H8A-6-1.6T-RA-1M
    Reference no. 701342
    Working load limit 0° [kg] 1600
    Working load limit [kg] 1250
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 2.3
    tragfaehigkeit_endlos_45-60_td 1120
  • 1600
    1250
    6
    2
    701343
    G8K H8A-6-1.6T-RA-2M
    Reference no. 701343
    Working load limit 0° [kg] 1600
    Working load limit [kg] 1250
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 3.9
    tragfaehigkeit_endlos_45-60_td 1120
  • 1600
    1250
    6
    3
    701344
    G8K H8A-6-1.6T-RA-3M
    Reference no. 701344
    Working load limit 0° [kg] 1600
    Working load limit [kg] 1250
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.5
    tragfaehigkeit_endlos_45-60_td 1120
  • 1600
    1250
    6
    4
    701345
    G8K H8A-6-1.6T-RA-4M
    Reference no. 701345
    Working load limit 0° [kg] 1600
    Working load limit [kg] 1250
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 7.1
    tragfaehigkeit_endlos_45-60_td 1120
  • 1600
    1250
    6
    6
    701346
    G8K H8A-6-1.6T-RA-6M
    Reference no. 701346
    Working load limit 0° [kg] 1600
    Working load limit [kg] 1250
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 10.3
    tragfaehigkeit_endlos_45-60_td 1120
  • 2800
    2240
    8
    1
    701347
    G8K H8A-8-2.8T-RA-1M
    Reference no. 701347
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 3.6
    tragfaehigkeit_endlos_45-60_td 2000
  • 2800
    2240
    8
    2
    701348
    G8K H8A-8-2.8T-RA-2M
    Reference no. 701348
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.4
    tragfaehigkeit_endlos_45-60_td 2000
  • 2800
    2240
    8
    3
    701349
    G8K H8A-8-2.8T-RA-3M
    Reference no. 701349
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 9.2
    tragfaehigkeit_endlos_45-60_td 2000
  • 2800
    2240
    8
    4
    701350
    G8K H8A-8-2.8T-RA-4M
    Reference no. 701350
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 12
    tragfaehigkeit_endlos_45-60_td 2000
  • 2800
    2240
    8
    6
    701351
    G8K H8A-8-2.8T-RA-6M
    Reference no. 701351
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 17.6
    tragfaehigkeit_endlos_45-60_td 2000
  • 4250
    3550
    10
    1
    701352
    G8K H8A-10-4.25T-RA-1M
    Reference no. 701352
    Working load limit 0° [kg] 4250
    Working load limit [kg] 3550
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 5.6
    tragfaehigkeit_endlos_45-60_td 3150
  • 4250
    3550
    10
    2
    701353
    G8K H8A-10-4.25T-RA-2M
    Reference no. 701353
    Working load limit 0° [kg] 4250
    Working load limit [kg] 3550
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 10
    tragfaehigkeit_endlos_45-60_td 3150
  • 4250
    3550
    10
    3
    701354
    G8K H8A-10-4.25T-RA-3M
    Reference no. 701354
    Working load limit 0° [kg] 4250
    Working load limit [kg] 3550
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 14.4
    tragfaehigkeit_endlos_45-60_td 3150
  • 4250
    3550
    10
    4
    701355
    G8K H8A-10-4.25T-RA-4M
    Reference no. 701355
    Working load limit 0° [kg] 4250
    Working load limit [kg] 3550
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 18.8
    tragfaehigkeit_endlos_45-60_td 3150
  • 4250
    3550
    10
    6
    701356
    G8K H8A-10-4.25T-RA-6M
    Reference no. 701356
    Working load limit 0° [kg] 4250
    Working load limit [kg] 3550
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 27.6
    tragfaehigkeit_endlos_45-60_td 3150
  • 7500
    5900
    13
    1
    701357
    G8K H8A-13-7.5T-RA-1M
    Reference no. 701357
    Working load limit 0° [kg] 7500
    Working load limit [kg] 5900
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 9.3
    tragfaehigkeit_endlos_45-60_td 5300
  • 7500
    5900
    13
    2
    701358
    G8K H8A-13-7.5T-RA-2M
    Reference no. 701358
    Working load limit 0° [kg] 7500
    Working load limit [kg] 5900
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 16.8
    tragfaehigkeit_endlos_45-60_td 5300
  • 7500
    5900
    13
    3
    701359
    G8K H8A-13-7.5T-RA-3M
    Reference no. 701359
    Working load limit 0° [kg] 7500
    Working load limit [kg] 5900
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 24.4
    tragfaehigkeit_endlos_45-60_td 5300
  • 7500
    5900
    13
    4
    701360
    G8K H8A-13-7.5T-RA-4M
    Reference no. 701360
    Working load limit 0° [kg] 7500
    Working load limit [kg] 5900
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 32
    tragfaehigkeit_endlos_45-60_td 5300
  • 7500
    5900
    13
    6
    701361
    G8K H8A-13-7.5T-RA-6M
    Reference no. 701361
    Working load limit 0° [kg] 7500
    Working load limit [kg] 5900
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 47.2
    tragfaehigkeit_endlos_45-60_td 5300
  • 11200
    9000
    16
    1
    701362
    C8K H8A-16-11.2T-RA-1M
    Reference no. 701362
    Working load limit 0° [kg] 11200
    Working load limit [kg] 9000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 14.3
    tragfaehigkeit_endlos_45-60_td 8000
  • 11200
    9000
    16
    2
    701363
    C8K H8A-16-11.2T-RA-2M
    Reference no. 701363
    Working load limit 0° [kg] 11200
    Working load limit [kg] 9000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 25.8
    tragfaehigkeit_endlos_45-60_td 8000
  • 11200
    9000
    16
    3
    701364
    C8K H8A-16-11.2T-RA-3M
    Reference no. 701364
    Working load limit 0° [kg] 11200
    Working load limit [kg] 9000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 37
    tragfaehigkeit_endlos_45-60_td 8000
  • 11200
    9000
    16
    4
    701365
    C8K H8A-16-11.2T-RA-4M
    Reference no. 701365
    Working load limit 0° [kg] 11200
    Working load limit [kg] 9000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 48.5
    tragfaehigkeit_endlos_45-60_td 8000
  • 11200
    9000
    16
    6
    701366
    C8K H8A-16-11.2T-RA-6M
    Reference no. 701366
    Working load limit 0° [kg] 11200
    Working load limit [kg] 9000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 71.2
    tragfaehigkeit_endlos_45-60_td 8000
  • 14000
    11200
    18
    2
    701367
    C8K H8A-18-14T-RA-2M
    Reference no. 701367
    Working load limit 0° [kg] 14000
    Working load limit [kg] 11200
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 34
    tragfaehigkeit_endlos_45-60_td 10000
  • 14000
    11200
    18
    3
    701368
    C8K H8A-18-14T-RA-3M
    Reference no. 701368
    Working load limit 0° [kg] 14000
    Working load limit [kg] 11200
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 48.6
    tragfaehigkeit_endlos_45-60_td 10000
  • 14000
    11200
    18
    4
    701369
    C8K H8A-18-14T-RA-4M
    Reference no. 701369
    Working load limit 0° [kg] 14000
    Working load limit [kg] 11200
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 63.2
    tragfaehigkeit_endlos_45-60_td 10000
  • 14000
    11200
    18
    6
    701370
    C8K H8A-18-14T-RA-6M
    Reference no. 701370
    Working load limit 0° [kg] 14000
    Working load limit [kg] 11200
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 92.3
    tragfaehigkeit_endlos_45-60_td 10000
  • 17000
    14000
    20
    2
    701371
    C8K H8A-20-17.5T-RA-2M
    Reference no. 701371
    Working load limit 0° [kg] 17000
    Working load limit [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 41.1
    tragfaehigkeit_endlos_45-60_td 12500
  • 17000
    14000
    20
    3
    701372
    C8K H8A-20-17.5T-RA-3M
    Reference no. 701372
    Working load limit 0° [kg] 17000
    Working load limit [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 58.9
    tragfaehigkeit_endlos_45-60_td 12500
  • 17000
    14000
    20
    4
    701373
    C8K H8A-20-17.5T-RA-4M
    Reference no. 701373
    Working load limit 0° [kg] 17000
    Working load limit [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 77.2
    tragfaehigkeit_endlos_45-60_td 12500
  • 17000
    14000
    20
    6
    701374
    C8K H8A-20-17.5T-RA-6M
    Reference no. 701374
    Working load limit 0° [kg] 17000
    Working load limit [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 112.9
    tragfaehigkeit_endlos_45-60_td 12500
  • 21200
    17000
    22
    2
    701375
    C8K H8A-22-21.2T-RA-2M
    Reference no. 701375
    Working load limit 0° [kg] 21200
    Working load limit [kg] 17000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 51.8
    tragfaehigkeit_endlos_45-60_td 15000
  • 21200
    17000
    22
    3
    701376
    C8K H8A-22-21.2T-RA-3M
    Reference no. 701376
    Working load limit 0° [kg] 21200
    Working load limit [kg] 17000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 73.4
    tragfaehigkeit_endlos_45-60_td 15000
  • 21200
    17000
    22
    4
    701377
    C8K H8A-22-21.2T-RA-4M
    Reference no. 701377
    Working load limit 0° [kg] 21200
    Working load limit [kg] 17000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 95.7
    tragfaehigkeit_endlos_45-60_td 15000
  • 21200
    17000
    22
    6
    701378
    C8K H8A-22-21.2T-RA-6M
    Reference no. 701378
    Working load limit 0° [kg] 21200
    Working load limit [kg] 17000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 138.8
    tragfaehigkeit_endlos_45-60_td 15000
  • 30000
    23700
    26
    2
    701379
    C8K H8A-26-30T-RA-2M
    Reference no. 701379
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23700
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 70.9
    tragfaehigkeit_endlos_45-60_td 21200
  • 30000
    23700
    26
    3
    701380
    C8K H8A-26-30T-RA-3M
    Reference no. 701380
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23700
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 100.5
    tragfaehigkeit_endlos_45-60_td 21200
  • 30000
    23700
    26
    4
    701381
    C8K H8A-26-30T-RA-4M
    Reference no. 701381
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23700
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 131.3
    tragfaehigkeit_endlos_45-60_td 21200
  • 30000
    23700
    26
    6
    701383
    C8K H8A-26-30T-RA-6M
    Reference no. 701383
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23700
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 191.8
    tragfaehigkeit_endlos_45-60_td 21200
  • 45000
    36000
    32
    2
    701384
    C8K H8A-32-45T-RA-2M
    Reference no. 701384
    Working load limit 0° [kg] 45000
    Working load limit [kg] 36000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 107
    tragfaehigkeit_endlos_45-60_td 31500
  • 45000
    36000
    32
    3
    701385
    C8K H8A-32-45T-RA-3M
    Reference no. 701385
    Working load limit 0° [kg] 45000
    Working load limit [kg] 36000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 153.4
    tragfaehigkeit_endlos_45-60_td 31500
  • 45000
    36000
    32
    4
    701386
    C8K H8A-32-45T-RA-4M
    Reference no. 701386
    Working load limit 0° [kg] 45000
    Working load limit [kg] 36000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 199.8
    tragfaehigkeit_endlos_45-60_td 31500
  • 45000
    36000
    32
    6
    701387
    C8K H8A-32-45T-RA-6M
    Reference no. 701387
    Working load limit 0° [kg] 45000
    Working load limit [kg] 36000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 292.5
    tragfaehigkeit_endlos_45-60_td 31500
Working load limit 0° [kg] 1600
Working load limit [kg] 1250
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 701342
  • Details
    G8K H8A-6-1.6T-RA-1M
    Reference no. 701342
    Working load limit 0° [kg] 1600
    Working load limit [kg] 1250
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 2.3
    tragfaehigkeit_endlos_45-60_td 1120
Working load limit 0° [kg] 1600
Working load limit [kg] 1250
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701343
  • Details
    G8K H8A-6-1.6T-RA-2M
    Reference no. 701343
    Working load limit 0° [kg] 1600
    Working load limit [kg] 1250
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 3.9
    tragfaehigkeit_endlos_45-60_td 1120
Working load limit 0° [kg] 1600
Working load limit [kg] 1250
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701344
  • Details
    G8K H8A-6-1.6T-RA-3M
    Reference no. 701344
    Working load limit 0° [kg] 1600
    Working load limit [kg] 1250
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.5
    tragfaehigkeit_endlos_45-60_td 1120
Working load limit 0° [kg] 1600
Working load limit [kg] 1250
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701345
  • Details
    G8K H8A-6-1.6T-RA-4M
    Reference no. 701345
    Working load limit 0° [kg] 1600
    Working load limit [kg] 1250
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 7.1
    tragfaehigkeit_endlos_45-60_td 1120
Working load limit 0° [kg] 1600
Working load limit [kg] 1250
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701346
  • Details
    G8K H8A-6-1.6T-RA-6M
    Reference no. 701346
    Working load limit 0° [kg] 1600
    Working load limit [kg] 1250
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 10.3
    tragfaehigkeit_endlos_45-60_td 1120
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 701347
  • Details
    G8K H8A-8-2.8T-RA-1M
    Reference no. 701347
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 3.6
    tragfaehigkeit_endlos_45-60_td 2000
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701348
  • Details
    G8K H8A-8-2.8T-RA-2M
    Reference no. 701348
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.4
    tragfaehigkeit_endlos_45-60_td 2000
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701349
  • Details
    G8K H8A-8-2.8T-RA-3M
    Reference no. 701349
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 9.2
    tragfaehigkeit_endlos_45-60_td 2000
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701350
  • Details
    G8K H8A-8-2.8T-RA-4M
    Reference no. 701350
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 12
    tragfaehigkeit_endlos_45-60_td 2000
Working load limit 0° [kg] 2800
Working load limit [kg] 2240
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701351
  • Details
    G8K H8A-8-2.8T-RA-6M
    Reference no. 701351
    Working load limit 0° [kg] 2800
    Working load limit [kg] 2240
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 17.6
    tragfaehigkeit_endlos_45-60_td 2000
Working load limit 0° [kg] 4250
Working load limit [kg] 3550
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 701352
  • Details
    G8K H8A-10-4.25T-RA-1M
    Reference no. 701352
    Working load limit 0° [kg] 4250
    Working load limit [kg] 3550
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 5.6
    tragfaehigkeit_endlos_45-60_td 3150
Working load limit 0° [kg] 4250
Working load limit [kg] 3550
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701353
  • Details
    G8K H8A-10-4.25T-RA-2M
    Reference no. 701353
    Working load limit 0° [kg] 4250
    Working load limit [kg] 3550
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 10
    tragfaehigkeit_endlos_45-60_td 3150
Working load limit 0° [kg] 4250
Working load limit [kg] 3550
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701354
  • Details
    G8K H8A-10-4.25T-RA-3M
    Reference no. 701354
    Working load limit 0° [kg] 4250
    Working load limit [kg] 3550
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 14.4
    tragfaehigkeit_endlos_45-60_td 3150
Working load limit 0° [kg] 4250
Working load limit [kg] 3550
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701355
  • Details
    G8K H8A-10-4.25T-RA-4M
    Reference no. 701355
    Working load limit 0° [kg] 4250
    Working load limit [kg] 3550
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 18.8
    tragfaehigkeit_endlos_45-60_td 3150
Working load limit 0° [kg] 4250
Working load limit [kg] 3550
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701356
  • Details
    G8K H8A-10-4.25T-RA-6M
    Reference no. 701356
    Working load limit 0° [kg] 4250
    Working load limit [kg] 3550
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 27.6
    tragfaehigkeit_endlos_45-60_td 3150
Working load limit 0° [kg] 7500
Working load limit [kg] 5900
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 701357
  • Details
    G8K H8A-13-7.5T-RA-1M
    Reference no. 701357
    Working load limit 0° [kg] 7500
    Working load limit [kg] 5900
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 9.3
    tragfaehigkeit_endlos_45-60_td 5300
Working load limit 0° [kg] 7500
Working load limit [kg] 5900
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701358
  • Details
    G8K H8A-13-7.5T-RA-2M
    Reference no. 701358
    Working load limit 0° [kg] 7500
    Working load limit [kg] 5900
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 16.8
    tragfaehigkeit_endlos_45-60_td 5300
Working load limit 0° [kg] 7500
Working load limit [kg] 5900
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701359
  • Details
    G8K H8A-13-7.5T-RA-3M
    Reference no. 701359
    Working load limit 0° [kg] 7500
    Working load limit [kg] 5900
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 24.4
    tragfaehigkeit_endlos_45-60_td 5300
Working load limit 0° [kg] 7500
Working load limit [kg] 5900
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701360
  • Details
    G8K H8A-13-7.5T-RA-4M
    Reference no. 701360
    Working load limit 0° [kg] 7500
    Working load limit [kg] 5900
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 32
    tragfaehigkeit_endlos_45-60_td 5300
Working load limit 0° [kg] 7500
Working load limit [kg] 5900
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701361
  • Details
    G8K H8A-13-7.5T-RA-6M
    Reference no. 701361
    Working load limit 0° [kg] 7500
    Working load limit [kg] 5900
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 47.2
    tragfaehigkeit_endlos_45-60_td 5300
Working load limit 0° [kg] 11200
Working load limit [kg] 9000
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 701362
  • Details
    C8K H8A-16-11.2T-RA-1M
    Reference no. 701362
    Working load limit 0° [kg] 11200
    Working load limit [kg] 9000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 14.3
    tragfaehigkeit_endlos_45-60_td 8000
Working load limit 0° [kg] 11200
Working load limit [kg] 9000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701363
  • Details
    C8K H8A-16-11.2T-RA-2M
    Reference no. 701363
    Working load limit 0° [kg] 11200
    Working load limit [kg] 9000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 25.8
    tragfaehigkeit_endlos_45-60_td 8000
Working load limit 0° [kg] 11200
Working load limit [kg] 9000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701364
  • Details
    C8K H8A-16-11.2T-RA-3M
    Reference no. 701364
    Working load limit 0° [kg] 11200
    Working load limit [kg] 9000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 37
    tragfaehigkeit_endlos_45-60_td 8000
Working load limit 0° [kg] 11200
Working load limit [kg] 9000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701365
  • Details
    C8K H8A-16-11.2T-RA-4M
    Reference no. 701365
    Working load limit 0° [kg] 11200
    Working load limit [kg] 9000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 48.5
    tragfaehigkeit_endlos_45-60_td 8000
Working load limit 0° [kg] 11200
Working load limit [kg] 9000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701366
  • Details
    C8K H8A-16-11.2T-RA-6M
    Reference no. 701366
    Working load limit 0° [kg] 11200
    Working load limit [kg] 9000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 71.2
    tragfaehigkeit_endlos_45-60_td 8000
Working load limit 0° [kg] 14000
Working load limit [kg] 11200
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701367
  • Details
    C8K H8A-18-14T-RA-2M
    Reference no. 701367
    Working load limit 0° [kg] 14000
    Working load limit [kg] 11200
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 34
    tragfaehigkeit_endlos_45-60_td 10000
Working load limit 0° [kg] 14000
Working load limit [kg] 11200
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701368
  • Details
    C8K H8A-18-14T-RA-3M
    Reference no. 701368
    Working load limit 0° [kg] 14000
    Working load limit [kg] 11200
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 48.6
    tragfaehigkeit_endlos_45-60_td 10000
Working load limit 0° [kg] 14000
Working load limit [kg] 11200
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701369
  • Details
    C8K H8A-18-14T-RA-4M
    Reference no. 701369
    Working load limit 0° [kg] 14000
    Working load limit [kg] 11200
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 63.2
    tragfaehigkeit_endlos_45-60_td 10000
Working load limit 0° [kg] 14000
Working load limit [kg] 11200
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701370
  • Details
    C8K H8A-18-14T-RA-6M
    Reference no. 701370
    Working load limit 0° [kg] 14000
    Working load limit [kg] 11200
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 92.3
    tragfaehigkeit_endlos_45-60_td 10000
Working load limit 0° [kg] 17000
Working load limit [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 701371
  • Details
    C8K H8A-20-17.5T-RA-2M
    Reference no. 701371
    Working load limit 0° [kg] 17000
    Working load limit [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 41.1
    tragfaehigkeit_endlos_45-60_td 12500
Working load limit 0° [kg] 17000
Working load limit [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 701372
  • Details
    C8K H8A-20-17.5T-RA-3M
    Reference no. 701372
    Working load limit 0° [kg] 17000
    Working load limit [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 58.9
    tragfaehigkeit_endlos_45-60_td 12500
Working load limit 0° [kg] 17000
Working load limit [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 701373
  • Details
    C8K H8A-20-17.5T-RA-4M
    Reference no. 701373
    Working load limit 0° [kg] 17000
    Working load limit [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 77.2
    tragfaehigkeit_endlos_45-60_td 12500
Working load limit 0° [kg] 17000
Working load limit [kg] 14000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 701374
  • Details
    C8K H8A-20-17.5T-RA-6M
    Reference no. 701374
    Working load limit 0° [kg] 17000
    Working load limit [kg] 14000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 112.9
    tragfaehigkeit_endlos_45-60_td 12500
Working load limit 0° [kg] 21200
Working load limit [kg] 17000
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 701375
  • Details
    C8K H8A-22-21.2T-RA-2M
    Reference no. 701375
    Working load limit 0° [kg] 21200
    Working load limit [kg] 17000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 51.8
    tragfaehigkeit_endlos_45-60_td 15000
Working load limit 0° [kg] 21200
Working load limit [kg] 17000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 701376
  • Details
    C8K H8A-22-21.2T-RA-3M
    Reference no. 701376
    Working load limit 0° [kg] 21200
    Working load limit [kg] 17000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 73.4
    tragfaehigkeit_endlos_45-60_td 15000
Working load limit 0° [kg] 21200
Working load limit [kg] 17000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 701377
  • Details
    C8K H8A-22-21.2T-RA-4M
    Reference no. 701377
    Working load limit 0° [kg] 21200
    Working load limit [kg] 17000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 95.7
    tragfaehigkeit_endlos_45-60_td 15000
Working load limit 0° [kg] 21200
Working load limit [kg] 17000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 701378
  • Details
    C8K H8A-22-21.2T-RA-6M
    Reference no. 701378
    Working load limit 0° [kg] 21200
    Working load limit [kg] 17000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 138.8
    tragfaehigkeit_endlos_45-60_td 15000
Working load limit 0° [kg] 30000
Working load limit [kg] 23700
Nominal size of chain [mm] 26
Effective length WLL [m] 2
Reference no. 701379
  • Details
    C8K H8A-26-30T-RA-2M
    Reference no. 701379
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23700
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 70.9
    tragfaehigkeit_endlos_45-60_td 21200
Working load limit 0° [kg] 30000
Working load limit [kg] 23700
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 701380
  • Details
    C8K H8A-26-30T-RA-3M
    Reference no. 701380
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23700
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 100.5
    tragfaehigkeit_endlos_45-60_td 21200
Working load limit 0° [kg] 30000
Working load limit [kg] 23700
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 701381
  • Details
    C8K H8A-26-30T-RA-4M
    Reference no. 701381
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23700
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 131.3
    tragfaehigkeit_endlos_45-60_td 21200
Working load limit 0° [kg] 30000
Working load limit [kg] 23700
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 701383
  • Details
    C8K H8A-26-30T-RA-6M
    Reference no. 701383
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23700
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 191.8
    tragfaehigkeit_endlos_45-60_td 21200
Working load limit 0° [kg] 45000
Working load limit [kg] 36000
Nominal size of chain [mm] 32
Effective length WLL [m] 2
Reference no. 701384
  • Details
    C8K H8A-32-45T-RA-2M
    Reference no. 701384
    Working load limit 0° [kg] 45000
    Working load limit [kg] 36000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 107
    tragfaehigkeit_endlos_45-60_td 31500
Working load limit 0° [kg] 45000
Working load limit [kg] 36000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 701385
  • Details
    C8K H8A-32-45T-RA-3M
    Reference no. 701385
    Working load limit 0° [kg] 45000
    Working load limit [kg] 36000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 153.4
    tragfaehigkeit_endlos_45-60_td 31500
Working load limit 0° [kg] 45000
Working load limit [kg] 36000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 701386
  • Details
    C8K H8A-32-45T-RA-4M
    Reference no. 701386
    Working load limit 0° [kg] 45000
    Working load limit [kg] 36000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 199.8
    tragfaehigkeit_endlos_45-60_td 31500
Working load limit 0° [kg] 45000
Working load limit [kg] 36000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 701387
  • Details
    C8K H8A-32-45T-RA-6M
    Reference no. 701387
    Working load limit 0° [kg] 45000
    Working load limit [kg] 36000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 292.5
    tragfaehigkeit_endlos_45-60_td 31500
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
