HIT chain sling quality grade 8

HIT chain sling quality grade 8

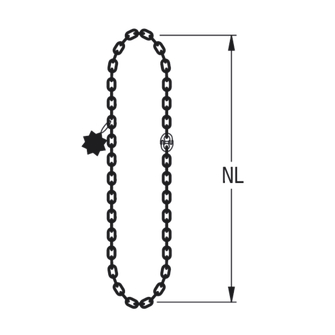

Chain sling with universal connecting link in simple endless design for choker hitches. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • endless

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2240
    1800
    6
    1
    701294
    G8E H8A-6-1.8T-1M
    Reference no. 701294
    Working load limit 0° [kg] 2240
    Working load limit [kg] 1800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.9
  • 2240
    1800
    6
    2
    701295
    G8E H8A-6-1.8T-2M
    Reference no. 701295
    Working load limit 0° [kg] 2240
    Working load limit [kg] 1800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 3.5
  • 2240
    1800
    6
    3
    701296
    G8E H8A-6-1.8T-3M
    Reference no. 701296
    Working load limit 0° [kg] 2240
    Working load limit [kg] 1800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.1
  • 2240
    1800
    6
    4
    701297
    G8E H8A-6-1.8T-4M
    Reference no. 701297
    Working load limit 0° [kg] 2240
    Working load limit [kg] 1800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 6.7
  • 2240
    1800
    6
    6
    701298
    G8E H8A-6-1.8T-6M
    Reference no. 701298
    Working load limit 0° [kg] 2240
    Working load limit [kg] 1800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 9.9
  • 4000
    3150
    8
    1
    701299
    G8E H8A-8-3.15T-1M
    Reference no. 701299
    Working load limit 0° [kg] 4000
    Working load limit [kg] 3150
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 3.2
  • 4000
    3150
    8
    2
    701300
    G8E H8A-8-3.15T-2M
    Reference no. 701300
    Working load limit 0° [kg] 4000
    Working load limit [kg] 3150
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.1
  • 4000
    3150
    8
    3
    701301
    G8E H8A-8-3.15T-3M
    Reference no. 701301
    Working load limit 0° [kg] 4000
    Working load limit [kg] 3150
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 8.8
  • 4000
    3150
    8
    4
    701303
    G8E H8A-8-3.15T-4M
    Reference no. 701303
    Working load limit 0° [kg] 4000
    Working load limit [kg] 3150
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 11.6
  • 4000
    3150
    8
    6
    701304
    G8E H8A-8-3.15T-6M
    Reference no. 701304
    Working load limit 0° [kg] 4000
    Working load limit [kg] 3150
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 17.2
  • 6300
    5000
    10
    1
    701306
    G8E H8A-10-5T-1M
    Reference no. 701306
    Working load limit 0° [kg] 6300
    Working load limit [kg] 5000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 5.1
  • 6300
    5000
    10
    2
    701307
    G8E H8A-10-5T-2M
    Reference no. 701307
    Working load limit 0° [kg] 6300
    Working load limit [kg] 5000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 9.4
  • 6300
    5000
    10
    3
    701308
    G8E H8A-10-5T-3M
    Reference no. 701308
    Working load limit 0° [kg] 6300
    Working load limit [kg] 5000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 13.8
  • 6300
    5000
    10
    4
    701309
    G8E H8A-10-5T-4M
    Reference no. 701309
    Working load limit 0° [kg] 6300
    Working load limit [kg] 5000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 18.3
  • 6300
    5000
    10
    6
    701310
    G8E H8A-10-5T-6M
    Reference no. 701310
    Working load limit 0° [kg] 6300
    Working load limit [kg] 5000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 27
  • 10600
    8500
    13
    1
    701311
    G8E H8A-13-8.5T-1M
    Reference no. 701311
    Working load limit 0° [kg] 10600
    Working load limit [kg] 8500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 8.9
  • 10600
    8500
    13
    2
    701312
    G8E H8A-13-8.5T-2M
    Reference no. 701312
    Working load limit 0° [kg] 10600
    Working load limit [kg] 8500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 16.5
  • 10600
    8500
    13
    3
    701313
    G8E H8A-13-8.5T-3M
    Reference no. 701313
    Working load limit 0° [kg] 10600
    Working load limit [kg] 8500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 24
  • 10600
    8500
    13
    4
    701314
    G8E H8A-13-8.5T-4M
    Reference no. 701314
    Working load limit 0° [kg] 10600
    Working load limit [kg] 8500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 31.6
  • 10600
    8500
    13
    6
    701315
    G8E H8A-13-8.5T-6M
    Reference no. 701315
    Working load limit 0° [kg] 10600
    Working load limit [kg] 8500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 46.9
  • 16000
    12500
    16
    1
    701316
    C8E H8A-16-12.5T-1M
    Reference no. 701316
    Working load limit 0° [kg] 16000
    Working load limit [kg] 12500
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 13.5
  • 16000
    12500
    16
    2
    701317
    C8E H8A-16-12.5T-2M
    Reference no. 701317
    Working load limit 0° [kg] 16000
    Working load limit [kg] 12500
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 25
  • 16000
    12500
    16
    3
    701318
    C8E H8A-16-12.5T-3M
    Reference no. 701318
    Working load limit 0° [kg] 16000
    Working load limit [kg] 12500
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 36.2
  • 16000
    12500
    16
    4
    701319
    C8E H8A-16-12.5T-4M
    Reference no. 701319
    Working load limit 0° [kg] 16000
    Working load limit [kg] 12500
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 47.7
  • 16000
    12500
    16
    6
    701320
    C8E H8A-16-12.5T-6M
    Reference no. 701320
    Working load limit 0° [kg] 16000
    Working load limit [kg] 12500
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 70.4
  • 20000
    16000
    18
    2
    701321
    C8E H8A-18-16T-2M
    Reference no. 701321
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 32.1
  • 20000
    16000
    18
    3
    701322
    C8E H8A-18-16T-3M
    Reference no. 701322
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 47
  • 20000
    16000
    18
    4
    701323
    C8E H8A-18-16T-4M
    Reference no. 701323
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 61.6
  • 20000
    16000
    18
    6
    701324
    C8E H8A-18-16T-6M
    Reference no. 701324
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 90.8
  • 25000
    20000
    20
    2
    701325
    C8E H8A-20-20T-2M
    Reference no. 701325
    Working load limit 0° [kg] 25000
    Working load limit [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 39.4
  • 25000
    20000
    20
    3
    701326
    C8E H8A-20-20T-3M
    Reference no. 701326
    Working load limit 0° [kg] 25000
    Working load limit [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 57.2
  • 25000
    20000
    20
    4
    701327
    C8E H8A-20-20T-4M
    Reference no. 701327
    Working load limit 0° [kg] 25000
    Working load limit [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 75.6
  • 25000
    20000
    20
    6
    701328
    C8E H8A-20-20T-6M
    Reference no. 701328
    Working load limit 0° [kg] 25000
    Working load limit [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 111.7
  • 30000
    23600
    22
    2
    701329
    C8E H8A-22-23.6T-2M
    Reference no. 701329
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23600
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 48.7
  • 30000
    23600
    22
    3
    701330
    C8E H8A-22-23.6T-3M
    Reference no. 701330
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23600
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 70.3
  • 30000
    23600
    22
    4
    701331
    C8E H8A-22-23.6T-4M
    Reference no. 701331
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23600
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 92.6
  • 30000
    23600
    22
    6
    701332
    C8E H8A-22-23.6T-6M
    Reference no. 701332
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23600
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 135.8
  • 42400
    33500
    26
    2
    701333
    C8E H8A-26-33.5T-2M
    Reference no. 701333
    Working load limit 0° [kg] 42400
    Working load limit [kg] 33500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 68.7
  • 42400
    33500
    26
    3
    701334
    C8E H8A-26-33.5T-3M
    Reference no. 701334
    Working load limit 0° [kg] 42400
    Working load limit [kg] 33500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 98.4
  • 42400
    33500
    26
    4
    701335
    C8E H8A-26-33.5T-4M
    Reference no. 701335
    Working load limit 0° [kg] 42400
    Working load limit [kg] 33500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 129.2
  • 42400
    33500
    26
    6
    701336
    C8E H8A-26-33.5T-6M
    Reference no. 701336
    Working load limit 0° [kg] 42400
    Working load limit [kg] 33500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 189.7
  • 63000
    50000
    32
    2
    701338
    C8E H8A-32-50T-2M
    Reference no. 701338
    Working load limit 0° [kg] 63000
    Working load limit [kg] 50000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 106.4
  • 63000
    50000
    32
    3
    701339
    C8E H8A-32-50T-3M
    Reference no. 701339
    Working load limit 0° [kg] 63000
    Working load limit [kg] 50000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 152.7
  • 63000
    50000
    32
    4
    701340
    C8E H8A-32-50T-4M
    Reference no. 701340
    Working load limit 0° [kg] 63000
    Working load limit [kg] 50000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 199.1
  • 63000
    50000
    32
    6
    701341
    C8E H8A-32-50T-6M
    Reference no. 701341
    Working load limit 0° [kg] 63000
    Working load limit [kg] 50000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 289.6
Working load limit 0° [kg] 2240
Working load limit [kg] 1800
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 701294
  • Details
    G8E H8A-6-1.8T-1M
    Reference no. 701294
    Working load limit 0° [kg] 2240
    Working load limit [kg] 1800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.9
Working load limit 0° [kg] 2240
Working load limit [kg] 1800
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701295
  • Details
    G8E H8A-6-1.8T-2M
    Reference no. 701295
    Working load limit 0° [kg] 2240
    Working load limit [kg] 1800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 3.5
Working load limit 0° [kg] 2240
Working load limit [kg] 1800
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701296
  • Details
    G8E H8A-6-1.8T-3M
    Reference no. 701296
    Working load limit 0° [kg] 2240
    Working load limit [kg] 1800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.1
Working load limit 0° [kg] 2240
Working load limit [kg] 1800
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701297
  • Details
    G8E H8A-6-1.8T-4M
    Reference no. 701297
    Working load limit 0° [kg] 2240
    Working load limit [kg] 1800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 6.7
Working load limit 0° [kg] 2240
Working load limit [kg] 1800
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701298
  • Details
    G8E H8A-6-1.8T-6M
    Reference no. 701298
    Working load limit 0° [kg] 2240
    Working load limit [kg] 1800
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 9.9
Working load limit 0° [kg] 4000
Working load limit [kg] 3150
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 701299
  • Details
    G8E H8A-8-3.15T-1M
    Reference no. 701299
    Working load limit 0° [kg] 4000
    Working load limit [kg] 3150
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 3.2
Working load limit 0° [kg] 4000
Working load limit [kg] 3150
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701300
  • Details
    G8E H8A-8-3.15T-2M
    Reference no. 701300
    Working load limit 0° [kg] 4000
    Working load limit [kg] 3150
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.1
Working load limit 0° [kg] 4000
Working load limit [kg] 3150
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701301
  • Details
    G8E H8A-8-3.15T-3M
    Reference no. 701301
    Working load limit 0° [kg] 4000
    Working load limit [kg] 3150
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 8.8
Working load limit 0° [kg] 4000
Working load limit [kg] 3150
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701303
  • Details
    G8E H8A-8-3.15T-4M
    Reference no. 701303
    Working load limit 0° [kg] 4000
    Working load limit [kg] 3150
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 11.6
Working load limit 0° [kg] 4000
Working load limit [kg] 3150
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701304
  • Details
    G8E H8A-8-3.15T-6M
    Reference no. 701304
    Working load limit 0° [kg] 4000
    Working load limit [kg] 3150
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 17.2
Working load limit 0° [kg] 6300
Working load limit [kg] 5000
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 701306
  • Details
    G8E H8A-10-5T-1M
    Reference no. 701306
    Working load limit 0° [kg] 6300
    Working load limit [kg] 5000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 5.1
Working load limit 0° [kg] 6300
Working load limit [kg] 5000
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701307
  • Details
    G8E H8A-10-5T-2M
    Reference no. 701307
    Working load limit 0° [kg] 6300
    Working load limit [kg] 5000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 9.4
Working load limit 0° [kg] 6300
Working load limit [kg] 5000
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701308
  • Details
    G8E H8A-10-5T-3M
    Reference no. 701308
    Working load limit 0° [kg] 6300
    Working load limit [kg] 5000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 13.8
Working load limit 0° [kg] 6300
Working load limit [kg] 5000
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701309
  • Details
    G8E H8A-10-5T-4M
    Reference no. 701309
    Working load limit 0° [kg] 6300
    Working load limit [kg] 5000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 18.3
Working load limit 0° [kg] 6300
Working load limit [kg] 5000
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701310
  • Details
    G8E H8A-10-5T-6M
    Reference no. 701310
    Working load limit 0° [kg] 6300
    Working load limit [kg] 5000
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 27
Working load limit 0° [kg] 10600
Working load limit [kg] 8500
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 701311
  • Details
    G8E H8A-13-8.5T-1M
    Reference no. 701311
    Working load limit 0° [kg] 10600
    Working load limit [kg] 8500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 8.9
Working load limit 0° [kg] 10600
Working load limit [kg] 8500
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701312
  • Details
    G8E H8A-13-8.5T-2M
    Reference no. 701312
    Working load limit 0° [kg] 10600
    Working load limit [kg] 8500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 16.5
Working load limit 0° [kg] 10600
Working load limit [kg] 8500
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701313
  • Details
    G8E H8A-13-8.5T-3M
    Reference no. 701313
    Working load limit 0° [kg] 10600
    Working load limit [kg] 8500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 24
Working load limit 0° [kg] 10600
Working load limit [kg] 8500
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701314
  • Details
    G8E H8A-13-8.5T-4M
    Reference no. 701314
    Working load limit 0° [kg] 10600
    Working load limit [kg] 8500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 31.6
Working load limit 0° [kg] 10600
Working load limit [kg] 8500
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701315
  • Details
    G8E H8A-13-8.5T-6M
    Reference no. 701315
    Working load limit 0° [kg] 10600
    Working load limit [kg] 8500
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 46.9
Working load limit 0° [kg] 16000
Working load limit [kg] 12500
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 701316
  • Details
    C8E H8A-16-12.5T-1M
    Reference no. 701316
    Working load limit 0° [kg] 16000
    Working load limit [kg] 12500
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 13.5
Working load limit 0° [kg] 16000
Working load limit [kg] 12500
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701317
  • Details
    C8E H8A-16-12.5T-2M
    Reference no. 701317
    Working load limit 0° [kg] 16000
    Working load limit [kg] 12500
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 25
Working load limit 0° [kg] 16000
Working load limit [kg] 12500
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701318
  • Details
    C8E H8A-16-12.5T-3M
    Reference no. 701318
    Working load limit 0° [kg] 16000
    Working load limit [kg] 12500
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 36.2
Working load limit 0° [kg] 16000
Working load limit [kg] 12500
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701319
  • Details
    C8E H8A-16-12.5T-4M
    Reference no. 701319
    Working load limit 0° [kg] 16000
    Working load limit [kg] 12500
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 47.7
Working load limit 0° [kg] 16000
Working load limit [kg] 12500
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701320
  • Details
    C8E H8A-16-12.5T-6M
    Reference no. 701320
    Working load limit 0° [kg] 16000
    Working load limit [kg] 12500
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 70.4
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701321
  • Details
    C8E H8A-18-16T-2M
    Reference no. 701321
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 32.1
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701322
  • Details
    C8E H8A-18-16T-3M
    Reference no. 701322
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 47
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701323
  • Details
    C8E H8A-18-16T-4M
    Reference no. 701323
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 61.6
Working load limit 0° [kg] 20000
Working load limit [kg] 16000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701324
  • Details
    C8E H8A-18-16T-6M
    Reference no. 701324
    Working load limit 0° [kg] 20000
    Working load limit [kg] 16000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 90.8
Working load limit 0° [kg] 25000
Working load limit [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 701325
  • Details
    C8E H8A-20-20T-2M
    Reference no. 701325
    Working load limit 0° [kg] 25000
    Working load limit [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 39.4
Working load limit 0° [kg] 25000
Working load limit [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 701326
  • Details
    C8E H8A-20-20T-3M
    Reference no. 701326
    Working load limit 0° [kg] 25000
    Working load limit [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 57.2
Working load limit 0° [kg] 25000
Working load limit [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 701327
  • Details
    C8E H8A-20-20T-4M
    Reference no. 701327
    Working load limit 0° [kg] 25000
    Working load limit [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 75.6
Working load limit 0° [kg] 25000
Working load limit [kg] 20000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 701328
  • Details
    C8E H8A-20-20T-6M
    Reference no. 701328
    Working load limit 0° [kg] 25000
    Working load limit [kg] 20000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 111.7
Working load limit 0° [kg] 30000
Working load limit [kg] 23600
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 701329
  • Details
    C8E H8A-22-23.6T-2M
    Reference no. 701329
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23600
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 48.7
Working load limit 0° [kg] 30000
Working load limit [kg] 23600
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 701330
  • Details
    C8E H8A-22-23.6T-3M
    Reference no. 701330
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23600
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 70.3
Working load limit 0° [kg] 30000
Working load limit [kg] 23600
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 701331
  • Details
    C8E H8A-22-23.6T-4M
    Reference no. 701331
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23600
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 92.6
Working load limit 0° [kg] 30000
Working load limit [kg] 23600
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 701332
  • Details
    C8E H8A-22-23.6T-6M
    Reference no. 701332
    Working load limit 0° [kg] 30000
    Working load limit [kg] 23600
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 135.8
Working load limit 0° [kg] 42400
Working load limit [kg] 33500
Nominal size of chain [mm] 26
Effective length WLL [m] 2
Reference no. 701333
  • Details
    C8E H8A-26-33.5T-2M
    Reference no. 701333
    Working load limit 0° [kg] 42400
    Working load limit [kg] 33500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 68.7
Working load limit 0° [kg] 42400
Working load limit [kg] 33500
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 701334
  • Details
    C8E H8A-26-33.5T-3M
    Reference no. 701334
    Working load limit 0° [kg] 42400
    Working load limit [kg] 33500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 98.4
Working load limit 0° [kg] 42400
Working load limit [kg] 33500
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 701335
  • Details
    C8E H8A-26-33.5T-4M
    Reference no. 701335
    Working load limit 0° [kg] 42400
    Working load limit [kg] 33500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 129.2
Working load limit 0° [kg] 42400
Working load limit [kg] 33500
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 701336
  • Details
    C8E H8A-26-33.5T-6M
    Reference no. 701336
    Working load limit 0° [kg] 42400
    Working load limit [kg] 33500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 189.7
Working load limit 0° [kg] 63000
Working load limit [kg] 50000
Nominal size of chain [mm] 32
Effective length WLL [m] 2
Reference no. 701338
  • Details
    C8E H8A-32-50T-2M
    Reference no. 701338
    Working load limit 0° [kg] 63000
    Working load limit [kg] 50000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 106.4
Working load limit 0° [kg] 63000
Working load limit [kg] 50000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 701339
  • Details
    C8E H8A-32-50T-3M
    Reference no. 701339
    Working load limit 0° [kg] 63000
    Working load limit [kg] 50000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 152.7
Working load limit 0° [kg] 63000
Working load limit [kg] 50000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 701340
  • Details
    C8E H8A-32-50T-4M
    Reference no. 701340
    Working load limit 0° [kg] 63000
    Working load limit [kg] 50000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 199.1
Working load limit 0° [kg] 63000
Working load limit [kg] 50000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 701341
  • Details
    C8E H8A-32-50T-6M
    Reference no. 701341
    Working load limit 0° [kg] 63000
    Working load limit [kg] 50000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 289.6
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
