HIT Chain slings in quality grade 8 2 leg Safety load hooks

HIT Chain slings in quality grade 8 2 leg Safety load hooks

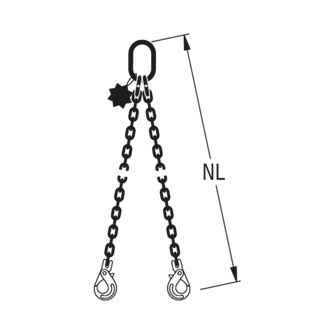

Chain sling with standard load hook for 2-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 2-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1600
    1120
    1250
    900
    6
    1
    701438
    G82 H8A-6-1.6T-RA-SHK-1M
    Reference no. 701438
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 2.9
  • 1600
    1120
    1250
    900
    6
    2
    701439
    G82 H8A-6-1.6T-RA-SHK-2M
    Reference no. 701439
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 4.5
  • 1600
    1120
    1250
    900
    6
    3
    701440
    G82 H8A-6-1.6T-RA-SHK-3M
    Reference no. 701440
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 6.1
  • 1600
    1120
    1250
    900
    6
    4
    701441
    G82 H8A-6-1.6T-RA-SHK-4M
    Reference no. 701441
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 7.7
  • 1600
    1120
    1250
    900
    6
    6
    701442
    G82 H8A-6-1.6T-RA-SHK-6M
    Reference no. 701442
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 10.9
  • 2800
    2000
    2240
    1600
    8
    1
    701444
    G82 H8A-8-2.8T-RA-SHK-1M
    Reference no. 701444
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 5
  • 2800
    2000
    2240
    1600
    8
    2
    701445
    G82 H8A-8-2.8T-RA-SHK-2M
    Reference no. 701445
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 7.8
  • 2800
    2000
    2240
    1600
    8
    3
    701446
    G82 H8A-8-2.8T-RA-SHK-3M
    Reference no. 701446
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 10.5
  • 2800
    2000
    2240
    1600
    8
    4
    701447
    G82 H8A-8-2.8T-RA-SHK-4M
    Reference no. 701447
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 13.3
  • 2800
    2000
    2240
    1600
    8
    6
    701448
    G82 H8A-8-2.8T-RA-SHK-6M
    Reference no. 701448
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 19
  • 4250
    3150
    3550
    2500
    10
    1
    701450
    G82 H8A-10-4.25T-RA-SHK-1M
    Reference no. 701450
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 8
  • 4250
    3150
    3550
    2500
    10
    2
    701451
    G82 H8A-10-4.25T-RA-SHK-2M
    Reference no. 701451
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 12.5
  • 4250
    3150
    3550
    2500
    10
    3
    701452
    G82 H8A-10-4.25T-RA-SHK-3M
    Reference no. 701452
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 16.7
  • 4250
    3150
    3550
    2500
    10
    4
    701453
    G82 H8A-10-4.25T-RA-SHK-4M
    Reference no. 701453
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 21.2
  • 4250
    3150
    3550
    2500
    10
    6
    701454
    G82 H8A-10-4.25T-RA-SHK-6M
    Reference no. 701454
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 29.9
  • 7500
    5300
    5900
    4250
    13
    1
    701455
    G82 H8A-13-7.5T-RA-SHK-1M
    Reference no. 701455
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 14.4
  • 7500
    5300
    5900
    4250
    13
    2
    701456
    G82 H8A-13-7.5T-RA-SHK-2M
    Reference no. 701456
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 21.5
  • 7500
    5300
    5900
    4250
    13
    3
    701457
    G82 H8A-13-7.5T-RA-SHK-3M
    Reference no. 701457
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 29.2
  • 7500
    5300
    5900
    4250
    13
    4
    701458
    G82 H8A-13-7.5T-RA-SHK-4M
    Reference no. 701458
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 36.9
  • 7500
    5300
    5900
    4250
    13
    6
    701459
    G82 H8A-13-7.5T-RA-SHK-6M
    Reference no. 701459
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 52.3
  • 11200
    8000
    9000
    6300
    16
    1
    701460
    C82 H8A-16-11.2T-RA-SHK-1M
    Reference no. 701460
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 24.6
  • 11200
    8000
    9000
    6300
    16
    2
    701461
    C82 H8A-16-11.2T-RA-SHK-2M
    Reference no. 701461
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 36.6
  • 11200
    8000
    9000
    6300
    16
    3
    701462
    C82 H8A-16-11.2T-RA-SHK-3M
    Reference no. 701462
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 47.6
  • 11200
    8000
    9000
    6300
    16
    4
    701463
    C82 H8A-16-11.2T-RA-SHK-4M
    Reference no. 701463
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 59.6
  • 11200
    8000
    9000
    6300
    16
    6
    701464
    C82 H8A-16-11.2T-RA-SHK-6M
    Reference no. 701464
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 81.5
  • 14000
    10000
    11200
    8000
    18
    2
    701465
    C82 H8A-18-14T-RA-SHK-2M
    Reference no. 701465
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 46.2
  • 14000
    10000
    11200
    8000
    18
    3
    701466
    C82 H8A-18-14T-RA-SHK-3M
    Reference no. 701466
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 61.9
  • 14000
    10000
    11200
    8000
    18
    4
    701467
    C82 H8A-18-14T-RA-SHK-4M
    Reference no. 701467
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 76.1
  • 14000
    10000
    11200
    80000
    18
    6
    701468
    C82 H8A-18-14T-RA-SHK-6M
    Reference no. 701468
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 80000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 104.5
  • 17000
    12500
    14000
    10000
    20
    2
    701469
    C82 H8A-20-17T-RA-SHK-2M
    Reference no. 701469
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 54.5
  • 17000
    12500
    14000
    10000
    20
    3
    701470
    C82 H8A-20-17T-RA-SHK-3M
    Reference no. 701470
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 71.8
  • 17000
    12500
    14000
    10000
    20
    4
    701471
    C82 H8A-20-17T-RA-SHK-4M
    Reference no. 701471
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 89.1
  • 17000
    12500
    14000
    10000
    20
    6
    701472
    C82 H8A-20-17T-RA-SHK-6M
    Reference no. 701472
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 125.8
  • 21200
    15000
    17000
    12000
    22
    2
    493644
    C82 H8A-22-21.2T-RA-SHK-2M
    Reference no. 493644
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 75.204
  • 21200
    15000
    17000
    12000
    22
    3
    493645
    C82 H8A-22-21.2T-RA-SHK-3M
    Reference no. 493645
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 97.004
  • 21200
    15000
    17000
    12000
    22
    4
    493646
    C82 H8A-22-21.2T-RA-SHK-4M
    Reference no. 493646
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 118.804
  • 21200
    15000
    17000
    12000
    22
    6
    493647
    C82 H8A-22-21.2T-RA-SHK-6M
    Reference no. 493647
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 162.404
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 701438
  • Details
    G82 H8A-6-1.6T-RA-SHK-1M
    Reference no. 701438
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 2.9
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701439
  • Details
    G82 H8A-6-1.6T-RA-SHK-2M
    Reference no. 701439
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 4.5
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701440
  • Details
    G82 H8A-6-1.6T-RA-SHK-3M
    Reference no. 701440
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 6.1
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701441
  • Details
    G82 H8A-6-1.6T-RA-SHK-4M
    Reference no. 701441
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 7.7
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701442
  • Details
    G82 H8A-6-1.6T-RA-SHK-6M
    Reference no. 701442
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 10.9
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 701444
  • Details
    G82 H8A-8-2.8T-RA-SHK-1M
    Reference no. 701444
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 5
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701445
  • Details
    G82 H8A-8-2.8T-RA-SHK-2M
    Reference no. 701445
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 7.8
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701446
  • Details
    G82 H8A-8-2.8T-RA-SHK-3M
    Reference no. 701446
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 10.5
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701447
  • Details
    G82 H8A-8-2.8T-RA-SHK-4M
    Reference no. 701447
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 13.3
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701448
  • Details
    G82 H8A-8-2.8T-RA-SHK-6M
    Reference no. 701448
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 19
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 701450
  • Details
    G82 H8A-10-4.25T-RA-SHK-1M
    Reference no. 701450
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 8
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701451
  • Details
    G82 H8A-10-4.25T-RA-SHK-2M
    Reference no. 701451
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 12.5
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701452
  • Details
    G82 H8A-10-4.25T-RA-SHK-3M
    Reference no. 701452
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 16.7
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701453
  • Details
    G82 H8A-10-4.25T-RA-SHK-4M
    Reference no. 701453
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 21.2
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701454
  • Details
    G82 H8A-10-4.25T-RA-SHK-6M
    Reference no. 701454
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 29.9
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 701455
  • Details
    G82 H8A-13-7.5T-RA-SHK-1M
    Reference no. 701455
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 14.4
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701456
  • Details
    G82 H8A-13-7.5T-RA-SHK-2M
    Reference no. 701456
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 21.5
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701457
  • Details
    G82 H8A-13-7.5T-RA-SHK-3M
    Reference no. 701457
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 29.2
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701458
  • Details
    G82 H8A-13-7.5T-RA-SHK-4M
    Reference no. 701458
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 36.9
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701459
  • Details
    G82 H8A-13-7.5T-RA-SHK-6M
    Reference no. 701459
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 52.3
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 701460
  • Details
    C82 H8A-16-11.2T-RA-SHK-1M
    Reference no. 701460
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 24.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701461
  • Details
    C82 H8A-16-11.2T-RA-SHK-2M
    Reference no. 701461
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 36.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701462
  • Details
    C82 H8A-16-11.2T-RA-SHK-3M
    Reference no. 701462
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 47.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701463
  • Details
    C82 H8A-16-11.2T-RA-SHK-4M
    Reference no. 701463
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 59.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701464
  • Details
    C82 H8A-16-11.2T-RA-SHK-6M
    Reference no. 701464
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 81.5
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701465
  • Details
    C82 H8A-18-14T-RA-SHK-2M
    Reference no. 701465
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 46.2
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701466
  • Details
    C82 H8A-18-14T-RA-SHK-3M
    Reference no. 701466
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 61.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701467
  • Details
    C82 H8A-18-14T-RA-SHK-4M
    Reference no. 701467
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 76.1
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 80000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701468
  • Details
    C82 H8A-18-14T-RA-SHK-6M
    Reference no. 701468
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 80000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 104.5
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 701469
  • Details
    C82 H8A-20-17T-RA-SHK-2M
    Reference no. 701469
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 54.5
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 701470
  • Details
    C82 H8A-20-17T-RA-SHK-3M
    Reference no. 701470
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 71.8
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 701471
  • Details
    C82 H8A-20-17T-RA-SHK-4M
    Reference no. 701471
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 89.1
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 701472
  • Details
    C82 H8A-20-17T-RA-SHK-6M
    Reference no. 701472
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 125.8
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 493644
  • Details
    C82 H8A-22-21.2T-RA-SHK-2M
    Reference no. 493644
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 75.204
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 493645
  • Details
    C82 H8A-22-21.2T-RA-SHK-3M
    Reference no. 493645
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 97.004
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 493646
  • Details
    C82 H8A-22-21.2T-RA-SHK-4M
    Reference no. 493646
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 118.804
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 493647
  • Details
    C82 H8A-22-21.2T-RA-SHK-6M
    Reference no. 493647
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 162.404
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
