HIT Chain slings in quality grade 8 2 leg Standard load hook

HIT Chain slings in quality grade 8 2 leg Standard load hook

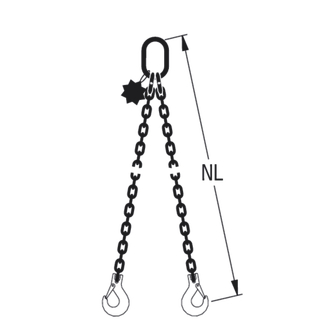

Chain sling with safety load hook for 2-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 2-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1600
    1120
    1250
    900
    6
    1
    701388
    G82 H8A-6-1.6T-RA-HK-1M
    Reference no. 701388
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 2.6
  • 1600
    1120
    1250
    900
    6
    2
    701389
    G82 H8A-6-1.6T-RA-HK-2M
    Reference no. 701389
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 4.2
  • 1600
    1120
    1250
    900
    6
    3
    701390
    G82 H8A-6-1.6T-RA-HK-3M
    Reference no. 701390
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.8
  • 1600
    1120
    1250
    900
    6
    4
    701391
    G82 H8A-6-1.6T-RA-HK-4M
    Reference no. 701391
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 7.4
  • 1600
    1120
    1250
    900
    6
    6
    701392
    G82 H8A-6-1.6T-RA-HK-6M
    Reference no. 701392
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 10.6
  • 2800
    2000
    2240
    1600
    8
    1
    701393
    G82 H8A-8-2.8T-RA-HK-1M
    Reference no. 701393
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 4.6
  • 2800
    2000
    2240
    1600
    8
    2
    701394
    G82 H8A-8-2.8T-RA-HK-2M
    Reference no. 701394
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 7.4
  • 2800
    2000
    2240
    1600
    8
    3
    701395
    G82 H8A-8-2.8T-RA-HK-3M
    Reference no. 701395
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 10.2
  • 2800
    2000
    2240
    1600
    8
    4
    701396
    G82 H8A-8-2.8T-RA-HK-4M
    Reference no. 701396
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 13
  • 2800
    2000
    2240
    1600
    8
    6
    701397
    G82 H8A-8-2.8T-RA-HK-6M
    Reference no. 701397
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 18.6
  • 4250
    3150
    3550
    2500
    10
    1
    701398
    G82 H8A-10-4.25T-RA-HK-1M
    Reference no. 701398
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 7.6
  • 4250
    3150
    3550
    2500
    10
    2
    701399
    G82 H8A-10-4.25T-RA-HK-2M
    Reference no. 701399
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 12.1
  • 4250
    3150
    3550
    2500
    10
    3
    701400
    G82 H8A-10-4.25T-RA-HK-3M
    Reference no. 701400
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 16.5
  • 4250
    3150
    3550
    2500
    10
    4
    701401
    G82 H8A-10-4.25T-RA-HK-4M
    Reference no. 701401
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 20.8
  • 4250
    3150
    3550
    2500
    10
    6
    701402
    G82 H8A-10-4.25T-RA-HK-6M
    Reference no. 701402
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 29.7
  • 7500
    5300
    5900
    4250
    13
    1
    701403
    G82 H8A-13-7.5T-RA-HK-1M
    Reference no. 701403
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 12.9
  • 7500
    5300
    5900
    4250
    13
    2
    701404
    G82 H8A-13-7.5T-RA-HK-2M
    Reference no. 701404
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 20.6
  • 7500
    5300
    5900
    4250
    13
    3
    701405
    G82 H8A-13-7.5T-RA-HK-3M
    Reference no. 701405
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 28.3
  • 7500
    5300
    5900
    4250
    13
    4
    701406
    G82 H8A-13-7.5T-RA-HK-4M
    Reference no. 701406
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 36
  • 7500
    5300
    5900
    4250
    13
    6
    701407
    G82 H8A-13-7.5T-RA-HK-6M
    Reference no. 701407
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 50.8
  • 11200
    8000
    9000
    6300
    16
    1
    701408
    C82 H8A-16-11.2T-RA-HK-1M
    Reference no. 701408
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 20.8
  • 11200
    8000
    9000
    6300
    16
    2
    701409
    C82 H8A-16-11.2T-RA-HK-2M
    Reference no. 701409
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 32.8
  • 11200
    8000
    9000
    6300
    16
    3
    701410
    C82 H8A-16-11.2T-RA-HK-3M
    Reference no. 701410
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 43.8
  • 11200
    8000
    9000
    6300
    16
    4
    701411
    C82 H8A-16-11.2T-RA-HK-4M
    Reference no. 701411
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 54.7
  • 11200
    8000
    9000
    6300
    16
    6
    701412
    C82 H8A-16-11.2T-RA-HK-6M
    Reference no. 701412
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 77.7
  • 14000
    10000
    11200
    8000
    18
    2
    493548
    C82 H8A-18-14T-RA-HK-2M
    Reference no. 493548
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 42.906
  • 14000
    10000
    11200
    8000
    18
    3
    493549
    C82 H8A-18-14T-RA-HK-3M
    Reference no. 493549
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 57.506
  • 14000
    10000
    11200
    8000
    18
    4
    493550
    C82 H8A-18-14T-RA-HK-4M
    Reference no. 493550
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 72.106
  • 14000
    10000
    11200
    8000
    18
    6
    493551
    C82 H8A-18-14T-RA-HK-6M
    Reference no. 493551
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 101.306
  • 17000
    12500
    14000
    10000
    20
    2
    492779
    C82 H8A-20-17T-RA-HK-2M
    Reference no. 492779
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 51.73
  • 17000
    12500
    14000
    10000
    20
    3
    492780
    C82 H8A-20-17T-RA-HK-3M
    Reference no. 492780
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 69.73
  • 17000
    12500
    14000
    10000
    20
    4
    492781
    C82 H8A-20-17T-RA-HK-4M
    Reference no. 492781
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 87.73
  • 17000
    12500
    14000
    10000
    20
    6
    492782
    C82 H8A-20-17T-RA-HK-6M
    Reference no. 492782
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 123.73
  • 21200
    15000
    17000
    12000
    22
    2
    492783
    C82 H8A-22-21.2T-RA-HK-2M
    Reference no. 492783
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 65.443
  • 21200
    15000
    17000
    12000
    22
    3
    492784
    C82 H8A-22-21.2T-RA-HK-3M
    Reference no. 492784
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 87.243
  • 21200
    15000
    17000
    12000
    22
    4
    492785
    C82 H8A-22-21.2T-RA-HK-4M
    Reference no. 492785
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 109.043
  • 21200
    15000
    17000
    12000
    22
    6
    492786
    C82 H8A-22-21.2T-RA-HK-6M
    Reference no. 492786
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 152.643
  • 30000
    21200
    23700
    16950
    26
    2
    493552
    C82 H8A-26-30T-RA-HK-2M
    Reference no. 493552
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Working load limit laced 0–45° [kg] 23700
    Working load limit laced 45−60° [kg] 16950
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 94.466
  • 30000
    21200
    23700
    16950
    26
    3
    493553
    C82 H8A-26-30T-RA-HK-3M
    Reference no. 493553
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Working load limit laced 0–45° [kg] 23700
    Working load limit laced 45−60° [kg] 16950
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 124.866
  • 30000
    21200
    23700
    16950
    26
    4
    493554
    C82 H8A-26-30T-RA-HK-4M
    Reference no. 493554
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Working load limit laced 0–45° [kg] 23700
    Working load limit laced 45−60° [kg] 16950
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 155.266
  • 30000
    21200
    23700
    16950
    26
    6
    493555
    C82 H8A-26-30T-RA-HK-6M
    Reference no. 493555
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Working load limit laced 0–45° [kg] 23700
    Working load limit laced 45−60° [kg] 16950
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 216.066
  • 45000
    31500
    36000
    25200
    32
    2
    493556
    C82 H8A-32-45T-RA-H-2M
    Reference no. 493556
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Working load limit laced 0–45° [kg] 36000
    Working load limit laced 45−60° [kg] 25200
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 141.61
  • 45000
    31500
    36000
    25200
    32
    3
    493557
    C82 H8A-32-45T-RA-H-3M
    Reference no. 493557
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Working load limit laced 0–45° [kg] 36000
    Working load limit laced 45−60° [kg] 25200
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 187.61
  • 45000
    31500
    36000
    25200
    32
    4
    493558
    C82 H8A-32-45T-RA-H-4M
    Reference no. 493558
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Working load limit laced 0–45° [kg] 36000
    Working load limit laced 45−60° [kg] 25200
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 233.61
  • 45000
    31500
    36000
    25200
    32
    6
    493559
    C82 H8A-32-45T-RA-H-6M
    Reference no. 493559
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Working load limit laced 0–45° [kg] 36000
    Working load limit laced 45−60° [kg] 25200
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 325.61
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 701388
  • Details
    G82 H8A-6-1.6T-RA-HK-1M
    Reference no. 701388
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 2.6
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701389
  • Details
    G82 H8A-6-1.6T-RA-HK-2M
    Reference no. 701389
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 4.2
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701390
  • Details
    G82 H8A-6-1.6T-RA-HK-3M
    Reference no. 701390
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.8
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701391
  • Details
    G82 H8A-6-1.6T-RA-HK-4M
    Reference no. 701391
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 7.4
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701392
  • Details
    G82 H8A-6-1.6T-RA-HK-6M
    Reference no. 701392
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 10.6
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 701393
  • Details
    G82 H8A-8-2.8T-RA-HK-1M
    Reference no. 701393
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 4.6
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701394
  • Details
    G82 H8A-8-2.8T-RA-HK-2M
    Reference no. 701394
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 7.4
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701395
  • Details
    G82 H8A-8-2.8T-RA-HK-3M
    Reference no. 701395
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 10.2
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701396
  • Details
    G82 H8A-8-2.8T-RA-HK-4M
    Reference no. 701396
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 13
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701397
  • Details
    G82 H8A-8-2.8T-RA-HK-6M
    Reference no. 701397
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 18.6
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 701398
  • Details
    G82 H8A-10-4.25T-RA-HK-1M
    Reference no. 701398
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 7.6
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701399
  • Details
    G82 H8A-10-4.25T-RA-HK-2M
    Reference no. 701399
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 12.1
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701400
  • Details
    G82 H8A-10-4.25T-RA-HK-3M
    Reference no. 701400
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 16.5
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701401
  • Details
    G82 H8A-10-4.25T-RA-HK-4M
    Reference no. 701401
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 20.8
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701402
  • Details
    G82 H8A-10-4.25T-RA-HK-6M
    Reference no. 701402
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 29.7
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 701403
  • Details
    G82 H8A-13-7.5T-RA-HK-1M
    Reference no. 701403
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 12.9
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701404
  • Details
    G82 H8A-13-7.5T-RA-HK-2M
    Reference no. 701404
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 20.6
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701405
  • Details
    G82 H8A-13-7.5T-RA-HK-3M
    Reference no. 701405
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 28.3
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701406
  • Details
    G82 H8A-13-7.5T-RA-HK-4M
    Reference no. 701406
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 36
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701407
  • Details
    G82 H8A-13-7.5T-RA-HK-6M
    Reference no. 701407
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 50.8
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 701408
  • Details
    C82 H8A-16-11.2T-RA-HK-1M
    Reference no. 701408
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 20.8
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701409
  • Details
    C82 H8A-16-11.2T-RA-HK-2M
    Reference no. 701409
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 32.8
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701410
  • Details
    C82 H8A-16-11.2T-RA-HK-3M
    Reference no. 701410
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 43.8
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701411
  • Details
    C82 H8A-16-11.2T-RA-HK-4M
    Reference no. 701411
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 54.7
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701412
  • Details
    C82 H8A-16-11.2T-RA-HK-6M
    Reference no. 701412
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 77.7
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 493548
  • Details
    C82 H8A-18-14T-RA-HK-2M
    Reference no. 493548
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 42.906
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 493549
  • Details
    C82 H8A-18-14T-RA-HK-3M
    Reference no. 493549
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 57.506
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 493550
  • Details
    C82 H8A-18-14T-RA-HK-4M
    Reference no. 493550
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 72.106
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 493551
  • Details
    C82 H8A-18-14T-RA-HK-6M
    Reference no. 493551
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 101.306
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 492779
  • Details
    C82 H8A-20-17T-RA-HK-2M
    Reference no. 492779
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 51.73
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 492780
  • Details
    C82 H8A-20-17T-RA-HK-3M
    Reference no. 492780
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 69.73
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 492781
  • Details
    C82 H8A-20-17T-RA-HK-4M
    Reference no. 492781
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 87.73
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 492782
  • Details
    C82 H8A-20-17T-RA-HK-6M
    Reference no. 492782
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 123.73
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 492783
  • Details
    C82 H8A-22-21.2T-RA-HK-2M
    Reference no. 492783
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 65.443
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 492784
  • Details
    C82 H8A-22-21.2T-RA-HK-3M
    Reference no. 492784
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 87.243
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 492785
  • Details
    C82 H8A-22-21.2T-RA-HK-4M
    Reference no. 492785
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 109.043
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 492786
  • Details
    C82 H8A-22-21.2T-RA-HK-6M
    Reference no. 492786
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 152.643
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Working load limit laced 0–45° [kg] 23700
Working load limit laced 45−60° [kg] 16950
Nominal size of chain [mm] 26
Effective length WLL [m] 2
Reference no. 493552
  • Details
    C82 H8A-26-30T-RA-HK-2M
    Reference no. 493552
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Working load limit laced 0–45° [kg] 23700
    Working load limit laced 45−60° [kg] 16950
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 94.466
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Working load limit laced 0–45° [kg] 23700
Working load limit laced 45−60° [kg] 16950
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 493553
  • Details
    C82 H8A-26-30T-RA-HK-3M
    Reference no. 493553
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Working load limit laced 0–45° [kg] 23700
    Working load limit laced 45−60° [kg] 16950
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 124.866
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Working load limit laced 0–45° [kg] 23700
Working load limit laced 45−60° [kg] 16950
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 493554
  • Details
    C82 H8A-26-30T-RA-HK-4M
    Reference no. 493554
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Working load limit laced 0–45° [kg] 23700
    Working load limit laced 45−60° [kg] 16950
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 155.266
Working load limit 0–45° [kg] 30000
Working load limit 45−60° [kg] 21200
Working load limit laced 0–45° [kg] 23700
Working load limit laced 45−60° [kg] 16950
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 493555
  • Details
    C82 H8A-26-30T-RA-HK-6M
    Reference no. 493555
    Working load limit 0–45° [kg] 30000
    Working load limit 45−60° [kg] 21200
    Working load limit laced 0–45° [kg] 23700
    Working load limit laced 45−60° [kg] 16950
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 216.066
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Working load limit laced 0–45° [kg] 36000
Working load limit laced 45−60° [kg] 25200
Nominal size of chain [mm] 32
Effective length WLL [m] 2
Reference no. 493556
  • Details
    C82 H8A-32-45T-RA-H-2M
    Reference no. 493556
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Working load limit laced 0–45° [kg] 36000
    Working load limit laced 45−60° [kg] 25200
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 141.61
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Working load limit laced 0–45° [kg] 36000
Working load limit laced 45−60° [kg] 25200
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 493557
  • Details
    C82 H8A-32-45T-RA-H-3M
    Reference no. 493557
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Working load limit laced 0–45° [kg] 36000
    Working load limit laced 45−60° [kg] 25200
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 187.61
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Working load limit laced 0–45° [kg] 36000
Working load limit laced 45−60° [kg] 25200
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 493558
  • Details
    C82 H8A-32-45T-RA-H-4M
    Reference no. 493558
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Working load limit laced 0–45° [kg] 36000
    Working load limit laced 45−60° [kg] 25200
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 233.61
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Working load limit laced 0–45° [kg] 36000
Working load limit laced 45−60° [kg] 25200
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 493559
  • Details
    C82 H8A-32-45T-RA-H-6M
    Reference no. 493559
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Working load limit laced 0–45° [kg] 36000
    Working load limit laced 45−60° [kg] 25200
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 325.61
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
