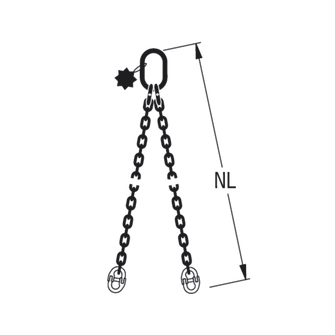

HIT Chain slings in quality grade 8 2 leg with component connector
HIT Chain slings in quality grade 8 2 leg with component connector
Technical data
Quality grade
- 8
Legs Quantity
- 2-leg
Operating temperature
- –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit
Standard
- Chain following EN 818
- EN 1677-compliant chain components
Marking
- Batch number and serial number
- Quality grade no.
- Quality grade and working load limit symbol
Safety factor
- 4
Chain surface
- coated
Chain colour
- black
Component surface
- coated
Component colour
- red
Shortening
- cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
-
16001120125090061701497
G82 H8A-6-1.6T-RA-V-1M
Reference no. 701497 Working load limit 0–45° [kg] 1600 Working load limit 45−60° [kg] 1120 Working load limit laced 0–45° [kg] 1250 Working load limit laced 45−60° [kg] 900 Nominal size of chain [mm] 6 Effective length WLL [m] 1 Weight approx. [kg] 2.4 -
16001120125090062701498
G82 H8A-6-1.6T-RA-V-2M
Reference no. 701498 Working load limit 0–45° [kg] 1600 Working load limit 45−60° [kg] 1120 Working load limit laced 0–45° [kg] 1250 Working load limit laced 45−60° [kg] 900 Nominal size of chain [mm] 6 Effective length WLL [m] 2 Weight approx. [kg] 4 -
16001120125090063701499
G82 H8A-6-1.6T-RA-V-3M
Reference no. 701499 Working load limit 0–45° [kg] 1600 Working load limit 45−60° [kg] 1120 Working load limit laced 0–45° [kg] 1250 Working load limit laced 45−60° [kg] 900 Nominal size of chain [mm] 6 Effective length WLL [m] 3 Weight approx. [kg] 5.6 -
16001120125090064701500
G82 H8A-6-1.6T-RA-V-4M
Reference no. 701500 Working load limit 0–45° [kg] 1600 Working load limit 45−60° [kg] 1120 Working load limit laced 0–45° [kg] 1250 Working load limit laced 45−60° [kg] 900 Nominal size of chain [mm] 6 Effective length WLL [m] 4 Weight approx. [kg] 7.2 -
16001120125090066701501
G82 H8A-6-1.6T-RA-V-6M
Reference no. 701501 Working load limit 0–45° [kg] 1600 Working load limit 45−60° [kg] 1120 Working load limit laced 0–45° [kg] 1250 Working load limit laced 45−60° [kg] 900 Nominal size of chain [mm] 6 Effective length WLL [m] 6 Weight approx. [kg] 10.4 -
280020002240160081701502
G82 H8A-8-2.8T-RA-V-1M
Reference no. 701502 Working load limit 0–45° [kg] 2800 Working load limit 45−60° [kg] 2000 Working load limit laced 0–45° [kg] 2240 Working load limit laced 45−60° [kg] 1600 Nominal size of chain [mm] 8 Effective length WLL [m] 1 Weight approx. [kg] 3.8 -
280020002240160082701503
G82 H8A-8-2.8T-RA-V-2M
Reference no. 701503 Working load limit 0–45° [kg] 2800 Working load limit 45−60° [kg] 2000 Working load limit laced 0–45° [kg] 2240 Working load limit laced 45−60° [kg] 1600 Nominal size of chain [mm] 8 Effective length WLL [m] 2 Weight approx. [kg] 6.7 -
280020002240160083701504
G82 H8A-8-2.8T-RA-V-3M
Reference no. 701504 Working load limit 0–45° [kg] 2800 Working load limit 45−60° [kg] 2000 Working load limit laced 0–45° [kg] 2240 Working load limit laced 45−60° [kg] 1600 Nominal size of chain [mm] 8 Effective length WLL [m] 3 Weight approx. [kg] 9.5 -
280020002240160084701505
G82 H8A-8-2.8T-RA-V-4M
Reference no. 701505 Working load limit 0–45° [kg] 2800 Working load limit 45−60° [kg] 2000 Working load limit laced 0–45° [kg] 2240 Working load limit laced 45−60° [kg] 1600 Nominal size of chain [mm] 8 Effective length WLL [m] 4 Weight approx. [kg] 12.3 -
280020002240160086701506
G82 H8A-8-2.8T-RA-V-6M
Reference no. 701506 Working load limit 0–45° [kg] 2800 Working load limit 45−60° [kg] 2000 Working load limit laced 0–45° [kg] 2240 Working load limit laced 45−60° [kg] 1600 Nominal size of chain [mm] 8 Effective length WLL [m] 6 Weight approx. [kg] 17.8 -
4250315035502500101701507
G82 H8A-10-4.25T-RA-V-1M
Reference no. 701507 Working load limit 0–45° [kg] 4250 Working load limit 45−60° [kg] 3150 Working load limit laced 0–45° [kg] 3550 Working load limit laced 45−60° [kg] 2500 Nominal size of chain [mm] 10 Effective length WLL [m] 1 Weight approx. [kg] 6.1 -
4250315035502500102701508
G82 H8A-10-4.25T-RA-V-2M
Reference no. 701508 Working load limit 0–45° [kg] 4250 Working load limit 45−60° [kg] 3150 Working load limit laced 0–45° [kg] 3550 Working load limit laced 45−60° [kg] 2500 Nominal size of chain [mm] 10 Effective length WLL [m] 2 Weight approx. [kg] 10.6 -
4250315035502500103701509
G82 H8A-10-4.25T-RA-V-3M
Reference no. 701509 Working load limit 0–45° [kg] 4250 Working load limit 45−60° [kg] 3150 Working load limit laced 0–45° [kg] 3550 Working load limit laced 45−60° [kg] 2500 Nominal size of chain [mm] 10 Effective length WLL [m] 3 Weight approx. [kg] 14.8 -
4250315035502500104701510
G82 H8A-10-4.25T-RA-V-4M
Reference no. 701510 Working load limit 0–45° [kg] 4250 Working load limit 45−60° [kg] 3150 Working load limit laced 0–45° [kg] 3550 Working load limit laced 45−60° [kg] 2500 Nominal size of chain [mm] 10 Effective length WLL [m] 4 Weight approx. [kg] 19.3 -
4250315035502500106701511
G82 H8A-10-4.25T-RA-V-6M
Reference no. 701511 Working load limit 0–45° [kg] 4250 Working load limit 45−60° [kg] 3150 Working load limit laced 0–45° [kg] 3550 Working load limit laced 45−60° [kg] 2500 Nominal size of chain [mm] 10 Effective length WLL [m] 6 Weight approx. [kg] 28 -
7500530059004250131701512
G82 H8A-13-7.5T-RA-V-1M
Reference no. 701512 Working load limit 0–45° [kg] 7500 Working load limit 45−60° [kg] 5300 Working load limit laced 0–45° [kg] 5900 Working load limit laced 45−60° [kg] 4250 Nominal size of chain [mm] 13 Effective length WLL [m] 1 Weight approx. [kg] 10.8 -
7500530059004250132701513
G82 H8A-13-7.5T-RA-V-2M
Reference no. 701513 Working load limit 0–45° [kg] 7500 Working load limit 45−60° [kg] 5300 Working load limit laced 0–45° [kg] 5900 Working load limit laced 45−60° [kg] 4250 Nominal size of chain [mm] 13 Effective length WLL [m] 2 Weight approx. [kg] 18.5 -
7500530059004250133701514
G82 H8A-13-7.5T-RA-V-3M
Reference no. 701514 Working load limit 0–45° [kg] 7500 Working load limit 45−60° [kg] 5300 Working load limit laced 0–45° [kg] 5900 Working load limit laced 45−60° [kg] 4250 Nominal size of chain [mm] 13 Effective length WLL [m] 3 Weight approx. [kg] 25.6 -
7500530059004250134701515
G82 H8A-13-7.5T-RA-V-4M
Reference no. 701515 Working load limit 0–45° [kg] 7500 Working load limit 45−60° [kg] 5300 Working load limit laced 0–45° [kg] 5900 Working load limit laced 45−60° [kg] 4250 Nominal size of chain [mm] 13 Effective length WLL [m] 4 Weight approx. [kg] 33.3 -
7500530059004250136701516
G82 H8A-13-7.5T-RA-V-6M
Reference no. 701516 Working load limit 0–45° [kg] 7500 Working load limit 45−60° [kg] 5300 Working load limit laced 0–45° [kg] 5900 Working load limit laced 45−60° [kg] 4250 Nominal size of chain [mm] 13 Effective length WLL [m] 6 Weight approx. [kg] 48.7 -
11200800090006300161701517
C82 H8A-16-11.2T-RA-V-1M
Reference no. 701517 Working load limit 0–45° [kg] 11200 Working load limit 45−60° [kg] 8000 Working load limit laced 0–45° [kg] 9000 Working load limit laced 45−60° [kg] 6300 Nominal size of chain [mm] 16 Effective length WLL [m] 1 Weight approx. [kg] 17.3 -
11200800090006300162701518
C82 H8A-16-11.2T-RA-V-2M
Reference no. 701518 Working load limit 0–45° [kg] 11200 Working load limit 45−60° [kg] 8000 Working load limit laced 0–45° [kg] 9000 Working load limit laced 45−60° [kg] 6300 Nominal size of chain [mm] 16 Effective length WLL [m] 2 Weight approx. [kg] 28.2 -
11200800090006300163701519
C82 H8A-16-11.2T-RA-V-3M
Reference no. 701519 Working load limit 0–45° [kg] 11200 Working load limit 45−60° [kg] 8000 Working load limit laced 0–45° [kg] 9000 Working load limit laced 45−60° [kg] 6300 Nominal size of chain [mm] 16 Effective length WLL [m] 3 Weight approx. [kg] 39.2 -
11200800090006300164701520
C82 H8A-16-11.2T-RA-V-4M
Reference no. 701520 Working load limit 0–45° [kg] 11200 Working load limit 45−60° [kg] 8000 Working load limit laced 0–45° [kg] 9000 Working load limit laced 45−60° [kg] 6300 Nominal size of chain [mm] 16 Effective length WLL [m] 4 Weight approx. [kg] 51.2 -
11200800090006300166701521
C82 H8A-16-11.2T-RA-V-6M
Reference no. 701521 Working load limit 0–45° [kg] 11200 Working load limit 45−60° [kg] 8000 Working load limit laced 0–45° [kg] 9000 Working load limit laced 45−60° [kg] 6300 Nominal size of chain [mm] 16 Effective length WLL [m] 6 Weight approx. [kg] 74.2 -
1400010000112008000182701522
C82 H8A-18-14T-RA-V-2M
Reference no. 701522 Working load limit 0–45° [kg] 14000 Working load limit 45−60° [kg] 10000 Working load limit laced 0–45° [kg] 11200 Working load limit laced 45−60° [kg] 8000 Nominal size of chain [mm] 18 Effective length WLL [m] 2 Weight approx. [kg] 36.9 -
1400010000112008000183701523
C82 H8A-18-14T-RA-V-3M
Reference no. 701523 Working load limit 0–45° [kg] 14000 Working load limit 45−60° [kg] 10000 Working load limit laced 0–45° [kg] 11200 Working load limit laced 45−60° [kg] 8000 Nominal size of chain [mm] 18 Effective length WLL [m] 3 Weight approx. [kg] 52.7 -
1400010000112008000184701524
C82 H8A-18-14T-RA-V-4M
Reference no. 701524 Working load limit 0–45° [kg] 14000 Working load limit 45−60° [kg] 10000 Working load limit laced 0–45° [kg] 11200 Working load limit laced 45−60° [kg] 8000 Nominal size of chain [mm] 18 Effective length WLL [m] 4 Weight approx. [kg] 66.9 -
1400010000112008000186701525
C82 H8A-18-14T-RA-V-6M
Reference no. 701525 Working load limit 0–45° [kg] 14000 Working load limit 45−60° [kg] 10000 Working load limit laced 0–45° [kg] 11200 Working load limit laced 45−60° [kg] 8000 Nominal size of chain [mm] 18 Effective length WLL [m] 6 Weight approx. [kg] 95.3 -
17000125001400010000202701526
C82 H8A-20-17T-RA-V-2M
Reference no. 701526 Working load limit 0–45° [kg] 17000 Working load limit 45−60° [kg] 12500 Working load limit laced 0–45° [kg] 14000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 20 Effective length WLL [m] 2 Weight approx. [kg] 45.9 -
17000125001400010000203701527
C82 H8A-20-17T-RA-V-3M
Reference no. 701527 Working load limit 0–45° [kg] 17000 Working load limit 45−60° [kg] 12500 Working load limit laced 0–45° [kg] 14000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 20 Effective length WLL [m] 3 Weight approx. [kg] 63.1 -
17000125001400010000204701528
C82 H8A-20-17T-RA-V-4M
Reference no. 701528 Working load limit 0–45° [kg] 17000 Working load limit 45−60° [kg] 12500 Working load limit laced 0–45° [kg] 14000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 20 Effective length WLL [m] 4 Weight approx. [kg] 80.4 -
17000125001400010000206701529
C82 H8A-20-17T-RA-V-6M
Reference no. 701529 Working load limit 0–45° [kg] 17000 Working load limit 45−60° [kg] 12500 Working load limit laced 0–45° [kg] 14000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 20 Effective length WLL [m] 6 Weight approx. [kg] 117.1 -
21200150001700010000222701530
C82 H8A-22-21.2T-RA-V-2M
Reference no. 701530 Working load limit 0–45° [kg] 21200 Working load limit 45−60° [kg] 15000 Working load limit laced 0–45° [kg] 17000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 22 Effective length WLL [m] 2 Weight approx. [kg] 58.8 -
21200150001700010000223701531
C82 H8A-22-21.2T-RA-V-3M
Reference no. 701531 Working load limit 0–45° [kg] 21200 Working load limit 45−60° [kg] 15000 Working load limit laced 0–45° [kg] 17000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 22 Effective length WLL [m] 3 Weight approx. [kg] 79 -
21200150001700010000224701532
C82 H8A-22-21.2T-RA-V-4M
Reference no. 701532 Working load limit 0–45° [kg] 21200 Working load limit 45−60° [kg] 15000 Working load limit laced 0–45° [kg] 17000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 22 Effective length WLL [m] 4 Weight approx. [kg] 102 -
21200150001700010000226701533
C82 H8A-22-21.2T-RA-V-6M
Reference no. 701533 Working load limit 0–45° [kg] 21200 Working load limit 45−60° [kg] 15000 Working load limit laced 0–45° [kg] 17000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 22 Effective length WLL [m] 6 Weight approx. [kg] 145.2 -
30000212002370016950262701534
C82 H8A-26-30T-RA-V-2M
Reference no. 701534 Working load limit 0–45° [kg] 30000 Working load limit 45−60° [kg] 21200 Working load limit laced 0–45° [kg] 23700 Working load limit laced 45−60° [kg] 16950 Nominal size of chain [mm] 26 Effective length WLL [m] 2 Weight approx. [kg] 79.8 -
30000212002370016950263701535
C82 H8A-26-30T-RA-V-3M
Reference no. 701535 Working load limit 0–45° [kg] 30000 Working load limit 45−60° [kg] 21200 Working load limit laced 0–45° [kg] 23700 Working load limit laced 45−60° [kg] 16950 Nominal size of chain [mm] 26 Effective length WLL [m] 3 Weight approx. [kg] 108.2 -
30000212002370016950264701536
C82 H8A-26-30T-RA-V-4M
Reference no. 701536 Working load limit 0–45° [kg] 30000 Working load limit 45−60° [kg] 21200 Working load limit laced 0–45° [kg] 23700 Working load limit laced 45−60° [kg] 16950 Nominal size of chain [mm] 26 Effective length WLL [m] 4 Weight approx. [kg] 141.4 -
30000212002370016950266701537
C82 H8A-26-30T-RA-V-6M
Reference no. 701537 Working load limit 0–45° [kg] 30000 Working load limit 45−60° [kg] 21200 Working load limit laced 0–45° [kg] 23700 Working load limit laced 45−60° [kg] 16950 Nominal size of chain [mm] 26 Effective length WLL [m] 6 Weight approx. [kg] 203.1 -
45000315003600025200322701538
C82 H8A-32-45T-RA-V-2M
Reference no. 701538 Working load limit 0–45° [kg] 45000 Working load limit 45−60° [kg] 31500 Working load limit laced 0–45° [kg] 36000 Working load limit laced 45−60° [kg] 25200 Nominal size of chain [mm] 32 Effective length WLL [m] 2 Weight approx. [kg] 129.4 -
45000315003600025200323701539
C82 H8A-32-45T-RA-V-3M
Reference no. 701539 Working load limit 0–45° [kg] 45000 Working load limit 45−60° [kg] 31500 Working load limit laced 0–45° [kg] 36000 Working load limit laced 45−60° [kg] 25200 Nominal size of chain [mm] 32 Effective length WLL [m] 3 Weight approx. [kg] 173.5 -
45000315003600025200324701540
C82 H8A-32-45T-RA-V-4M
Reference no. 701540 Working load limit 0–45° [kg] 45000 Working load limit 45−60° [kg] 31500 Working load limit laced 0–45° [kg] 36000 Working load limit laced 45−60° [kg] 25200 Nominal size of chain [mm] 32 Effective length WLL [m] 4 Weight approx. [kg] 217.7 -
45000315003600025200326701541
C82 H8A-32-45T-RA-V-6M
Reference no. 701541 Working load limit 0–45° [kg] 45000 Working load limit 45−60° [kg] 31500 Working load limit laced 0–45° [kg] 36000 Working load limit laced 45−60° [kg] 25200 Nominal size of chain [mm] 32 Effective length WLL [m] 6 Weight approx. [kg] 314.8
Working load limit 0–45° [kg]
1600
Working load limit 45−60° [kg]
1120
Working load limit laced 0–45° [kg]
1250
Working load limit laced 45−60° [kg]
900
Nominal size of chain [mm]
6
Effective length WLL [m]
1
Reference no.
701497
-
Details
G82 H8A-6-1.6T-RA-V-1M
Reference no. 701497 Working load limit 0–45° [kg] 1600 Working load limit 45−60° [kg] 1120 Working load limit laced 0–45° [kg] 1250 Working load limit laced 45−60° [kg] 900 Nominal size of chain [mm] 6 Effective length WLL [m] 1 Weight approx. [kg] 2.4
Working load limit 0–45° [kg]
1600
Working load limit 45−60° [kg]
1120
Working load limit laced 0–45° [kg]
1250
Working load limit laced 45−60° [kg]
900
Nominal size of chain [mm]
6
Effective length WLL [m]
2
Reference no.
701498
-
Details
G82 H8A-6-1.6T-RA-V-2M
Reference no. 701498 Working load limit 0–45° [kg] 1600 Working load limit 45−60° [kg] 1120 Working load limit laced 0–45° [kg] 1250 Working load limit laced 45−60° [kg] 900 Nominal size of chain [mm] 6 Effective length WLL [m] 2 Weight approx. [kg] 4
Working load limit 0–45° [kg]
1600
Working load limit 45−60° [kg]
1120
Working load limit laced 0–45° [kg]
1250
Working load limit laced 45−60° [kg]
900
Nominal size of chain [mm]
6
Effective length WLL [m]
3
Reference no.
701499
-
Details
G82 H8A-6-1.6T-RA-V-3M
Reference no. 701499 Working load limit 0–45° [kg] 1600 Working load limit 45−60° [kg] 1120 Working load limit laced 0–45° [kg] 1250 Working load limit laced 45−60° [kg] 900 Nominal size of chain [mm] 6 Effective length WLL [m] 3 Weight approx. [kg] 5.6
Working load limit 0–45° [kg]
1600
Working load limit 45−60° [kg]
1120
Working load limit laced 0–45° [kg]
1250
Working load limit laced 45−60° [kg]
900
Nominal size of chain [mm]
6
Effective length WLL [m]
4
Reference no.
701500
-
Details
G82 H8A-6-1.6T-RA-V-4M
Reference no. 701500 Working load limit 0–45° [kg] 1600 Working load limit 45−60° [kg] 1120 Working load limit laced 0–45° [kg] 1250 Working load limit laced 45−60° [kg] 900 Nominal size of chain [mm] 6 Effective length WLL [m] 4 Weight approx. [kg] 7.2
Working load limit 0–45° [kg]
1600
Working load limit 45−60° [kg]
1120
Working load limit laced 0–45° [kg]
1250
Working load limit laced 45−60° [kg]
900
Nominal size of chain [mm]
6
Effective length WLL [m]
6
Reference no.
701501
-
Details
G82 H8A-6-1.6T-RA-V-6M
Reference no. 701501 Working load limit 0–45° [kg] 1600 Working load limit 45−60° [kg] 1120 Working load limit laced 0–45° [kg] 1250 Working load limit laced 45−60° [kg] 900 Nominal size of chain [mm] 6 Effective length WLL [m] 6 Weight approx. [kg] 10.4
Working load limit 0–45° [kg]
2800
Working load limit 45−60° [kg]
2000
Working load limit laced 0–45° [kg]
2240
Working load limit laced 45−60° [kg]
1600
Nominal size of chain [mm]
8
Effective length WLL [m]
1
Reference no.
701502
-
Details
G82 H8A-8-2.8T-RA-V-1M
Reference no. 701502 Working load limit 0–45° [kg] 2800 Working load limit 45−60° [kg] 2000 Working load limit laced 0–45° [kg] 2240 Working load limit laced 45−60° [kg] 1600 Nominal size of chain [mm] 8 Effective length WLL [m] 1 Weight approx. [kg] 3.8
Working load limit 0–45° [kg]
2800
Working load limit 45−60° [kg]
2000
Working load limit laced 0–45° [kg]
2240
Working load limit laced 45−60° [kg]
1600
Nominal size of chain [mm]
8
Effective length WLL [m]
2
Reference no.
701503
-
Details
G82 H8A-8-2.8T-RA-V-2M
Reference no. 701503 Working load limit 0–45° [kg] 2800 Working load limit 45−60° [kg] 2000 Working load limit laced 0–45° [kg] 2240 Working load limit laced 45−60° [kg] 1600 Nominal size of chain [mm] 8 Effective length WLL [m] 2 Weight approx. [kg] 6.7
Working load limit 0–45° [kg]
2800
Working load limit 45−60° [kg]
2000
Working load limit laced 0–45° [kg]
2240
Working load limit laced 45−60° [kg]
1600
Nominal size of chain [mm]
8
Effective length WLL [m]
3
Reference no.
701504
-
Details
G82 H8A-8-2.8T-RA-V-3M
Reference no. 701504 Working load limit 0–45° [kg] 2800 Working load limit 45−60° [kg] 2000 Working load limit laced 0–45° [kg] 2240 Working load limit laced 45−60° [kg] 1600 Nominal size of chain [mm] 8 Effective length WLL [m] 3 Weight approx. [kg] 9.5
Working load limit 0–45° [kg]
2800
Working load limit 45−60° [kg]
2000
Working load limit laced 0–45° [kg]
2240
Working load limit laced 45−60° [kg]
1600
Nominal size of chain [mm]
8
Effective length WLL [m]
4
Reference no.
701505
-
Details
G82 H8A-8-2.8T-RA-V-4M
Reference no. 701505 Working load limit 0–45° [kg] 2800 Working load limit 45−60° [kg] 2000 Working load limit laced 0–45° [kg] 2240 Working load limit laced 45−60° [kg] 1600 Nominal size of chain [mm] 8 Effective length WLL [m] 4 Weight approx. [kg] 12.3
Working load limit 0–45° [kg]
2800
Working load limit 45−60° [kg]
2000
Working load limit laced 0–45° [kg]
2240
Working load limit laced 45−60° [kg]
1600
Nominal size of chain [mm]
8
Effective length WLL [m]
6
Reference no.
701506
-
Details
G82 H8A-8-2.8T-RA-V-6M
Reference no. 701506 Working load limit 0–45° [kg] 2800 Working load limit 45−60° [kg] 2000 Working load limit laced 0–45° [kg] 2240 Working load limit laced 45−60° [kg] 1600 Nominal size of chain [mm] 8 Effective length WLL [m] 6 Weight approx. [kg] 17.8
Working load limit 0–45° [kg]
4250
Working load limit 45−60° [kg]
3150
Working load limit laced 0–45° [kg]
3550
Working load limit laced 45−60° [kg]
2500
Nominal size of chain [mm]
10
Effective length WLL [m]
1
Reference no.
701507
-
Details
G82 H8A-10-4.25T-RA-V-1M
Reference no. 701507 Working load limit 0–45° [kg] 4250 Working load limit 45−60° [kg] 3150 Working load limit laced 0–45° [kg] 3550 Working load limit laced 45−60° [kg] 2500 Nominal size of chain [mm] 10 Effective length WLL [m] 1 Weight approx. [kg] 6.1
Working load limit 0–45° [kg]
4250
Working load limit 45−60° [kg]
3150
Working load limit laced 0–45° [kg]
3550
Working load limit laced 45−60° [kg]
2500
Nominal size of chain [mm]
10
Effective length WLL [m]
2
Reference no.
701508
-
Details
G82 H8A-10-4.25T-RA-V-2M
Reference no. 701508 Working load limit 0–45° [kg] 4250 Working load limit 45−60° [kg] 3150 Working load limit laced 0–45° [kg] 3550 Working load limit laced 45−60° [kg] 2500 Nominal size of chain [mm] 10 Effective length WLL [m] 2 Weight approx. [kg] 10.6
Working load limit 0–45° [kg]
4250
Working load limit 45−60° [kg]
3150
Working load limit laced 0–45° [kg]
3550
Working load limit laced 45−60° [kg]
2500
Nominal size of chain [mm]
10
Effective length WLL [m]
3
Reference no.
701509
-
Details
G82 H8A-10-4.25T-RA-V-3M
Reference no. 701509 Working load limit 0–45° [kg] 4250 Working load limit 45−60° [kg] 3150 Working load limit laced 0–45° [kg] 3550 Working load limit laced 45−60° [kg] 2500 Nominal size of chain [mm] 10 Effective length WLL [m] 3 Weight approx. [kg] 14.8
Working load limit 0–45° [kg]
4250
Working load limit 45−60° [kg]
3150
Working load limit laced 0–45° [kg]
3550
Working load limit laced 45−60° [kg]
2500
Nominal size of chain [mm]
10
Effective length WLL [m]
4
Reference no.
701510
-
Details
G82 H8A-10-4.25T-RA-V-4M
Reference no. 701510 Working load limit 0–45° [kg] 4250 Working load limit 45−60° [kg] 3150 Working load limit laced 0–45° [kg] 3550 Working load limit laced 45−60° [kg] 2500 Nominal size of chain [mm] 10 Effective length WLL [m] 4 Weight approx. [kg] 19.3
Working load limit 0–45° [kg]
4250
Working load limit 45−60° [kg]
3150
Working load limit laced 0–45° [kg]
3550
Working load limit laced 45−60° [kg]
2500
Nominal size of chain [mm]
10
Effective length WLL [m]
6
Reference no.
701511
-
Details
G82 H8A-10-4.25T-RA-V-6M
Reference no. 701511 Working load limit 0–45° [kg] 4250 Working load limit 45−60° [kg] 3150 Working load limit laced 0–45° [kg] 3550 Working load limit laced 45−60° [kg] 2500 Nominal size of chain [mm] 10 Effective length WLL [m] 6 Weight approx. [kg] 28
Working load limit 0–45° [kg]
7500
Working load limit 45−60° [kg]
5300
Working load limit laced 0–45° [kg]
5900
Working load limit laced 45−60° [kg]
4250
Nominal size of chain [mm]
13
Effective length WLL [m]
1
Reference no.
701512
-
Details
G82 H8A-13-7.5T-RA-V-1M
Reference no. 701512 Working load limit 0–45° [kg] 7500 Working load limit 45−60° [kg] 5300 Working load limit laced 0–45° [kg] 5900 Working load limit laced 45−60° [kg] 4250 Nominal size of chain [mm] 13 Effective length WLL [m] 1 Weight approx. [kg] 10.8
Working load limit 0–45° [kg]
7500
Working load limit 45−60° [kg]
5300
Working load limit laced 0–45° [kg]
5900
Working load limit laced 45−60° [kg]
4250
Nominal size of chain [mm]
13
Effective length WLL [m]
2
Reference no.
701513
-
Details
G82 H8A-13-7.5T-RA-V-2M
Reference no. 701513 Working load limit 0–45° [kg] 7500 Working load limit 45−60° [kg] 5300 Working load limit laced 0–45° [kg] 5900 Working load limit laced 45−60° [kg] 4250 Nominal size of chain [mm] 13 Effective length WLL [m] 2 Weight approx. [kg] 18.5
Working load limit 0–45° [kg]
7500
Working load limit 45−60° [kg]
5300
Working load limit laced 0–45° [kg]
5900
Working load limit laced 45−60° [kg]
4250
Nominal size of chain [mm]
13
Effective length WLL [m]
3
Reference no.
701514
-
Details
G82 H8A-13-7.5T-RA-V-3M
Reference no. 701514 Working load limit 0–45° [kg] 7500 Working load limit 45−60° [kg] 5300 Working load limit laced 0–45° [kg] 5900 Working load limit laced 45−60° [kg] 4250 Nominal size of chain [mm] 13 Effective length WLL [m] 3 Weight approx. [kg] 25.6
Working load limit 0–45° [kg]
7500
Working load limit 45−60° [kg]
5300
Working load limit laced 0–45° [kg]
5900
Working load limit laced 45−60° [kg]
4250
Nominal size of chain [mm]
13
Effective length WLL [m]
4
Reference no.
701515
-
Details
G82 H8A-13-7.5T-RA-V-4M
Reference no. 701515 Working load limit 0–45° [kg] 7500 Working load limit 45−60° [kg] 5300 Working load limit laced 0–45° [kg] 5900 Working load limit laced 45−60° [kg] 4250 Nominal size of chain [mm] 13 Effective length WLL [m] 4 Weight approx. [kg] 33.3
Working load limit 0–45° [kg]
7500
Working load limit 45−60° [kg]
5300
Working load limit laced 0–45° [kg]
5900
Working load limit laced 45−60° [kg]
4250
Nominal size of chain [mm]
13
Effective length WLL [m]
6
Reference no.
701516
-
Details
G82 H8A-13-7.5T-RA-V-6M
Reference no. 701516 Working load limit 0–45° [kg] 7500 Working load limit 45−60° [kg] 5300 Working load limit laced 0–45° [kg] 5900 Working load limit laced 45−60° [kg] 4250 Nominal size of chain [mm] 13 Effective length WLL [m] 6 Weight approx. [kg] 48.7
Working load limit 0–45° [kg]
11200
Working load limit 45−60° [kg]
8000
Working load limit laced 0–45° [kg]
9000
Working load limit laced 45−60° [kg]
6300
Nominal size of chain [mm]
16
Effective length WLL [m]
1
Reference no.
701517
-
Details
C82 H8A-16-11.2T-RA-V-1M
Reference no. 701517 Working load limit 0–45° [kg] 11200 Working load limit 45−60° [kg] 8000 Working load limit laced 0–45° [kg] 9000 Working load limit laced 45−60° [kg] 6300 Nominal size of chain [mm] 16 Effective length WLL [m] 1 Weight approx. [kg] 17.3
Working load limit 0–45° [kg]
11200
Working load limit 45−60° [kg]
8000
Working load limit laced 0–45° [kg]
9000
Working load limit laced 45−60° [kg]
6300
Nominal size of chain [mm]
16
Effective length WLL [m]
2
Reference no.
701518
-
Details
C82 H8A-16-11.2T-RA-V-2M
Reference no. 701518 Working load limit 0–45° [kg] 11200 Working load limit 45−60° [kg] 8000 Working load limit laced 0–45° [kg] 9000 Working load limit laced 45−60° [kg] 6300 Nominal size of chain [mm] 16 Effective length WLL [m] 2 Weight approx. [kg] 28.2
Working load limit 0–45° [kg]
11200
Working load limit 45−60° [kg]
8000
Working load limit laced 0–45° [kg]
9000
Working load limit laced 45−60° [kg]
6300
Nominal size of chain [mm]
16
Effective length WLL [m]
3
Reference no.
701519
-
Details
C82 H8A-16-11.2T-RA-V-3M
Reference no. 701519 Working load limit 0–45° [kg] 11200 Working load limit 45−60° [kg] 8000 Working load limit laced 0–45° [kg] 9000 Working load limit laced 45−60° [kg] 6300 Nominal size of chain [mm] 16 Effective length WLL [m] 3 Weight approx. [kg] 39.2
Working load limit 0–45° [kg]
11200
Working load limit 45−60° [kg]
8000
Working load limit laced 0–45° [kg]
9000
Working load limit laced 45−60° [kg]
6300
Nominal size of chain [mm]
16
Effective length WLL [m]
4
Reference no.
701520
-
Details
C82 H8A-16-11.2T-RA-V-4M
Reference no. 701520 Working load limit 0–45° [kg] 11200 Working load limit 45−60° [kg] 8000 Working load limit laced 0–45° [kg] 9000 Working load limit laced 45−60° [kg] 6300 Nominal size of chain [mm] 16 Effective length WLL [m] 4 Weight approx. [kg] 51.2
Working load limit 0–45° [kg]
11200
Working load limit 45−60° [kg]
8000
Working load limit laced 0–45° [kg]
9000
Working load limit laced 45−60° [kg]
6300
Nominal size of chain [mm]
16
Effective length WLL [m]
6
Reference no.
701521
-
Details
C82 H8A-16-11.2T-RA-V-6M
Reference no. 701521 Working load limit 0–45° [kg] 11200 Working load limit 45−60° [kg] 8000 Working load limit laced 0–45° [kg] 9000 Working load limit laced 45−60° [kg] 6300 Nominal size of chain [mm] 16 Effective length WLL [m] 6 Weight approx. [kg] 74.2
Working load limit 0–45° [kg]
14000
Working load limit 45−60° [kg]
10000
Working load limit laced 0–45° [kg]
11200
Working load limit laced 45−60° [kg]
8000
Nominal size of chain [mm]
18
Effective length WLL [m]
2
Reference no.
701522
-
Details
C82 H8A-18-14T-RA-V-2M
Reference no. 701522 Working load limit 0–45° [kg] 14000 Working load limit 45−60° [kg] 10000 Working load limit laced 0–45° [kg] 11200 Working load limit laced 45−60° [kg] 8000 Nominal size of chain [mm] 18 Effective length WLL [m] 2 Weight approx. [kg] 36.9
Working load limit 0–45° [kg]
14000
Working load limit 45−60° [kg]
10000
Working load limit laced 0–45° [kg]
11200
Working load limit laced 45−60° [kg]
8000
Nominal size of chain [mm]
18
Effective length WLL [m]
3
Reference no.
701523
-
Details
C82 H8A-18-14T-RA-V-3M
Reference no. 701523 Working load limit 0–45° [kg] 14000 Working load limit 45−60° [kg] 10000 Working load limit laced 0–45° [kg] 11200 Working load limit laced 45−60° [kg] 8000 Nominal size of chain [mm] 18 Effective length WLL [m] 3 Weight approx. [kg] 52.7
Working load limit 0–45° [kg]
14000
Working load limit 45−60° [kg]
10000
Working load limit laced 0–45° [kg]
11200
Working load limit laced 45−60° [kg]
8000
Nominal size of chain [mm]
18
Effective length WLL [m]
4
Reference no.
701524
-
Details
C82 H8A-18-14T-RA-V-4M
Reference no. 701524 Working load limit 0–45° [kg] 14000 Working load limit 45−60° [kg] 10000 Working load limit laced 0–45° [kg] 11200 Working load limit laced 45−60° [kg] 8000 Nominal size of chain [mm] 18 Effective length WLL [m] 4 Weight approx. [kg] 66.9
Working load limit 0–45° [kg]
14000
Working load limit 45−60° [kg]
10000
Working load limit laced 0–45° [kg]
11200
Working load limit laced 45−60° [kg]
8000
Nominal size of chain [mm]
18
Effective length WLL [m]
6
Reference no.
701525
-
Details
C82 H8A-18-14T-RA-V-6M
Reference no. 701525 Working load limit 0–45° [kg] 14000 Working load limit 45−60° [kg] 10000 Working load limit laced 0–45° [kg] 11200 Working load limit laced 45−60° [kg] 8000 Nominal size of chain [mm] 18 Effective length WLL [m] 6 Weight approx. [kg] 95.3
Working load limit 0–45° [kg]
17000
Working load limit 45−60° [kg]
12500
Working load limit laced 0–45° [kg]
14000
Working load limit laced 45−60° [kg]
10000
Nominal size of chain [mm]
20
Effective length WLL [m]
2
Reference no.
701526
-
Details
C82 H8A-20-17T-RA-V-2M
Reference no. 701526 Working load limit 0–45° [kg] 17000 Working load limit 45−60° [kg] 12500 Working load limit laced 0–45° [kg] 14000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 20 Effective length WLL [m] 2 Weight approx. [kg] 45.9
Working load limit 0–45° [kg]
17000
Working load limit 45−60° [kg]
12500
Working load limit laced 0–45° [kg]
14000
Working load limit laced 45−60° [kg]
10000
Nominal size of chain [mm]
20
Effective length WLL [m]
3
Reference no.
701527
-
Details
C82 H8A-20-17T-RA-V-3M
Reference no. 701527 Working load limit 0–45° [kg] 17000 Working load limit 45−60° [kg] 12500 Working load limit laced 0–45° [kg] 14000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 20 Effective length WLL [m] 3 Weight approx. [kg] 63.1
Working load limit 0–45° [kg]
17000
Working load limit 45−60° [kg]
12500
Working load limit laced 0–45° [kg]
14000
Working load limit laced 45−60° [kg]
10000
Nominal size of chain [mm]
20
Effective length WLL [m]
4
Reference no.
701528
-
Details
C82 H8A-20-17T-RA-V-4M
Reference no. 701528 Working load limit 0–45° [kg] 17000 Working load limit 45−60° [kg] 12500 Working load limit laced 0–45° [kg] 14000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 20 Effective length WLL [m] 4 Weight approx. [kg] 80.4
Working load limit 0–45° [kg]
17000
Working load limit 45−60° [kg]
12500
Working load limit laced 0–45° [kg]
14000
Working load limit laced 45−60° [kg]
10000
Nominal size of chain [mm]
20
Effective length WLL [m]
6
Reference no.
701529
-
Details
C82 H8A-20-17T-RA-V-6M
Reference no. 701529 Working load limit 0–45° [kg] 17000 Working load limit 45−60° [kg] 12500 Working load limit laced 0–45° [kg] 14000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 20 Effective length WLL [m] 6 Weight approx. [kg] 117.1
Working load limit 0–45° [kg]
21200
Working load limit 45−60° [kg]
15000
Working load limit laced 0–45° [kg]
17000
Working load limit laced 45−60° [kg]
10000
Nominal size of chain [mm]
22
Effective length WLL [m]
2
Reference no.
701530
-
Details
C82 H8A-22-21.2T-RA-V-2M
Reference no. 701530 Working load limit 0–45° [kg] 21200 Working load limit 45−60° [kg] 15000 Working load limit laced 0–45° [kg] 17000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 22 Effective length WLL [m] 2 Weight approx. [kg] 58.8
Working load limit 0–45° [kg]
21200
Working load limit 45−60° [kg]
15000
Working load limit laced 0–45° [kg]
17000
Working load limit laced 45−60° [kg]
10000
Nominal size of chain [mm]
22
Effective length WLL [m]
3
Reference no.
701531
-
Details
C82 H8A-22-21.2T-RA-V-3M
Reference no. 701531 Working load limit 0–45° [kg] 21200 Working load limit 45−60° [kg] 15000 Working load limit laced 0–45° [kg] 17000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 22 Effective length WLL [m] 3 Weight approx. [kg] 79
Working load limit 0–45° [kg]
21200
Working load limit 45−60° [kg]
15000
Working load limit laced 0–45° [kg]
17000
Working load limit laced 45−60° [kg]
10000
Nominal size of chain [mm]
22
Effective length WLL [m]
4
Reference no.
701532
-
Details
C82 H8A-22-21.2T-RA-V-4M
Reference no. 701532 Working load limit 0–45° [kg] 21200 Working load limit 45−60° [kg] 15000 Working load limit laced 0–45° [kg] 17000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 22 Effective length WLL [m] 4 Weight approx. [kg] 102
Working load limit 0–45° [kg]
21200
Working load limit 45−60° [kg]
15000
Working load limit laced 0–45° [kg]
17000
Working load limit laced 45−60° [kg]
10000
Nominal size of chain [mm]
22
Effective length WLL [m]
6
Reference no.
701533
-
Details
C82 H8A-22-21.2T-RA-V-6M
Reference no. 701533 Working load limit 0–45° [kg] 21200 Working load limit 45−60° [kg] 15000 Working load limit laced 0–45° [kg] 17000 Working load limit laced 45−60° [kg] 10000 Nominal size of chain [mm] 22 Effective length WLL [m] 6 Weight approx. [kg] 145.2
Working load limit 0–45° [kg]
30000
Working load limit 45−60° [kg]
21200
Working load limit laced 0–45° [kg]
23700
Working load limit laced 45−60° [kg]
16950
Nominal size of chain [mm]
26
Effective length WLL [m]
2
Reference no.
701534
-
Details
C82 H8A-26-30T-RA-V-2M
Reference no. 701534 Working load limit 0–45° [kg] 30000 Working load limit 45−60° [kg] 21200 Working load limit laced 0–45° [kg] 23700 Working load limit laced 45−60° [kg] 16950 Nominal size of chain [mm] 26 Effective length WLL [m] 2 Weight approx. [kg] 79.8
Working load limit 0–45° [kg]
30000
Working load limit 45−60° [kg]
21200
Working load limit laced 0–45° [kg]
23700
Working load limit laced 45−60° [kg]
16950
Nominal size of chain [mm]
26
Effective length WLL [m]
3
Reference no.
701535
-
Details
C82 H8A-26-30T-RA-V-3M
Reference no. 701535 Working load limit 0–45° [kg] 30000 Working load limit 45−60° [kg] 21200 Working load limit laced 0–45° [kg] 23700 Working load limit laced 45−60° [kg] 16950 Nominal size of chain [mm] 26 Effective length WLL [m] 3 Weight approx. [kg] 108.2
Working load limit 0–45° [kg]
30000
Working load limit 45−60° [kg]
21200
Working load limit laced 0–45° [kg]
23700
Working load limit laced 45−60° [kg]
16950
Nominal size of chain [mm]
26
Effective length WLL [m]
4
Reference no.
701536
-
Details
C82 H8A-26-30T-RA-V-4M
Reference no. 701536 Working load limit 0–45° [kg] 30000 Working load limit 45−60° [kg] 21200 Working load limit laced 0–45° [kg] 23700 Working load limit laced 45−60° [kg] 16950 Nominal size of chain [mm] 26 Effective length WLL [m] 4 Weight approx. [kg] 141.4
Working load limit 0–45° [kg]
30000
Working load limit 45−60° [kg]
21200
Working load limit laced 0–45° [kg]
23700
Working load limit laced 45−60° [kg]
16950
Nominal size of chain [mm]
26
Effective length WLL [m]
6
Reference no.
701537
-
Details
C82 H8A-26-30T-RA-V-6M
Reference no. 701537 Working load limit 0–45° [kg] 30000 Working load limit 45−60° [kg] 21200 Working load limit laced 0–45° [kg] 23700 Working load limit laced 45−60° [kg] 16950 Nominal size of chain [mm] 26 Effective length WLL [m] 6 Weight approx. [kg] 203.1
Working load limit 0–45° [kg]
45000
Working load limit 45−60° [kg]
31500
Working load limit laced 0–45° [kg]
36000
Working load limit laced 45−60° [kg]
25200
Nominal size of chain [mm]
32
Effective length WLL [m]
2
Reference no.
701538
-
Details
C82 H8A-32-45T-RA-V-2M
Reference no. 701538 Working load limit 0–45° [kg] 45000 Working load limit 45−60° [kg] 31500 Working load limit laced 0–45° [kg] 36000 Working load limit laced 45−60° [kg] 25200 Nominal size of chain [mm] 32 Effective length WLL [m] 2 Weight approx. [kg] 129.4
Working load limit 0–45° [kg]
45000
Working load limit 45−60° [kg]
31500
Working load limit laced 0–45° [kg]
36000
Working load limit laced 45−60° [kg]
25200
Nominal size of chain [mm]
32
Effective length WLL [m]
3
Reference no.
701539
-
Details
C82 H8A-32-45T-RA-V-3M
Reference no. 701539 Working load limit 0–45° [kg] 45000 Working load limit 45−60° [kg] 31500 Working load limit laced 0–45° [kg] 36000 Working load limit laced 45−60° [kg] 25200 Nominal size of chain [mm] 32 Effective length WLL [m] 3 Weight approx. [kg] 173.5
Working load limit 0–45° [kg]
45000
Working load limit 45−60° [kg]
31500
Working load limit laced 0–45° [kg]
36000
Working load limit laced 45−60° [kg]
25200
Nominal size of chain [mm]
32
Effective length WLL [m]
4
Reference no.
701540
-
Details
C82 H8A-32-45T-RA-V-4M
Reference no. 701540 Working load limit 0–45° [kg] 45000 Working load limit 45−60° [kg] 31500 Working load limit laced 0–45° [kg] 36000 Working load limit laced 45−60° [kg] 25200 Nominal size of chain [mm] 32 Effective length WLL [m] 4 Weight approx. [kg] 217.7
Working load limit 0–45° [kg]
45000
Working load limit 45−60° [kg]
31500
Working load limit laced 0–45° [kg]
36000
Working load limit laced 45−60° [kg]
25200
Nominal size of chain [mm]
32
Effective length WLL [m]
6
Reference no.
701541
-
Details
C82 H8A-32-45T-RA-V-6M
Reference no. 701541 Working load limit 0–45° [kg] 45000 Working load limit 45−60° [kg] 31500 Working load limit laced 0–45° [kg] 36000 Working load limit laced 45−60° [kg] 25200 Nominal size of chain [mm] 32 Effective length WLL [m] 6 Weight approx. [kg] 314.8
Downloads
Description
Applications
Contact
| Market | Contact | Location type |
|---|---|---|
|
All other markets |
PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Tel. +49 8331 937-9623 Fax +49 8331 937-380 E-Mail verkauf-azs@pfeifer.de Web www.pfeifer.info |
Parent company/Head office |
|
Germany |
PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Mobile Services Tel. +49 800 7237244 Fax +49 8331 937-198 E-Mail pruefservice-azs@pfeifer.de Web www.pfeifer.info |
Service centre |
|
Germany |
PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Strasse 66 DE-87700 Memmingen Academy Tel. +49 8331 937-462 E-Mail academy@pfeifer.de Web www.pfeifer.info |
Service centre |
|
Austria |
PFEIFER Seil- und Hebetechnik GmbH Harterfeldweg 2 AT-4481 Asten Tel. +43 7224 662 24-0 Fax +43 7224 662 24-13 E-Mail info@pfeifer-austria.at Web www.pfeifer-austria.at |
Sales subsidiary |
|
France |
PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +33 676 54 42 68 / +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu |
Sales subsidiary |
|
Luxemburg |
PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu |
Sales subsidiary |
|
Poland |
PFEIFER Technika Linowa i Dźwigowa Sp. z o.o. ul. Wrocławska 68 55-330 Krępice k/Wrocławia Tel. +48 71 30 23 700 E-Mail info@pfeifer.pl Web www.pfeifer.pl |
Sales subsidiary |
Feel free to contact us
- Universal connecting link end fitting
