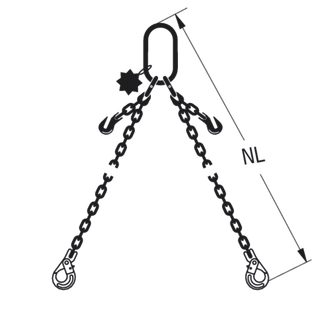

HIT chain sling quality grade 8, 2-leg, can be shortened with extra-large suspension link and safety load hook

Chain sling with extra-large suspension link, shortener parallel hook and safety load hooks for 2 leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.

Technical data
Product variants
Downloads
Contact

Technical data

Quality grade

Legs Quantity

2-leg

Operating temperature

–40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

Chain following EN 818
EN 1677-compliant chain components

Marking

Batch number and serial number
Quality grade no.
Quality grade and working load limit symbol

Safety factor

Chain surface

coated

Chain colour

black

Component surface

coated

Component colour

Shortening

cannot be shortened

Product variants

G82 H8A-6-1.6T-RL-PKU-SHK-2M

Reference no.	493715
Working load limit 0–45° [kg]	1600
Working load limit 45−60° [kg]	1120
Working load limit laced 0–45° [kg]	1250
Working load limit laced 45−60° [kg]	900
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	6
Effective length WLL [m]	2
Weight approx. [kg]	7.503

G82 H8A-6-1.6T-RL-PKU-SHK-3M

Reference no.	493716
Working load limit 0–45° [kg]	1600
Working load limit 45−60° [kg]	1120
Working load limit laced 0–45° [kg]	1250
Working load limit laced 45−60° [kg]	900
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	6
Effective length WLL [m]	3
Weight approx. [kg]	9.103

G82 H8A-6-1.6T-RL-PKU-SHK-4M

Reference no.	493717
Working load limit 0–45° [kg]	1600
Working load limit 45−60° [kg]	1120
Working load limit laced 0–45° [kg]	1250
Working load limit laced 45−60° [kg]	900
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	6
Effective length WLL [m]	4
Weight approx. [kg]	10.703

G82 H8A-6-1.6T-RL-PKU-SHK-6M

Reference no.	493718
Working load limit 0–45° [kg]	1600
Working load limit 45−60° [kg]	1120
Working load limit laced 0–45° [kg]	1250
Working load limit laced 45−60° [kg]	900
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	6
Effective length WLL [m]	6
Weight approx. [kg]	13.903

G82 H8A-8-2.8T-RL-PKU-SHK-2M

Reference no.	493720
Working load limit 0–45° [kg]	2800
Working load limit 45−60° [kg]	2000
Working load limit laced 0–45° [kg]	2240
Working load limit laced 45−60° [kg]	1600
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	8
Effective length WLL [m]	2
Weight approx. [kg]	10.988

G82 H8A-8-2.8T-RL-PKU-SHK-3M

Reference no.	493721
Working load limit 0–45° [kg]	2800
Working load limit 45−60° [kg]	2000
Working load limit laced 0–45° [kg]	2240
Working load limit laced 45−60° [kg]	1600
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	8
Effective length WLL [m]	3
Weight approx. [kg]	13.788

G82 H8A-8-2.8T-RL-PKU-SHK-4M

Reference no.	493722
Working load limit 0–45° [kg]	2800
Working load limit 45−60° [kg]	2000
Working load limit laced 0–45° [kg]	2240
Working load limit laced 45−60° [kg]	1600
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	8
Effective length WLL [m]	4
Weight approx. [kg]	16.588

G82 H8A-8-2.8T-RL-PKU-SHK-6M

Reference no.	493723
Working load limit 0–45° [kg]	2800
Working load limit 45−60° [kg]	2000
Working load limit laced 0–45° [kg]	2240
Working load limit laced 45−60° [kg]	1600
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	8
Effective length WLL [m]	6
Weight approx. [kg]	22.188

G82 H8A-10-4.25T-RL-PKU-SHK-2M

Reference no.	493725
Working load limit 0–45° [kg]	4250
Working load limit 45−60° [kg]	3150
Working load limit laced 0–45° [kg]	3550
Working load limit laced 45−60° [kg]	2500
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	10
Effective length WLL [m]	2
Weight approx. [kg]	18.854

G82 H8A-10-4.25T-RL-PKU-SHK-3M

Reference no.	493726
Working load limit 0–45° [kg]	4250
Working load limit 45−60° [kg]	3150
Working load limit laced 0–45° [kg]	3550
Working load limit laced 45−60° [kg]	2500
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	10
Effective length WLL [m]	3
Weight approx. [kg]	23.254

G82 H8A-10-4.25T-RL-PKU-SHK-4M

Reference no.	493727
Working load limit 0–45° [kg]	4250
Working load limit 45−60° [kg]	3150
Working load limit laced 0–45° [kg]	3550
Working load limit laced 45−60° [kg]	2500
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	10
Effective length WLL [m]	4
Weight approx. [kg]	27.654

G82 H8A-10-4.25T-RL-PKU-SHK-6M

Reference no.	493728
Working load limit 0–45° [kg]	4250
Working load limit 45−60° [kg]	3150
Working load limit laced 0–45° [kg]	3550
Working load limit laced 45−60° [kg]	2500
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	10
Effective length WLL [m]	6
Weight approx. [kg]	36.454

G82 H8A-13-7.5T-RL-PKU-SHK-2M

Reference no.	493730
Working load limit 0–45° [kg]	7500
Working load limit 45−60° [kg]	5300
Working load limit laced 0–45° [kg]	5900
Working load limit laced 45−60° [kg]	4250
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	13
Effective length WLL [m]	2
Weight approx. [kg]	31.363

G82 H8A-13-7.5T-RL-PKU-SHK-3M

Reference no.	493731
Working load limit 0–45° [kg]	7500
Working load limit 45−60° [kg]	5300
Working load limit laced 0–45° [kg]	5900
Working load limit laced 45−60° [kg]	4250
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	13
Effective length WLL [m]	3
Weight approx. [kg]	38.963

G82 H8A-13-7.5T-RL-PKU-SHK-4M

Reference no.	493732
Working load limit 0–45° [kg]	7500
Working load limit 45−60° [kg]	5300
Working load limit laced 0–45° [kg]	5900
Working load limit laced 45−60° [kg]	4250
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	13
Effective length WLL [m]	4
Weight approx. [kg]	46.563

G82 H8A-13-7.5T-RL-PKU-SHK-6M

Reference no.	493733
Working load limit 0–45° [kg]	7500
Working load limit 45−60° [kg]	5300
Working load limit laced 0–45° [kg]	5900
Working load limit laced 45−60° [kg]	4250
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	13
Effective length WLL [m]	6
Weight approx. [kg]	61.763

C82 H8A-16-11.2T-RL-PK-U-SHK-2M

Reference no.	493735
Working load limit 0–45° [kg]	11200
Working load limit 45−60° [kg]	8000
Working load limit laced 0–45° [kg]	9000
Working load limit laced 45−60° [kg]	6300
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	16
Effective length WLL [m]	2
Weight approx. [kg]	49.182

C82 H8A-16-11.2T-RL-PK-U-SHK-3M

Reference no.	493736
Working load limit 0–45° [kg]	11200
Working load limit 45−60° [kg]	8000
Working load limit laced 0–45° [kg]	9000
Working load limit laced 45−60° [kg]	6300
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	16
Effective length WLL [m]	3
Weight approx. [kg]	60.582

C82 H8A-16-11.2T-RL-PK-U-SHK-4M

Reference no.	493737
Working load limit 0–45° [kg]	11200
Working load limit 45−60° [kg]	8000
Working load limit laced 0–45° [kg]	9000
Working load limit laced 45−60° [kg]	6300
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	16
Effective length WLL [m]	4
Weight approx. [kg]	71.982

C82 H8A-16-11.2T-RL-PK-U-SHK-6M

Reference no.	493738
Working load limit 0–45° [kg]	11200
Working load limit 45−60° [kg]	8000
Working load limit laced 0–45° [kg]	9000
Working load limit laced 45−60° [kg]	6300
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	16
Effective length WLL [m]	6
Weight approx. [kg]	94.782

Working load limit 0–45° [kg] 1600

Working load limit 45−60° [kg] 1120

Working load limit laced 0–45° [kg] 1250

Working load limit laced 45−60° [kg] 900

Nominal size of chain [mm] 6

Effective length WLL [m] 2

Reference no. 493715
