HIT Chain slings in quality grade 8 2 leg with extra-large suspension link and safety load hook

HIT Chain slings in quality grade 8 2 leg with extra-large suspension link and safety load hook

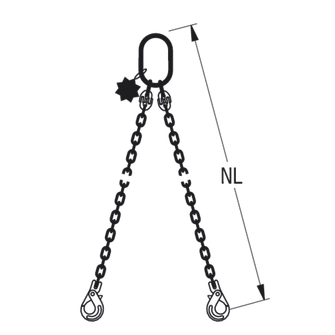

Chain sling with extra-large suspension link and safety load hook for 2-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 2-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1600
    1120
    1250
    900
    6
    1
    493648
    G82 H8A-6-1.6T-RL-SHK-1M
    Reference no. 493648
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 5.388
  • 1600
    1120
    1250
    900
    6
    2
    493649
    G82 H8A-6-1.6T-RL-SHK-2M
    Reference no. 493649
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 6.988
  • 1600
    1120
    1250
    900
    6
    3
    493650
    G82 H8A-6-1.6T-RL-SHK-3M
    Reference no. 493650
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 8.588
  • 1600
    1120
    1250
    900
    6
    4
    493651
    G82 H8A-6-1.6T-RL-SHK-4M
    Reference no. 493651
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 10.188
  • 1600
    1120
    1250
    900
    6
    6
    493652
    G82 H8A-6-1.6T-RL-SHK-6M
    Reference no. 493652
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13.388
  • 2800
    2000
    2240
    1600
    8
    1
    493653
    G82 H8A-8-2.8T-RL-SHK-1M
    Reference no. 493653
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 7.32
  • 2800
    2000
    2240
    1600
    8
    2
    493654
    G82 H8A-8-2.8T-RL-SHK-2M
    Reference no. 493654
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 10.12
  • 2800
    2000
    2240
    1600
    8
    3
    493655
    G82 H8A-8-2.8T-RL-SHK-3M
    Reference no. 493655
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 12.92
  • 2800
    2000
    2240
    1600
    8
    4
    493656
    G82 H8A-8-2.8T-RL-SHK-4M
    Reference no. 493656
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 15.72
  • 2800
    2000
    2240
    1600
    8
    6
    493657
    G82 H8A-8-2.8T-RL-SHK-6M
    Reference no. 493657
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 21.32
  • 4250
    3150
    3550
    2500
    10
    1
    493658
    G82 H8A-10-4.25T-RL-SHK-1M
    Reference no. 493658
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 12.326
  • 4250
    3150
    3550
    2500
    10
    2
    493659
    G82 H8A-10-4.25T-RL-SHK-2M
    Reference no. 493659
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 16.726
  • 4250
    3150
    3550
    2500
    10
    3
    493660
    G82 H8A-10-4.25T-RL-SHK-3M
    Reference no. 493660
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 21.126
  • 4250
    3150
    3550
    2500
    10
    4
    493661
    G82 H8A-10-4.25T-RL-SHK-4M
    Reference no. 493661
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 25.526
  • 4250
    3150
    3550
    2500
    10
    6
    493662
    G82 H8A-10-4.25T-RL-SHK-6M
    Reference no. 493662
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 34.326
  • 7500
    5300
    5900
    4250
    13
    1
    493663
    G82 H8A-13-7.5T-RL-SHK-1M
    Reference no. 493663
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 19.578
  • 7500
    5300
    5900
    4250
    13
    2
    493664
    G82 H8A-13-7.5T-RL-SHK-2M
    Reference no. 493664
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 27.178
  • 7500
    5300
    5900
    4250
    13
    3
    493665
    G82 H8A-13-7.5T-RL-SHK-3M
    Reference no. 493665
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 34.778
  • 7500
    5300
    5900
    4250
    13
    4
    493666
    G82 H8A-13-7.5T-RL-SHK-4M
    Reference no. 493666
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 42.378
  • 7500
    5300
    5900
    4250
    13
    6
    493667
    G82 H8A-13-7.5T-RL-SHK-6M
    Reference no. 493667
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 57.578
  • 11200
    8000
    9000
    6300
    16
    1
    493668
    C82 H8A-16-11.2T-RL-SHK-1M
    Reference no. 493668
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 29.793
  • 11200
    8000
    9000
    6300
    16
    2
    493669
    C82 H8A-16-11.2T-RL-SHK-2M
    Reference no. 493669
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 41.193
  • 11200
    8000
    9000
    6300
    16
    3
    493670
    C82 H8A-16-11.3T-RL-SHK-3M
    Reference no. 493670
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 52.593
  • 11200
    8000
    9000
    6300
    16
    4
    493671
    C82 H8A-16-11.2T-RL-SHK-4M
    Reference no. 493671
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 63.993
  • 11200
    8000
    9000
    6300
    16
    6
    493672
    C82 H8A-16-11.2T-RL-SHK-6M
    Reference no. 493672
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 86.793
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 493648
  • Details
    G82 H8A-6-1.6T-RL-SHK-1M
    Reference no. 493648
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 5.388
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 493649
  • Details
    G82 H8A-6-1.6T-RL-SHK-2M
    Reference no. 493649
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 6.988
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 493650
  • Details
    G82 H8A-6-1.6T-RL-SHK-3M
    Reference no. 493650
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 8.588
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 493651
  • Details
    G82 H8A-6-1.6T-RL-SHK-4M
    Reference no. 493651
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 10.188
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 493652
  • Details
    G82 H8A-6-1.6T-RL-SHK-6M
    Reference no. 493652
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13.388
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 493653
  • Details
    G82 H8A-8-2.8T-RL-SHK-1M
    Reference no. 493653
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 7.32
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 493654
  • Details
    G82 H8A-8-2.8T-RL-SHK-2M
    Reference no. 493654
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 10.12
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 493655
  • Details
    G82 H8A-8-2.8T-RL-SHK-3M
    Reference no. 493655
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 12.92
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 493656
  • Details
    G82 H8A-8-2.8T-RL-SHK-4M
    Reference no. 493656
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 15.72
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 493657
  • Details
    G82 H8A-8-2.8T-RL-SHK-6M
    Reference no. 493657
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 21.32
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 493658
  • Details
    G82 H8A-10-4.25T-RL-SHK-1M
    Reference no. 493658
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 12.326
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 493659
  • Details
    G82 H8A-10-4.25T-RL-SHK-2M
    Reference no. 493659
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 16.726
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 493660
  • Details
    G82 H8A-10-4.25T-RL-SHK-3M
    Reference no. 493660
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 21.126
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 493661
  • Details
    G82 H8A-10-4.25T-RL-SHK-4M
    Reference no. 493661
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 25.526
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 493662
  • Details
    G82 H8A-10-4.25T-RL-SHK-6M
    Reference no. 493662
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 34.326
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 493663
  • Details
    G82 H8A-13-7.5T-RL-SHK-1M
    Reference no. 493663
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 19.578
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 493664
  • Details
    G82 H8A-13-7.5T-RL-SHK-2M
    Reference no. 493664
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 27.178
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 493665
  • Details
    G82 H8A-13-7.5T-RL-SHK-3M
    Reference no. 493665
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 34.778
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 493666
  • Details
    G82 H8A-13-7.5T-RL-SHK-4M
    Reference no. 493666
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 42.378
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 493667
  • Details
    G82 H8A-13-7.5T-RL-SHK-6M
    Reference no. 493667
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 57.578
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 493668
  • Details
    C82 H8A-16-11.2T-RL-SHK-1M
    Reference no. 493668
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 29.793
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 493669
  • Details
    C82 H8A-16-11.2T-RL-SHK-2M
    Reference no. 493669
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 41.193
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 493670
  • Details
    C82 H8A-16-11.3T-RL-SHK-3M
    Reference no. 493670
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 52.593
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 493671
  • Details
    C82 H8A-16-11.2T-RL-SHK-4M
    Reference no. 493671
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 63.993
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 493672
  • Details
    C82 H8A-16-11.2T-RL-SHK-6M
    Reference no. 493672
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 86.793
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
