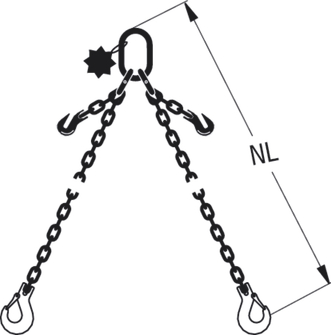

HIT chain sling quality grade 8, 2-leg, can be shortened Standard load hook

Chain sling with shortener parallel hook and standard load hook for 2-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.

Technical data
Product variants
Downloads
Contact

Technical data

Quality grade

Legs Quantity

2-leg

Operating temperature

–40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

Chain following EN 818
EN 1677-compliant chain components

Marking

Batch number and serial number
Quality grade no.
Quality grade and working load limit symbol

Safety factor

Chain surface

coated

Chain colour

black

Component surface

coated

Component colour

Shortening

cannot be shortened

Product variants

G82 H8A-6-1.6T-RA-PKU-HK-2M

Reference no.	701413
Working load limit 0–45° [kg]	1600
Working load limit 45−60° [kg]	1120
Working load limit laced 0–45° [kg]	1250
Working load limit laced 45−60° [kg]	900
Nominal size of chain [mm]	6
Effective length WLL [m]	2
Weight approx. [kg]	4.7

G82 H8A-6-1.6T-RA-PKU-HK-3M

Reference no.	701414
Working load limit 0–45° [kg]	1600
Working load limit 45−60° [kg]	1120
Working load limit laced 0–45° [kg]	1250
Working load limit laced 45−60° [kg]	900
Nominal size of chain [mm]	6
Effective length WLL [m]	3
Weight approx. [kg]	6.3

G82 H8A-6-1.6T-RA-PKU-HK-4M

Reference no.	701415
Working load limit 0–45° [kg]	1600
Working load limit 45−60° [kg]	1120
Working load limit laced 0–45° [kg]	1250
Working load limit laced 45−60° [kg]	900
Nominal size of chain [mm]	6
Effective length WLL [m]	4
Weight approx. [kg]	7.9

G82 H8A-6-1.6T-RA-PKU-HK-6M

Reference no.	701416
Working load limit 0–45° [kg]	1600
Working load limit 45−60° [kg]	1120
Working load limit laced 0–45° [kg]	1250
Working load limit laced 45−60° [kg]	900
Nominal size of chain [mm]	6
Effective length WLL [m]	6
Weight approx. [kg]	11.1

G82 H8A-8-2.8T-RA-PKU-HK-2M

Reference no.	701417
Working load limit 0–45° [kg]	2800
Working load limit 45−60° [kg]	2000
Working load limit laced 0–45° [kg]	2240
Working load limit laced 45−60° [kg]	1600
Nominal size of chain [mm]	8
Effective length WLL [m]	2
Weight approx. [kg]	8.4

G82 H8A-8-2.8T-RA-PKU-HK-3M

Reference no.	701418
Working load limit 0–45° [kg]	2800
Working load limit 45−60° [kg]	2000
Working load limit laced 0–45° [kg]	2240
Working load limit laced 45−60° [kg]	1600
Nominal size of chain [mm]	8
Effective length WLL [m]	3
Weight approx. [kg]	11.2

G82 H8A-8-2.8T-RA-PKU-HK-4M

Reference no.	701419
Working load limit 0–45° [kg]	2800
Working load limit 45−60° [kg]	2000
Working load limit laced 0–45° [kg]	2240
Working load limit laced 45−60° [kg]	1600
Nominal size of chain [mm]	8
Effective length WLL [m]	4
Weight approx. [kg]	14.1

G82 H8A-8-2.8T-RA-PKU-HK-6M

Reference no.	701420
Working load limit 0–45° [kg]	2800
Working load limit 45−60° [kg]	2000
Working load limit laced 0–45° [kg]	2240
Working load limit laced 45−60° [kg]	1600
Nominal size of chain [mm]	8
Effective length WLL [m]	6
Weight approx. [kg]	19.6

G82 H8A-10-4.25T-RA-PKU-HK-2M

Reference no.	701421
Working load limit 0–45° [kg]	4250
Working load limit 45−60° [kg]	3150
Working load limit laced 0–45° [kg]	3550
Working load limit laced 45−60° [kg]	2500
Nominal size of chain [mm]	10
Effective length WLL [m]	2
Weight approx. [kg]	14

G82 H8A-10-4.25T-RA-PKU-HK-3M

Reference no.	701422
Working load limit 0–45° [kg]	4250
Working load limit 45−60° [kg]	3150
Working load limit laced 0–45° [kg]	3550
Working load limit laced 45−60° [kg]	2500
Nominal size of chain [mm]	10
Effective length WLL [m]	3
Weight approx. [kg]	18.5

G82 H8A-10-4.25T-RA-PKU-HK-4M

Reference no.	701423
Working load limit 0–45° [kg]	4250
Working load limit 45−60° [kg]	3150
Working load limit laced 0–45° [kg]	3550
Working load limit laced 45−60° [kg]	2500
Nominal size of chain [mm]	10
Effective length WLL [m]	4
Weight approx. [kg]	22.8

G82 H8A-10-4.25T-RA-PKU-HK-6M

Reference no.	701424
Working load limit 0–45° [kg]	4250
Working load limit 45−60° [kg]	3150
Working load limit laced 0–45° [kg]	3550
Working load limit laced 45−60° [kg]	2500
Nominal size of chain [mm]	10
Effective length WLL [m]	6
Weight approx. [kg]	31.7

G82 H8A-13-7.5T-RA-PKU-HK-2M

Reference no.	701425
Working load limit 0–45° [kg]	7500
Working load limit 45−60° [kg]	5300
Working load limit laced 0–45° [kg]	5900
Working load limit laced 45−60° [kg]	4250
Nominal size of chain [mm]	13
Effective length WLL [m]	2
Weight approx. [kg]	25

G82 H8A-13-7.5T-RA-PKU-HK-3M

Reference no.	701426
Working load limit 0–45° [kg]	7500
Working load limit 45−60° [kg]	5300
Working load limit laced 0–45° [kg]	5900
Working load limit laced 45−60° [kg]	4250
Nominal size of chain [mm]	13
Effective length WLL [m]	3
Weight approx. [kg]	32.7

G82 H8A-13-7.5T-RA-PKU-HK-4M

Reference no.	701427
Working load limit 0–45° [kg]	7500
Working load limit 45−60° [kg]	5300
Working load limit laced 0–45° [kg]	5900
Working load limit laced 45−60° [kg]	4250
Nominal size of chain [mm]	13
Effective length WLL [m]	4
Weight approx. [kg]	40.4

G82 H8A-13-7.5T-RA-PKU-HK-6M

Reference no.	701428
Working load limit 0–45° [kg]	7500
Working load limit 45−60° [kg]	5300
Working load limit laced 0–45° [kg]	5900
Working load limit laced 45−60° [kg]	4250
Nominal size of chain [mm]	13
Effective length WLL [m]	6
Weight approx. [kg]	55.2

C82 H8A-16-11.2T-RA-PKU-HK-2M

Reference no.	701429
Working load limit 0–45° [kg]	11200
Working load limit 45−60° [kg]	8000
Working load limit laced 0–45° [kg]	9000
Working load limit laced 45−60° [kg]	6300
Nominal size of chain [mm]	16
Effective length WLL [m]	2
Weight approx. [kg]	40.6

C82 H8A-16-11.2T-RA-PKU-HK-3M

Reference no.	701430
Working load limit 0–45° [kg]	11200
Working load limit 45−60° [kg]	8000
Working load limit laced 0–45° [kg]	9000
Working load limit laced 45−60° [kg]	6300
Nominal size of chain [mm]	16
Effective length WLL [m]	3
Weight approx. [kg]	51.6

C82 H8A-16-11.3T-RA-PKU-HK-4M

Reference no.	701431
Working load limit 0–45° [kg]	11200
Working load limit 45−60° [kg]	8000
Working load limit laced 0–45° [kg]	9000
Working load limit laced 45−60° [kg]	6300
Nominal size of chain [mm]	16
Effective length WLL [m]	4
Weight approx. [kg]	62.5

C82 H8A-16-11.2T-RA-PKU-HK-6M

Reference no.	701432
Working load limit 0–45° [kg]	11200
Working load limit 45−60° [kg]	8000
Working load limit laced 0–45° [kg]	9000
Working load limit laced 45−60° [kg]	6300
Nominal size of chain [mm]	16
Effective length WLL [m]	6
Weight approx. [kg]	85.5

C82 H8A-18-14T-RA-PKU-HK-2M

Reference no.	702097
Working load limit 0–45° [kg]	14000
Working load limit 45−60° [kg]	10000
Working load limit laced 0–45° [kg]	11200
Working load limit laced 45−60° [kg]	8000
Nominal size of chain [mm]	18
Effective length WLL [m]	2
Weight approx. [kg]	56.9

C82 H8A-18-14T-RA-PKU-HK-3M

Reference no.	702098
Working load limit 0–45° [kg]	14000
Working load limit 45−60° [kg]	10000
Working load limit laced 0–45° [kg]	11200
Working load limit laced 45−60° [kg]	8000
Nominal size of chain [mm]	18
Effective length WLL [m]	3
Weight approx. [kg]	70.9

C82 H8A-18-14T-RA-PKU-HK-4M

Reference no.	702099
Working load limit 0–45° [kg]	14000
Working load limit 45−60° [kg]	10000
Working load limit laced 0–45° [kg]	11200
Working load limit laced 45−60° [kg]	8000
Nominal size of chain [mm]	18
Effective length WLL [m]	4
Weight approx. [kg]	84.9

C82 H8A-18-14T-RA-PKU-HK-6M

Reference no.	702100
Working load limit 0–45° [kg]	14000
Working load limit 45−60° [kg]	10000
Working load limit laced 0–45° [kg]	11200
Working load limit laced 45−60° [kg]	8000
Nominal size of chain [mm]	18
Effective length WLL [m]	6
Weight approx. [kg]	114.7

C82 H8A-20-17T-RA-PK-U-HK-2M

Reference no.	492895
Working load limit 0–45° [kg]	17000
Working load limit 45−60° [kg]	12500
Working load limit laced 0–45° [kg]	14000
Working load limit laced 45−60° [kg]	10000
Clear height [mm]	300
Clearance [mm]	160
Nominal size of chain [mm]	20
Effective length WLL [m]	2
Weight approx. [kg]	62.77

C82 H8A-20-17T-RA-PK-U-HK-3M

Reference no.	492896
Working load limit 0–45° [kg]	17000
Working load limit 45−60° [kg]	12500
Working load limit laced 0–45° [kg]	14000
Working load limit laced 45−60° [kg]	10000
Clear height [mm]	300
Clearance [mm]	160
Nominal size of chain [mm]	20
Effective length WLL [m]	3
Weight approx. [kg]	80.77

C82 H8A-20-17T-RA-PK-U-HK-4M

Reference no.	492897
Working load limit 0–45° [kg]	17000
Working load limit 45−60° [kg]	12500
Working load limit laced 0–45° [kg]	14000
Working load limit laced 45−60° [kg]	10000
Clear height [mm]	300
Clearance [mm]	160
Nominal size of chain [mm]	20
Effective length WLL [m]	4
Weight approx. [kg]	98.77

C82 H8A-20-17T-RA-PK-U-HK-6M

Reference no.	492898
Working load limit 0–45° [kg]	17000
Working load limit 45−60° [kg]	12500
Working load limit laced 0–45° [kg]	14000
Working load limit laced 45−60° [kg]	10000
Clear height [mm]	300
Clearance [mm]	160
Nominal size of chain [mm]	20
Effective length WLL [m]	6
Weight approx. [kg]	134.77

C82 H8A-22-21.2T-RA-PK-U-HK-2M

Reference no.	492899
Working load limit 0–45° [kg]	21200
Working load limit 45−60° [kg]	15000
Working load limit laced 0–45° [kg]	17000
Working load limit laced 45−60° [kg]	12000
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	22
Effective length WLL [m]	2
Weight approx. [kg]	82.598

C82 H8A-22-21.2T-RA-PK-U-HK-3M

Reference no.	492900
Working load limit 0–45° [kg]	21200
Working load limit 45−60° [kg]	15000
Working load limit laced 0–45° [kg]	17000
Working load limit laced 45−60° [kg]	12000
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	22
Effective length WLL [m]	3
Weight approx. [kg]	104.398

C82 H8A-22-21.2T-RA-PK-U-HK-4M

Reference no.	492901
Working load limit 0–45° [kg]	21200
Working load limit 45−60° [kg]	15000
Working load limit laced 0–45° [kg]	17000
Working load limit laced 45−60° [kg]	12000
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	22
Effective length WLL [m]	4
Weight approx. [kg]	126.198

C82 H8A-22-21.2T-RA-PK-U-HK-6M

Reference no.	492902
Working load limit 0–45° [kg]	21200
Working load limit 45−60° [kg]	15000
Working load limit laced 0–45° [kg]	17000
Working load limit laced 45−60° [kg]	12000
Clear height [mm]	340
Clearance [mm]	180
Nominal size of chain [mm]	22
Effective length WLL [m]	6
Weight approx. [kg]	169.798

C82 H8A-26-30T-RA-PK-U-HK-2M

Reference no.	492903
Working load limit 0–45° [kg]	30000
Working load limit 45−60° [kg]	21200
Working load limit laced 0–45° [kg]	24000
Working load limit laced 45−60° [kg]	17000
Clear height [mm]	350
Clearance [mm]	190
Nominal size of chain [mm]	26
Effective length WLL [m]	2
Weight approx. [kg]	130.951

C82 H8A-26-30T-RA-PK-U-HK-3M

Reference no.	492904
Working load limit 0–45° [kg]	30000
Working load limit 45−60° [kg]	21200
Working load limit laced 0–45° [kg]	23700
Working load limit laced 45−60° [kg]	16950
Clear height [mm]	350
Clearance [mm]	190
Nominal size of chain [mm]	26
Effective length WLL [m]	3
Weight approx. [kg]	161.351

C82 H8A-26-30T-RA-PK-U-HK-4M

Reference no.	492905
Working load limit 0–45° [kg]	30000
Working load limit 45−60° [kg]	21200
Working load limit laced 0–45° [kg]	23700
Working load limit laced 45−60° [kg]	16950
Clear height [mm]	350
Clearance [mm]	190
Nominal size of chain [mm]	26
Effective length WLL [m]	4
Weight approx. [kg]	191.751

C82 H8A-26-30T-RA-PK-U-HK-6M

Reference no.	492906
Working load limit 0–45° [kg]	30000
Working load limit 45−60° [kg]	21200
Working load limit laced 0–45° [kg]	23700
Working load limit laced 45−60° [kg]	16950
Clear height [mm]	350
Clearance [mm]	190
Nominal size of chain [mm]	26
Effective length WLL [m]	6
Weight approx. [kg]	252.551

C82 H8A-32-45T-RA-P-H-H-2M

Reference no.	493593
Working load limit 0–45° [kg]	45000
Working load limit 45−60° [kg]	31500
Working load limit laced 0–45° [kg]	36000
Working load limit laced 45−60° [kg]	25000
Clear height [mm]	400
Clearance [mm]	200
Nominal size of chain [mm]	32
Effective length WLL [m]	2
Weight approx. [kg]	194.01

C82 H8A-32-45T-RA-P-H-H-3M

Reference no.	493594
Working load limit 0–45° [kg]	45000
Working load limit 45−60° [kg]	31500
Working load limit laced 0–45° [kg]	36000
Working load limit laced 45−60° [kg]	25200
Clear height [mm]	400
Clearance [mm]	200
Nominal size of chain [mm]	32
Effective length WLL [m]	3
Weight approx. [kg]	240.01

C82 H8A-32-45T-RA-P-H-H-4M

Reference no.	493595
Working load limit 0–45° [kg]	45000
Working load limit 45−60° [kg]	31500
Working load limit laced 0–45° [kg]	36000
Working load limit laced 45−60° [kg]	25200
Clear height [mm]	400
Clearance [mm]	200
Nominal size of chain [mm]	32
Effective length WLL [m]	4
Weight approx. [kg]	286.01

C82 H8A-32-45T-RA-P-H-H-6M

Reference no.	493596
Working load limit 0–45° [kg]	45000
Working load limit 45−60° [kg]	31500
Working load limit laced 0–45° [kg]	36000
Working load limit laced 45−60° [kg]	25200
Clear height [mm]	400
Clearance [mm]	200
Nominal size of chain [mm]	32
Effective length WLL [m]	6
Weight approx. [kg]	378.01

Working load limit 0–45° [kg] 1600

Working load limit 45−60° [kg] 1120

Working load limit laced 0–45° [kg] 1250

Working load limit laced 45−60° [kg] 900

Nominal size of chain [mm] 6

Effective length WLL [m] 2

Reference no. 701413

Market	Contact	Location type
All other markets	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Tel. +49 8331 937-9623 Fax +49 8331 937-380 E-Mail verkauf-azs@pfeifer.de Web www.pfeifer.info	Parent company/Head office
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Mobile Services Tel. +49 800 7237244 Fax +49 8331 937-198 E-Mail pruefservice-azs@pfeifer.de Web www.pfeifer.info	Service centre
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Strasse 66 DE-87700 Memmingen Academy Tel. +49 8331 937-462 E-Mail academy@pfeifer.de Web www.pfeifer.info	Service centre
Austria	PFEIFER Seil- und Hebetechnik GmbH Harterfeldweg 2 AT-4481 Asten Tel. +43 7224 662 24-0 Fax +43 7224 662 24-13 E-Mail info@pfeifer-austria.at Web www.pfeifer-austria.at	Sales subsidiary
France	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +33 676 54 42 68 / +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Luxemburg	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Poland	PFEIFER Technika Linowa i Dźwigowa Sp. z o.o. ul. Wrocławska 68 55-330 Krępice k/Wrocławia Tel. +48 71 30 23 700 E-Mail info@pfeifer.pl Web www.pfeifer.pl	Sales subsidiary

HIT chain sling quality grade 8, 2-leg, can be shortened Standard load hook

Quality grade

Legs Quantity

Operating temperature

Standard

Marking

Safety factor

Chain surface

Chain colour

Component surface

Component colour

Shortening

Description

Applications

Feel free to contact us

Tel.

E-Mail

Inquiry

Cookie settings

Required cookies

Functional cookies
