HIT chain sling quality grade 8, single-leg, can be shortened Standard load hook

HIT chain sling quality grade 8, single-leg, can be shortened Standard load hook

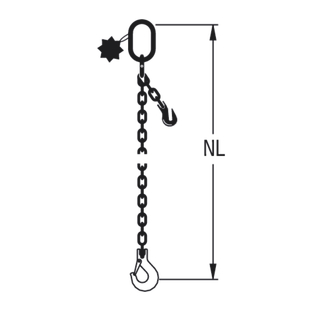

Chain sling with shortener parallel hook and standard load hook for single-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • can be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1120
    900
    6
    2
    701119
    G81 H8A-6-1.12T-RA-PKU-HK-2M
    Reference no. 701119
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.6
  • 1120
    900
    6
    3
    701120
    G81 H8A-6-1.12T-RA-PKU-HK-3M
    Reference no. 701120
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.4
  • 1120
    900
    6
    4
    701122
    G81 H8A-6-1.12T-RA-PKU-HK-4M
    Reference no. 701122
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.1
  • 1120
    900
    6
    6
    701124
    G81 H8A-6-1.12T-RA-PKU-HK-6M
    Reference no. 701124
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.8
  • 2000
    1600
    8
    2
    701125
    G81 H8A-8-2T-RA-PKU-HK-2M
    Reference no. 701125
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.5
  • 2000
    1600
    8
    3
    701126
    G81 H8A-8-2T-RA-PKU-HK-3M
    Reference no. 701126
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.8
  • 2000
    1600
    8
    4
    701127
    G81 H8A-8-2T-RA-PKU-HK-4M
    Reference no. 701127
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.2
  • 2000
    1600
    8
    6
    701128
    G81 H8A-8-2T-RA-PKU-HK-6M
    Reference no. 701128
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.1
  • 3150
    2520
    10
    2
    701130
    G81 H8A-10-3.15T-RA-PKU-HK-2M
    Reference no. 701130
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7.2
  • 3150
    2520
    10
    3
    701131
    G81 H8A-10-3.15T-RA-PKU-HK-3M
    Reference no. 701131
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.4
  • 3150
    2520
    10
    4
    701132
    G81 H8A-10-3.15T-RA-PKU-HK-4M
    Reference no. 701132
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 11.7
  • 3150
    2520
    10
    6
    701133
    G81 H8A-10-3.15T-RA-PKU-HK-6M
    Reference no. 701133
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 16
  • 5300
    4240
    13
    2
    701134
    G81 H8A-13-5.3T-RA-PKU-HK-2M
    Reference no. 701134
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 12.9
  • 5300
    4240
    13
    3
    701135
    G81 H8A-13-5.3T-RA-PKU-HK-3M
    Reference no. 701135
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 16.8
  • 5300
    4240
    13
    4
    701136
    G81 H8A-13-5.3T-RA-PKU-HK-4M
    Reference no. 701136
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 20.7
  • 5300
    4240
    13
    6
    701137
    G81 H8A-13-5.3T-RA-PKU-HK-6M
    Reference no. 701137
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 28.4
  • 8000
    6400
    16
    2
    701138
    C81 H8A-16-8T-RA-PKU-HK-2M
    Reference no. 701138
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 20.6
  • 8000
    6400
    16
    3
    701139
    C81 H8A-16-8T-RA-PKU-HK-3M
    Reference no. 701139
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 26.1
  • 8000
    6400
    16
    4
    701140
    C81 H8A-16-8T-RA-PKU-HK-4M
    Reference no. 701140
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 32.1
  • 8000
    6400
    16
    6
    701141
    C81 H8A-16-8T-RA-PKU-HK-6M
    Reference no. 701141
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 43
  • 10000
    8000
    18
    2
    701142
    C81 H8A-18-10T-RA-PKU-HK-2M
    Reference no. 701142
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 29.3
  • 10000
    8000
    18
    3
    701143
    C81 H8A-18-10T-RA-PKU-HK-3M
    Reference no. 701143
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 36.3
  • 10000
    8000
    18
    4
    701144
    C81 H8A-18-10T-RA-PKU-HK-4M
    Reference no. 701144
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 44.2
  • 10000
    8000
    18
    6
    701145
    C81 H8A-18-10T-RA-PKU-HK-6M
    Reference no. 701145
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 58.2
  • 12500
    10000
    20
    2
    492857
    C81 H8A-20-12.5T-RA-PK-U-HK-2M
    Reference no. 492857
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 32.71
  • 12500
    10000
    20
    3
    492858
    C81 H8A-20-12.5T-RA-PK-U-HK-3M
    Reference no. 492858
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 41.71
  • 12500
    10000
    20
    4
    492859
    C81 H8A-20-12.5T-RA-PK-U-HK-4M
    Reference no. 492859
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 50.71
  • 12500
    10000
    20
    6
    492860
    C81 H8A-20-12.5T-RA-PK-U-HK-6M
    Reference no. 492860
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 68.71
  • 15000
    12000
    22
    2
    492861
    C81 H8A-22-15T-RA-PK-U-HK-2M
    Reference no. 492861
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 45.443
  • 15000
    12000
    22
    3
    492862
    C81 H8A-22-15T-RA-PK-U-HK-3M
    Reference no. 492862
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 56.343
  • 15000
    12000
    22
    4
    492863
    C81 H8A-22-15T-RA-PK-U-HK-4M
    Reference no. 492863
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 67.243
  • 15000
    12000
    22
    6
    492864
    C81 H8A-22-15T-RA-PK-U-HK-6M
    Reference no. 492864
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 89.043
  • 21200
    16960
    26
    2
    493142
    C81 H8A-26-21.2T-RA-PK-U-HK-2M
    Reference no. 493142
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 70.08
  • 21200
    16960
    26
    3
    493143
    C81 H8A-26-21.2T-RA-PK-U-HK-3M
    Reference no. 493143
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 85.28
  • 21200
    16960
    26
    4
    493144
    C81 H8A-26-21.2T-RA-PK-U-HK-4M
    Reference no. 493144
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 100.48
  • 21200
    16960
    26
    6
    493145
    C81 H8A-26-21.2T-RA-PK-U-HK-6M
    Reference no. 493145
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 130.88
  • 31500
    25000
    32
    2
    493146
    C81 H8A-32-31.5T-RA-P-H-H-2M
    Reference no. 493146
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 116.242
  • 31500
    25000
    32
    3
    493147
    C81 H8A-32-31.5T-RA-P-H-H-3M
    Reference no. 493147
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 139.242
  • 31500
    25000
    32
    4
    493148
    C81 H8A-32-31.5T-RA-P-H-H-4M
    Reference no. 493148
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 162.242
  • 31500
    25000
    32
    6
    493149
    C81 H8A-32-31.5T-RA-P-H-H-6M
    Reference no. 493149
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 208.242
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701119
  • Details
    G81 H8A-6-1.12T-RA-PKU-HK-2M
    Reference no. 701119
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.6
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701120
  • Details
    G81 H8A-6-1.12T-RA-PKU-HK-3M
    Reference no. 701120
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.4
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701122
  • Details
    G81 H8A-6-1.12T-RA-PKU-HK-4M
    Reference no. 701122
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.1
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701124
  • Details
    G81 H8A-6-1.12T-RA-PKU-HK-6M
    Reference no. 701124
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.8
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701125
  • Details
    G81 H8A-8-2T-RA-PKU-HK-2M
    Reference no. 701125
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.5
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701126
  • Details
    G81 H8A-8-2T-RA-PKU-HK-3M
    Reference no. 701126
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.8
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701127
  • Details
    G81 H8A-8-2T-RA-PKU-HK-4M
    Reference no. 701127
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.2
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701128
  • Details
    G81 H8A-8-2T-RA-PKU-HK-6M
    Reference no. 701128
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.1
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701130
  • Details
    G81 H8A-10-3.15T-RA-PKU-HK-2M
    Reference no. 701130
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7.2
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701131
  • Details
    G81 H8A-10-3.15T-RA-PKU-HK-3M
    Reference no. 701131
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.4
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701132
  • Details
    G81 H8A-10-3.15T-RA-PKU-HK-4M
    Reference no. 701132
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 11.7
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701133
  • Details
    G81 H8A-10-3.15T-RA-PKU-HK-6M
    Reference no. 701133
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 16
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701134
  • Details
    G81 H8A-13-5.3T-RA-PKU-HK-2M
    Reference no. 701134
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 12.9
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701135
  • Details
    G81 H8A-13-5.3T-RA-PKU-HK-3M
    Reference no. 701135
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 16.8
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701136
  • Details
    G81 H8A-13-5.3T-RA-PKU-HK-4M
    Reference no. 701136
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 20.7
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701137
  • Details
    G81 H8A-13-5.3T-RA-PKU-HK-6M
    Reference no. 701137
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 28.4
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701138
  • Details
    C81 H8A-16-8T-RA-PKU-HK-2M
    Reference no. 701138
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 20.6
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701139
  • Details
    C81 H8A-16-8T-RA-PKU-HK-3M
    Reference no. 701139
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 26.1
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701140
  • Details
    C81 H8A-16-8T-RA-PKU-HK-4M
    Reference no. 701140
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 32.1
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701141
  • Details
    C81 H8A-16-8T-RA-PKU-HK-6M
    Reference no. 701141
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 43
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701142
  • Details
    C81 H8A-18-10T-RA-PKU-HK-2M
    Reference no. 701142
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 29.3
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701143
  • Details
    C81 H8A-18-10T-RA-PKU-HK-3M
    Reference no. 701143
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 36.3
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701144
  • Details
    C81 H8A-18-10T-RA-PKU-HK-4M
    Reference no. 701144
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 44.2
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701145
  • Details
    C81 H8A-18-10T-RA-PKU-HK-6M
    Reference no. 701145
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 58.2
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 492857
  • Details
    C81 H8A-20-12.5T-RA-PK-U-HK-2M
    Reference no. 492857
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 32.71
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 492858
  • Details
    C81 H8A-20-12.5T-RA-PK-U-HK-3M
    Reference no. 492858
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 41.71
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 492859
  • Details
    C81 H8A-20-12.5T-RA-PK-U-HK-4M
    Reference no. 492859
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 50.71
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 492860
  • Details
    C81 H8A-20-12.5T-RA-PK-U-HK-6M
    Reference no. 492860
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 68.71
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 492861
  • Details
    C81 H8A-22-15T-RA-PK-U-HK-2M
    Reference no. 492861
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 45.443
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 492862
  • Details
    C81 H8A-22-15T-RA-PK-U-HK-3M
    Reference no. 492862
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 56.343
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 492863
  • Details
    C81 H8A-22-15T-RA-PK-U-HK-4M
    Reference no. 492863
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 67.243
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 492864
  • Details
    C81 H8A-22-15T-RA-PK-U-HK-6M
    Reference no. 492864
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 89.043
Working load limit 0° [kg] 21200
Working load limit laced 16960
Nominal size of chain [mm] 26
Effective length WLL [m] 2
Reference no. 493142
  • Details
    C81 H8A-26-21.2T-RA-PK-U-HK-2M
    Reference no. 493142
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 70.08
Working load limit 0° [kg] 21200
Working load limit laced 16960
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 493143
  • Details
    C81 H8A-26-21.2T-RA-PK-U-HK-3M
    Reference no. 493143
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 85.28
Working load limit 0° [kg] 21200
Working load limit laced 16960
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 493144
  • Details
    C81 H8A-26-21.2T-RA-PK-U-HK-4M
    Reference no. 493144
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 100.48
Working load limit 0° [kg] 21200
Working load limit laced 16960
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 493145
  • Details
    C81 H8A-26-21.2T-RA-PK-U-HK-6M
    Reference no. 493145
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 130.88
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 2
Reference no. 493146
  • Details
    C81 H8A-32-31.5T-RA-P-H-H-2M
    Reference no. 493146
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 116.242
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 493147
  • Details
    C81 H8A-32-31.5T-RA-P-H-H-3M
    Reference no. 493147
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 139.242
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 493148
  • Details
    C81 H8A-32-31.5T-RA-P-H-H-4M
    Reference no. 493148
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 162.242
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 493149
  • Details
    C81 H8A-32-31.5T-RA-P-H-H-6M
    Reference no. 493149
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 208.242
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
